Subwoofer

WC Subwoofer SW31-8       order no. au-sw318       EUR 290,00 excl. VAT: € 243.70 / $ 302.18
. The basket is made of die-cast.
  • power handling (continuous/programme) = 250 W
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • voice coil inductance L = 6,3 mH
  • effective piston radiating area Sd = 513 cm2
  • effective mechanical mass incl. air load mms = 183 g
  • equivalent volume of compliance Vas = 68 l
  • total Q factor Qts = 0,59 (Qms=12,8, Qes=0,62)
  • maximum peak linear excursion vibration xlin = +/- 11,25 mm
  • mounting diameter d = 278 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 149 mm
  • mass m = 7,15 kg

show kits to this chassis hide kits

WC Passiv PR 31       order no. au-pr31       EUR 170,00 excl. VAT: € 142.86 / $ 177.14
. The basket is made of die-cast.
  • resonance frequency fs = 12,5-19 Hz
  • effective piston radiating area Sd = 513 cm2
  • effective mechanical mass incl. air load mms = 270 g
  • equivalent volume of compliance Vas = 98 l
  • total Q factor Qts = 0,4 (Qms=12,8, Qes=0,41)
  • mounting diameter d = 282 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 110 mm
  • mass m = 1,65 kg

show kits to this chassis hide kits


open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
73 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 28/24 Hz (-3dB/-8dB).

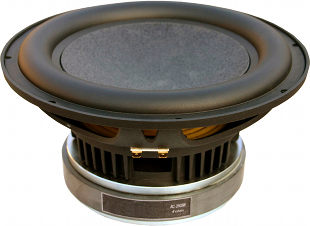

AC 250SW       order no. au-ac250sw       EUR 159,00 excl. VAT: € 133.61 / $ 165.68
. The basket is made of die-cast.
  • power handling (continuous/programme) = 180/360 W
  • resonance frequency fs = 35 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 10,1 N/A
  • voice coil inductance L = 0,84 mH
  • effective piston radiating area Sd = 330 cm2
  • effective mechanical mass incl. air load mms = 101 g
  • equivalent volume of compliance Vas = 42 l
  • total Q factor Qts = 0,45 (Qms=2,35, Qes=0,56)
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 238 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 126,5 mm
  • mass m = 5,5 kg

show kits to this chassis hide kits

Tweeter   ribbon   classic   amt   Woofer   Subwoofer   no longer sold
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
