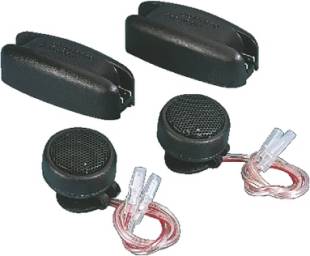

CRB-30       order no. mo-130690       - not available (_)
19 mm tweeter with high quality cone. A pair of speakers is delivered (the price is for one pair). Voice coil windings immersed in magnetic fluid increase short term power handling capacity. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 50/100 W
  • resonance frequency fs = 2500 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 19 mm
  • overall diameter d = 33,5 mm
  • mass m = 0,06 kg
PDF data sheet

recommended cabinet 1:
closed cabinet with 25 L volume
from 51/32 Hz (-3dB/-8dB)

recommended cabinet 2:
104 L volume bass reflex cabinet
with HP100 reflex tube, 25 cm long.
from 23/20 Hz (-3dB/-8dB).

CRB-10TC       order no. mo-131710       - not available (_)
23 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 2x100/2x200 W
  • resonance frequency fs = 34 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 2x3,9 Ohm
  • force factor BL = 16,2 N/A
  • voice coil inductance L = 2x1,1 mH
  • effective piston radiating area Sd = 330 cm2
  • effective mechanical mass incl. air load mms = 90 g
  • equivalent volume of compliance Vas = 38 l
  • total Q factor Qts = 0,53 (Qms=5,82, Qes=0,58)
  • voice coil diameter = 38 mm
  • mounting diameter d = 200 mm
  • overall diameter d = 255 mm
  • mounting depth (not countersunk) t = 125 mm

recommended cabinet 1:
closed cabinet with 42 L volume
from 50/31 Hz (-3dB/-8dB)

recommended cabinet 2:
162 L volume bass reflex cabinet
with 2x HP100 reflex tube, 31 cm long.
from 24/20 Hz (-3dB/-8dB).

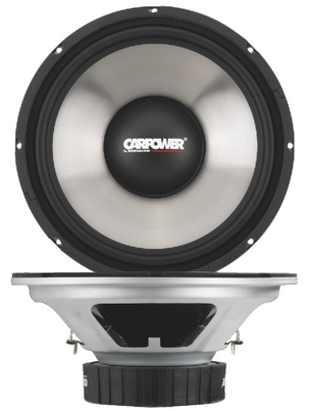

CRB-300TCR       order no. mo-131260       - not available (_)
29 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 2x150/2x300 W
  • resonance frequency fs = 26 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 2x3,2 Ohm
  • force factor BL = 14,3 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 498 cm2
  • effective mechanical mass incl. air load mms = 84 g
  • equivalent volume of compliance Vas = 135 l
  • total Q factor Qts = 0,41 (Qms=4,25, Qes=0,46)
  • voice coil diameter = 50 mm
  • mounting diameter d = 274 mm
  • overall diameter d = 308 mm
  • mounting depth (not countersunk) t = 127 mm

recommended cabinet 1:
closed cabinet with 14,1 L volume
from 48/30 Hz (-3dB/-8dB)

recommended cabinet 2:
58 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 22/19 Hz (-3dB/-8dB).

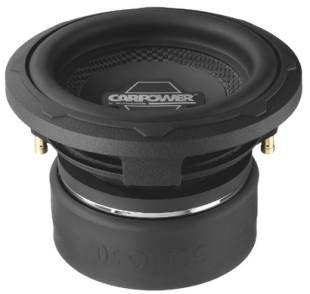

Sonic-10       order no. mo-131620       - not available (_)
25 cm bass driver with carbon cone.
  • power handling (continuous/programme) = 600 W
  • resonance frequency fs = 31 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 17 N/A
  • voice coil inductance L = 2,8 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 188 g
  • equivalent volume of compliance Vas = 24 l
  • total Q factor Qts = 0,5 (Qms=8,25, Qes=0,53)
  • voice coil diameter = 75 mm
  • mounting diameter d = 236 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 177 mm

recommended cabinet 1:
closed cabinet with 25 L volume
from 44/28 Hz (-3dB/-8dB)

recommended cabinet 2:
101 L volume bass reflex cabinet
with HP100 reflex tube, 36 cm long.
from 21/17 Hz (-3dB/-8dB).

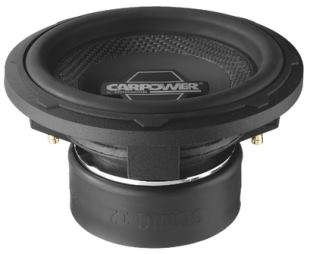

Sonic-12       order no. mo-131630       - not available (_)
30 cm bass driver with carbon cone.
  • power handling (continuous/programme) = 700 W
  • resonance frequency fs = 27 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 19 N/A
  • voice coil inductance L = 2,8 mH
  • effective piston radiating area Sd = 511 cm2
  • effective mechanical mass incl. air load mms = 250 g
  • equivalent volume of compliance Vas = 51 l
  • total Q factor Qts = 0,47 (Qms=11,2, Qes=0,49)
  • voice coil diameter = 75 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 312 mm
  • mounting depth (not countersunk) t = 171 mm

recommended cabinet 1:
closed cabinet with 74 L volume
from 39/25 Hz (-3dB/-8dB)

recommended cabinet 2:
304 L volume bass reflex cabinet
with 2x HP100 reflex tube, 26 cm long.
from 18/15 Hz (-3dB/-8dB).

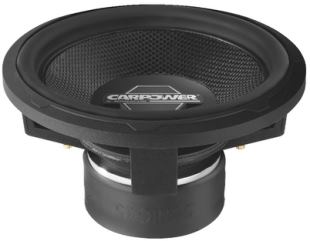

Sonic-15       order no. mo-131640       - not available (_)
37 cm bass driver with carbon cone.
  • power handling (continuous/programme) = 800 W
  • resonance frequency fs = 25 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 19 N/A
  • voice coil inductance L = 2,8 mH
  • effective piston radiating area Sd = 830 cm2
  • effective mechanical mass incl. air load mms = 310 g
  • equivalent volume of compliance Vas = 126 l
  • total Q factor Qts = 0,5 (Qms=10,86, Qes=0,52)
  • voice coil diameter = 75 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 201 mm

recommended cabinet 1:
closed cabinet with 238 L volume
from 35/22 Hz (-3dB/-8dB)

recommended cabinet 2:
955 L volume bass reflex cabinet
with 2x HP100 reflex tube, 4 cm long.
from 17/14 Hz (-3dB/-8dB).

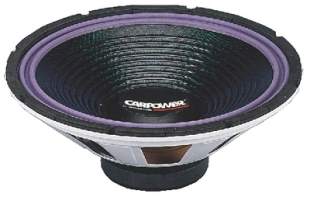

SP-382C       order no. mo-102830       - not available (_)
37 cm bass driver with paper cone.
  • power handling (continuous/programme) = 220/500 W
  • resonance frequency fs = 20 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 9,99 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 855 cm2
  • effective mechanical mass incl. air load mms = 113 g
  • equivalent volume of compliance Vas = 590 l
  • total Q factor Qts = 0,44 (Qms=3,53, Qes=0,5)
  • voice coil diameter = 50 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 382 mm
  • mounting depth (not countersunk) t = 139 mm

recommended cabinet 1:
closed cabinet with 2,9 L volume
from 128/80 Hz (-3dB/-8dB)

recommended cabinet 2:
11,1 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 63/51 Hz (-3dB/-8dB).

PREDATOR-6/8       order no. mo-131480       - not available (_)
16 cm bass driver with carbon cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole.
  • power handling (continuous/programme) = 100/180 W
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 5,75 Ohm
  • force factor BL = 7,97 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 10 l
  • total Q factor Qts = 0,41 (Qms=4,52, Qes=0,45)
  • voice coil diameter = 25 mm
  • mounting diameter d = 144 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 78 mm

recommended cabinet 1:
closed cabinet with 7,9 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
32 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 33/28 Hz (-3dB/-8dB).

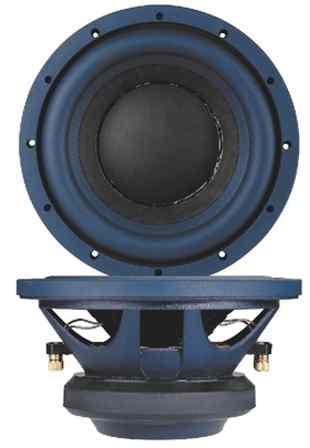

PREDATOR-10       order no. mo-131390       - not available (_)
26 cm bass driver with high quality cone. The voice coil is made of kapton. The basket is made of die-cast.
  • power handling (continuous/programme) = 2x200/2x300 W
  • resonance frequency fs = 39 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 2x1,7 Ohm
  • force factor BL = 14,82 N/A
  • voice coil inductance L = 2 mH
  • effective piston radiating area Sd = 340 cm2
  • effective mechanical mass incl. air load mms = 120 g
  • equivalent volume of compliance Vas = 21 l
  • total Q factor Qts = 0,43 (Qms=4,46, Qes=0,48)
  • voice coil diameter = 75 mm
  • mounting diameter d = 234 mm
  • overall diameter d = 273 mm
  • mounting depth (not countersunk) t = 125 mm

recommended cabinet 1:
closed cabinet with 29 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
119 L volume bass reflex cabinet
with 2x HP100 reflex tube, 35 cm long.
from 26/22 Hz (-3dB/-8dB).

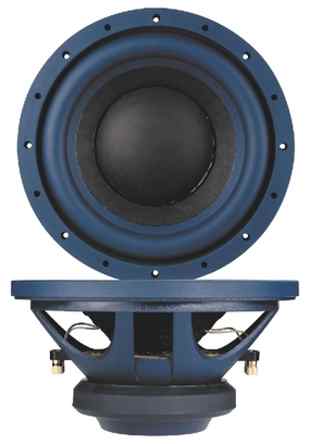

PREDATOR-12       order no. mo-131400       - not available (_)
30 cm bass driver with high quality cone. The voice coil is made of kapton. The basket is made of die-cast.
  • power handling (continuous/programme) = 2x250/2x400 W
  • resonance frequency fs = 33 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 2x1,8 Ohm
  • force factor BL = 14,79 N/A
  • voice coil inductance L = 2 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 138 g
  • equivalent volume of compliance Vas = 64 l
  • total Q factor Qts = 0,46 (Qms=4,2, Qes=0,52)
  • voice coil diameter = 75 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 323 mm
  • mounting depth (not countersunk) t = 144 mm

recommended cabinet 1:
closed cabinet with 18 L volume
from 61/39 Hz (-3dB/-8dB)

recommended cabinet 2:
73 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 27/24 Hz (-3dB/-8dB).

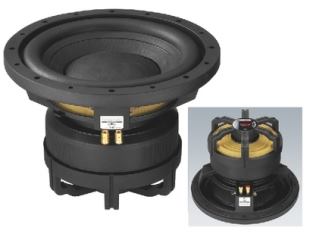

RAPTOR-12       order no. mo-103910       - not available (_)
30 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 1000/1500 W
  • resonance frequency fs = 43 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 16,5 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 470 cm2
  • effective mechanical mass incl. air load mms = 180 g
  • equivalent volume of compliance Vas = 22,5 l
  • total Q factor Qts = 0,55 (Qms=9,04, Qes=0,58)
  • voice coil diameter = 77 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 205 mm

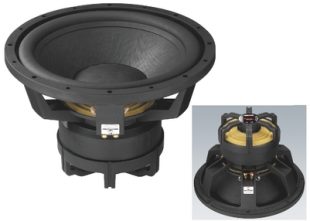

RAPTOR-15       order no. mo-104290       - not available (_)
38 cm bass driver with high quality cone.
  • power handling (continuous/programme) = 1000/1500 W
  • resonance frequency fs = 39 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 16,4 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 810 cm2
  • effective mechanical mass incl. air load mms = 230 g
  • equivalent volume of compliance Vas = 56 l
  • total Q factor Qts = 0,69 (Qms=7,24, Qes=0,77)
  • voice coil diameter = 77 mm
  • mounting diameter d = 361 mm
  • overall diameter d = 397 mm
  • mounting depth (not countersunk) t = 246 mm
Tweeter   Mids   Fullrange   Woofer   no longer sold   PA   Mids   Woofer   Fullrange   no longer sold   Car   Woofer   no longer sold
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
