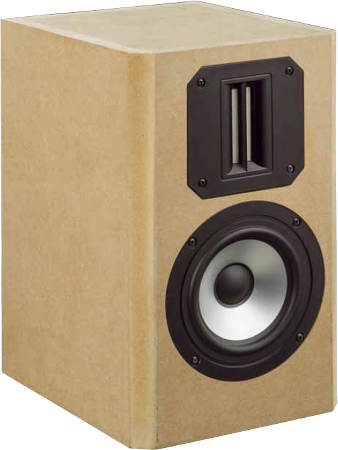

Bijou MHT   Shelf speaker as in K+T 3/2015

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 83 dB
  • size (HxWxD): 330 x 200 x 230 mm
  • frequency range (-8dB): 47 - 40000 Hz
  • crossover frequency(s): 3700 Hz
  • speaker type: bass reflex

Bijou (French for gem) is an appropriate name for this speaker. It's a small shelf speaker with Visaton AL 170 and the ceramic dome KE 25 SC. Now Bijou is available with Visaton magnetostat MHT 12 and the smaller woofer Visaton AL130. It's name is Bijou MHT.

This box has been developed by Visaton and Thomas Schmidt. The cabinet is built as bass reflex system.

The crossover consists of a 3nd order high-pass filter (18 dB per octave slope) for the magnetostat and a first order low-pass filter supported by two absorption circuits for the woofer.

Our kit consists of

  • Visaton magnetostat MHT 12, 8 Ohm
  • Visaton woofer AL 130, 8 Ohm
  • Bass reflex tube BR19.24, black
  • PE sealing tape, 5x2 mm
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Terminal T105 Au, with brass, gold plated
  • 2m Speaker cable 2x1.5 mm2, transparent
  • Pan screws 3.5x17 black, cross recess, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.
  • Audaphon MKP CAP Superior 3.3 μF / 400 Vdc
  • Audaphon MKP CAP Superior 22 μF / 400 Vdc
  • Audaphon MKT CAP 1.5 μF / 160 Vdc
  • Audaphon MKT CAP 2.2 μF / 160 Vdc
  • Audaphon MKT CAP 15 μF / 160 Vdc
  • 1.0 mm air core coil, 0.82 mH/0.44 Ohm
  • 0.7 mm air core coil, 0.10 mH/0.27 Ohm
  • 0.7 mm air core coil, 0.33 mH/0.48 Ohm
  • 0.7 mm air core coil, 2.2 mH/1.3 Ohm
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)


Kit without cabinet,
price per speaker   EUR 549,00 excl. VAT: € 461.34 / $ 498.25

Kit with high-end crossover

The high-end kit comes with ClarityCap high-value polypropylen (MKP) foil capacitors. The inductances are copper foil or baked varnished coils for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered.


Kit without cabinet,
price per speaker   - not available

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 14,50 excl. VAT: € 12.18 / $ 13.16

universal PCBs

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.35
We recommend one board per kit (two boards for a speaker pair).

If you built up the higend version or if you choose the impedance correction two boards per speaker are recommended.
