Cheap Trick CT 198 from Klang+Ton 6/02 (2016: with new amplifier)

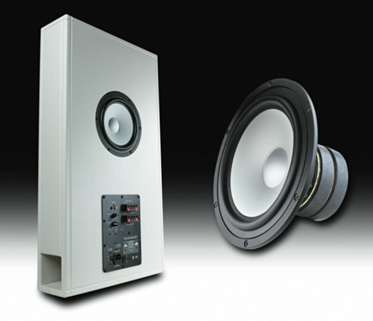

The CT 198, introduced by Klang+Ton, is an extremely flat transmission line subwoofer. When the interior design doesn't allow a big subwoofer or the listening room is just not big enough, then this wall mounted subwoofer is a good choice. The transmission line ports are at the bottom left and right (see picture). The technical data:
- dimensions (HxWxD): 83.4 x 46 x 13.8 cm
- impedance: 8 Ohm
- sensitivity: not applicable
- output: 60/120 Watt continuous/programme
- frequency range (-3dB): 38-100 Hz
- maximum SPL (1m): 103 dB
CT198 The CT 198 is equipped with an Alcone AC8 HE and an amplifier module Mivoc AM 80.

The CT198 kit contains:
- 1 x Alcone AC8HE bass driver with twin magnet
- 1 x subwoofer module Mivoc AM 80
- 3 x polyester dampig material
- 1 set screws 20 x Pan 4x20 mm
- 1 metre cable 2x1.5 mm2
- building instruction

Please note: the damping material, recommended by Klang+Ton and the amplifier module are no longer available. So it is replaced by available parts.

Price per unit without cabinet:   - not available

A hint for damping

Bedämpfungshinweise
The three included packs of damping fleece
contain 6 strips of damping material.

Each strip needs to folded lengthways to double
up. How to pack the strips into the cabinet is
shown on the right.
