el Diablo a shelf speaker as in Klang+Ton 2/2008

el Diablo aus Klang+Ton 2/2008
Technical data
- size (HxWxD): 36.3 x 29.6 x 34.1 cm
- impedance: 6 Ohm
- sensitivity: 84 dB (2.83V/1m)
- frequency range (-8dB): 50 - 25000 Hz
- crossover frequency: 2600 Hz
- speaker type: bass reflex

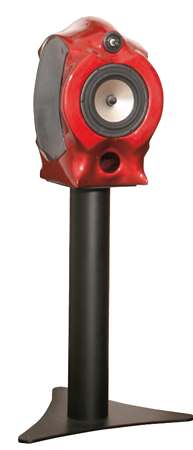

El Diablo is a project with glass fibre compound cabinet featured in Klang+Ton. The cabinet is surely diabolical and the sound is supposed to be detailed, extremely precise and diabolical as well.

El Diablo comprises a Seas 27 TAFNC/D tweeter and a Seas W180 NAL bass driver with aluminium cone.

Excerpt from the review in Klang+Ton 2/2008:
... "Extremely precise and open and with a lot attention to details, that's how el Diablo is wandering between sweet and diabolical seduction. Although this is speaker is somewhat restrained initially, it soon becomes pretty dynamic and can handle quite a bit of power. Since the efficiency is just average one has to crank up the volume, resulting in an impressive punch in return. Bass is rather tight and deep, always controlled and matches the excellent midrange performance perfectly. The Seas twins are not only well balanced but also crystal clear and pure. Maybe it's only imagination, but the Norwegian engineers seemed to have integrated the lack of diaphragm damping into their overall design rather successfully. For paper and textile cone aficionados this might be just too much, but I can strongly recommend this speaker to precision fanatics and lovers of a headphone-type performance, even though hell sometimes freezes over."

Our kit consists of:

- Seas 27 TAFNC/D tweeter
- Seas W180 NAL bass driver
- 2 gold plated binding posts
- 1 bag polyester fleece
- 1 bass reflex tube HP50
- 10 x screws Pan 3.5x17
- 2 metres cable 2x1.5 mm2
- the Klang+Ton building instruction

- one universal PCB 220 x 155 mm

- crossover components:
- 1.0 mH air core coil, 1.4 mm wire
- 0.68 mH air core coil, 1.4 mm wire
- 0.22 mH air core coil, 0.7 mm wire
- 0.39 mH air core coil, 0.7 mm wire
- 8.2 μF MKT capacitor
- 18 μF (10 μF + 8,2 μF in parallel) MKT capacitor
- 3.9 μF MKT capacitor
- 8.2 μF MKP capacitor / 400V
- 6.8 Ohm MOX 10 resistor (blue-grey-gold)
- 5.6 Ohm MOX 10 resistor (green-blue-gold)

Price of el Diablo kit without cabinet per speaker: EUR 286,00 excl. VAT: € 240.34 / $ 259.56

Upon request we also supply the el Diablo with high-end crossover

If you prefer high quality components we recommend the following Mundorf coils and capacitors:

- one universal PCB 220 x 155 mm
- 1.0 mH cfc14 copper foil coil
- 0.68 mH cfc14 copper foil coil
- 0.22 mH baked varnish coil, 0.7 mm wire
- 0.39 mH baked varnish coil, 0.7 mm wire

- 8.2 μF MKP capacitor / 400V
- 18 μF (10 μF + 8,2 μF in parallel) MKP capacitor / 400V
- 3.9 μF MKP capacitor / 400V
- 8.2 μF silver oil capacitor
- 6.8 Ohm MOX 10 resistor (blue-grey-gold)
- 5.6 Ohm MOX 10 resistor (green-blue-gold)

Price of el Diablo kit with high end crossover without cabinet per speaker: - not available
