Ground Sound Power Amplifier Modules
|
|
|
 Enlarge |
Description:

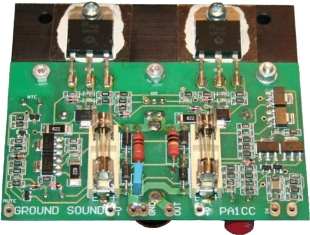

PA1CC is a bipolar power amplifier of classical
design working in class AB. PA1CC consists of a
differential cascode coupled input stage controlled
by a current generator. The input stage is totally
discreet to optimize for linearity and bandwidth.
The voltage gain stage is a current source stage,
which is differentially symmetric. The output stage
is of high current gain being an easy load to the
voltage gain stage. The output stage consists of 2
pieces totally complimentary high speed high
power bipolar transistors. PA1CC has short circuit
protection, thermal protection and rail fuses to
prevent output device break down. PA1CC features
sonic excellence, constant low output impedance,
low noise, low distortion and high reliability.
Features:
- 100W Power Amplifier module
- Class AB output stage
- Unique aluminium assembly profile
- Short circuit protection
- Thermal protection at 90°C
- Mute control
- Very reliable construction
Applications:
- High End Stereo
- Supreme Surround Sound
PDF data sheet
unit price
EUR 100,00
|
|
|
|
|
|
 Enlarge |
Description:
PA3CC is a bipolar power amplifier of classical
design working in class AB. PA3CC consists of a
differential cascode coupled input stage controlled
by a current generator. The input stage is totally
discreet to optimize for linearity and bandwidth.
The voltage gain stage is also cascode coupled,
which is differentially symmetric in class A, to
achieve low distortion at high frequencies. The
output stage is of high current gain being an easy
load to the voltage gain stage. The output stage
consists of 6 pieces totally complimentary high
speed high power bipolar transistors. PA3CC has
short circuit protection, thermal protection and rail
fuses to prevent output device break down. PA3CC
features sonic excellence, constant low output
impedance, low noise, low distortion and high
reliability.
Features:
- 300W Power Amplifier module
- Class AB output stage
- Unique aluminium assembly profile
- Short circuit protection
- Thermal protection at 90°C
- Mute control
- Very reliable construction
Applications:
- High End Stereo
- Supreme Surround Sound
PDF data sheet
set price
EUR 196,00
|
|
|
|
|
|
 Enlarge |
Description:
PA6CC is a bipolar power amplifier of classical
design working in class AB. PA6CC consists of a
differential cascode coupled input stage controlled
by a current generator. The input stage is totally
discreet to optimize for linearity and bandwidth.
The voltage gain stage is also cascode coupled,
which is differentially symmetric in class A, to
achieve low distortion at high frequencies. The
output stage is of high current gain being an easy
load to the voltage gain stage. The output stage
consists of 12 pieces totally complimentary high
speed high power bipolar transistors. PA6CC has
short circuit protection, thermal protection and rail
fuses to prevent output device break down. PA6CC
features sonic excellence, constant low output
impedance, low noise, low distortion and high
reliability.
Features:
- 600W Power Amplifier module
- Class AB output stage
- Unique aluminium assembly profile
- Short circuit protection
- Thermal protection at 90°C
- Mute control
- Very reliable construction
Applications:
- High End Stereo
- Supreme Surround Sound
PDF data sheet
unit price
EUR 291,00
|
|
|
|
