Description:

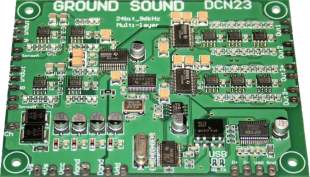

DCN23 is a high performance digital crossover
filter with equalization and delay. It features 2
balanced analogue inputs and 3 single-ended
analogue outputs. High performance converters
give DCN23 crystal clear sound and very low noise
floor. DCN23 has an optical isolated USB interface
to avoid hum and noise from the PC. The circuit
board is a high quality 4 layer type which prevents
noise and hum. The XOverWizard program is a
graphical tool to change inputs, outputs, gain,
crossover frequencies, crossover slopes,
equalization and delay. The XOverWizard has a
very significant feature: the ability to import a text
file containing measured driver data of frequency,
sound pressure level and phase. With these data the
XOverWizard are able to display frequency
response and more, while design is in progress.
Compared to this method, the “old” trial and error
method seems obsolete. The loading of parameters
to filter are updated within about 1.5 seconds.
Features:
- High performance Burr-Brown converters
- 24bit resolution
- 96kHz sampling frequency
- XOverWizard software
- Optical isolated USB interface
- 48 biquads total processing filters
- 76bit processor precision
- 21mS total delay option
- Latency 1ms
- 4 layer high performance PCB
- Decoupling at all active components
Applications:
- Active Amplification Systems
- High End Stereo setup
- Supreme Surround Sound Systems
PDF data sheet
unit price
EUR 241,00
|
 Enlarge |
Description:
DCN24 is a high performance digital crossover filter with equalization and delay. It features 2 balanced analogue inputs and 4 single-ended analogue outputs. High performance converters give DCN24 crystal clear sound and very low noise floor. The DCN24 has an optical isolated USB interface to avoid hum and noise from the PC. The circuit board is a high quality 4 layer type which prevents noise and hum. The XOverWizard II program is a graphical tool to change inputs, outputs, gain, crossover frequencies, crossover slopes, equalization and delay. The XOverWizard II has a very significant feature: the ability to import a text file containing measured driver data of frequency, sound pressure level and phase. With these data the XOverWizard are able to display frequency response and more, while design is in progress. Compared to this method, the “old” trial and error method seems obsolete. The loading of parameters to the filter are updated within about 1 second.
Features:
- High performance Burr-Brown converters
- 24 bit resolution
- 96 kHz sampling frequency
- XOverWizard II standard
- XOverWizard II advanced
- Optical isolated USB interface
- 180 IIR filters
- 76 bit processor precision
- Latency 1 ms
- 4 layer high performance PCB
- Decoupling at all active components
Applications:
- Active Amplification Systems
- High End Stereo setup
- Supreme Surround Sound Systems
|
