The Ground Sound DCN23 Kit is a stereo/dual mono 3-way stand alone digital crossover. You can either built it in one box or in two separate boxes, it depends on your existing set of amplifiers or which one's you plan to buy. In general we recommend to place crossover and amplifiers as close as possible to the loudspeaker, which will reduce the length of the loudspeaker cables. The balanced line level signal is less influenced of long cables.
Notice that the new PSU DCN also accepts 115Vac mains.
The kit consists of:
- 2 pcs. DCN23rev2 - 3-way Digital Crossover
- 2 pcs. PSU DCN II - Power Supply
- 2 pcs. Relay Board
|
|
PDF data sheet
kit price
EUR 693,00
|
|
|
|
|
|
 Enlarge
Enlarge |
The Ground Sound DCN24 dual Kit is a stereo/dual mono 4-way stand alone digital crossover. You can either built it in one box or in two separate boxes, it depends on your existing set of amplifiers or which one's you plan to buy. In general we recommend to place crossover and amplifiers as close as possible to the loudspeaker, which will reduce the length of the loudspeaker cables. The balanced line level signal is less influenced of long cables.
Notice that the new PSU DCN also accepts 115Vac mains.
The kit consists of:
- 2 pcs. DCN24 4-way Digital Crossover
- 2 pcs. PSU DCN II - Power Supply
- 2 pcs. Relay Board
- Software XOverWizard II standard
|
|
Price per unit
|
|
|
|
|
|
|
Enlarge
Enlarge |
The Ground Sound DCN24 Kit is a stereo / mono 4-way stand alone digital crossover. You can either built it in one box, it depends on your existing set of amplifiers or which one's you plan to buy. In general we recommend to place crossover and amplifiers as close as possible to the loudspeaker, which will reduce the length of the loudspeaker cables. The balanced line level signal is less influenced of long cables.
Notice that the new PSU DCN also accepts 115Vac mains.
The kit consists of:
- 1 pcs. DCN24 4-way Digital Crossover
- 1 pcs. PSU DCN II - Power Supply
- 1 pcs. Relay Board
- Software XOverWizard II standard
|
|
Price per unit
|
|
|
|
|
|
 Enlarge |
The SPA300 kit is "smallest" of the Stereo Power Amplifier kits. It produces 2 x 100W at 8Ω or 2 x 160W at 4Ω. It contains a set of Ground Sound modules and enables the customer to easily build a high performance amplifier. There is a bit of wiring, but pretty easy to do and all the nessacary wires are included. The wires has to be soldered as we rely mostly on soldered joints - which will perform for a very long time. The AmpC modules makes the amplifier smooth running at power on and off. The Transformer is custom-made and has sufficient power for two PA1CC modules. The PSU4DB is the "battery" of the amplifier - it has dual bridge rectifiers to lower the noise of the power ground and giving better conditions for the transformer. The PA1CC amplifier modules has very good sonic qualities, which several of our customers has discovered. Our amplifier modules are Class AB, but the bias current is low and at normal operation level they produce comparable heat as a Class D. For this reason you don't have to build the amplifier around a huge heat sink...
The SPA300 kit consists of:
- 2 pcs. PA1CC - Power Amplifier module 100W
- 1 pcs. PSU4DB - Power Supply
- 1 pcs. AmpC - Soft Start and mute control
- 1 pcs. TR300VA - Toroidal Transformer 2 x 35Vac
- Wires for all internal connections
kit price
EUR 359,00
|
 Enlarge
 Enlarge
|
|
|
|
|
|
 Enlarge
 Enlarge |
The SPA550 kit is considered as the "normal" amplifier choice for most HiFi woofers. It produces 2 x 220W at 8Ω and 2 x 350W at 4Ω. It contains a set of Ground Sound modules to build a high performance amplifier. There is a bit of wiring, but pretty easy to do and all the nessacary wires are included. The wires has to be soldered as we rely mostly on soldered joints - which will perform for a very long time. The AmpC modules makes the amplifier smooth running at power on and off. The Transformer is custom-made and has sufficient power for two PA3CC modules. The PSU8DB is the "battery" of the amplifier - it has dual bridge rectifiers to lower the noise of the power ground and giving better conditions for the transformer. The PA3CC amplifier modules has very good sonic qualities, which several of our customers has discovered. Our amplifier modules are Class AB, but the bias current is low and at normal operation level they produce comparable heat as a Class D. For this reason you don't have to build the amplifier around a huge heat sink...
- 2 pcs. PA3CC - Power Amplifier module 300 W

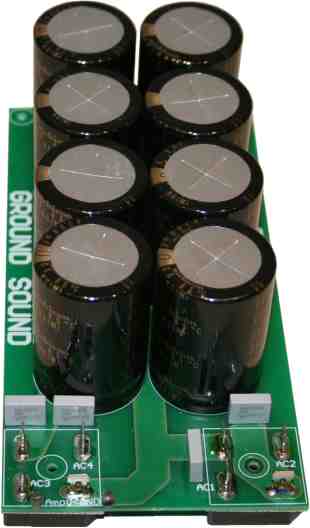

- 1 pcs. PSU8DB - Power Supply
- 1 pcs. AmpC - Soft Start and mute control
- 1 pcs. TR550VA - Toroidal Transformer 2 x 50 Vac
- Wires for all internal connections
kit price
EUR 595,00
|
Enlarge
|
|
|
|
|
|
|
|
 Enlarge
 Enlarge |
The SPA1000 Kit is the most powerful of the Stereo Power Amplifier kits. It produces 2 x 420W at 8Ω, 2 x 750W at 4Ω and enormous 2 x 1100W burst power at 2Ω. It contains a set of Ground Sound modules to build a high performance amplifier. There is a bit of wiring, but pretty easy to do and all the nessacary wires are included. The wires has to be soldered as we rely mostly on soldered joints - which will perform for a very long time. The AmpC modules makes the amplifier smooth running at power on and off. The Transformer is custom-made and has sufficient power for two PA6CC modules. The PSU12DB is the "battery" of the amplifier - it has dual bridge rectifiers to lower the noise of the power ground and giving better conditions for the transformer. The PA6CC amplifier modules has very good sonic qualities, which several of our customers has discovered. Our amplifier modules are Class AB, but the bias current is low - for this reason you don't have to build the amplifier around a very huge heat sink...
- 2 pcs. PA6CC - Power Amplifier module 600W
- 1 pcs. PSU12DB - Power Supply
- 1 pcs. AmpC - Soft Start and mute control

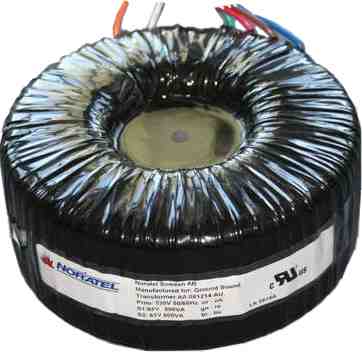

- 1 pcs. TR1000VA - Toroidal Transformer 2 x 65Vac
- Wires for all internal connections
kit price
EUR 853,00
|
