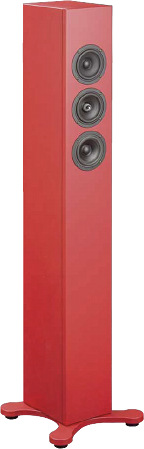

Mintaka   Floorstanding as in K+T 6/2016

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 86 dB
  • size (HxWxD): 1250 x 160 x 220 mm
  • frequency range (-8dB): 40 - 26000 Hz
  • crossover frequency(s): 300 Hz
  • speaker type: bass reflex

Mintaka is an high-end 2 way floorstanding FAST (Fullrange and Subwoofer Technology) speaker with high quality chassis. The kit is delivered with Wavecor WF120CU07 fullrange driver and two woofer Wavecor WF120BD04 for the bass range.

Mintaka has been developed by Dennis Frank and Daniel Gattig.

The crossover consists of a 2nd order high-pass filter (12 dB per octave slope) for the fullrange driver, a serial RCL is smoothing the frequency response between 5 kHz and 10 kHz. The woofers are connected to a 2nd order low pass filter (12 dB per octave slope). A parallel RCL circuit is smoothing the frequency response.

The frequency response of this speaker is nearly linear. There is a small drop of acoustic pressure at 4 kHz. The decay spectrum is nearly perfect. At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are lower than 0.4% above 500 Hz and doesn't exceed 1.3% at 95 dB at 1 m .

Our kit consists of

  • 2x Wavecor Mid/Woofer WF120BD04, die cast, 8 Ohm
  • WF120CU07, Wavecor Mid/Woofer, 8 Ohm, paper cone , BD, alu phase plug
  • Bass reflex tube HP70, 68x160 mm, black
  • 1,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 2x Damping Sonofil 100 x 35 cm for 20 litres
  • Binding Post PK31, gold plated (one pair, red and black)
  • 4m Speaker cable 2x1.5 mm2, transparent
  • 1,5x Pan screws 3.5x17 black, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • ClarityCap PWA capacitor 18 μF / 160 Vdc
  • electrolytic capacitor, etched, 100 μF/100 Vdc
  • electrolytic capacitor, etched, 220 μF/63 Vdc
  • electrolytic capacitor, unetched, 68uF / 50 Vdc
  • Mundorf air core coil L140, 3.9 mH/0.65 Ohm
  • 1.0 mm air core coil, 3.3 mH/1.2 Ohm
  • 0.7 mm air core coil, 0.022 mH
  • Mundorf ferrite core coil F50 10mH/3.49Ohm
  • ceramic resistor 3.3 Ohm/20 Watt
  • Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 612,00 excl. VAT: € 514.29 / $ 555.43

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the fullrange driver are of type polypropylen (MKP) Clarity-Cap PWA 160.

Kit with high-end-crossover without cabinet, price per speaker   EUR 648,00 excl. VAT: € 544.54 / $ 588.10

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 10,50 excl. VAT: € 8.82 / $ 9.53

universal PCBs

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 150x115 mm, tin plated, price per unit:   EUR 4,70 excl. VAT: € 3.95 / $ 4.27
We recommend two boards per kit (4 boards per speaker pair)
