Visaton Subwoofer SUB T-20.39 XS

The SUB W-20.39 XS is a subwoofer with TIW 200 XS 8 Ohm bass driver.

The Sub T-20.39 shows the following characteristics:

• This subwoofer is equipped with the newly designed TIW 200 XS 8 Ohm by Visaton

Technical data:

• frequency response: 25-1500 Hz (-10 dB, according to Visaton)
• average SPL: 83 dB
• size (height x width x depth): 40 x 32 x 43 cm

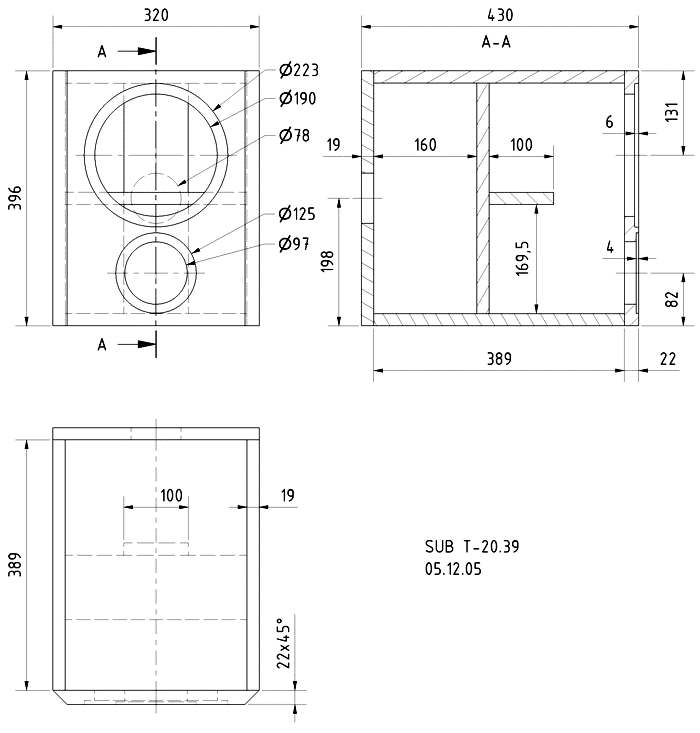

the cabinet

The SUB T-20.39 consists of:

• 1 x TIW 200 XS bass driver, 8 Ohm
• one full length BR 25.50 bass reflex tube
• 16 x wood screws 4 x 20 mm
• 0.5 m cable 2x2.5 mm² for internal wiring
• 2 bags damping material
• one terminal with 2 gold plated brass binding posts
• Description and building instruction

Order No. str-84xx,   Price for one subwoofer kit (without cabinet and amplifier): EUR 152,00

For amplification we recommend Detonation or Hypex subwoofer amplifiers.
