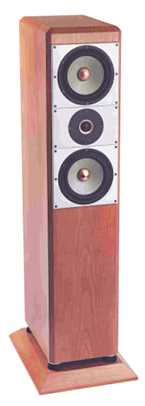

Thor Evo 04

Thor Evo 04 is a new highlight by Intertechnik, improving on the standard Thor kit by adding outstanding accessories.

This floorstanding speaker with excellent acoustic properties was developed by Dr. Joseph D'Appolito. Abundant knowledge and a great deal of experience are combined in this high-end loudspeaker. Both, the W 18 E001 mid / bass driver and the T 25 CF002 tweeter proved their capability in many auditions and reviews. The pair of W 18 impress with their flat frequency response and powerful bass.

The tapering transmission-line duct provides a clean and impressive bass. The T 25 CF002 tweeter shows an absolutely precise attack without any resonance. Only the best components are used for hardware and electronics.



Technical Data:

  • Dimensions without base (height x width x depth): 1060 x 229 x 343 mm
  • Power handling (continuous): 200  Watt
  • SPL: 89 dB (1W/1m)
  • Impedance: 4 Ohm

The Intertechnik kit contains:

  • 1 x EXCEL T 25 CF 002 tweeter
  • 2 x EXCEL W 18 E 001 mid / bass driver
  • Crossover kit containing:
      - 4 x Tritec/Mundorf Hepta coils
      - 2 x Clarity Caps ESA
      - 3 x Jantzen Cross Caps
      - 3 x MOX 10 metal-oxide resistors
  • 1 x PK-31/AU terminal set
  • 3 x damping material
  • 12 metre Oehlbach Silverline (****), 2.5 mm2 silver cable
  • 1 x sealing tape
  • 3 x aluminium front covers for drivers
  • 1 x screw set for driver + crossover
  • description and building instruction

Order No. str-thor-evo04-pk price per unit (without cabinet)   EUR 778,00
