WBT RCA Connectors

WBT-0110 Ag

Enlarge
  • 75 ohms (typ.) characteristic impedance
  • Totally distortion-free (no eddy currents)
  • Ultimate conductivity (single-piece signal conductor made of fine silver)
  • Absolutely reliable signal transmission thanks to patented WBT clamping mechanism
  • 2-section clamping sleeve in cobalt blue

nextgen™ RCA Connector Signature with signal conductor made of fine silver

nextgen™ - a new generation of plug connections from WBT

75-ohm characteristic impedance means that these plugs not only transmit superb analogue signals but also outstanding digital audio and video signals. The transmission bandwidth is 1 GHz. Eddy currents occur in metal components close to where alternating currents flow. These currents can result in major signal distortions. The WBT-0110 Ag is designed in such a way that eddy currents do not occur at all. The contact elements of the plug are made of high-purity silver, the best electrical conductor of all, in order to ensure optimum signal transmission. The metal is naturally passivated so that the surface does not corrode or migrate and impair contact quality.

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. The pressure wedge between the contact and the sleeve is made of plastic, which means that the sleeve is completely insulated and cannot influence the signal. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The central contact element can be removed to facilitate cable soldering. WBT provides a special nextgen tool for this purpose to OEM users. WBT recommends the surface friendly silver solder WBT-0800 (see also solder connection).

A Torx screw provides reliable cable strain relief.

Cable diameter: up to 9 mm

Characteristic impedance (typ.): 75 ohms

Connection technology: soldering (see WBT silver solder)

Identification: available in 9 colours

Strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 wrench WBT-0488 (supplied with each end consumer package)
  • Torque screwdriver WBT-0481 for professional OEM mounting

PDF data sheet

Price per unit EUR 54,60 excl. VAT: € 45.88 / $ 53.68



WBT-0110 Cu

Enlarge
  • 75 ohms (typ.) characteristic impedance
  • Totally distortion-free (no eddy currents)
  • Ultimate conductivity (single-piece signal conductor made of pure copper)
  • Absolutely reliable signal transmission thanks to patented WBT clamping mechanism
  • 2-section clamping sleeve in cobalt blue

nextgen™ RCA Connector Topline with signal conductor made of pure copper

nextgen™ - a new generation of plug connections from WBT

75-ohm characteristic impedance means that these plugs not only transmit superb analogue signals but also outstanding digital audio and video signals. The transmission bandwidth is 1 GHz. Eddy currents occur in metal components close to where alternating currents flow. These currents can result in major signal distortions. The WBT-0110 Cu is designed in such a way that eddy currents do not occur at all.

The contact elements of the plug are made of high-purity copper, one of the best electrical conductors, in order to ensure optimum signal transmission. The metal is nickel-free gold-plated so that the surface does not oxidize and impair contact quality.

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements. The pressure wedge between the contact and the sleeve is made of plastic, which means that the sleeve is completely insulated and cannot influence the signal. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The central contact element can be removed to facilitate cable soldering. WBT provides a special nextgen tool for this purpose to OEM customers. WBT recommends the surface friendly silver solder WBT-0800.

A Torx screw provides reliable cable strain relief.

Cable diameter: up to 9 mm

Characteristic impedance (typ.): 75 ohms

Connection technology: soldering (see WBT silver solder)

Identification: available in 9 colours

Strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 wrench WBT-0488 (supplied with each end consumer package)
  • Torque screwdriver WBT-0481 for professional OEM mounting

PDF data sheet

Price per unit EUR 34,95 excl. VAT: € 29.37 / $ 34.36

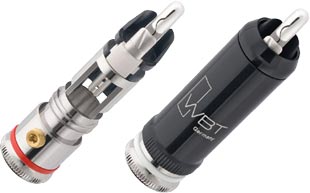

WBT-0102 Ag

Enlarge
  • ultimate conductivity (one-piece signal conductor made of fine silver)
  • free from eddy to a large extent
  • wideband capability Ungefähr (up to 200 MHz)
  • excellent electromagnetic shielding (EMI)
  • absolute secure signal transmission through pat. WBT collect chuck device
  • two-piece clamping sleeve in black piano lacquer

Signature RCA plug with nextgen™ technology with signal conductor made of fine silver

nextgen™ - new generation of WBT RCA connectors

The basic element having influence on the sound quality of WBT-0102 Ag is the Central Contact Unit which has been developed exactly the same way as for the plug model WBT-0110 Ag: minimal mass of signal conductors made of fine silver. Silver was chosen because of being the best electrical conductor which is the absolute guarantee not only for an ultra rapid signal transmission, but also for an excellent fine resolution. The signal conductors are passivated and thus best possibly protected against corrosion or mirgration which would affect the contact quality. WBT-0102 Ag lies with its transmission bandwidth of up to 200 MHz far in excess of the transmission bandwidth of conventional RCA plugs.

Through the collect chuck device which works like a chuck of a drill machine the plug’s outer contact once inserted clamps firmly to the RCA socket. The maximum contact pressure provides not only a secure connection, but also minimizes the transition resistance.

Thanks to the two-piece clamping sleeve the sleeve’s cone does not turn while the clamping sleeve is tightened and thus the contact elements are not exposed to twisting pressure. Besides, this way dimension inaccuracy of the outer contacts of the female sockets are compensated for.

Thanks to the two-piece clamping sleeve the sleeve’s cone does not turn while the clamping sleeve is tightened and thus the contact elements are not exposed to twisting pressure. Besides, this way dimension inaccuracy of the outer contacts of the female sockets are compensated for.

The centre pin is slotted and slightly bent up and thus guarantees with its firm spring feature a long-lasting secure electrical connection with lowest transition resistance possible. The body element is made of brass (platinum plated) in order to accept rigid and particularly thick cables. The metal connector body is of course electrically uncoupled from the Central Contact Unit und is made of as little metal as possible so that also WBT-0102 Ag is free from eddy current to a large extent.

Other than for digital outputs it is very important for phono outputs (record players, microphones) to have a good shielding against electromagnetic interfering fields. The undesirable interspersions can be very high depending on the nature of the devices and first of all on what they are surrounded by (cellular phones, computers etc.). WBT-0110 nextgenTM pure was designed as the perfect RCA plug for digital links, the new WBT-0102 Ag optimizes analogue connections. WBT-0102 Ag has the more conductive and with the minus contact element connected brass clamping sleeve in order to provide the necessary electromagnetic shielding.

For soldering your cable WBT and Strassacker recommends using silver solder WBT-0800 (see also solder connection) which is gentle on the surface.

Torx screw provides a secure cable strain relief. (The position of the Torx screw on the plug´s round shaft can vary depending on the production process).

Cable diameter: up to 9 mm

Connection technique: soldering (see WBT silver solder)

Identification: red, white or yellow

Cable strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 key WBT-0488
  • Dynamometric key WBT-0481 for professional OEM mounting

PDF data sheet

Price per unit EUR 64,65 excl. VAT: € 54.33 / $ 63.56



WBT-0102 Cu

Enlarge
  • ultimate conductivity (one-piece signal conductor made of pure copper)
  • free from eddy to a large extent
  • wideband capability Ungefähr (up to 200 MHz)
  • excellent electromagnetic shielding (EMI)
  • absolute secure signal transmission through pat. WBT collect chuck device
  • two-piece clamping sleeve in black piano lacquer

Topline RCA plug with nextgen™ technology with signal conductor made of pure copper

nextgen™ - new generation of WBT RCA connectors

The basic element having influence on the sound quality of WBT-0102 Cu is the Central Contact Unit which has been developed exactly the same way as for the plug model WBT-0110 Cu: minimal mass of signal conductors made of fine silver. Copper was chosen as one of the best electrical conductors which is the absolute guarantee not only for an ultra rapid signal transmission, but also for an excellent fine resolution. The signal conductors are gold plated (nickel-free) and thus best possibly protected against oxidation. which would affect the contact quality.

WBT-0102 Cu lies with its transmission bandwidth up to 200 MHz far in excess of the transmission bandwidth of conventional RCA plugs.

Through the collect chuck device which works like a chuck of a drill machine the plug’s outer contact once inserted clamps firmly to the RCA socket. The maximum contact pressure provides not only a secure connection, but also minimizes the transition resistance.

Thanks to the two-piece clamping sleeve the sleeve’s cone does not turn while the clamping sleeve is tightened and thus the contact elements are not exposed to twisting pressure. Besides, this way dimension inaccuracy of the outer contacts of the female sockets are compensated for.

The centre pin is slotted and slightly bent up and thus guarantees with its firm spring feature a long-lasting secure electrical connection with lowest transition resistance possible.

The body element is made of brass (gold plated) in order to accept rigid and particularly thick cables. The metal connector body is of course electrically uncoupled from the Central Contact Unit und is made of as little metal as possible so that also WBT-0102 Cu is free from eddy current to a large extent.

Other than for digital outputs it is very important for phono outputs (record players, microphones) to have a good shielding against electromagnetic interfering fields. The undesirable interspersions can be very high depending on the nature of the devices and first of all on what they are surrounded by (cellular phones, computers etc.). WBT-0110 nextgen™ pure was designed as the perfect RCA plug for digital links, the new WBT-0102 Cu optimizes analogue connections. WBT-0102 Cu has the more conductive and with the minus contact element connected brass clamping sleeve in order to provide the necessary electromagnetic shielding.

For soldering your cable WBT recommends using silver solder WBT-0800 (see also solder connection) which is gentle on the surface.

Torx screw provides a secure cable strain relief. (The position of the Torx screw on the plug´s round shaft can vary depending on the production process).

Cable diameter: up to 9 mm

Connection technique: soldering (see WBT silver solder)

Identification: red, white or yellow

Cable strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 key WBT-0488
  • Dynamometric key WBT-0481 for professional OEM mounting

PDF data sheet

Price per unit EUR 42,45 excl. VAT: € 35.67 / $ 41.74

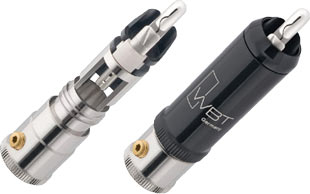

WBT-0152 Ag

Enlarge
  • ultimate conductivity (one-piece signal conductor made of fine silver)
  • free from eddy to a large extent
  • wideband capability Ungefähr (up to 200 MHz)
  • excellent electromagnetic shielding (EMI)
  • absolute secure signal transmission through pat. WBT collect chuck device
  • two-piece clamping sleeve in black piano lacquer

Signature RCA plug with nextgen™ technology with signal conductor made of fine silver

nextgen™ - new generation of WBT RCA connectors

The basic element having influence on the sound quality of WBT-0152 Ag is the Central Contact Unit which has been developed exactly the same way as for the plug model WBT-0110 Ag: minimal mass of signal conductors made of fine silver. Silver was chosen because of being the best electrical conductor which provide not only an ultra rapid signal transmission, but also an excellent fine resolution. The signal conductors are passivated and thus best possibly protected against corrosion or migration which would affect the contact quality.

WBT-0152 Ag lies with its transmission bandwidth of up to 200 MHz far in excess of the transmission bandwidth of conventional RCA plugs.

Through the collect chuck device which works like a chuck of a drill machine the plug’s outer contact once inserted clamps firmly to the RCA socket. The maximum contact pressure provides not only a secure connection, but also minimizes the transition resistance.

Thanks to the two-piece clamping sleeve the sleeve’s cone does not turn while the clamping sleeve is tightened and thus the contact elements are not exposed to twisting pressure. Besides, this way dimension inaccuracy of the outer contacts of the female sockets are compensated for.

The centre pin is slotted and slightly bent up and thus guarantees with its firm spring feature a long-lasting secure electrical connection with lowest transition resistance possible.

The body element is made of brass (platinum plated) in order to accept rigid and particularly thick cables and is designed for a larger cable diameter (up to 10.8 mm Ø). The metal connector body is of course electrically uncoupled from the Central Contact Unit und is made of as little metal as possible so that also WBT-0152 Ag is free from eddy current to a large extent.

Other than for digital outputs it is very important for phono outputs (record players, microphones) to have a good shielding against electromagnetic interfering fields. The undesirable interspersions can be very high depending on the nature of the devices and first of all on what they are surrounded by (cellular phones, computers etc.). WBT-0110 nextgen™ pure was designed as the perfect RCA plug for digital links, the new WBT-0152 Ag optimizes analogue connections. WBT-0152 Ag has the more conductive and with the minus contact element connected brass clamping sleeve in order to provide the necessary electromagnetic shielding.

For soldering your cable WBT recommends using silver solder WBT-0800 (see also solder connection) which is gentle on the surface.

Torx screw provides a secure cable strain relief. (The position of the Torx screw on the plug’s round shaft can vary depending on the production process).

Cable diameter: up to 10.8 mm

Connection technique:

  • soldering (see WBT silver solder)
  • Torx screw (T.6)
  • Cable strain relief

Recommended tool:

  • Torx T.6 key WBT-0488
  • Dynamometric key WBT-0481 for professional OEM mounting

PDF data sheet

Price per unit EUR 61,65 excl. VAT: € 51.81 / $ 60.61

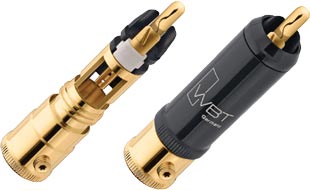

WBT-0152 Cu

Enlarge
  • ultimate conductivity (one-piece signal conductor made of pure copper)
  • free from eddy to a large extent
  • wideband capability Ungefähr (up to 200 MHz)
  • excellent electromagnetic shielding (EMI)
  • absolute secure signal transmission through pat. WBT collect chuck device
  • two-piece clamping sleeve in black piano lacquer

Topline RCA plug with nextgen™ technology with signal conductor made of pure copper

nextgen™ - new generation of WBT RCA connectors

The basic element having influence on the sound quality of WBT-0152 Cu is the Central Contact Unit which has been developed exactly the same way as for the plug model WBT-0110 Cu: minimal mass of signal conductors made of highly pure copper. Copper was chosen as one of the best electrical conductors which provide not only an ultra rapid signal transmission, but also an excellent fine resolution. This metal is of course nickel-free gold plated so that the surface does not oxidize which would affect the contact quality.

WBT-0152 Cu lies with its transmission bandwidth of up to 200 MHz far in excess of the transmission bandwidth of conventional RCA plugs.

Through the collect chuck device which works like a chuck of a drill machine the plug’s outer contact once inserted clamps firmly to the RCA socket. The maximum contact pressure provides not only a secure connection, but also minimizes the transition resistance.

Thanks to the two-piece clamping sleeve the sleeve’s cone does not turn while the clamping sleeve is tightened and thus the contact elements are not exposed to twisting pressure. Besides, this way dimension inaccuracy of the outer contacts of the female sockets are compensated for.

The centre pin is slotted and slightly bent up and thus guarantees with its firm spring feature a long-lasting secure electrical connection with lowest transition resistance possible.

The body element is made of brass (nickel-free gold plated) in order to accept rigid and particularly thick cables. The metal connector body is of course electrically uncoupled from the central contact unit und is made of as little metal as possible so that also WBT-0152 Cu is free from eddy current to a large extent.

Other than for digital outputs it is very important for phono outputs (record players, microphones) to have a good shielding against electromagnetic interfering fields. The undesirable interspersions can be very high depending on the nature of the devices and first of all on what they are surrounded by (cellular phones, computers etc.). WBT-0110 nextgen™ pure was designed as the perfect RCA plug for digital links, the new WBT-0152 Cu optimizes analogue connections. WBT-0152 Cu has the more conductive and with the minus contact element connected brass clamping sleeve in order to provide the necessary electromagnetic shielding.

For soldering your cable WBT recommends using silver solder WBT-0800 which is gentle on the surface.

Torx screw provides a secure cable strain relief. (The position of the Torx screw on the plug´s round shaft can vary depending on the production process).

Cable diameter: up to 10.8 mm

Connection technique: soldering (see WBT silver solder)

Cable strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 key WBT-0488
  • Dynamometric key WBT-0481 for professional OEM mounting

PDF data sheet

Price per unit EUR 42,45 excl. VAT: € 35.67 / $ 41.74

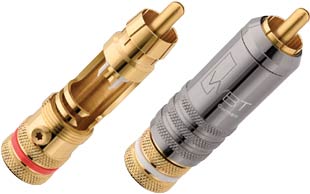

WBT-0101

Enlarge
  • Absolutely reliable signal transmission thanks to patented WBT clamping mechanism
  • 2-section clamping sleeve in ruthenium finish
  • Slotted centre pin
  • Teflon insulation
  • Reliable strain relief

Topline RCA Connector Solder version

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The metal parts are made from a special copper alloy and are 24 carat nickel-free gold-plated to prevent oxidation, which could negatively impact on contact quality.

The insulation within the connector is made from heat resistant Teflon*, a distinct advantage when soldering connection cables, particularly when working with the higher soldering temperatures of lead-free solder. WBT recommends the surface friendly silver solder WBT-0800.

When combined with WBT RCA sockets, the contacts are positioned in such a way that the outer conductor is in contact before the inner conductor, thereby preventing undesirable or even harmful voltage peaks.

A Torx screw provides reliable cable strain relief on the cable.

*Teflon is a registered trademark of Dupont.

Cable diameter: up to 9 mm

Connection technology: soldering (see WBT silver solder)

Identification: red, white or yellow

Strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 wrench WBT-0488
  • Torque screwdriver WBT-0481 for professional OEM mounting

Price per unit EUR 29,95 excl. VAT: € 25.17 / $ 29.45



WBT-0150

Enlarge
  • For cable up to 11.3 mm diameter
  • Absolutely reliable signal transmission thanks to patented WBT clamping mechanism
  • 2-section clamping sleeve in ruthenium finish
  • Slotted centre pin
  • Teflon insulation
  • Reliable strain relief

Topline RCA Connector Solder version

WBT-0150 is constructed in the same way as the WBT-0101 but can accept cables up to 11.3 mm diameter.

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The metal parts are made from a special copper alloy and are 24 carat nickel-free gold-plated to prevent oxidation, which could negatively impact on contact quality.

The insulation within the connector is made from heat resistant Teflon*, a distinct advantage when soldering connection cables, particularly when working with the higher soldering temperatures of lead-free solder. WBT recommends the surface friendly silver solder WBT-0800 (see also solder connection).

When combined with WBT RCA sockets, the contacts are positioned in such a way that the outer conductor is in contact before the inner conductor, thereby preventing undesirable or even harmful voltage peaks.

A Torx screw provides reliable cable strain relief on the cable.

*Teflon is a registered trademark of Dupont.

Cable diameter: up to 11.3 mm

Connection technology: soldering (see WBT silver solder)

Strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 wrench WBT-0488
  • Torque screwdriver WBT-0481 for professional OEM mounting

Price per unit - not available



WBT-0144

Enlarge
  • Absolutely reliable signal transmission thanks to patented WBT clamping mechanism
  • 2-section clamping sleeve in ruthenium finish
  • Slotted centre pin
  • Teflon insulation
  • Reliable strain relief

Midline RCA Connector Solder version

WBT-0144 is the midline version of the WBT-0101.

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The metal parts are made from a special copper alloy and are 24 carat gold-plated to prevent oxidation, which could negatively impact on contact quality.

The insulation within the connector is made from heat resistant Teflon*, a distinct advantage when soldering connection cables, particularly when working with the higher soldering temperatures of lead-free solder. WBT recommends the surface friendly silver solder WBT-0800.

When combined with WBT RCA sockets, the contacts are positioned in such a way that the outer conductor is in contact before the inner conductor, thereby preventing undesirable or even harmful voltage peaks.

A Torx screw provides reliable cable strain relief on the cable.

*Teflon is a registered trademark of Dupont.

Cable diameter: up to 9 mm

Connection technology: soldering (see WBT silver solder)

Identification: red, white or yellow

Strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 wrench WBT-0488
  • Torque screwdriver WBT-0481 for professional OEM mounting

Price per unit - not available



WBT-0147

Enlarge
  • Shorter and slimmer version of the WBT-0144
  • Absolutely reliable signal transmission thanks to patented WBT clamping mechanism
  • 2-section clamping sleeve in ruthenium finish
  • Slotted centre pin
  • Teflon insulation
  • Reliable strain relief

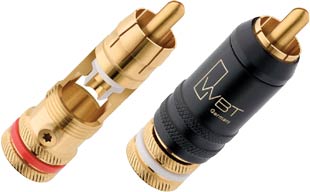

Midline RCA Connector Solder version, small

WBT-0147 is a shorter and slimmer version of the Midline RCA plug WBT-0144. It is particularly suitable for thin cables with a diameter of less than 7.5 mm and/or narrowly spaced unit-side RCA inputs. Despite being far smaller, the WBT-0147 possesses all the strengths of the WBT-0144 in terms of both contact quality and mechanical properties.

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The metal parts are made from a special copper alloy and are 24 carat gold-plated to prevent oxidation, which could negatively impact on contact quality.

Despite the limited space, the WBT-0147 can be soldered with ease. The solder connection for the positive pole is on the front side, the connection for the negative pole on the rear. The poles are kept separated by Teflon* acting as a dielectric, an advantage when the connecting cables are soldered, even with the higher soldering temperature of lead-free solder. WBT recommends the surface friendly silver solder WBT-0800 (see also solder connection).

When combined with WBT RCA sockets, the contacts are positioned in such a way that the outer conductor is in contact before the inner conductor, thereby preventing undesirable or even harmful voltage peaks.

A Torx screw provides reliable cable strain relief on the cable.

*Teflon is a registered trademark of Dupont.

Cable diameter: up to 7.8 mm

Connection technology: soldering (see WBT silver solder)

Identification: red, white or yellow

Strain relief: Torx screw (T.6)

Recommended tool:

  • Torx T.6 wrench WBT-0488 (supplied with each end consumer package)
  • Torque screwdriver WBT-0481 for professional OEM mounting

PDF data sheet

Price per unit - not available


Home
