WBT Accessories

WBT-0725 Ag and WBT-0725 Cu



WBT Signature Power Bridge and Topline Power Brige

The power bridges have been designed for bi-wiring in line with our nextgen™ technology. The conductor material consists of pure copper (Cu) or fine silver (Ag) which gives the bridges excellent conductivity. Oxidation of the surface is prevented by the gold plating of the copper version and platinum plating of the silver version. A transparent Makrolon insulation provides 100 % contact protection and CE- and IEC conformity. The WBT-0725 is additionally equipped with inlaid Elastomer for vibration damping.

These power bridges can be used with all WBT pole terminals (except the WBT-0702 versions). It is of the utmost importance to respect the vertical distance between the pole terminals to be connected (see below):

Terminal spacing:

  • of the terminals to be connected (height): exactly 60 mm
  • between the poles: minimum 30 mm

PDF data sheet

Price per unit EUR 55,45 excl. VAT: € 46.60 / $ 54.98

Price per unit EUR 19,45 excl. VAT: € 16.34 / $ 19.29



WBT-0716 and WBT-0719



WBT Mounting Kit

The mounting plates permit the perfect installation of WBT pole terminals onto the rear wall of loudspeakers. A solid brass plate (the WBT-0716 is gold-plated and the WBT-0719 has a Velours Chromium Finish) and a round counter plate hold the terminals at a 30 mm distance and prevent turning and loosening. The serrated lock washer WBT-9150 is provided as part of the standard supply.

PDF data sheet

Price per unit - not available

Price per unit - not available

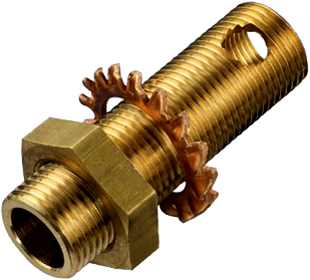

WBT-0715



WBT Extension Bolt

The WBT-0715 makes possible the installation of WBT pole terminals in loudspeaker housings with a wall thickness in excess of 9 mm and where a mounting plate cannot be used. The WBT-0715 can be simply screwed on to the threaded bolt of the WBT terminal and permits installation up to a wall thickness of 50 mm.

A fixing nut and a serrated lock washer for extra hold are provided as part of the standard supply.

Important: The cable for internal contact should be soldered or screwed on to the pole terminal as usual. The WBT-0715 is an installation help and is not part of the signal path.

The extension bolt can be used with all WBT pole terminals (with the exception of the WBT-0710 series!).

Price per unit EUR 5,55 excl. VAT: € 4.66 / $ 5.50



WBT-0721



WBT Terminal Block

The terminal block provides the ideal solution when crimped cables up to 10 mm² (7 AWG) must be connected to a printed circuit board. The copper alloy base material provides excellent conductivity and a gold-plating prevents surface corrosion. The terminal can be mounted vertically or horizontally. An antifatigue bolt and serrated lock washer permit a secure fit.

Price per unit - not available

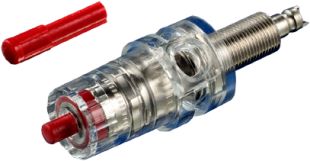

WBT-0799

Enlarge

Safety Stick

The Safety Stick is a blanking plug available for manufacturers who wish to close the 4 mm banana plug hole in accordance with CE and IEC safety requirements.

With defined depth mark.

Price per unit EUR 0,21 excl. VAT: € 0.18 / $ 0.21



WBT-9126

 Torx Screw T. 6

WBT Topline pole terminals (including the Signature version of the WBT-0702 and WBT-0730) are equipped as a standard with the Torx¹ screw for crimped connection.

The WBT-9126 Torx screw with a length of 7 mm is intended for use with Midline pole terminals such as WBT-0763 and WBT-0765 as well as the Economy terminals WBT-0780 und WBT-0785. Thanks to their length of 7 mm both thinner and thicker crimped cables can be connected.

WBT crimp connections only use screws with Torx drive (Torx 6) and special fine thread, providing a durable firm hold. The base material is brass.

¹ Torx is a registered trademark of Camcar Textron, USA.

Price per unit EUR 0,95 excl. VAT: € 0.80 / $ 0.94



WBT-9150



Serrated Lock Washer

The serrated lock washer can be used with all WBT pole terminals. The fine toothed washer grips the cabinet housing or puzzle plate from the inside after screwing on the counternut and provides maximum firm hold for the pole terminal.

Price per unit - not available

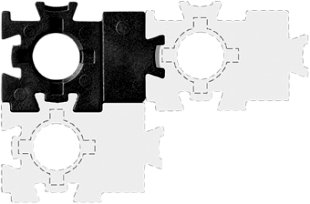

WBT-9410



WBT Puzzle Plate

The puzzle plates are part of the standard supply of every WBT pole terminal. WBT pole terminals are protected against twisting thanks to the ‘nose’ present on the double step washer. This protection can (and should!) be optimised through use of the puzzle plate. In this case the distance between terminals has to be selected at 30 mm or 19 mm so that two terminals can be clipped together with the puzzle plate.

Price per unit - not available



WBT-9404

 WBT Spacer

Price per unit - not available

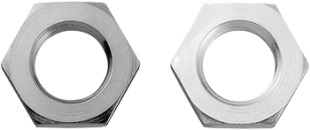

WBT-9302 and WBT-9303



WBT Counternut M9

The counternuts are available with a chromalized (WBT-9302) or gold plated (WBT-9303) surface. Every WBT pole terminal is supplied with a counter nut.

Price per unit EUR 0,79 excl. VAT: € 0.66 / $ 0.78

Price per unit - not available



WBT-9102



WBT Anti-Fatigue Bolt (cylinder head screw)

The anti-fatigue bolt is intended for use with the Economy pole terminals WBT-0780 and WBT-0785. It permits the use with these terminals, of a ring lug as well as direct screw fixing on to a printed circuit board for the internal connection.

Standard supply includes a small serrated lock washer which guarantees an added firm hold.

Price per unit - not available



Mounting Plates



WBT Mounting Plates

The mounting plates were developed for the professional mounting of all WBT pole terminals. They comprise of a solid 3 mm thick aluminium plate which has rounded edges of 10 mm radius. Six or four fixing holes with counting sinking for cylinder head screws permit fixing on to the loudspeaker housing.

Brass straddling dowels are available upon request for metric threads.

The plates can be mounted directly onto the housing or countersunk. Thanks to their stability, it is possible to mount a crossover onto the rear side of the plate.

Screws and a cellular rubber seal form part of the standard supply.

Made to order sizes or laser engraving with, for example a type plate or company logo are available upon request. The plates are suitable for use with all WBT pole terminals. They are ideal for loudspeaker manufacturers or audiophiles who would like to swap their standard pole terminals for WBT terminals. The terminal distances on the bi-wiring mounting plates have been so constructed that the use of the WBT-0725 and WBT-0726 power bridges is possible.

Overview of Mounting Plates

Mounting Plates for pole terminals (without terminals):

Price per unit EUR 58,75 excl. VAT: € 49.37 / $ 58.26 , WBT-0530.05, for 1 pair pole terminals, 110 x 110 mm, alu natural
Price per unit EUR 72,40 excl. VAT: € 60.84 / $ 71.79 , WBT-0531.05, for 2 pair pole terminals, 110 x 150 mm, alu natural
Price per unit EUR 79,20 excl. VAT: € 66.55 / $ 78.53 , WBT-0532.05, for 2 pair pole terminals, 127 x 178 mm, alu natural


Cable End Sleeves



WBT Cable End Sleeves

  • made from highly pure OFC copper or fine silver for the best possible conductivity
  • 24 carat gold-plating for corrosion protection
  • available packed according to size in bags which can also be used as refill packs for the assortment box
  • sleeves with insulation collars offer an additional anti-kink protection

Overview of Cable End Sleeves

Cable End Sleeves without Insulation Collar:

Price per unit EUR 66,00 excl. VAT: € 55.46 / $ 65.45 , WBT-0430, conductor material: Cu, profile: 0,5 mm², AWG: 20, 250 pcs, direct gold-plating
Price per unit EUR 97,00 excl. VAT: € 81.51 / $ 96.18 , WBT-0431, conductor material: Cu, profile: 0,75 mm², AWG: 18, 250 pcs, direct gold-plating
Price per unit EUR 69,00 excl. VAT: € 57.98 / $ 68.42 , WBT-0432, conductor material: Cu, profile: 1,0 mm², AWG: 17, 150 pcs, direct gold-plating
Price per unit EUR 54,00 excl. VAT: € 45.38 / $ 53.55 , WBT-0433, conductor material: Cu, profile: 1,5 mm², AWG: 15, 100 pcs, direct gold-plating
Price per unit EUR 89,00 excl. VAT: € 74.79 / $ 88.25 , WBT-0434, conductor material: Cu, profile: 2,5 mm², AWG: 13, 100 pcs, direct gold-plating
Price per unit EUR 189,00 excl. VAT: € 158.82 / $ 187.41 , WBT-0435, conductor material: Cu, profile: 4,0 mm², AWG: 11, 200 pcs, direct gold-plating
Price per unit EUR 125,00 excl. VAT: € 105.04 / $ 123.95 , WBT-0436, conductor material: Cu, profile: 6,0 mm², AWG: 9, 125 pcs, direct gold-plating
Price per unit EUR 120,00 excl. VAT: € 100.84 / $ 118.99 , WBT-0437, conductor material: Cu, profile: 10,0 mm², AWG: 7, 100 pcs, direct gold-plating
Price per unit EUR 89,00 excl. VAT: € 74.79 / $ 88.25 , WBT-0438, conductor material: Cu, profile: 16,0 mm², AWG: 5, 40 pcs, direct gold-plating


Cable End Sleeves with Insulation Collar:

Price per unit EUR 73,50 excl. VAT: € 61.76 / $ 72.88 , WBT-0441, conductor material: Cu, profile: 1,5 mm², AWG: 15, 50 pcs, direct gold-plating
Price per unit EUR 63,60 excl. VAT: € 53.45 / $ 63.07 , WBT-0442, conductor material: Cu, profile: 2,5 mm², AWG: 13, 40 pcs, direct gold-plating
Price per unit EUR 56,40 excl. VAT: € 47.39 / $ 55.93 , WBT-0443, conductor material: Cu, profile: 4,0 mm², AWG: 11, 30 pcs, direct gold-plating
Price per unit EUR 55,25 excl. VAT: € 46.43 / $ 54.79 , WBT-0444, conductor material: Cu, profile: 6,0 mm², AWG: 9, 25 pcs, direct gold-plating
Price per unit EUR 54,40 excl. VAT: € 45.71 / $ 53.94 , WBT-0445, conductor material: Cu, profile: 10,0 mm², AWG: 7, 20 pcs, direct gold-plating
Price per unit EUR 51,90 excl. VAT: € 43.61 / $ 51.46 , WBT-0446, conductor material: Cu, profile: 16,0 mm², AWG: 5, 15 pcs, direct gold-plating

Cable End Sleeves with Insulation Collar:

Price per unit EUR 4,95 excl. VAT: € 4.16 / $ 4.91 , WBT-0450, conductor material: Ag, profile: 1,5 mm², AWG: 15, 1 pcs, platinum plating
Price per unit EUR 5,40 excl. VAT: € 4.54 / $ 5.35 , WBT-0451, conductor material: Ag, profile: 2,5 mm², AWG: 13, 1 pcs, platinum plating
Price per unit EUR 8,10 excl. VAT: € 6.81 / $ 8.03 , WBT-0452, conductor material: Ag, profile: 4,0 mm², AWG: 11, 1 pcs, platinum plating
Price per unit EUR 8,76 excl. VAT: € 7.36 / $ 8.69 , WBT-0453, conductor material: Ag, profile: 6,0 mm², AWG: 9, 1 pcs, platinum plating

Cable End Sleeves Assortment Pack:

Price per unit EUR 391,30 excl. VAT: € 328.82 / $ 388.01 , WBT-0470, conductor material: Cu, profile: 0,5-2,5 mm², AWG: 20-13, 7 sorts, direct gold-plating
Price per unit EUR 376,50 excl. VAT: € 316.39 / $ 373.34 , WBT-0471, conductor material: Cu, profile: 4-16 mm², AWG: 11-5, 4 sorts, direct gold-plating
Price per unit EUR 196,20 excl. VAT: € 164.87 / $ 194.55 , WBT-0472, conductor material: Cu, profile: 4-16 mm², AWG: 11-5, 4 sorts, direct gold-plating





Silver Solder

WBT Silver Solder

  • high quality solder with 4 % fine silver content
  • halogen-free flux spares precious metal surfaces
  • Extremely low melting temperature of 178/180°C (lead holding solder)
  • Extremely low melting temperature of 216/219°C (lead-free solder)

Silver Solder – with lead:

Price per unit EUR 28,80 excl. VAT: € 24.20 / $ 28.56 , WBT-0800, Weight / Roll: 42 g, Diameter: 0,9 mm, type: Consumer Pack
Price per unit EUR 109,00 excl. VAT: € 91.60 / $ 108.08 , WBT-0820, Weight / Roll: 250 g, Diameter: 0,8 mm, type: Production and Workshop
Price per unit EUR 188,50 excl. VAT: € 158.40 / $ 186.92 , WBT-0840, Weight / Roll: 500 g, Diameter: 1,2 mm, type: Production and Workshop

Silver Solder – lead-free:

Price per unit EUR 29,50 excl. VAT: € 24.79 / $ 29.25 , WBT-0805, Weight / Roll: 42 g, Diameter: 0,9 mm, type: Consumer Pack
Price per unit EUR 108,58 excl. VAT: € 91.24 / $ 107.67 , WBT-0825, Weight / Roll: 250 g, Diameter: 0,8 mm, type: Production and Workshop
Price per unit EUR 210,95 excl. VAT: € 177.27 / $ 209.18 , WBT-0845, Weight / Roll: 500 g, Diameter: 1,2 mm, type: Production and Workshop
