DisplayPort

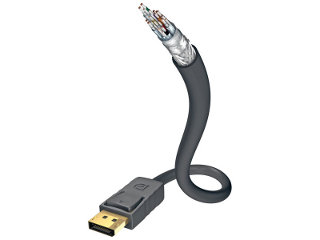

Excellence DisplayPort cable

Enlarge DisplayPort is an interface deined by the VESA (Video Electronics Standards Association). The Excellence DisplayPort cable is fully-wired and has 4 data ducts. Each data duct is designed for a bandwidth of 2.7 Gbit/s. It handles the highest specified data rate of 10.8 Gbit/s.

Key-Features

  • 3-fold shielding
  • Solid conductors
  • Silver-plated conductors
  • Conductors made of high-purity OFC copper
  • 24c gold-plated contacts

Additional product data
Fully-wired (4 data ducts) 2.7 Gbit/s per duct = 10.8 Gbit/s total data rate Supports EDID Supports up to 8 audio ducts (24 bits/192 kHz) Supports QXGA resolution formats Supports colour depths of up to 48 bits (16 bits per colour) Lockable plug

Order No. Version Colour Length Price
in-00628015 Displayport <> Displayport anthracite 1.5 m   EUR 57,00 excl. VAT: € 47.90 / $ 56.52
in-0062803 Displayport <> Displayport anthracite 3.0 m   EUR 77,90 excl. VAT: € 65.46 / $ 77.25
in-0062805 Displayport <> Displayport anthracite 5.0 m   EUR 94,00 excl. VAT: € 78.99 / $ 93.21
in-00628075 Displayport <> Displayport anthracite 7.5 m   EUR 166,00 excl. VAT: € 139.50 / $ 164.61
in-0062810 Displayport <> Displayport anthracite 10.0 m   EUR 179,50 excl. VAT: € 150.84 / $ 177.99
in-0062812 Displayport <> Displayport anthracite 12.0 m   EUR 217,50 excl. VAT: € 182.77 / $ 215.67
