CAT Network Cable

Referenz Network Cable CAT7

The CAT7 Referenz cable is a LAN cable for high-end network connections. Because of the high production quality, it well surpasses the specifications required by EN50288-4-2 / IEC61156-6 (600 MHz), and reaches band widths of over 1200 MHz. This makes it equipped for high-speed networks with 10 Gbps (10 Giga bits per second). It was however, through exacting maintaining the impedance of its data lines, especially conceived for low-loss HD audio and HD video streaming. The PE-Network Jacket also prevents disturbing microvibrations, while the high-grade CAT Referenz plug rounds the product off.

Key-Features

  • Four twisted-pair data lines
  • Foamed PE lead insulation
  • Data pairs equipped with separate foil shielding
  • Common braided shield
  • PE-Network Jacket
  • Referenz metal plug

Additional Product Data

  • Surpasses CAT7FA specifications
  • Cable diameter: 8.2 mm
  • 1200 MHz band width
  • Supports 10 Gbit high-speed LAN networks
  • Supports HD-TV streaming
  • Supports HD-Audio streaming

Order No. Version Colour Lenght Price
in-007150075 RJ45 <> RJ45; SF-UTP Black/White 0.75 m   EUR 141,50 excl. VAT: € 118.91 / $ 139.12
in-00715015 RJ45 <> RJ45; SF-UTP Black/White 1.5 m   EUR 151,00 excl. VAT: € 126.89 / $ 148.46
in-0071503 RJ45 <> RJ45; SF-UTP Black/White 3.0 m   EUR 170,00 excl. VAT: € 142.86 / $ 167.14
in-0071505 RJ45 <> RJ45; SF-UTP Black/White 5.0 m   EUR 194,70 excl. VAT: € 163.61 / $ 191.43
in-00715075 RJ45 <> RJ45; SF-UTP Black/White 7.5 m   EUR 225,10 excl. VAT: € 189.16 / $ 221.32
in-0071510 RJ45 <> RJ45; SF-UTP Black/White 10.0 m   EUR 255,50 excl. VAT: € 214.71 / $ 251.21
in-0071515 RJ45 <> RJ45; SF-UTP Black/White 15.0 m   EUR 318,20 excl. VAT: € 267.39 / $ 312.85
in-0071520 RJ45 <> RJ45; SF-UTP Black/White 20.0 m   EUR 379,00 excl. VAT: € 318.49 / $ 372.63



Premium CAT6 Patch cable

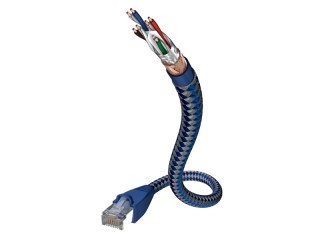

Enlarge The flexible network cable in category 6 in the SF-UTP design has an overall braided and foil shielding and high-quality AWG24 copper wires.

Key-Features

  • 2-fold shielding
  • Separating cross between the twisted pairs
  • Massive data conductors (AWG 24)
  • Fitted with RJ-45

Additional Product Data

  • SF-UTP (separate braided and foil shielding)
  • 4 twisted pairs
  • Bandwidth up to 1000 Mbit/s (for giga bit network)
  • Ethernet 10baseT / 100baseT / 1000baseT
  • ISDN / DSL / telephone (analogue)

Order No. Version Colour Lenght Price
in-004803005 RJ45 <> RJ45; SF-UTP; AWG 24 Blue/Silver 0.5 m   EUR 4,70 excl. VAT: € 3.95 / $ 4.62
in-00480301 RJ45 <> RJ45; SF-UTP; AWG 24 Blue/Silver 1.0 m   EUR 5,60 excl. VAT: € 4.71 / $ 5.51
in-00480302 RJ45 <> RJ45; SF-UTP; AWG 24 Blue/Silver 2.0 m   EUR 8,50 excl. VAT: € 7.14 / $ 8.36
in-00480303 RJ45 <> RJ45; SF-UTP; AWG 24 Blue/Silver 3.0 m   EUR 10,90 excl. VAT: € 9.16 / $ 10.72
in-00480305 RJ45 <> RJ45; SF-UTP; AWG 24 Blue/Silver 5.0 m   EUR 16,10 excl. VAT: € 13.53 / $ 15.83
in-00480308 RJ45 <> RJ45; SF-UTP; AWG 24 Blue/Silver 8.0 m   EUR 23,70 excl. VAT: € 19.92 / $ 23.30



Premium CAT6 installation cable

Enlarge Network cable in category 6 in SF-UTP quality. Available with solid AWG23 copper conductors for fixed installations or flexible AWG24-copper wire.

Key-Features

  • SF-UTP (separate braided and foil shielding)
  • 4 twisted pairs
  • Copper wire; AWG 23 (fixed installations) respectively AWG24 (flexible)
  • Separating cross between the twisted pairs

Additional Product Data

  • Cable diameter: 6.8 mm
  • Bandwidth up to 1000 Mbit/s (for giga bit network)
  • Ethernet 10baseT / 100baseT / 1000baseT
  • ISDN / DSL / telephone (analogue)

Order No. Version Colour Lenght Price
in-004801000 SF-UTP; AWG24; 6,8 mm; flexible Anthracite 1.0 m   - not available (_)
in-004811000 SF-UTP; AWG24; 6,8 mm; massive Anthracite 1.0 m   EUR 2,60 excl. VAT: € 2.18 / $ 2.56



Premium CAT6 Accessories

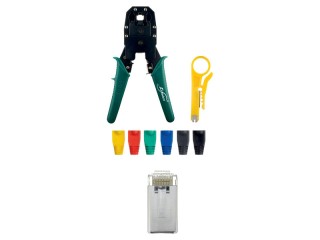

Enlarge The RJ-45 network plug with 24c gold-plated contacts, as well as insulation cover and the right crimping tool for custom-connections.


Order No. Version Colour Price
in-004890000 RJ-45 CAT5/6 Plug; 8P8C -   EUR 0,30 excl. VAT: € 0.25 / $ 0.29
in-004890002 Crimp gripper -   EUR 15,70 excl. VAT: € 13.19 / $ 15.44
in-00489022 CAT5/6 insulation grommet Red   EUR 0,20 excl. VAT: € 0.17 / $ 0.20
in-00489023 CAT5/6 insulation grommet Yellow   EUR 0,20 excl. VAT: € 0.17 / $ 0.20
in-00489024 CAT5/6 insulation grommet Blue   EUR 0,20 excl. VAT: € 0.17 / $ 0.20
in-00489025 CAT5/6 insulation grommet Green   EUR 0,20 excl. VAT: € 0.17 / $ 0.20
in-00489027 CAT5/6 insulation grommet Black   EUR 0,20 excl. VAT: € 0.17 / $ 0.20
in-00489028 CAT5/6 insulation grommet Anthracite   EUR 0,20 excl. VAT: € 0.17 / $ 0.20
