Wireless microphones: Transmitters and receivers

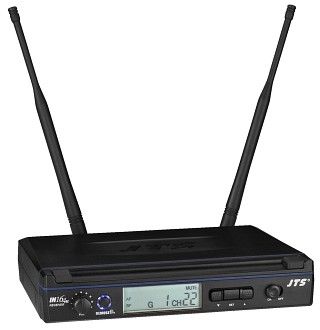

Single-channel diversity UHF PLL receiver, with REMOSET technology IN-164R/5

Reliability and flexibility: improving the transmitting quality and maximising the operating range ensure reliability and provide flexibility! These features of the IN-164 system have been realised by an innovative circuit design and a switchable transmitting power. A high-quality wireless audio transmission of up to 300 m in a free field outdoors is thus possible without any problems. Rapid transmission: due to REMOSET, the frequency of a corresponding hand-held transmitter or pocket transmitter can easily be set up via the receiver. It is possible to remotely set the desired transmission channel at the transmitter via radio signal, no visual contact required. This can be done even during a live performance! An innovative carrier analysis method provides user support by only allowing transmission channels on which no other transmitter is active.

Single-channel diversity UHF PLL receiver, with REMOSET technology.

124 preset channels, clearly arranged in six channel groups, allow for most versatile use of the frequencies. With a bandwidth utilisation of 36 MHz, up to 20 channels can be operated intermodulation-free at the same time. The integrated scan function considerably facilitates the selection of transmission channels. Only channels on which no carrier signal is located will be enabled for further use. Pilot tone squelch and noise squelch effectively prevent external carrier signals and noise signals in case they occur. Important parameters and operating modes are always in sight: battery status of the transmitter, receiver channel/receiver group, audio level/RF level, mute, lock and active antenna. The level of the audio signal can continuously be adjusted. The balanced signal is available at the XLR output and jack output. The 20 dB attenuator allows for a perfect adjustment to the following units. An optional antenna booster UB-900... can be supplied with power directly via the antenna inputs. The 482 mm (19") mounting frame DR-900SET allows for 1 RS rack installation of two IN-164R/5 units which can be placed securely next to each other.
Specifications:
  • Carrier frequency range: 506-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Output voltage: 100 mV XLR, 100 mV jack
  • Connections: XLR, bal., 6.3 mm jack, bal.
  • Power supply: via suppl. PSU
  • Operating time: -
  • Dimensions: 210x42x195 mm
  • Weight: 525 g

Price per unit   (Order No. mo-255410) - not available

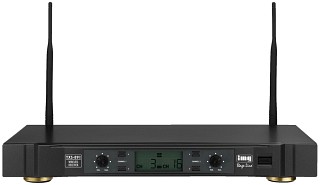

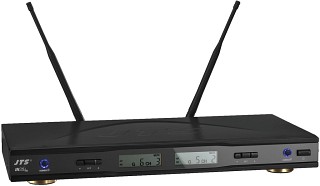

2-channel diversity UHF PLL receiver, with REMOSET technology IN-264R/5

Reliability and flexibility: improving the transmitting quality and maximising the operating range ensure reliability and provide flexibility! These features of the IN-264 system have been realised by an innovative circuit design and a switchable transmitting power. A high-quality wireless audio transmission of up to 300 m in a free field outdoors is thus possible without any problems. Rapid transmission: due to REMOSET, the frequency of a corresponding hand-held transmitter or pocket transmitter can easily be set up via the receiver. It is possible to remotely set the desired transmission channel at the transmitter via radio signal, no visual contact required. This can be done in a split second, even during a live performance! An active carrier analysis method provides user support by only allowing transmission channels on which no other transmitter is active.

2-channel diversity UHF PLL receiver, with REMOSET technology.

124 preset channels, clearly arranged in six channel groups, allow for most versatile use of the frequencies. With a bandwidth utilisation of 36 MHz, up to 20 channels can be operated intermodulation-free at the same time. The integrated scan function considerably facilitates the selection of transmission channels. Only channels on which no carrier signal is located will be enabled for further use. Pilot tone squelch and noise squelch effectively prevent external carrier signals and noise signals in case they occur. Important parameters and operating modes are always in sight: battery status of the transmitter, receiver channel/receiver group, audio level/RF level, mute, lock and active antenna. In case of a low battery warning, the backlit LCD changes the colour of display from green to orange. The balanced audio signal is available at the single outputs as well as at the mix output. For each output, the attenuator with 2-way switching allows a perfect adjustment to the following units. An optional antenna booster UB-900... can be supplied with power directly via the antenna inputs. The robust desktop metal housing can very easily be changed into a 482 mm (19") insertion housing (supplied with mounting brackets).
Specifications:
  • Carrier frequency range: 506-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Output voltage: 100 mV XLR, 100 mV jack
  • Connections: XLR, bal., 6.3 mm jack, bal.
  • Power supply: via suppl. PSU
  • Operating time: -
  • Dimensions: 420x54x230 mm
  • Weight: 2 kg

Price per unit   (Order No. mo-255420) - not available


UHF PLL pocket transmitter with lavalier microphone IN-264TB/5

Reliability and flexibility: improving the transmitting quality and maximising the operating range ensure reliability and provide flexibility! These features of the IN-264 system have been realised by an innovative circuit design and a switchable transmitting power. A high-quality wireless audio transmission of up to 300 m in a free field outdoors is thus possible without any problems. Rapid transmission: due to REMOSET, the frequency of a corresponding hand-held transmitter or pocket transmitter can easily be set up via the receiver. It is possible to remotely set the desired transmission channel at the transmitter via radio signal, no visual contact required. This can be done in a split second, even during a live performance! An active carrier analysis method provides user support by only allowing transmission channels on which no other transmitter is active.

UHF PLL pocket transmitter with lavalier microphone

Professional features and an innovative circuit design make this pocket transmitter a reliable partner for wireless audio transmission technology. With the REMOSET technology, it is possible to easily adjust the transmitting frequency via the receiver IN-264R/5, also over a greater distance. Impressive features: sensitivity adjustment (12 dB to -18 dB) and switchable attenuation (0 dB/-6 dB/-20 dB), lock function, 5-level display of battery status and low battery indication, backlit LCD. Audible presentations and other voice transmissions can easily be realised with the supplied lavalier microphone CM-501. All instrument microphones of the CX series and the headband/lavalier microphones of the CX/CM series can be operated at the IN-264TB/5.

Licence required for this system in the EU.
Specifications:
  • Carrier frequency range: 506-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Connections: 4-pole mini XLR
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time:>25 h
  • Dimensions: 68x172x21 mm
  • Weight: 77 g

Price per unit   (Order No. mo-255430) EUR 293,80 excl. VAT: € 246.89 / $ 266.64

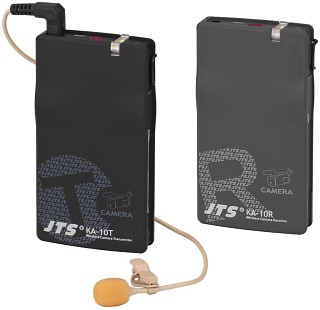

Wireless 16-channel PLL audio transmission system for cameras KA-10/1PACK

Wireless 16-channel PLL audio transmission system for cameras

Freedom for cameramen! Every video filmmaker has surely dreamt of this before: A live interview or an animal film made possible by using the camera at a distance thanks to the tele lens. Unfortunately, a microphone cable runs from the camera close to the audio source and greatly limits the mobility of the cameraman. The KA-10/1PACK puts an end to this! The transmission system consists of a portable audio transmitter with a lavalier microphone which can be positioned near the audio source and a portable receiver which can easily be attached to the camera by means of the supplied attachment clip. Supplied with connection cables for the audio connection to the camera. Both the transmitter and receiver are operated with a very compact rechargeable lithium-ion battery. This ensures a reduction in weight and long operating times. A dual charging slot allows to recharge the batteries without a lengthy removal process. Extensive protective circuits monitor the charging status and operating status of the rechargeable batteries. Further details: the portable transmitter can also be used for transmitting line signals (adjustment via recessed gain control). The receiver features a 3-step PAD switch (0dB/-10 dB/-20 dB) for perfect level matching to the audio input of the camera. Transmitter and receiver are fitted with a robust metal fixing clip which allows for various applications in different mounting positions. The KA-10/1PACK can be operated licence-free in the frequency range 863-865 MHz! Supplied with lavalier microphone in skin design with windshield and tie clip, attachment clip for camera mounting, trim key, dual charging slot with plug-in switch-mode PSU, connection cable with 3.5 mm plug to 3.5 mm plug, connection cable with 3.5 mm plug to XLR plug.

Licence-free in the EU.

Supplied without camera.
Specifications:
  • Carrier frequency: 863-865 MHz
  • Transmitting power:<10 mW
  • RF S/N ratio: -
  • Audio range: 40-18,000 Hz
  • Dynamic range: -
  • THD:<1 %
  • Audio output: 300 mV/7 kΩ (jack)
  • Operating range: approx. 60 m
  • Admiss. ambient temp.: 0-40 °C
  • Power supply:
  • Transmitter: 3.7 V rech. lithium-ion battery
  • Receiver: 3.7 V rech. lithium-ion battery
  • Dimensions:
  • Transmitter: 55x100x18 mm
  • Receiver: 55x100x18 mm
  • Weight:
  • Transmitter: 80 g
  • Receiver: 82 g
  • Connections: 1 x 3.5 mm jack (transmitter) 1 x 3.5 mm jack (receiver)

Price per unit   (Order No. mo-253120) EUR 476,30 excl. VAT: € 400.25 / $ 432.27

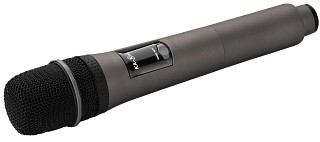

Dynamic hand-held UHF PLL transmitter KA-8TH/1

Dynamic hand-held UHF PLL transmitter, matching the wireless 16-channel PLL audio transmission system for cameras KA-10/1PACK or the PLL pocket receiver TG-10R/1. Licence-free in the EU.
Specifications:
  • System: condenser cartridge/cardioid
  • Carrier frequency range: 863-865 MHz
  • Audio frequency range: 40-16,500 Hz
  • Frequency stability: ±0.05 %
  • Transmitting power: 10 mW
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time: approx. 20 h
  • Dimensions: Ø 51 mm x 260 mm
  • Weight: 280 g

Price per unit   (Order No. mo-254410) EUR 194,90 excl. VAT: € 163.78 / $ 176.88


Dynamic hand-held UHF PLL microphone transmitter MH-850/1

PLL Multifrequency System 2 x 16 channels / 1 x 16 channels

Dynamic hand-held UHF PLL microphone transmitter

The MH-850/1 is a 16-channel hand-held transmitter with excellent audio characteristics. Pilot tone technology allows for a reliable cooperation with the receiver. It can be used for versatile applications, from speech applications and presentations to basic vocal applications. An integrated low battery indication gives sufficient warning before an interference during transmission occurs. The microphone is of low acoustic feedback and features both very low handling noise and structure-borne noise. Licence-free in the EU!

Matching receivers: US-8002D/1and US-8001D/1.
Specifications:
  • System: dyn./hypercardioid
  • Carrier frequency range: 863-865 MHz
  • Audio frequency range: 50-16,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time: 25 h max.
  • Dimensions: Ø 55 mm x 260 mm
  • Weight: 250 g

Price per unit   (Order No. mo-254460) EUR 152,50 excl. VAT: € 128.15 / $ 138.40


Dynamic hand-held UHF PLL transmitter MH-8800G/5

PLL Multifrequency System 2 x 64 channels in 4 groups

Dynamic hand-held UHF PLL transmitter

Preset technology for easy configuration (64 channels), pilot tone support, adjustable sensitivity (0 dB to -30 dB), lock function, integrated LCD with battery status indication and last but not least a convincing audio response all make the MH-8800G/5 an ideal partner for vocalists and public speakers. Design of low handling noise, low structure-borne noise and low acoustic feedback as well a robust body complete the features of this pocket transmitter. Supplied with robust transport case, colour-coded ID rings and stand clamp.

Licence required for this system in the EU!

Matching receiver: US-903DCPRO/5.
Specifications:
  • System: dyn./hypercardioid
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 50-16,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time:>25 h
  • Dimensions: Ø 53 mm x 245 mm
  • Weight: 370 g

Price per unit   (Order No. mo-255450) EUR 234,60 excl. VAT: € 197.14 / $ 212.91


Dynamic hand-held UHF PLL transmitter MH-920/5

PLL Multifrequency System 2 x 16 channels

Dynamic hand-held UHF PLL transmitter

A 16-channel hand-held transmitter with ideal audio characteristics and professional features. The MH-920/5 is perfectly matched to the receiver US-902D/5 and together they form a 2-channel audio transmission system. Its strong point is the general speech application with dialogue partners, e.g. in talks, at presentations and at conferences. An operation as a 2-channel vocal set is also possible due to the excellent audio characteristics. A clearly arranged LCD indicates, among other things, the battery status. The sensitivity can be adjusted in three steps from 0 dB down to -30 dB. The hand-held transmitter supports pilot tone squelch. Handling noise, structure-borne noise and acoustic feedback are suppressed effectively. The solid design is resistant to even higher demands. Supplied with robust transport case, colour-coded ID covers and stand clamp.

Licence required for this system in the EU!

Matching receiver: US-902D/5.
Specifications:
  • System: dyn./hypercardioid
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 50-16,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time:>30 h
  • Dimensions: Ø 50 mm x 260 mm
  • Weight: 350 g

Price per unit   (Order No. mo-255460) - not available

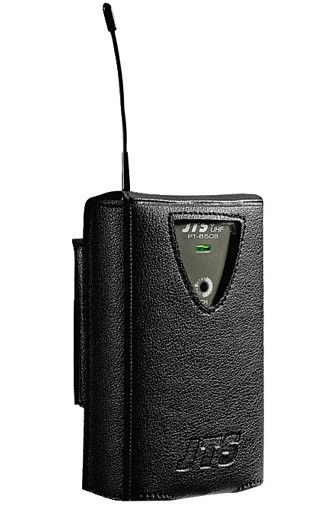

UHF PLL pocket transmitter with lavalier microphone PT-850B/1

PLL Multifrequency System 2 x 16 channels / 1 x 16 channels

UHF PLL pocket transmitter with lavalier microphone

This 16-channel pocket transmitter in a robust plastic housing allows individual matching to connected microphones due to continuously adjustable gain. The battery status is indicated via a dual LED. The supplied lavalier microphone CM-501 convinces by its speech intelligibility. All instrument microphones of the CX series as well as the CX or CM headband microphones can be connected.

Supplied with belt bag.

Licence-free in the EU!

Matching receivers: US-8002D/2 and US-8001D/2.
Specifications:
  • Carrier frequency range: 863-865 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Connections: 4-pole mini XLR
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time: 25 h max.
  • Dimensions: 70x190x30 mm (WxHxD)
  • Weight: 120 g

Price per unit   (Order No. mo-254470) EUR 170,50 excl. VAT: € 143.28 / $ 154.74


UHF PLL pocket transmitter with lavalier microphone PT-920B/5

PLL Multifrequency System 2 x 16 channels

UHF PLL pocket transmitter with lavalier microphone

This 16-channel pocket transmitter is ideally suited for operating lavalier microphones, headsets or also instrument microphones of the CX series at the US-902D/5. It supports pilot tone squelch, features a continuously adjustable gain, lock function and an LCD which gives reliable information regarding transmission data and battery status. A belt bag additionally protects the robust plastic housing. Supplied with lavalier microphone CM-501 in order to enable high-quality speech applications. Supplied with belt bag and robust transport case.

Licence required for this system in the EU!

Matching receiver: US-902D/5.
Specifications:
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Connections: 4-pole mini XLR
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time:>30 h
  • Dimensions: 70x190x30 mm (WxHxD)
  • Weight: 130 g

Price per unit   (Order No. mo-255480) EUR 211,30 excl. VAT: € 177.56 / $ 191.77

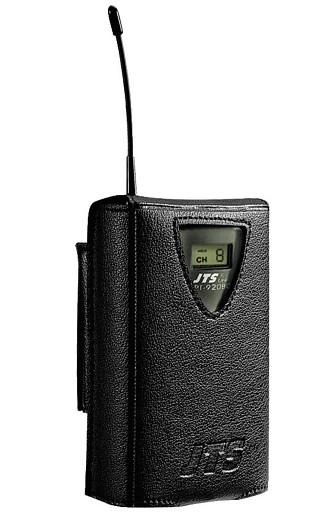

UHF PLL pocket transmitter with lavalier microphone PT-920BG/5

PLL Multifrequency System 2 x 64 channels in 4 groups

UHF PLL pocket transmitter with lavalier microphone

A high-quality audio transmission system which offers maximum speech intelligibility: Lavalier microphone CM-501 and pocket transmitter PT-920BG/5. Pilot tone technology, 64 preset channels and a continuously adjustable gain minimise interference during transmission and create a system with a high adaptability. An integrated LCD allows for a quick identification of the battery status and transmission data. A lock function protects against unintentional readjustment of set parameters. All instrument microphones of the CX series as well as the headband microphones and lavalier microphones of the CX/CM series can be connected to the PT-920BG/5 without any problems. Supplied with belt bag and robust transport case.

Licence required for this system in the EU!

Matching receiver: US-903DCPRO/5.
Specifications:
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Connections: 4-pole mini XLR
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time:>30 h
  • Dimensions: 70x190x30 mm (WxHxD)
  • Weight: 130 g

Price per unit   (Order No. mo-255490) EUR 248,70 excl. VAT: € 208.99 / $ 225.71

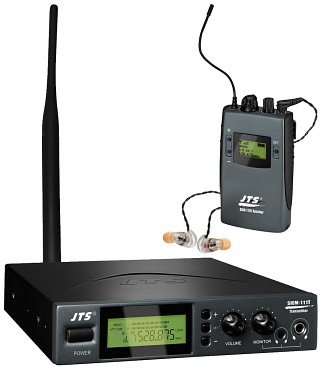

In-ear Monitoring System SIEM-111/5

In-ear Monitoring System 64 channels in 4 groups, 961 frequencies

MPX stereo UHF PLL in-ear monitoring system

Finally, the stage goes quiet! The SIEM-111/5 is a wireless monitor system with excellent sound characteristics and a high flexibility. Acoustic feedback is a thing of the past. Every musician or user can create his/her own individual monitor mix in stereo mode or mono/mix mode. The in-ear system also provides excellent services at live acts, e.g. theatre performances, musical performances or speech applications where prompting is required. 64 preset channels in four groups of 16 channels each support a quick set-up. 961 frequencies in total are available. 16 wireless monitor ways can be used for an intermodulation-free parallel operation. Pilot tone technology and noise squelch guarantee a high transmission reliability. Transmitter and receiver feature a lock function, multifunctional display and a limiter which prevents overload or protects the hearing in case of signal peaks. Cable-connected earphones or headphones can be connected to the transmitter via 3.5 mm or 6.3 mm stereo jack. Supplied with high-quality earphones for the receiver. 482 mm (19") rack installation possible with supplied mounting brackets.

Licence required for this system in the EU!
Specifications:
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 50-15,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Connections: 2 x combo input, 2 x loop output, bal. via 6.3 mm jack
  • Power supply: 100-240 V via integr. switch-mode PSU
  • Operating time: -
  • Dimensions: 212x44x239 mm (WxHxD)
  • Weight: 1.3 kg

Price per unit   (Order No. mo-255510) EUR 616,20 excl. VAT: € 517.82 / $ 559.24

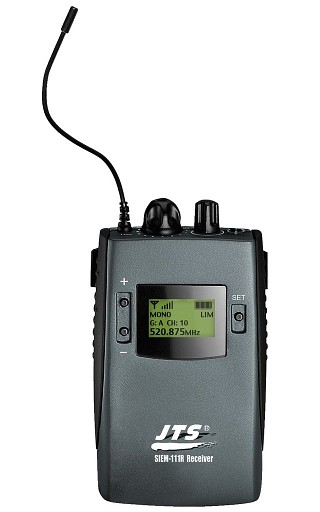

In-ear Monitoring System SIEM-111/R5

In-ear Monitoring System 64 channels in 4 groups, 961 frequencies

UHF PLL in-ear monitoring receiver

As an addition to the SIEM-111/5 in-ear monitoring system. The receiver features excellent audio characteristics. Pilot tone technology allows for a reliable communication with the transmitter and thus external carrier signals don't stand a chance. The peak limiter which can be switched on additionally protects the hearing in case of signal peaks. An individual monitor mix can be realised in stereo mode or mono/mix mode. An ear-selective level matching is possible via balance adjustment. A lock function allows to lock the operating controls. Thus, preventing unintentional readjustment of the parameters. The clearly arranged multifunctional display indicates important operating parameters like battery status, RF level/audio level and receiver frequency/receiver group.
Specifications:
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 50-15,000 Hz
  • THD: 0.8 %
  • Dynamic range:>80 dB
  • Output voltage: -
  • Connections: 3.5 mm stereo jack
  • Power supply: 2 x batt. AA size, alkali
  • Operating time:>8 h
  • Dimensions: 74x196x34 mm (WxHxD)
  • Weight: 300 g

Price per unit   (Order No. mo-255520) EUR 316,00 excl. VAT: € 265.55 / $ 286.79

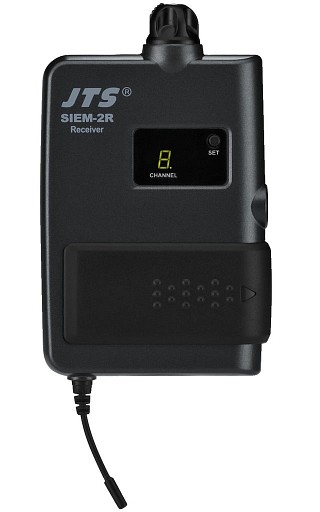

Mono UHF PLL in-ear monitoring receiver SIEM-2/R5

Mono UHF PLL in-ear monitoring receiver

For extending the in-ear monitoring system SIEM-2/5. The receiver features a switchable limiter to protect the hearing in case of excessive volume levels. An additional wired signal can be inserted via a separate adjustable mic/line input. This turns the receiver into a multi-purpose unit. Thus, it can also be used as a portable mono headphone amplifier, even without a radio signal. Phantom power supply of +4 V is available for inserting an optional electret ambient microphone via the wired input. A belt clip made of spring steel provides a secure fit. Due to the impact-proof plastic housing, it is also suitable for severe conditions on stage. A visual warning indicates low battery status.
Specifications:
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD: -
  • Dynamic range:>80 dB
  • Output voltage: -
  • Connections: 6.3 mm stereo jack
  • Power supply: 2 x batt. AA size, alkali
  • Operating time:>8 h
  • Dimensions: 75x160x32 mm
  • Weight: 90 g

Price per unit   (Order No. mo-255540) EUR 164,20 excl. VAT: € 137.98 / $ 149.02

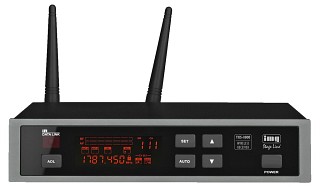

Multifrequency receiver unit,1.8 GHz TXS-1800

Multifrequency receiver unit,1.8 GHz, with UHF PLL technology.

  • 192 selectable UHF frequencies (1,785-1,800 MHz) in 16 groups with 12 channels each
  • ADL function for transmitting the selected parameters to pocket transmitter TXS-1800HSE or hand-held microphone TXS-1800HT via infrared signal
  • True diversity system with removable antennas (BNC connection)
  • Autoscan
  • Pilot tone squelch, noise mute
  • Autolock mode
  • LCD for indicating frequency, antenna A/B, RF receiving level, AF audio level, channel/group
  • XLR output and 6.3 mm output
  • Supplied with PSU
  • 482 mm (19") rack installation possible with supplied mounting brackets


SOUNDCHECK 11/2014

"The transmission systems of the TXS series are perfectly equipped for the future and with the latest technology ensure an interference-free transmission on a big stage."

+ Easy configuration

+ Interference-free transmission

+ Impressive over greater distances
Specifications:
  • Carrier frequency: 1,785-1,800 MHz
  • Audio frequency range: 60-16,000 Hz
  • THD:<0.8 %
  • Dynamic range:>95 dB
  • Audio signal: 50 mV/1 kΩ (jack) 50 mV/150 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. PSU
  • Dimensions: 212x47x175 mm
  • Weight: 1,300 g

Price per unit   (Order No. mo-255130) EUR 308,50 excl. VAT: € 259.24 / $ 279.98

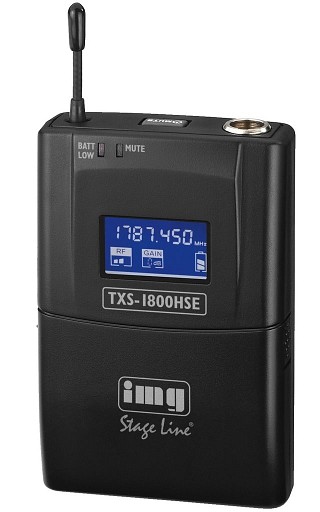

Multifrequency pocket transmitter, 1.8 GHz TXS-1800HSE

Multifrequency pocket transmitter, 1.8 GHz, with UHF PLL technology.

  • Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
  • 192 selectable UHF frequencies (1,785-1,800 MHz) in 16 groups with 12 channels each, can be synchronised with the receiver TXS-1800 via ADL function
  • Adjustable sensitivity (0 dB, -3 dB, -6 dB)
  • LCD for indicating frequency, gain setting and battery status
  • Transmitting power: 10 mW (EIRP)
  • Mute function
  • Belt clip
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence-free in the EU.
Specifications:
  • Carrier frequency: 1,785-1,800 MHz
  • Audio frequency range: 60-16,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>8 h
  • Dimensions: 64x102x28 mm
  • Weight: 95 g

Price per unit   (Order No. mo-255140) EUR 239,00 excl. VAT: € 200.84 / $ 216.91

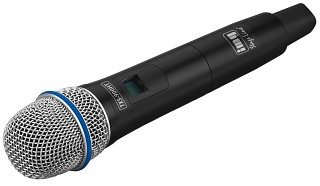

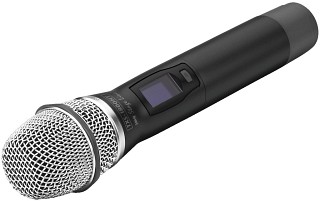

Hand-held microphone with integrated multifrequency transmitter, 1.8 GHz TXS-1800HT

Hand-held microphone with integrated multifrequency transmitter, 1.8 GHz, with UHF PLL technology.

  • Dynamic microphone cartridge, cardiod characteristic
  • Diecast aluminium body
  • 192 selectable UHF frequencies (1,785-1,800 MHz) in 16 groups with 12 channels each, can be synchronised with the receiver TXS-1800 via ADL function
  • Adjustable sensitivity (0 dB, -3 dB, -6 dB)
  • LCD for indicating frequency, gain setting and battery status
  • Transmitting power: 10 mW (EIRP)
  • Mute function
  • Power supply via 2 x 1.5 V battery AA size (not supplied)


Licence-free in the EU.

SOUNDCHECK 11/2014

"The transmission systems of the TXS series are perfectly equipped for the future and with the latest technology ensure an interference-free transmission on a big stage."

+ Easy configuration

+ Interference-free transmission

+ Impressive over greater distances
Specifications:
  • Carrier frequency: 1,785-1,800 MHz
  • Audio frequency range: 60-16,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>8 h
  • Dimensions: Ø 53 mm x 245 mm
  • Weight: 350 g

Price per unit   (Order No. mo-255150) EUR 239,00 excl. VAT: € 200.84 / $ 216.91


Digital wireless pocket transmitter, 2.4 GHz TXS-2401SX

Digital wireless pocket transmitter, 2.4 GHz, matching the 2-channel PLL microphone system TXS-2402SET.

  • High resistance to interference due to digital transmission
  • 16 selectable frequencies (2,404-2,476 MHz)
  • Volume control
  • Power LED
  • Belt clip
  • Headband microphone and tie clip microphone, each with 3.5 mm plug with latching device
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence-free in the EU.

Specifications:
  • Carrier frequency: 2,404-2,476 MHz
  • Transmitting power: 10 mW
  • Audio frequency range: 80-12,000 Hz
  • Frequency stability: -
  • Operating time:>20 h
  • Dimensions: 62x90x28 mm
  • Weight: 105 g

Price per unit   (Order No. mo-254680) EUR 101,40 excl. VAT: € 85.21 / $ 92.03

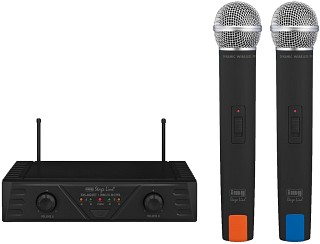

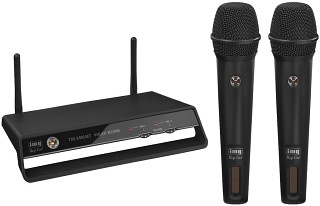

Digital wireless 2-channel PLL microphone system, 2.4 GHz, TXS-2402SET

With the TXS-2402SET, the entry into the world of digital wireless transmission will become a special sound experience. The signal transmission in the 2.4 GHz range is particularly stable and impresses by a high resistance to interference. The system manages without a compander which results in an incredibly dynamic efficiency and a voice transmission with a unique sound quality. The signal will not be compressed. Two systems can be used in parallel operation, thus 4 microphone transmission paths can be used simultaneously. Licence-free system. The particularly easy and convenient use of the units and the appealing design make the TXS-2402SET a real digital experience for the user.

Digital wireless 2-channel PLL microphone system, 2.4 GHz

  • 2 microphone transmitters, 1 receiver, 1 plug-in PSU
  • High resistance to interference due to digital transmission
  • 2 systems can be used in parallel (corresponds to 4 microphone transmission paths)
  • 16 frequencies (2,404-2,476 MHz) for each channel can be selected at the transmitter
  • Wireless autoconfiguration of the receiver
  • Volume control for each channel
  • 6.3 mm output for mixed signal
  • Microphone cartridges of supercardiod characteristic
Licence-free in the EU.

tastenwelt 06/2012

"An entry-level wireless system with a perfectly functioning technology."

+ Easy operation

+ Well-balanced hand-held transmitter
Specifications:
  • Carrier frequency: 2,404-2,476 MHz
  • Transmitting power: 10 mW
  • RF S/N ratio: -
  • Audio range: 80-12,000 Hz
  • Dynamic range: 87 dB
  • THD:<10 %
  • Audio output: 100 mV/600 Ω
  • Operating range: approx. 30 m (free field outdoors) approx. 20 m (indoors)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply:
  • Transmitter: 2 x 1.5 V batt. AA size
  • Receiver: via suppl. plug-in PSU
  • Dimensions:
  • Transmitter: Ø 54 mm x 225 mm
  • Receiver: 220x45x150 mm
  • Weight:
  • Transmitter: 120 g
  • Receiver: 550 g
  • Connections: 1 x 6.3 mm jack, unbal.

Price per unit   (Order No. mo-254090) EUR 261,93 excl. VAT: € 220.11 / $ 237.72

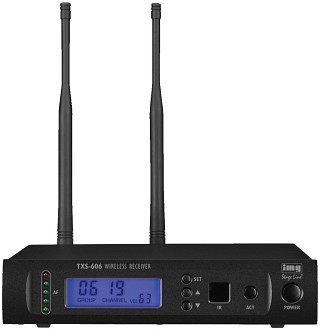

Multifrequency receiver unit TXS-606

Multifrequency receiver unit, with UHF PLL technology.

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) in 10 groups with 100 frequencies each
  • ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
  • Autoscan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls
  • LCD for indicating group/channel, antenna A/B, RF receiving level and AF audio level
  • Additional LED level display for indicating audio level
  • XLR output and 6.3 mm output
  • Robust metal housing
  • Supplied with PSU
Specifications:
  • Carrier frequency: 672.000-696.975 MHz
  • RF S/N ratio: 105 dB
  • Audio frequency range: 30-18,000 Hz
  • THD:<0.5 %
  • Dynamic range: 120 dB
  • Audio output: 350 mV/600 Ω (jack) 25 mV/600 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. plug-in PSU
  • Dimensions: 212x45x180 mm
  • Weight: 930 g

Price per unit   (Order No. mo-253510) EUR 215,90 excl. VAT: € 181.43 / $ 195.94

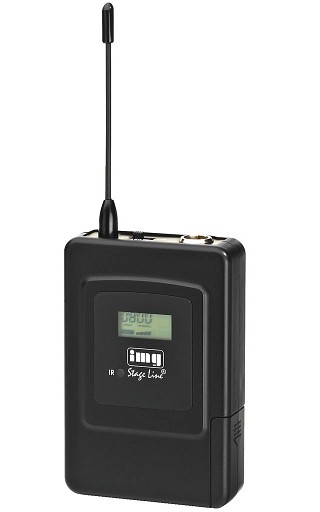

Multifrequency pocket transmitter TXS-606HSE

Multifrequency pocket transmitter, with UHF PLL technology.

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with the receivers TXS-606, TXS-626 or TXS-646 via ACT function
  • Continuously adjustable sensitivity
  • LCD for group/channel, audio level and battery status
  • Suitable for the combination with headband/earband microphones and tie clip microphones with 3-pole mini XLR connector
  • Belt clip
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence required for this system in the EU!

Specifications:
  • Carrier frequency: 672.000-696.975 MHz
  • Transmitting power: 10 mW
  • Audio frequency range: 30-18,000 Hz, ±3 dB
  • Frequency stability: ±0.005 %
  • Operating time:>8 h
  • Dimensions: 61x106x27 mm
  • Weight: 96 g

Price per unit   (Order No. mo-254690) - not available

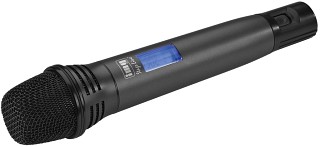

Hand-held microphone with integrated multifrequency transmitter TXS-606HT

Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology.

  • Dynamic microphone cartridge, cardioid characteristic
  • 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with the receivers TXS-606, TXS-626 or TXS-646 via ACT function
  • Adjustable sensitivity
  • Switchable transmitting power (high: 25 mW/low: 2.5 mW)
  • LCD for indicating group/channel, audio level and battery status
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence required for this system in the EU!

SOUNDCHECK 04/2012

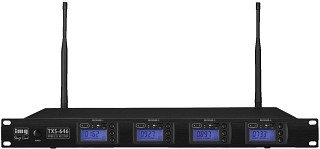

"The TXS-646 can receive four wireless channels at the same time - the hand-held transmitter provides a warm and powerful sound and stands its ground among the instruments ... the earband microphones allow for unobtrusive miking with both a low susceptibility to acoustic feedback and an excellent speech intelligibility ... the quad wireless system from IMG Stage Line provides a reliable operation at all times, is easy to use and impresses by a crisp sound."

+ Clear sound

+ Very good price-performance ratio

+ Future-proof frequency range

(Test setup consisted of TXA-646 with TXS-606HT, TXS-606LT and HSE-70A/SK)
Specifications:
  • Carrier frequency: 672.000-696.975 MHz
  • Transmitting power: 25 mW/2.5 mW
  • Audio frequency range: 30-18,000 Hz, ±3 dB
  • Frequency stability: ±0.005 %
  • Operating time:>8 h
  • Dimensions: Ø 51 mm x 265 mm
  • Weight: 312 g

Price per unit   (Order No. mo-253540) - not available


Multifrequency tie clip microphone transmitter TXS-606LT

Multifrequency tie clip microphone transmitter, with UHF PLL technology.

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with the receivers TXS-606, TXS-626 or TXS-646 via ACT function
  • Continuously adjustable sensitivity
  • LCD for indicating group/channel, audio level and battery status
  • Tie clip microphone with latchable 3.5 mm plug
  • Belt clip
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence required for this system in the EU! Please read the notes regarding wireless systems in the section "IMPORTANT INFORMATION"! SOUNDCHECK 04/2012 "The TXS-646 can receive four wireless channels at the same time - the hand-held transmitter provides a warm and powerful sound and stands its ground among the instruments ... the earband microphones allow for unobtrusive miking with both a low susceptibility to acoustic feedback and an excellent speech intelligibility ... the quad wireless system from IMG Stage Line provides a reliable operation at all times, is easy to use and impresses by a crisp sound." + Clear sound + Very good price-performance ratio + Future-proof frequency range (Test setup consisted of TXA-646 with TXS-606HT, TXS-606LT and HSE-70A/SK)
Specifications:
  • Carrier frequency: 672.000-696.975 MHz
  • Transmitting power: 10 mW
  • Audio frequency range: 30-18,000 Hz, ±3 dB
  • Frequency stability: ±0.005 %
  • Operating time:>8 h
  • Dimensions: 61x106x27 mm
  • Weight: 125 g

Price per unit   (Order No. mo-253550) - not available

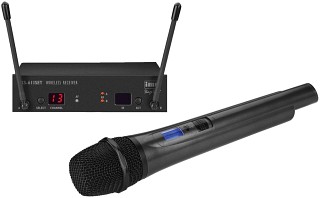

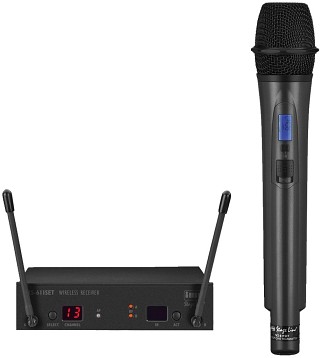

Multifrequency microphone system TXS-611SET

Multifrequency microphone system, with UHF PLL technology.

  • 1 hand-held microphone transmitter (cardioid characteristic), 1 receiver, 1 plug-in PSU
  • True diversity system
  • 80 selectable UHF channels (863-865 MHz)
  • ACT function for transmitting the selected frequency to the hand-held microphone via infrared signal
  • Autoscan
  • Volume and squelch controls
  • Transmitting power can be switched at the hand-held microphone (high/low)
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)
  • Robust metal housing (receiver)
Licence-free system in the EU.

Specifications:
  • Carrier frequency: 863-865 MHz
  • Transmitting power:<10 mW (EIRP)
  • RF S/N ratio: 105 dB
  • Audio range: 50-18,000 Hz, ±3 dB
  • Dynamic range: 120 dB
  • THD:<0.5 %
  • Audio output: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, bal.)
  • Operating range: approx. 30 m
  • Admiss. ambient temp.: 0-40 °C
  • Power supply:
  • Transmitter: 2 x 1.5 V batt. AA size
  • Receiver: via suppl. plug-in PSU
  • Dimensions:
  • Transmitter: Ø 52 mm x 275 mm
  • Receiver: 152x38x120 mm
  • Weight:
  • Transmitter: 235 g
  • Receiver: 482 g
  • Connections: 1 x 6.3 mm jack, unbal. 1 x XLR, bal.

Price per unit   (Order No. mo-253650) EUR 230,00 excl. VAT: € 193.28 / $ 208.74

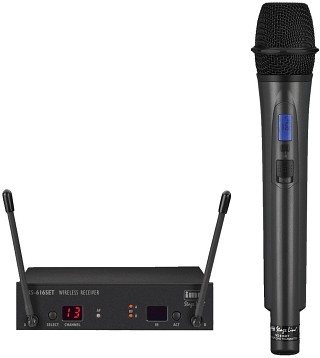

Multifrequency microphone system TXS-616SET

Multifrequency microphone system, with UHF PLL technology.

  • 1 hand-held microphone transmitter, 1 receiver, 1 plug-in PSU
  • True diversity system
  • 100 selectable UHF channels (672-697 MHz)
  • ACT function for transmitting the selected frequency to the hand-held microphone via infrared signal
  • Autoscan
  • Volume and squelch controls
  • Transmitting power can be switched at the hand-held microphone (high/low)
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)
  • Robust metal housing (receiver)
Licence required for this system in the EU!

Specifications:
  • Carrier frequency: 672-697 MHz
  • Transmitting power:<25 mW/2.5 mW (EIRP)
  • RF S/N ratio: 105 dB
  • Audio range: 50-18,000 Hz, ±3 dB
  • Dynamic range: 120 dB
  • THD:<0.5 %
  • Audio output: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, bal.)
  • Operating range: approx. 50 m
  • Admiss. ambient temp.: 0-40 °C
  • Power supply:
  • Transmitter: 2 x 1.5 V batt. AA size
  • Receiver: via suppl. plug-in PSU
  • Dimensions:
  • Transmitter: Ø 52 mm x 275 mm
  • Receiver: 152x38x120 mm
  • Weight:
  • Transmitter: 235 g
  • Receiver: 482 g
  • Connections: 1 x 6.3 mm jack, unbal. 1 x XLR, bal.

Price per unit   (Order No. mo-253490) - not available

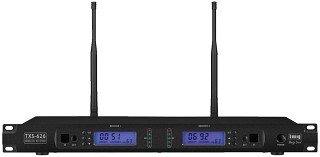

2-channel multifrequency receiver unit TXS-626

2-channel multifrequency receiver unit, with UHF PLL technology.

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 frequencies each)
  • ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
  • Autoscan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls for each channel
  • Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED level display for indicating audio level
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal
  • Robust metal housing
  • Supplied with PSU
  • 482 mm (19") rack installation, 1 RS
Specifications:
  • Carrier frequency: 672.000-696.975 MHz
  • RF S/N ratio: 105 dB
  • Audio frequency range: 30-18,000 Hz
  • THD:<0.5 %
  • Dynamic range: 120 dB
  • Audio output: 350 mV/600 Ω (jack) 25 mV/600 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. plug-in PSU
  • Dimensions: 482x45x195 mm
  • Weight: 1.8 kg

Price per unit   (Order No. mo-253520) EUR 346,11 excl. VAT: € 290.85 / $ 314.12


Multifrequency microphone system TXS-631SET

Multifrequency microphone system, with UHF PLL technology.

  • 1 pocket transmitter, 1 tie clip microphone, 1 receiver, 1 plug-in PSU
  • True diversity system
  • 80 selectable UHF channels (863-865 MHz)
  • ACT function for transmitting the selected frequency to the pocket transmitter via infrared signal
  • Autoscan
  • Volume and squelch controls
  • Gain can be adjusted at the pocket transmitter
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (pocket transmitter)
  • Robust metal housing (receiver)
Licence-free in the EU.

Specifications:
  • Carrier frequency: 863-865 MHz
  • Transmitting power:<10 mW (EIRP)
  • RF S/N ratio: 105 dB
  • Audio range: 50-18,000 Hz, ±3 dB
  • Dynamic range: 120 dB
  • THD:<0.5 %
  • Audio output: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, bal.)
  • Operating range: approx. 30 m
  • Admiss. ambient temp.: 0-40 °C
  • Power supply:
  • Transmitter: 2 x 1.5 V batt. AA size
  • Receiver: via suppl. plug-in PSU
  • Dimensions:
  • Transmitter: 62x105x25 mm
  • Receiver: 152x38x120 mm
  • Weight:
  • Transmitter: 88 g
  • Receiver: 482 g
  • Connections: 1 x 6.3 mm jack, unbal. 1 x XLR, bal.

Price per unit   (Order No. mo-253660) EUR 230,00 excl. VAT: € 193.28 / $ 208.74

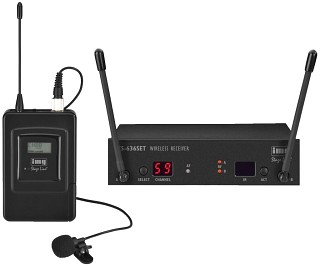

Multifrequency microphone system TXS-636SET

Multifrequency microphone system, with UHF PLL technology.

  • 1 pocket transmitter, 1 tie clip microphone, 1 receiver, 1 plug-in PSU
  • True diversity system
  • 100 selectable UHF channels (672.000-696.975 MHz)
  • ACT function for transmitting the selected frequency to the pocket transmitter via infrared signal
  • Autoscan
  • Volume and squelch controls
  • Gain can be adjusted at the pocket transmitter
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (pocket transmitter)
  • Robust metal housing (receiver)
Licence required for this system in the EU!

Specifications:
  • Carrier frequency: 672-697 MHz
  • Transmitting power:<10 mW (EIRP)
  • RF S/N ratio: 105 dB
  • Audio range: 50-18,000 Hz, ±3 dB
  • Dynamic range: 120 dB
  • THD:<0.5 %
  • Audio output: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, bal.)
  • Operating range: approx. 50 m
  • Admiss. ambient temp.: 0-40 °C
  • Power supply:
  • Transmitter: 2 x 1.5 V batt. AA size
  • Receiver: via suppl. plug-in PSU
  • Dimensions:
  • Transmitter: 62x105x25 mm
  • Receiver: 152x38x120 mm
  • Weight:
  • Transmitter: 88 g
  • Receiver: 482 g
  • Connections: 1 x 6.3 mm jack, unbal. 1 x XLR, bal.

Price per unit   (Order No. mo-253500) EUR 220,00 excl. VAT: € 184.87 / $ 199.66


4-channel multifrequency receiver unit TXS-646

4-channel multifrequency receiver unit, with UHF PLL technology.

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each)
  • ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
  • Autoscan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls for each channel
  • Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display for indicating audio signal
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal
  • Robust metal housing
  • Supplied with PSU
  • 482 mm (19") rack installation, 1 RS


SOUNDCHECK 04/2012

"The TXS-646 can receive four wireless channels at the same time - the hand-held transmitter provides a warm and powerful sound and stands its ground among the instruments ... the earband microphones allow for unobtrusive miking with both a low susceptibility to acoustic feedback and an excellent speech intelligibility ... the quad wireless system from IMG Stage Line provides a reliable operation at all times, is easy to use and impresses by a crisp sound."

+ Clear sound

+ Very good price-performance ratio

+ Future-proof frequency range

(Test setup consisted of TXA-646 with TXS-606HT, TXS-606LT and HSE-70A/SK)
Specifications:
  • Carrier frequency: 672.000-696.975 MHz
  • RF S/N ratio: 105 dB
  • Audio frequency range: 30-18,000 Hz
  • THD:<0.5 %
  • Dynamic range: 120 dB
  • Audio output: 350 mV/600 Ω (jack) 25 mV/600 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. plug-in PSU
  • Dimensions: 482x45x310 mm
  • Weight: 2.9 kg

Price per unit   (Order No. mo-253530) EUR 566,44 excl. VAT: € 476.00 / $ 514.08

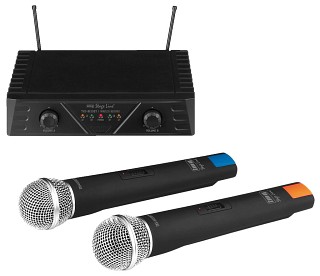

Wireless 2-channel microphone system TXS-812SET

Wireless 2-channel microphone system

  • 2 microphone transmitters, 1 receiver, 1 plug-in PSU
  • Two-channel UHF version (non-diversity) with channel mixing function which can additionally be selected
  • Volume and squelch controls for each channel
  • Each channel with LEDs for indicating RF signal and audio signal
Licence-free in the EU.

Specifications:
  • Carrier frequency: 863.80 MHz , 864.20 MHz
  • Transmitting power:<10 mW (EIRP)
  • RF S/N ratio:>80 dB
  • Audio range: 40-15,000 Hz
  • Dynamic range:>90 dB
  • THD:<0.5 %
  • Audio output: 0-200 mV/10 kΩ (jack) 0-400 mV/10 kΩ (XLR, bal.)
  • Operating range: approx. 30 m
  • Admiss. ambient temp.: 0-40 °C
  • Power supply:
  • Transmitter: 2 x 1.5 V batt. AA size (not supplied)
  • Receiver: via suppl. plug-in PSU
  • Dimensions:
  • Transmitter: Ø 52/40 mm x 260 mm
  • Receiver: 210x46x190 mm
  • Weight:
  • Transmitter: 240 g
  • Receiver: 560 g
  • Connections: 2 x XLR, bal. 1 x 6.3 mm jack, unbal.

Price per unit   (Order No. mo-252600) EUR 256,80 excl. VAT: € 215.80 / $ 233.06

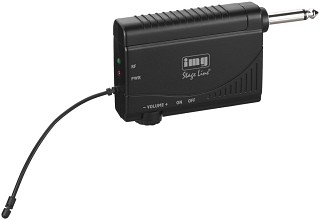

Miniature multifrequency receiver unit TXS-81PLUG

Miniature multifrequency receiver unit, with UHF PLL technology.

  • 6.3 mm plug for the direct connection to a mixer or an amplifier
  • Power supply via 1 x 1.5 V battery AA size (not supplied)
  • 16 selectable UHF channels (863-865 MHz)
  • ACT function for transmitting the selected frequency to hand-held microphone TXS-81HT or pocket transmitter TXS-81SX via infrared signal
  • Volume control
  • LED for indicating carrier signal and power
Specifications:
  • Carrier frequency: 863-865 MHz
  • RF S/N ratio:>80 dB
  • Audio frequency range: 50-20,000 Hz
  • THD:<0.8 %
  • Dynamic range:>100 dB
  • Audio output: 400 mV/10 kΩ (jack)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: 1 x 1.5 V batt. AA size
  • Dimensions: 210x22x60 mm
  • Weight: 70 g

Price per unit   (Order No. mo-254350) - not available

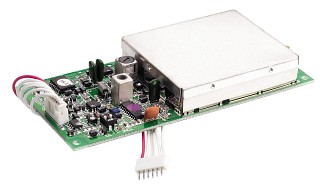

Receiver module TXS-820M

Receiver module, from the TXS-800/802 series, matching the TXS-82... transmitters, for subsequent installation.

  • For general applications, only an antenna and the 8 V DC voltage which is required for operation are needed
  • For subsequent installation, e.g. into amplifiers, mixers or active speaker systems
  • Non-diversity system
  • Small dimensions due to compact SMD technology
  • Connection via supplied cable
  • Outputs for audio, display of field strength (S-meter), carrier LED and external squelch control
  • Audio frequency range: 50-15,000 Hz
TXS-820M = 863.05 MHz

TXS-822M = 864.80 MHz




Price per unit   (Order No. mo-244470) EUR 70,45 excl. VAT: € 59.20 / $ 63.94

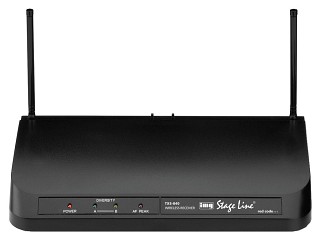

Receiver unit TXS-840

Receiver unit, matching transmitters with the same carrier frequency.

  • Switching diversity system with folding antennas
  • Squelch control
  • Volume control
  • XLR output and 6.3 mm output
  • LEDs for indicating power, AF peak and transmitter status
  • Supplied with PSU
Licence-free in the EU.

Specifications:
  • Carrier frequency: 863.05 MHz
  • Audio frequency range: 50-15,000 Hz
  • THD:<0.6 %
  • Dynamic range:>110 dB
  • Audio signal: 0.75 V/5 kΩ (jack) 60 mV/600 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. plug-in PSU
  • Dimensions: 220x114x40 mm
  • Weight: 550 g

Price per unit   (Order No. mo-240850) - not available

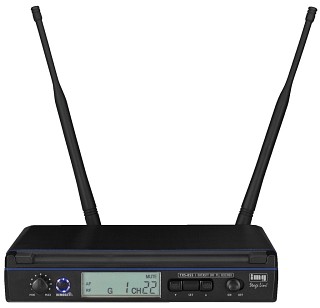

Single-channel diversity UHF PLL receiver, with REMOSET technology, TXS-855

The improvement of the transmission quality and maximising the operating range ensure reliability and provide flexibility! These features have been realised by an innovative circuit design and a switchable transmitting power. A high-quality wireless audio transmission of up to 300 m in a free field outdoors is thus possible without any problems! Rapid transmission: due to REMOSET, the frequency of a corresponding hand-held transmitter or pocket transmitter can easily be set up via the receiver. It is possible to remotely set the desired transmission channel at the transmitter via radio signal, no visual contact required. This can even be done during a live performance! An intelligent carrier analysis method provides user support by only allowing transmission channels on which no other transmitter is active.

Single-channel diversity UHF PLL receiver, with REMOSET technology.

  • 124 selectable channels in 6 channel groups (506-542 MHz)
  • Parallel operation of up to 20 channels
  • Diversity system with removable antennas (BNC connection)
  • Integrated scan function
  • Pilot tone squelch and noise squelch
  • Level of the audio signal can continuously be adjusted
  • 20 dB attenuator (XLR)
  • LCD for indicating receiver channel/receiver group, audio level/RF level, mute, lock, active antenna and battery status of the transmitter
  • XLR output, bal.
  • 6.3 mm output, bal.
  • Supplies operating voltage to TXS-870B
Specifications:
  • Carrier frequency range: 506-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Output voltage: 100 mV XLR, 100 mV jack
  • Connections: XLR, bal., 6.3 mm jack, bal.
  • Power supply: via suppl. PSU
  • Operating time: -
  • Dimensions: 210x42x195 mm
  • Weight: 525 g

Price per unit   (Order No. mo-255280) EUR 221,10 excl. VAT: € 185.80 / $ 200.66


Replacement rod antenna TXS-85ANT

Replacement rod antenna, especially suitable for UHF frequency receiver units TXS-875, TXS-895 and antenna amplifier TXS-875BOOST.

  • Perfect reception due to half-wave length tuning ( /2)
  • Folding 90°, with 45° locking
  • Flexible, with insulating plastic sheathing
  • BNC connection
  • Total length: 245 mm



Price per unit   (Order No. mo-255270) EUR 31,17 excl. VAT: € 26.19 / $ 28.29


2-channel receiver unit TXS-860

2-channel receiver unit, matching transmitters with the same carrier frequency.

  • Non-diversity system with folding antennas (BNC connection)
  • Volume and squelch controls for each channel
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal
  • High/low selector switch for level adjustment (mic/line)
  • Each channel with LED level display for indicating audio signal and transmitting signal
  • Supplied with PSU
  • 482 mm (19") rack installation possible with supplied mounting brackets (1 RS)
Licence-free in the EU.

Specifications:
  • Carrier frequency: 863.05 MHz, 864.80 MHz
  • Audio frequency range: 50-15,000 Hz
  • THD:<0.6 %
  • Dynamic range:>110 dB
  • Audio signal: 0-0.75 V/5 kΩ (jack) 60 mV/600 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. plug-in PSU
  • Dimensions: 410x52x260 mm
  • Weight: 2.4 kg

Price per unit   (Order No. mo-240870) EUR 253,80 excl. VAT: € 213.28 / $ 230.34

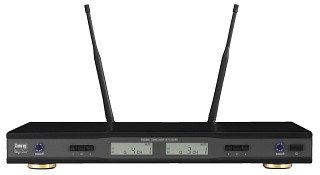

2-channel diversity UHF PLL receivers, with REMOSET technology TXS-865

The improvement of the transmission quality and maximising the operating range ensure reliability and provide flexibility! These features have been realised by an innovative circuit design and a switchable transmitting power. A high-quality wireless audio transmission of up to 300 m in a free field outdoors is thus possible without any problems! Rapid transmission: due to REMOSET, the frequency of a corresponding hand-held transmitter or pocket transmitter can easily be set up via the receiver. It is possible to remotely set the desired transmission channel at the transmitter via radio signal, no visual contact required. This can even be done during a live performance! An intelligent carrier analysis method provides user support by only allowing transmission channels on which no other transmitter is active.

2-channel diversity UHF PLL receivers, with REMOSET technology.

  • 124 selectable channels in 6 channel groups
  • Parallel operation of up to 20 channels
  • Diversity system with removable antennas
  • Integrated scan function
  • Pilot tone squelch and noise squelch
  • Attenuator with 2-way switching
  • LCD for indicating receiver channel/receiver group, audio level/RF level, mute, lock, active antenna and battery status of the transmitter
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal, bal.
  • 482 mm (19") rack installation possible with supplied mounting brackets
  • Supplies operating voltage to TXS-870B
Specifications:
  • Carrier frequency range: 506-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Output voltage: 100 mV XLR, 100 mV jack
  • Connections: XLR, bal., 6.3 mm jack, bal.
  • Power supply: via suppl. PSU
  • Operating time: -
  • Dimensions: 420x54x230 mm
  • Weight: 2 kg

Price per unit   (Order No. mo-255290) EUR 532,80 excl. VAT: € 447.73 / $ 483.55

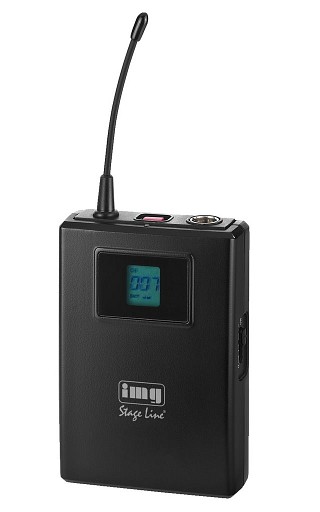

UHF PLL pocket transmitter, with REMOSET technology TXS-865HSE

The improvement of the transmission quality and maximising the operating range ensure reliability and provide flexibility! These features have been realised by an innovative circuit design and a switchable transmitting power. A high-quality wireless audio transmission of up to 300 m in a free field outdoors is thus possible without any problems! Rapid transmission: due to REMOSET, the frequency of a corresponding hand-held transmitter or pocket transmitter can easily be set up via the receiver. It is possible to remotely set the desired transmission channel at the transmitter via radio signal, no visual contact required. This can even be done during a live performance! An intelligent carrier analysis method provides user support by only allowing transmission channels on which no other transmitter is active.

UHF PLL pocket transmitter, with REMOSET technology.

  • Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
  • 124 selectable channels in 6 channel groups (506-542 MHz)
  • Adjustable sensitivity (12 dB to -18 dB)
  • Switchable attenuator (0 dB/-6 dB/-20 dB)
  • Lock function
  • Backlit LCD for indicating channel and battery status
  • Transmitting power: 10 mW (EIRP)
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence required for this system in the EU!
Specifications:
  • Carrier frequency range: 506-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Connections: 3-pole mini XLR
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time:>25 h
  • Dimensions: 68x172x21 mm
  • Weight: 77 g

Price per unit   (Order No. mo-255300) EUR 308,50 excl. VAT: € 259.24 / $ 279.98

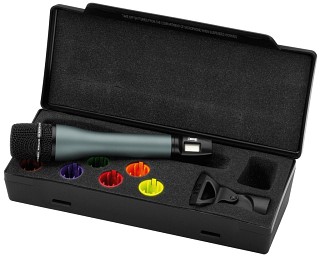

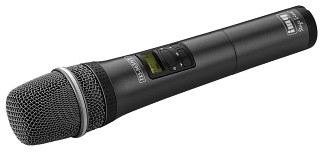

Dynamic hand-held UHF PLL transmitter, with REMOSET technology TXS-865HT

The improvement of the transmission quality and maximising the operating range ensure reliability and provide flexibility! These features have been realised by an innovative circuit design and a switchable transmitting power. A high-quality wireless audio transmission of up to 300 m in a free field outdoors is thus possible without any problems! Rapid transmission: due to REMOSET, the frequency of a corresponding hand-held transmitter or pocket transmitter can easily be set up via the receiver. It is possible to remotely set the desired transmission channel at the transmitter via radio signal, no visual contact required. This can even be done during a live performance! An intelligent carrier analysis method provides user support by only allowing transmission channels on which no other transmitter is active.

Dynamic hand-held UHF PLL transmitter, with REMOSET technology.

  • Dynamic microphone cartridge, cardioid characteristic
  • 124 selectable channels in 6 channel groups (506-542 MHz)
  • Adjustable sensitivity (12 dB to -18 dB)
  • Lock function/mute function
  • Backlit LCD for indicating channel and battery status
  • Switchable transmitting power: 10 mW/50 mW (EIRP)
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with robust transport case and stand clamp
Licence required for this system in the EU!

Specifications:
  • System: dyn./cardioid
  • Carrier frequency range: 506-542 MHz
  • Audio frequency range: 50-16,000 kHz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW/50 mW, switchable
  • Power supply: 2 x batt. AA size, alkaline
  • Operating time:>25 h
  • Dimensions: Ø 50 mm x 250 mm
  • Weight: 350 g

Price per unit   (Order No. mo-255310) EUR 308,50 excl. VAT: € 259.24 / $ 279.98

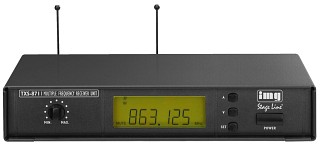

Multifrequency receiver unit TXS-871

Multifrequency receiver unit, with UHF PLL technology.

  • TXS-871: 15 selectable UHF frequencies (863-865 MHz), TXS-872: 193 selectable UHF frequencies (740-764 MHz), TXS-875: 193 selectable UHF frequencies (518-542 MHz)
  • True diversity system with removable antennas (BNC connection)
  • Autoscan
  • Pilot tone squelch, noise mute
  • Selectable lock mode
  • LCD for indicating frequency, antenna A/B, RF receiving level, AF audio level, battery status of the transmitter
  • XLR output and 6.3 mm output
  • Supplied with PSU
  • Supplies operating voltage to TXS-870B


Improved reception qualities due to TXS-81ANT.

tools4music 05/2012

"Equipped for strenuous on-the-road applications. In this price class, both the optional replacement head with condenser cartridge and the LCD at the hand-held transmitter are rather the exception. It is great that the sensitivity of the microphone can be adjusted in four steps."
Specifications:
  • Carrier frequency: 863-865 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Audio signal: 900 mV/1 kΩ (jack) 150 mV/150 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. PSU
  • Dimensions: 211x40x130mm
  • Weight: 1,100g

Price per unit   (Order No. mo-253600) EUR 308,50 excl. VAT: € 259.24 / $ 279.98

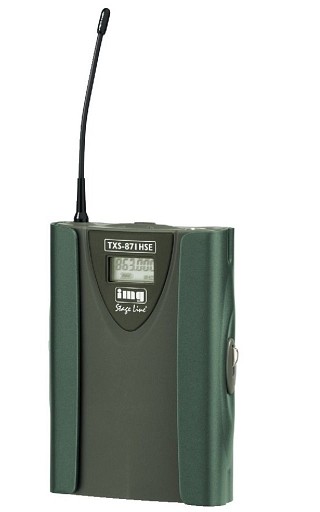

Multifrequency pocket transmitter TXS-871HSE

Multifrequency pocket transmitter, with UHF PLL technology.

  • Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
  • 15 selectable UHF frequencies (863-865 MHz)
  • Adjustable sensitivity
  • LCD for indicating frequency and battery status
  • Transmitting power:<10 mW (EIRP)
  • Selectable lock mode
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied in a plastic case


Licence-free in the EU.

Specifications:
  • Carrier frequency: 863-865 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: 78x190x34 mm
  • Weight: 160 g

Price per unit   (Order No. mo-253620) EUR 206,20 excl. VAT: € 173.28 / $ 187.14


Hand-held microphone with integrated multifrequency transmitter TXS-871HT

Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology.

  • Dynamic microphone cartridge, hypercardioid characteristic
  • Diecast aluminium body
  • 15 selectable UHF frequencies (863-865 MHz)
  • Adjustable sensitivity (0 dB, -10 dB, -20 dB, -30 dB)
  • LCD for indicating frequency and battery status
  • Transmitting power:<10 mW (EIRP)
  • Selectable lock mode
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with plastic case, microphone holder and 7 coloured caps to be pushed on
Licence-free in the EU. Replacement cartridge available: MD-872: condenser cartridge with an even more brilliant sound, supercardioid characteristic

tools4music 05/2012

"Equipped for strenuous on-the-road applications. In this price class, both the optional replacement head with condenser cartridge and the LCD at the hand-held transmitter are rather the exception. It is great that the sensitivity of the microphone can be adjusted in four steps."
Specifications:
  • Carrier frequency: 863-865 MHz
  • Audio frequency range: 50-16,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: Ø 50 mm x 260 mm
  • Weight: 350 g

Price per unit   (Order No. mo-253610) EUR 189,80 excl. VAT: € 159.50 / $ 172.26

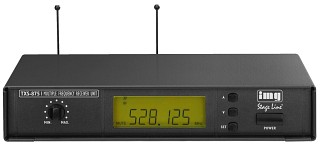

Multifrequency receiver unit TXS-875

Multifrequency receiver unit, with UHF PLL technology.

  • 193 selectable UHF frequencies (518-542 MHz)
  • True diversity system with removable antennas (BNC connection)
  • Autoscan
  • Pilot tone squelch, noise mute
  • Selectable lock mode
  • LCD for indicating frequency, antenna A/B, RF receiving level, AF audio level, battery status of the transmitter
  • XLR output and 6.3 mm output
  • Supplied with PSU
  • Supplies operating voltage to TXS-870B
Specifications:
  • Carrier frequency: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Audio signal: 900 mV/1 kΩ (jack) 150 mV/150 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. PSU
  • Dimensions: 211x40x130 mm
  • Weight: 1,100 g

Price per unit   (Order No. mo-255320) EUR 308,50 excl. VAT: € 259.24 / $ 279.98


Multifrequency pocket transmitter TXS-875HSE

Multifrequency pocket transmitter, with UHF PLL technology.

  • Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
  • 193 selectable UHF frequencies (518-542 MHz)
  • Adjustable sensitivity
  • LCD for indicating frequency and battery status
  • Transmitting power: 10 mW (EIRP)
  • Selectable lock mode
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied in a plastic case
Licence required for this system in the EU!
Specifications:
  • Carrier frequency: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: 78x190x34 mm
  • Weight: 160 g

Price per unit   (Order No. mo-255330) EUR 206,20 excl. VAT: € 173.28 / $ 187.14

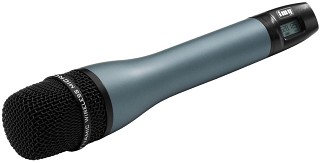

Hand-held microphone with integrated multifrequency transmitter TXS-875HT

Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology.

  • Dynamic microphone cartridge, hypercardiod characteristic
  • Diecast aluminium body
  • 193 selectable UHF frequencies (518-542 MHz)
  • Adjustable sensitivity (0 dB, -10 dB, -20 dB, -30 dB)
  • LCD for indicating frequency and battery status
  • Transmitting power: 10 mW (EIRP)
  • Selectable lock mode
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with plastic case, microphone holder and 7 coloured caps to be pushed on
Licence required for this system in the EU!

Replacement cartridge available: MD-872: condenser cartridge with an even more brilliant sound, supercardioid characteristic

Specifications:
  • Carrier frequency: 518-542 MHz
  • Audio frequency range: 50-16,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: Ø 50 mm x 260 mm
  • Weight: 350 g

Price per unit   (Order No. mo-255340) EUR 189,80 excl. VAT: € 159.50 / $ 172.26


2-channel multifrequency receiver unit TXS-891

Multifrequency pocket transmitter, with UHF PLL technology.

  • Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
  • 16 UHF channels (863-865 MHz), to be selected via rotary switch
  • Transmitting power: 10 mW (EIRP)
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with artificial leather bag
Licence-free in the EU.
Specifications:
  • Carrier frequency: 863-865 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Audio signal: 500 mV/1 kΩ (jack) 150 mV/150 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. PSU
  • Dimensions: 420x55x230 mm
  • Weight: 2.1 kg

Price per unit   (Order No. mo-255380) EUR 377,00 excl. VAT: € 316.81 / $ 342.15


Multifrequency pocket transmitter TXS-891HSE

Multifrequency pocket transmitter, with UHF PLL technology.

  • Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
  • 16 UHF channels (863-865 MHz), to be selected via rotary switch
  • Transmitting power: 10 mW (EIRP)
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with artificial leather bag
Licence-free in the EU.

Specifications:
  • Carrier frequency: 863-865 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: 68x195x25 mm
  • Weight: 130 g

Price per unit   (Order No. mo-255390) EUR 206,20 excl. VAT: € 173.28 / $ 187.14

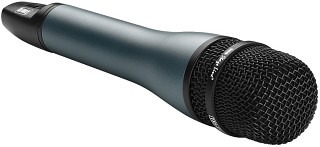

Hand-held microphone with integrated multifrequency transmitter TXS-891HT

Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology.

  • Dynamic microphone cartridge, hypercardioid characteristic
  • Diecast aluminium body
  • 16 selectable UHF channels (863-865 MHz)
  • LCD for indicating channel and battery status
  • Transmitting power: 10 mW (EIRP)
  • Selectable sensitivity (0 dB, -10 dB, -20 dB, -30 dB)
  • Selectable lock mode
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with plastic case, microphone holder and 7 coloured caps to be pushed on
Licence -free in the EU! Replacement cartridge available: MD-872: condenser cartridge with an even more brilliant sound, supercardioid characteristic.

Specifications:
  • Carrier frequency: 863-865 MHz
  • Audio frequency range: 50-16,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: Ø 50 mm x 260 mm
  • Weight: 350 g

Price per unit   (Order No. mo-255400) EUR 215,90 excl. VAT: € 181.43 / $ 195.94

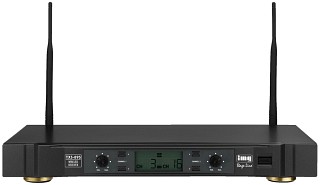

2-channel multifrequency receiver unit TXS-895

2-channel multifrequency receiver unit, with UHF PLL technology.

  • Switching diversity system with removable antennas (BNC connection)
  • 2 channels can be used simultaneously
  • 16 selectable UHF frequencies for each channel, TXS-891 (863-865 MHz), TXS-892 (740-764 MHz), TXS-895 (518-542 MHz)
  • Pilot tone squelch and noise squelch
  • Volume and squelch controls for each channel
  • Selectable lock mode
  • LCD for indicating channel, antenna A/B, RF receiving level and AF audio level
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal
  • Supplies operating voltage to TXS-870B
  • Supplied with PSU
  • 482 mm (19") rack installation possible with supplied mounting brackets
Specifications:
  • Carrier frequency: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Audio signal: 500 mV/1 kΩ (jack) 150 mV/150 Ω (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. PSU
  • Dimensions: 420x55x230 mm
  • Weight: 2.1 kg

Price per unit   (Order No. mo-255350) EUR 377,00 excl. VAT: € 316.81 / $ 342.15

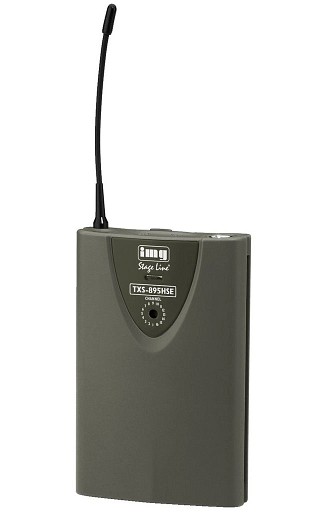

Multifrequency pocket transmitter TXS-895HSE

Multifrequency pocket transmitter, with UHF PLL technology.

  • Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
  • 16 UHF channels (518-542 MHz), to be selected via rotary switch
  • Transmitting power: 10 mW (EIRP)
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with artificial leather bag
Licence required for this system in the EU!
Specifications:
  • Carrier frequency: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: 68x195x25 mm
  • Weight: 130 g

Price per unit   (Order No. mo-255360) EUR 206,20 excl. VAT: € 173.28 / $ 187.14


Hand-held microphone with integrated multifrequency transmitter TXS-895HT

Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology.

  • Dynamic microphone cartridge, hypercardioid characteristic
  • Diecast aluminium body
  • 16 selectable UHF channels (518-542 MHz)
  • LCD for indicating channel and battery status
  • Transmitting power: 10 mW (EIRP)
  • Selectable sensitivity (0 dB, -10 dB, -20 dB, -30 dB)
  • Selectable lock mode
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
  • Supplied with plastic case, microphone holder and 7 coloured caps to be pushed on
Licence required for this system in the EU!

Replacement cartridge available: MD-872: condenser cartridge with an even more brilliant sound, supercardioid characteristic.

Specifications:
  • Carrier frequency: 518-542 MHz
  • Audio frequency range: 50-16,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>30 h
  • Dimensions: Ø 50 mm x 260 mm
  • Weight: 350 g

Price per unit   (Order No. mo-255370) EUR 215,90 excl. VAT: € 181.43 / $ 195.94

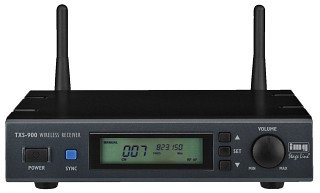

Multifrequency receiver unit TXS-900

-held microphone with integrated multifrequency transmitter
Specifications:
  • Carrier frequency: 823-832 MHz + 863-865 MHz
  • RF S/N ratio:>100 dB
  • Audio frequency range: 80-18,000 Hz
  • THD:<1 %
  • Dynamic range:>100 dB
  • Audio output: line: 75 mV, mic: 7 mV (jack, unbal.) line: 150 mV, mic: 15 mV (XLR, bal.)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. plug-in PSU
  • Dimensions: 200x42x183 mm
  • Weight: 1.1 kg

Price per unit   (Order No. mo-255230) EUR 344,20 excl. VAT: € 289.24 / $ 312.38


Multifrequency pocket transmitter TXS-900HSE

Multifrequency pocket transmitter, with UHF PLL technology.

  • 2 frequency ranges (E band: 823-832 MHz and 863-865 MHz)
  • SYNC function for the synchronisation with receivers TXS-900 and TXS-920
  • Mute function
  • Sensitivity can be adjusted in 3 steps
  • LCD for indicating channel and battery status
  • Suitable for the combination with headband/earband microphones and tie clip microphones with 3-pole mini XLR connector
  • Belt clip
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence-free in the EU.

Specifications:
  • Carrier frequency: 823-832 MHz + 863-865 MHz
  • Transmitting power: 10 mW
  • Audio frequency range: 80-18,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>15 h
  • Dimensions: 65x110x25 mm
  • Weight: 90 g

Price per unit   (Order No. mo-255250) EUR 146,90 excl. VAT: € 123.45 / $ 133.32


Hand-held microphone with integrated multifrequency transmitter TXS-900HT

Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology.

  • Condenser microphone cartridge, cardioid characteristic
  • 2 frequency ranges (E band: 823-832 MHz and 863-865 MHz)
  • SYNC function for the synchronisation with receivers TXS-900 and TXS-920
  • Mute function
  • LCD for indicating channel and battery status
  • Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence-free in the EU.



SOUNDCHECK 11/2014

"The transmission systems of the TXS series are perfectly equipped for the future and with the latest technology ensure an interference-free transmission on a big stage."

+ Easy configuration

+ Interference-free transmission

+ Impressive over greater distances
Specifications:
  • Carrier frequency: 823-832 MHz + 863-865 MHz
  • Transmitting power: 10 mW
  • Audio frequency range: 80-18,000 Hz
  • Frequency stability: ±0.005 %
  • Operating time:>15 h
  • Dimensions: Ø 53 mm x 260 mm
  • Weight: 250 g

Price per unit   (Order No. mo-255260) EUR 162,48 excl. VAT: € 136.54 / $ 147.46


2-channel multifrequency receiver unit TXS-920

2-channel multifrequency receiver unit, with UHF PLL technology.

  • 2 licence-free frequency ranges (E band: 823-832 MHz and 863-865 MHz)
  • 442 selectable channels
  • Intermodulation-free presets, 4 groups with 8 channels each
  • 12 intermodulation-free channels max. can be used in parallel (autoscan)
  • SYNC function for transmitting the selected frequency to pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via infrared signal
  • Autoscan with intermodulation detection
  • True diversity system with removable antennas (BNC connection)
  • Pilot tone squelch
  • Volume and squelch controls
  • LCD for indicating group/channel, frequency, RF receiving level, AF audio level
  • XLR output (bal.) and 6.3 mm output (unbal.) for each channel, switchable mic/line
  • 6.3 mm output for mixed signal (line)
  • Robust metal housing
  • Supplied with PSU
  • 482 mm (19") rack installation possible with supplied mounting brackets


SOUNDCHECK 11/2014

"The transmission systems of the TXS series are perfectly equipped for the future and with the latest technology ensure an interference-free transmission on a big stage."

+ Easy configuration

+ Interference-free transmission

+ Impressive over greater distances
Specifications:
  • Carrier frequency: 823-832 MHz + 863-865 MHz
  • RF S/N ratio:>100 dB
  • Audio frequency range: 80-18,000 Hz
  • THD:<1 %
  • Dynamic range:>100 dB
  • Audio output: line: 75 mV, mic: 7 mV (jack, unbal.) line: 150 mV, mic: 15 mV (XLR, bal.) 75 mV (mix)
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: via suppl. plug-in PSU
  • Dimensions: 482x42x183 mm
  • Weight: 2.3 kg

Price per unit   (Order No. mo-255240) EUR 566,50 excl. VAT: € 476.05 / $ 514.13


Diversity UHF PLL transmission set UR-816DSET/1

Diversity UHF PLL transmission set Consisting of the receiver UR-816D, matching miniature transmitter for electric guitars UT-16GT and a microphone for the sound pick-up of wind instruments which is screwed onto the transmitter. The system operates in the frequency range 863-865 MHz.



Price per unit   (Order No. mo-255590) - not available


PLL Multifrequency System US-8001D/1

PLL Multifrequency System

2 x 16 channels / 1 x 16 channels

Diversity UHF PLL receiver, 16 channels

An easy-to-use 16-channel receiver in a half-rack design. Four intermodulation-free frequencies are available and thus setting up two 2-channel receivers for simultaneous operation may be possible. LEDs indicate diversity status and audio level. Pilot tone squelch and fixed noise squelch allow for an interference-free operation. This system is ideally suited for any speech application requiring a reliable transmission of several dialogue partners or vocal partners. The 482mm (19") unit holder DR-900SET allows for 1RS rack installation of two US-8001D/2 or US-8002D/2 which can be placed next to each other. Up to eight intermodulation-free frequencies can be used simultaneously. In combination with the hand-held transmitter MH-850/2, it is a perfect alternative to cable-connected microphone systems for anyone hiring out.

Matching hand-held transmitter: MH-850/1.

Matching pocket transmitter: PT-850B/1.
Specifications:
  • Carrier frequency range: 863-865 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Output voltage: 40 mV XLR, 150 mV jack
  • Connections: 1 x XLR, bal., 1 x 6.3 mm jack, unbal.
  • Power supply: via suppl. PSU
  • Operating time: -
  • Dimensions: 210x40x170 mm (WxHxD)
  • Weight: 455 g

Price per unit   (Order No. mo-254480) EUR 188,30 excl. VAT: € 158.24 / $ 170.89


PLL Multifrequency System US-8002D/1

PLL Multifrequency System

2 x 16 channels / 1 x 16 channels

Diversity UHF PLL receiver, 2 x 16 channels

An easy-to-use 2 x 16-channel receiver in a half-rack design. Four intermodulation-free frequencies are available and thus setting up two 2-channel receivers for simultaneous operation may be possible. LEDs indicate diversity status and audio level. Pilot tone squelch and fixed noise squelch allow for an interference-free operation. This system is ideally suited for any speech application requiring a reliable transmission of several dialogue partners or vocal partners. The 482 mm (19") unit holder DR-900SET allows for 1 RS rack installation of two US-8001D/2 or US-8002D/2 which can be placed next to each other. Up to eight intermodulation-free frequencies can be used simultaneously. In combination with the hand-held transmitter MH-850/2, it is a perfect alternative to cable-connected microphone systems for anyone hiring out.

Matching hand-held transmitter: MH-850/1.

Matching pocket transmitter: PT-850B/1.
Specifications:
  • Carrier frequency range: 863-865 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Output voltage: 40 mV XLR, 150 mV jack
  • Connections: 2 x XLR, bal., 1 x 6.3 mm jack, unbal.
  • Power supply: via suppl. PSU
  • Operating time: -
  • Dimensions: 210x40x170 mm (WxHxD)
  • Weight: 500 g

Price per unit   (Order No. mo-254490) EUR 239,00 excl. VAT: € 200.84 / $ 216.91


PLL Multifrequency System US-903DCPRO/5

PLL Multifrequency System

2 x 64 channels in 4 groups

2-channel diversity UHF PLL receiver

2 x 64 channel presets in four groups provide a high flexibility and quick access. The receiver operates with pilot tone squelch and adjustable noise squelch which together with the diversity technology guarantee a reception quality of highest stability. 16 frequencies can be used for parallel operation (corresponds to eight 2-channel systems). Outliers/dropouts and external carriers are suppressed effectively. Excellent audio characteristics allow versatile applications. A backlit LCD provides immediate display of important status indications, e.g. channel/group assignment and RF level/audio level. The lock function protects against unintentional readjustment of the receiving parameters. An optional antenna booster UB-900... can be supplied with power directly via the antenna inputs. External chargers are not required due to the integrated charging slot for four rechargeable NiMH batteries AA size which indicates the operating status. The robust desktop metal housing can easily be changed into a 482 mm (19") insertion housing.

Matching hand-held transmitter: MH-8800G/5.

Matching pocket transmitter: PT-920BG/5.
Specifications:
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 40-18,000 Hz
  • THD:<0.6 %
  • Dynamic range:>105 dB
  • Output voltage: 40 mV XLR, 250 mV jack
  • Connections: 2 x XLR, bal. 1 x 6.3 mm jack, unbal.
  • Power supply: via suppl. PSU
  • Operating time: -
  • Dimensions: 420x50x230 mm (WxHxD)
  • Weight: 2.25 kg

Price per unit   (Order No. mo-255570) EUR 371,80 excl. VAT: € 312.44 / $ 337.43


Headband microphone with integrated 16-channel PLL transmitter UT-16HW/1

Headband microphone with integrated 16-channel PLL transmitter

An ideal tool for trainers, animators, dancing instructors and performers who appreciate a high level of mobility. The electret cartridge is sweat-resistant due to a drip ring, resistant to acoustic feedback and impresses with a crystal clear sound which is powerful despite high ambient noise. Both the adjustable head strap and the head piece with silicone sleeving ensure a secure fit and a high wearing comfort. Supplied with a rubber cover protecting the transmission unit from moisture and splash water. Supplied with robust transport case, trim key and coloured covers for the battery compartment.

Matching receivers US-8001D/1 and US-8002D/1 are available at option.
Specifications:
  • System: electret, cardioid
  • Impedance: 2.2 kΩ
  • Sensitivity: 4.3 mV/Pa/1 kHz
  • Max. SPL: 120 dB
  • Carrier frequency range: 863-865 MHz
  • Audio frequency range: 100-18,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Power supply: 1 x 1.5 V batt. AAA size
  • Operating time:>8 h
  • Dimensions: -
  • Weight: 50 g

Price per unit   (Order No. mo-254640) - not available


Headband microphone with integrated 16-channel PLL transmitter UT-16HW/5

Headband microphone with integrated 16-channel PLL transmitter

An ideal tool for animators, dancing instructors and performers who appreciate a high level of mobility. The electret cartridge is sweat-resistant due to a drip ring, resistant to acoustic feedback and impresses with a crystal clear sound which is powerful despite high ambient noise. Both the adjustable head strap and the head piece with silicone sleeving ensure a secure fit and a high wearing comfort. Supplied with a rubber cover protecting the transmission unit from moisture and splash water. Supplied with robust transport case, trim key and coloured covers for the battery compartment.
Specifications:
  • System: electret, cardioid
  • Impedance: 2.2 kΩ
  • Sensitivity: 4.3 mV/Pa/1 kHz
  • Max. SPL: 120 dB
  • Carrier frequency range: 518-542 MHz
  • Audio frequency range: 100-18,000 Hz
  • Frequency stability: ±0.005 %
  • Transmitting power: 10 mW
  • Power supply: 1 x 1.5 V batt. AAA size
  • Operating time:>8 h
  • Dimensions: -
  • Weight: 50 g

Price per unit   (Order No. mo-255580) - not available


RF spectrum analyser, 15-2,700 MHz RF-EXPLORER/3

RF spectrum analyser, 15-2,700 MHz, in a compact aluminium housing with two antennas (SMA connection) for the different frequency ranges, among other things, for preventing frequency collisions when setting up radio links in the frequency range mentioned above.

  • Real-time monitoring of the frequency range used with indication of frequency and level (dBm and dBµV)
  • Backlit high-contrast graphic display (128x64 pixels)
  • Automarker function and manual marker positioning for setting an individual carrier frequency
  • Special Wi-Fi analyser with display of 13 WLAN channels
  • Max hold function for a reliable detection of ultra-short RF carrier frequencies (additional modes: normal, max., average, overwrite)
  • Mini USB 2.0 interface for connecting to a PC or laptop as well as for charging the built-in rechargeable lithium polymer battery (860 mAh)
  • Supplied with transport bag and USB cable
  • Client software with real-time analysis for Windows* XP/Vista/Win7/Win8 (32-bit or 64-bit versions) can be downloaded at www.monacor.com
  • Dimensions: 71x122x25 mm
  • Weight: 200 g


proaudio.de 02/2013

"All in all, the RF-EXPLORER/3 can highly be recommended to anyone using wireless products. Of course, there are also other units in the range of scanners, but no other device is as mobile, functional and flexible, yet still available at such an attractive price. Thus, it can absolutely be recommended to anyone using wireless products."



Price per unit   (Order No. mo-254670) EUR 389,00 excl. VAT: € 326.89 / $ 353.04


Holder RF-HOLDER

Holder, for the RF spectrum analyser RF-EXPLORER/3.

  • Blue plastic, 3 mm thick
  • Supplied as an assembly kit
  • Dimensions: 90x105x90 mm (assembled)
  • Weight: 90 g
Supplied without unit.




Price per unit   (Order No. mo-250020) EUR 28,48 excl. VAT: € 23.93 / $ 25.85
