DIY: Meters

Panel mount digital voltmeter DVM-12

Enlarge Panel mount digital voltmeter, for indicating the charging voltage of rechargeable 12 V and 24 V batteries.
  • Blue LED display, 3 digits
  • Display range: 8-36 V DC current
  • Hi/Lo indication for undervoltage or overvoltage
  • Removable aluminium front panel
  • Calibration possible via adjusting screw
  • Dimensions: 72x47x18 mm



Price per unit   (Order No mo-292000) EUR 26,00 excl. VAT: € 21.85 / $ 25.56

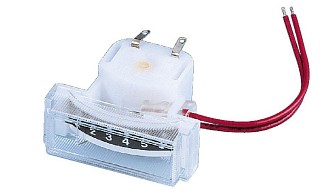

Profile panel meter E-11A

Enlarge Profile panel meter, for tuning and level display, scale 1-6, 120 µA/750 Ω, illuminated.


Price per unit   (Order No mo-290190) EUR 14,10 excl. VAT: € 11.85 / $ 13.86

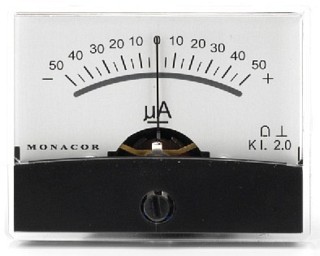

Moving Coil Panel Meters PM-2/+-50UA

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: ±50 µA
  • Internal resistance: 1.9 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290450) EUR 19,70 excl. VAT: € 16.55 / $ 19.37



Moving Coil Panel Meters PM-2/100MA

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 100 mA
  • Internal resistance: 0.65 Ω
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290530) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

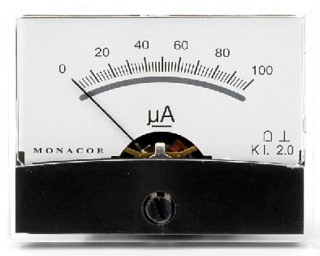

Moving Coil Panel Meters PM-2/100UA

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 100 µA
  • Internal resistance: 1.0 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290540) EUR 19,70 excl. VAT: € 16.55 / $ 19.37

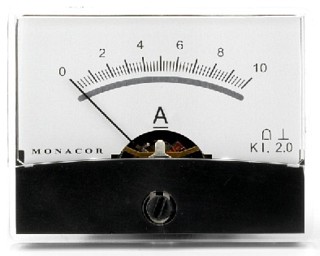

Moving Coil Panel Meters PM-2/10A

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 10 A
  • Internal resistance: 6 mΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290500) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

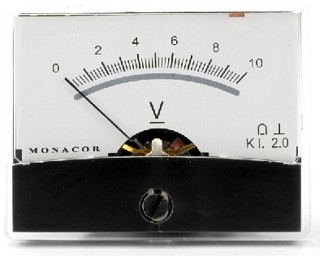

Moving Coil Panel Meters PM-2/10V

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 10 V
  • Internal resistance: 10 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290520) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

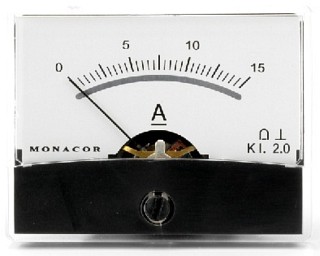

Moving Coil Panel Meters PM-2/15A

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 15 A
  • Internal resistance: 4 mΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290560) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

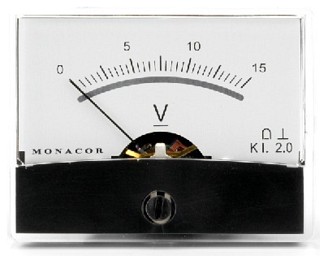

Moving Coil Panel Meters PM-2/15V

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 15 V
  • Internal resistance: 15 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290570) EUR 18,10 excl. VAT: € 15.21 / $ 17.80



Moving Coil Panel Meters PM-2/1A

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 1 A
  • Internal resistance: 60 mΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290470) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

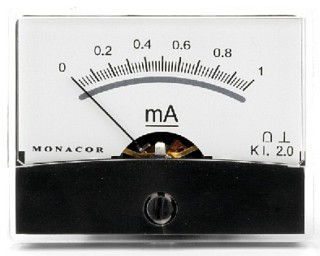

Moving Coil Panel Meters PM-2/1MA

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 1 mA
  • Internal resistance: 200 Ω
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290480) EUR 18,10 excl. VAT: € 15.21 / $ 17.80



Moving Coil Panel Meters PM-2/25V

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 25 V
  • Internal resistance: 25 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290580) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

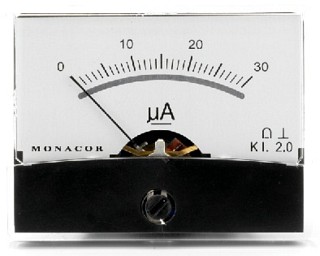

Moving Coil Panel Meters PM-2/30UA

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 30 µA
  • Internal resistance: 6.5 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290600) EUR 19,70 excl. VAT: € 16.55 / $ 19.37

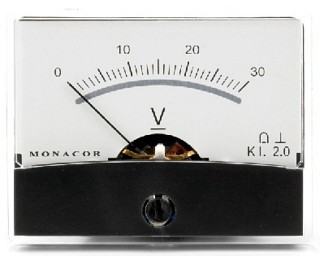

Moving Coil Panel Meters PM-2/30V

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 30 V
  • Internal resistance: 30 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290610) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

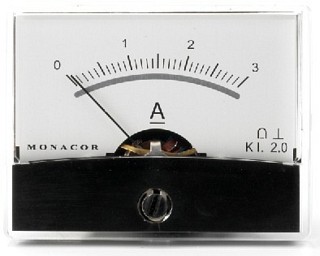

Moving Coil Panel Meters PM-2/3A

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 3 A
  • Internal resistance: 20 mΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290590) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

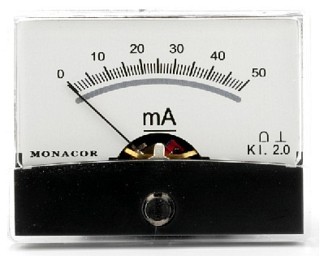

Moving Coil Panel Meters PM-2/50MA

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 50 mA
  • Internal resistance: 1.2 Ω
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290650) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

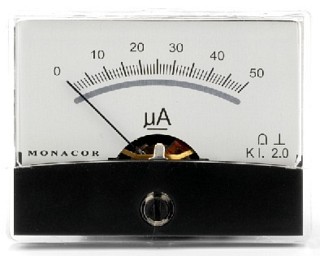

Moving Coil Panel Meters PM-2/50UA

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 50 µA
  • Internal resistance: 6.5 kΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290660) EUR 19,70 excl. VAT: € 16.55 / $ 19.37

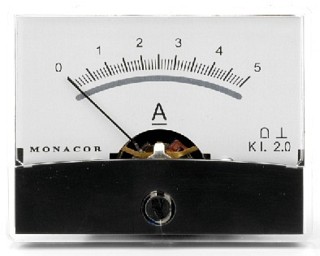

Moving Coil Panel Meters PM-2/5A

Enlarge Moving Coil Panel Meters With mirror scale, all-plastic housing, quality class 2, zero point correction. The meters are prewired for an illumination. For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Specifications:

  • Measuring range: 5 A
  • Internal resistance: 12 mΩ
  • Dimensions display: 60.3x46.3 mm
  • Mounting cutout: Ø 37.5 mm
  • Mounting depth: 23 mm

Price per unit   (Order No mo-290640) EUR 18,10 excl. VAT: € 15.21 / $ 17.80

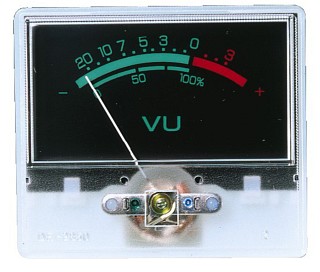

Panel meter V-22

Enlarge Panel meter, with VU lettering, 250 µA/750 Ω, ±10 %.


Price per unit   (Order No mo-291050) EUR 13,40 excl. VAT: € 11.26 / $ 13.17
