DIY: Fans and grilles

Axial fan CF-220/BB

Enlarge Axial fan
  • Ball bearing
  • Safety class I
  • Black metal version

Specifications:

  • Air flow rate: 175 m3/h
  • Power supply: 230 V /50 Hz/27 W
  • Starting voltage: 150 V
  • Max. noise level: 50 dB
  • Admiss. ambient temp.: -10 °C to +60 °C
  • Dimensions: 118x118x39 mm
  • Weight: 600 g

Price per unit   (Order No mo-030260) - not available



Axial fan CF-80

Enlarge Axial fan
  • Sleeve bearing
  • Safety class I
  • Black metal version

Specifications:

  • Air flow rate: 49 m3/h
  • Power supply: 230 V /50 Hz/16 W
  • Starting voltage: 120 V
  • Max. noise level: 33 dB
  • Admiss. ambient temp.: -10 °C to +60 °C
  • Dimensions: 80x80x38 mm
  • Weight: 408 g

Price per unit   (Order No mo-030270) - not available



Axial fan CF-80/12V

Enlarge Axial fan
  • Sleeve bearing
  • Black plastic version

Specifications:

  • Air flow rate: 45 m3/h
  • Power supply: 12 V DC current /120 mA/1.5 W
  • Starting voltage: 4 V DC current
  • Max. noise level: 32 dB
  • Admiss. ambient temp.: -10 °C to +60 °C
  • Dimensions: 80x80x25 mm
  • Weight: 82 g

Price per unit   (Order No mo-030290) - not available



Axial fan CF-80/24V

Enlarge Axial fan
  • Sleeve bearing
  • Black plastic version

Specifications:

  • Air flow rate: 45 m3/h
  • Power supply: 24 V DC current /75 mA/2 W
  • Starting voltage: 8 V DC current
  • Max. noise level: 27 dB
  • Admiss. ambient temp.: -10 °C to +60 °C
  • Dimensions: 80x80x25 mm
  • Weight: 90 g

Price per unit   (Order No mo-034420) - not available

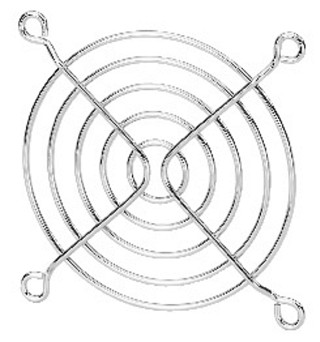

Fan grille CFG-1

Enlarge Fan grille, matching CF-80...


Price per unit   (Order No mo-030300) EUR 2,90 excl. VAT: € 2.44 / $ 2.85



Fan grille CFG-5

Enlarge Fan grille, matching CF-220/BB.


Price per unit   (Order No mo-030310) EUR 3,90 excl. VAT: € 3.28 / $ 3.83
