DIY: Alarm buzzers

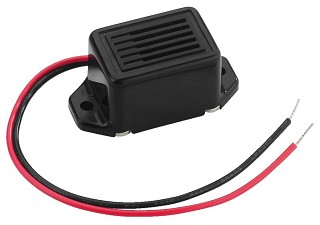

Alarm Buzzers MEB-12SM

Enlarge Alarm Buzzers
  • Sound pressure: 75 dB (30 cm distance)
  • 400 Hz continuous sound
  • Hole distance: 27 mm
  • 33x15x16 mm
  • Admissible ambient temperature: -20 °C to +60 °C

Specifications:

  • Power supply: 12 V DC current /15 mA
  • Voltage range: 7-17 V DC current

Price per unit   (Order No mo-043220) EUR 3,81 excl. VAT: € 3.20 / $ 3.78



Alarm Buzzers MEB-6SM

Enlarge Alarm Buzzers
  • Sound pressure: 75 dB (30 cm distance)
  • 400 Hz continuous sound
  • Hole distance: 27 mm
  • 33x15x16 mm
  • Admissible ambient temperature: -20 °C to +60 °C

Specifications:

  • Power supply: 6 V DC current /20 mA
  • Voltage range: 3-7 V DC current

Price per unit   (Order No mo-043230) EUR 2,87 excl. VAT: € 2.41 / $ 2.85

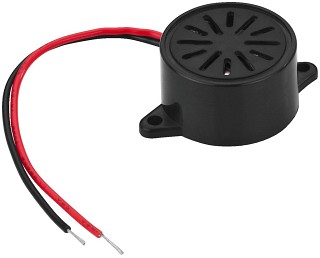

Alarm buzzer MEB-827

Enlarge Alarm buzzer
  • Sound pressure: 85 dB (30 cm distance)
  • 3,400 Hz continuous sound
  • Power supply: 24 V DC current /8 mA
  • Voltage range: 7-28 V DC current
  • Hole distance: 26.5 mm
  • Ø 22 mm x 12.5 mm
  • Admissible ambient temperature: -20 °C to +60 °C



Price per unit   (Order No mo-040540) EUR 4,03 excl. VAT: € 3.39 / $ 4.00



Alarm buzzer PEB-12P

Enlarge Alarm buzzer
  • Sound pressure: 85 dB (30 cm distance)
  • 2,800 Hz pulsed sound
  • Power supply: 12 V DC current /15 mA
  • Voltage range: 8-15 V DC current
  • Hole distance: 34 mm
  • Ø 28 mm x 20 mm
  • Admissible ambient temperature: -20 °C to +60 °C



Price per unit   (Order No mo-042720) EUR 2,50 excl. VAT: € 2.10 / $ 2.48

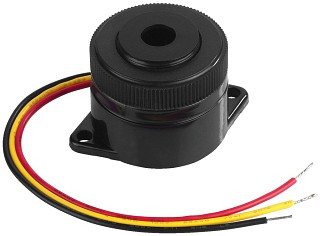

Alarm piezo buzzer PEB-2618S

Enlarge Alarm piezo buzzer
  • Sound pressure: 105 dB/95 dB (30 cm distance)
  • 2,700Hz continuous or pulsed sound
  • Power supply: 12 V DC current /20 mA/15 mA
  • Voltage range: 6-18 V DC current
  • Single-hole mounting: Ø 18 mm
  • Hole distance: 34 mm
  • Ø 29 mm x 24 mm
  • Admissible ambient temperature: -20 °C to +60 °C



Price per unit   (Order No mo-043260) EUR 6,24 excl. VAT: € 5.24 / $ 6.19

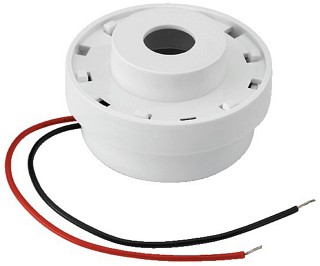

Alarm piezo buzzer PEB-312

Enlarge Alarm piezo buzzer
  • Sound pressure: 105 dB (30 cm distance)
  • 2,900Hz continuous sound
  • Power supply: 12 V DC current /30 mA
  • Voltage range: 1-13 V DC current
  • Ø 45 mm x 26 mm
  • Admissible ambient temperature: -20 °C to +60 °C



Price per unit   (Order No mo-040630) EUR 5,20 excl. VAT: € 4.37 / $ 5.16



Alarm piezo buzzer PEB-312P

Enlarge Alarm piezo buzzer
  • Sound pressure: 100 dB (30 cm distance)
  • 2,900 Hz pulsed sound
  • Power supply: 12 V DC current /20 mA
  • Voltage range: 1-13 V DC current
  • Ø 45 mm x 26 mm
  • Admissible ambient temperature: -20 °C to +60 °C



Price per unit   (Order No mo-042700) EUR 3,72 excl. VAT: € 3.13 / $ 3.69

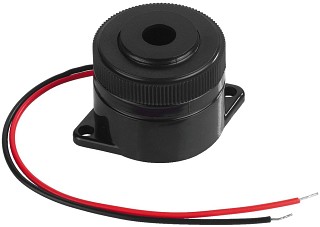

Alarm piezo buzzer PEB-618S

Enlarge Alarm piezo buzzer
  • Sound pressure: 105 dB (30 cm distance)
  • 2,600 Hz continuous sound
  • Power supply: 12 V DC current /20 mA
  • Voltage range: 6-18 V DC current
  • Single-hole mounting: Ø 18 mm
  • Hole distance: 34 mm
  • Ø 29 mm x 24 mm
  • Admissible ambient temperature: -20 °C to +60 °C



Price per unit   (Order No mo-043250) EUR 5,89 excl. VAT: € 4.95 / $ 5.84



Alarm buzzer PEB-90S

Enlarge Alarm buzzer
  • Sound pressure: 90 dB (30 cm distance)
  • 2,800 Hz continuous sound
  • Power supply: 9 V DC current /40 mA
  • Voltage range: 6-11 V DC current
  • Hole distance: 34 mm
  • Ø 28 mm x 20 mm
  • Admissible ambient temperature: -20 °C to +60 °C



Price per unit   (Order No mo-040650) EUR 3,80 excl. VAT: € 3.19 / $ 3.77
