Signal optimisers: DI boxes

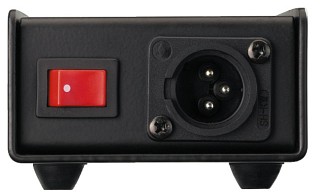

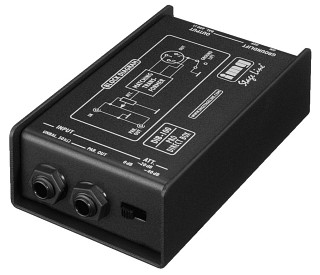

I Boxes DIB-100

DI Boxes For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated. For adapting line levels, please use units of the LTR series!

DI box

  • 3-fold attenuation switch (0/-20/-40 dB)
  • Ground lift switch
  • Instrument feed-through output
  • Wideband balancing transformer
  • Robust metal housing


PRODUCTION PARTNER 04/2013

"The measured values and workmanship give no reason for criticism. When considering the price, too, you can't go wrong."
Specifications:
  • General Information:
  • Frequency range: 15-30,000 Hz, ±0 dB
  • Inputs: 50 kΩ
  • Outputs: 600 Ω, XLR 50 kΩ, jack
  • Transmission ratio: 10:1
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 74x45x130 mm
  • Weight: 650 g
  • Inputs: 6.3 mm jack, unbal
  • Outputs: 6.3 mm jack, unbal., par. out XLR, bal.

Price per unit   (Order No. mo-241140) EUR 39,20 excl. VAT: € 32.94 / $ 35.58

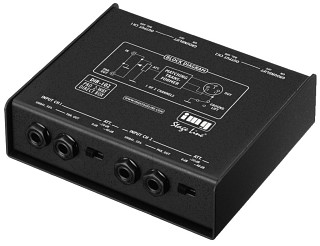

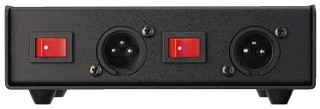

I Boxes DIB-102

DI Boxes For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated. For adapting line levels, please use units of the LTR series!

2-channel DI box

  • 3-fold attenuation switch (0/-20/-40 dB) for each channel
  • 1 ground lift switch for each channel
  • 1 instrument feed-through output for each channel
  • Wideband balancing transformer
  • Robust metal housing


tools4music 06/2009 on the LSP-102, LC-31, FGA-102, FGA-202, DIB-102

"Recommendable and fit for on-the-road applications. An attractively priced little audio aid, perfect for the 'ever accompanying' tool case."

tools4music 02/2010

"The DIB-12 from IMG Stage Line impresses by both the attractive price and the very stable housing. The frequency curve is exemplary."
Specifications:
  • General Information:
  • Frequency range: 15-30,000 Hz, ±0 dB
  • Inputs: 50 kΩ
  • Outputs: 600 Ω, XLR 50 kΩ, jack
  • Transmission ratio: 10:1
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 148x50x130 mm
  • Weight: 850 g
  • Inputs: 2 x 6.3 mm jack, unbal.
  • Outputs: 2 x 6.3 mm jack, unbal., par. out 2 x XLR, bal.

Price per unit   (Order No. mo-247060) EUR 62,31 excl. VAT: € 52.36 / $ 56.55

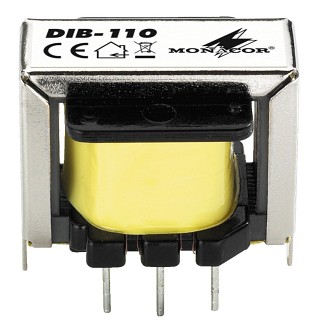

DI transformer 10:1 DIB-110

DI transformer 10:1

  • Unshielded version with print connections
  • Wideband version
  • Change from unbalanced to balanced and vice versa
  • Galvanic isolation to avoid/eliminate hum loops
  • Max. input voltage: 5 V (1 % THD/40 Hz)


When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Specifications:
  • General Information:
  • Frequency range: 15-30,000 Hz
  • Inputs: 47 kΩ, unbal.
  • Outputs: 600 Ω, bal.
  • Transmission ratio: 10:1
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 25x24x21 mm
  • Weight: 28 g
  • Inputs: -
  • Outputs: -

Price per unit   (Order No. mo-212140) EUR 13,77 excl. VAT: € 11.57 / $ 12.50
