Power supply: Fixed voltage PSUs

24 V built-in PSU PS-100/24

Enlarge 24 V built-in PSU

  • Short-circuit proof, overload-protected
  • Overtemperature protection
  • Fine adjustment of output voltage
  • EMC standard EN 61000-3-2
  • Aluminium housing
  • Mains connection and low-voltage connection via screw terminals

PS-100/24: output current 4.5 A (100 W)

PS-200/24: output current 8.3 A (200 W)

PS-320/24: output current 13 A (310 W)

Specifications:

  • Input voltage: 100-240 V / 50-60 Hz/ 225 VA
  • Output voltage: 24 V DC current (22-26 V DC current )
  • Charging/output current: 4.5 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 160x40x98 mm
  • Weight: 530 g

Price per unit   (Order No mo-273270) EUR 41,00 excl. VAT: € 34.45 / $ 40.66

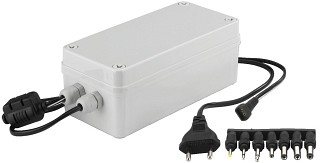

12 V PSU for outdoor applications PS-120WP

Enlarge 12 V PSU for outdoor applications, with increased output current.
  • For CCTV cameras and LED infrared floodlights
  • Protected against short circuit, overload and overheating
  • Low-voltage connections via 1.5 m cable, supplied with 7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm; switchable polarity by reversing the supplied adapters
  • 230 V connection via 1.5 m mains cable with Euro plug

Specifications:

  • Input voltage: 230 V /50 Hz/60 VA
  • Output voltage: 12 V DC current
  • Charging/output current: 2 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: -10 to +40 °C
  • Dimensions: 80x70x190 mm
  • Weight: 800 g

Price per unit   (Order No mo-272000) EUR 123,00 excl. VAT: € 103.36 / $ 121.97



24 V built-in PSU PS-200/24

Enlarge 24 V built-in PSU

  • Short-circuit proof, overload-protected
  • Overtemperature protection
  • Fine adjustment of output voltage
  • EMC standard EN 61000-3-2
  • Aluminium housing
  • Mains connection and low-voltage connection via screw terminals

PS-100/24: output current 4.5 A (100 W)

PS-200/24: output current 8.3 A (200 W)

PS-320/24: output current 13 A (310 W)

Specifications:

  • Input voltage: 100-240 V / 50-60 Hz/ 575 VA
  • Output voltage: 24 V DC current (20-26 V DC current )
  • Charging/output current: 8.3 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 230x50x116 mm
  • Weight: 860 g

Price per unit   (Order No mo-273280) EUR 73,00 excl. VAT: € 61.34 / $ 72.39



12 V built-in PSU PS-320/12

Enlarge 12 V built-in PSU

  • Short-circuit proof, overload-protected
  • Overtemperature protection
  • Fine adjustment of output voltage
  • EMC standard EN 61000-3-2
  • Aluminium housing
  • Mains connection and low-voltage connection via screw terminals

PS-100/12: output current 8.5 A (100 W)

PS-200/12: output current 16.5 A (200 W)

PS-320/12: output current 25 A (300 W)

Specifications:

  • Input voltage: 100-240 V / 50-60 Hz/ 5 A
  • Output voltage: 12 V DC current (10-13 V DC current )
  • Charging/output current: 25 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 215x50x115 mm
  • Weight: 1.1 kg

Price per unit   (Order No mo-273300) EUR 103,00 excl. VAT: € 86.55 / $ 102.13



24 V built-in PSU PS-320/24

Enlarge 24 V built-in PSU

  • Short-circuit proof, overload-protected
  • Overtemperature protection
  • Fine adjustment of output voltage
  • EMC standard EN 61000-3-2
  • Aluminium housing
  • Mains connection and low-voltage connection via screw terminals

PS-100/24: output current 4.5 A (100 W)

PS-200/24: output current 8.3 A (200 W)

PS-320/24: output current 13 A (310 W)

Specifications:

  • Input voltage: 100-240 V / 50-60 Hz/ 5 A
  • Output voltage: 24 V DC current (20-26 V DC current )
  • Charging/output current: 13 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 215x50x115 mm
  • Weight: 1.1 kg

Price per unit   (Order No mo-273310) EUR 103,00 excl. VAT: € 86.55 / $ 102.13



Switch-mode PSU PSCS-20/12

Enlarge Switch-mode PSU For top hat rail mounting.
  • Installation onto DIN top hat rails, e.g. in a distribution board, meter panel, fuse box or switch cabinet
  • 20 W (PSCS-20...) or 60 W (PSCS-60...)
  • Protected against short circuit, overload and overheating
  • Power LED
  • All-insulated screw terminal contacts
  • Robust plastic housing, slimline design
  • EMC standard EN 61000-3-2
  • PSCS-60/... with additional relay contact

Specifications:

  • Input voltage: 100-240 V /50 Hz/60 Hz
  • Output voltage: 12 V DC current
  • Charging/output current: 1.67 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 22.5x90x100 mm
  • Weight: 155 g

Price per unit   (Order No mo-273350) - not available



Switch-mode PSU PSCS-20/24

Enlarge Switch-mode PSU For top hat rail mounting.
  • Installation onto DIN top hat rails, e.g. in a distribution board, meter panel, fuse box or switch cabinet
  • 20 W (PSCS-20...) or 60 W (PSCS-60...)
  • Protected against short circuit, overload and overheating
  • Power LED
  • All-insulated screw terminal contacts
  • Robust plastic housing, slimline design
  • EMC standard EN 61000-3-2
  • PSCS-60/... with additional relay contact

Specifications:

  • Input voltage: 100-240 V /50 Hz/60 Hz
  • Output voltage: 24 V DC current
  • Charging/output current: 1 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 22.5x90x100 mm
  • Weight: 155 g

Price per unit   (Order No mo-273360) - not available



Switch-mode PSU PSCS-60/12

Enlarge Switch-mode PSU For top hat rail mounting.
  • Installation onto DIN top hat rails, e.g. in a distribution board, meter panel, fuse box or switch cabinet
  • 20 W (PSCS-20...) or 60 W (PSCS-60...)
  • Protected against short circuit, overload and overheating
  • Power LED
  • All-insulated screw terminal contacts
  • Robust plastic housing, slimline design
  • EMC standard EN 61000-3-2
  • PSCS-60/... with additional relay contact

Specifications:

  • Input voltage: 100-240 V /50 Hz/60 Hz
  • Output voltage: 12 V DC current
  • Charging/output current: 5 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 40x90x100 mm
  • Weight: 285 g

Price per unit   (Order No mo-273370) - not available



Switch-mode PSU PSCS-60/24

Enlarge Switch-mode PSU For top hat rail mounting.
  • Installation onto DIN top hat rails, e.g. in a distribution board, meter panel, fuse box or switch cabinet
  • 20 W (PSCS-20...) or 60 W (PSCS-60...)
  • Protected against short circuit, overload and overheating
  • Power LED
  • All-insulated screw terminal contacts
  • Robust plastic housing, slimline design
  • EMC standard EN 61000-3-2
  • PSCS-60/... with additional relay contact

Specifications:

  • Input voltage: 100-240 V /50 Hz/60 Hz
  • Output voltage: 24 V DC current
  • Charging/output current: 2.5 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 40x90x100 mm
  • Weight: 285 g

Price per unit   (Order No mo-273380) - not available

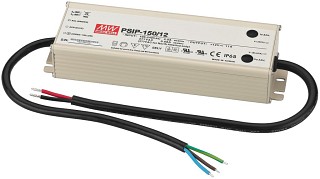

LED switch-mode PSU PSIP-150/12

Enlarge LED switch-mode PSU, for indoors and outdoors (IP65).
  • Especially for LED installations with high power requirements
  • 130 W (PSIP-150/12) or 150 W (PSIP-150/24)
  • Low-noise according to EMC standard EN 61000-3-2 class C
  • Active PFC filter
  • Fine adjustment of output current and output voltage
  • Protected against short circuit, overload, overheating and overvoltage
  • Connection via bare cable ends
  • Robust metal housing with mounting flange

Specifications:

  • Input voltage: 100-240 V / 50 Hz/60 Hz
  • Output voltage: 12 V DC current , adjustable 9-13 V DC current
  • Charging/output current: 11 A, adjustable 5.5-11 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 223x68x39 mm
  • Weight: 986 g

Price per unit   (Order No mo-273410) EUR 103,00 excl. VAT: € 86.55 / $ 102.13

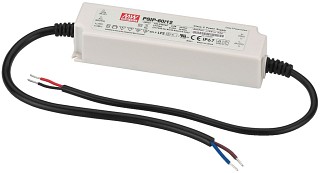

LED switch-mode PSU PSIP-60/12

Enlarge LED switch-mode PSU, for indoors and outdoors (IP67).
  • Especially for LED installations
  • 60 W
  • Due to automatic digital switching, suitable for small loads, e.g. ideally suited for individual LED strips
  • Low-noise installation according to EMC standard EN 61000-3-2 class C
  • Active PFC filter
  • Protected against short circuit, overload, overheating and overvoltage
  • Connection via bare cable ends
  • Robust plastic housing with mounting flange

Specifications:

  • Input voltage: 100-240 V / 50 Hz/60 Hz
  • Output voltage: 12 V DC current
  • Charging/output current: 5 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 200x41x32 mm
  • Weight: 420 g

Price per unit   (Order No mo-273430) EUR 56,20 excl. VAT: € 47.23 / $ 55.73

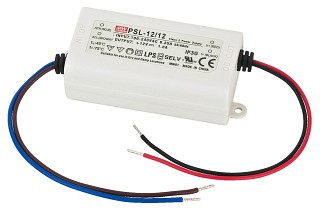

LED switch-mode PSU PSL-12/12

Enlarge LED switch-mode PSU, for indoor applications.
  • Especially for LED installations
  • 12 W
  • Low-noise according to EMC standard EN 61000-3-2 class A
  • Protected against short circuit, overload and overvoltage
  • Connection via bare cable ends
  • Plastic housing with mounting flange

Specifications:

  • Input voltage: 230 V /50 Hz
  • Output voltage: 12 V DC current
  • Charging/output current: 1 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 77x40x29 mm
  • Weight: 78 g

Price per unit   (Order No mo-270060) EUR 9,70 excl. VAT: € 8.15 / $ 9.62



LED switch-mode PSU PSL-12/24

Enlarge LED switch-mode PSU, for indoor applications.
  • Especially for LED installations
  • 12 W
  • Low-noise according to EMC standard EN 61000-3-2 class A
  • Protected against short circuit, overload and overvoltage
  • Connection via bare cable ends
  • Plastic housing with mounting flange

Specifications:

  • Input voltage: 230 V /50 Hz
  • Output voltage: 24 V DC current
  • Charging/output current: 0.5 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 77x40x29 mm
  • Weight: 78 g

Price per unit   (Order No mo-270100) EUR 9,70 excl. VAT: € 8.15 / $ 9.62

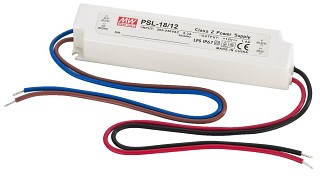

LED switch-mode PSU PSL-18/12

Enlarge LED switch-mode PSU, for indoors and outdoors (IP67).
  • Especially for LED installations
  • 18 W
  • Low-noise according to EMC standard EN 61000-3-2 class A
  • Protected against short circuit, overload, overheating and overvoltage
  • Connection via bare cable ends
  • Plastic housing with mounting flange

Specifications:

  • Input voltage: 230 V /50 Hz
  • Output voltage: 12 V DC current
  • Charging/output current: 1.5 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 140x22x30 mm
  • Weight: 165 g

Price per unit   (Order No mo-272100) EUR 11,80 excl. VAT: € 9.92 / $ 11.70

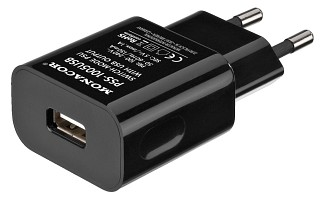

Switch-mode PSU with USB output PSS-1005USB

Enlarge Switch-mode PSU with USB output

  • Suitable for units which can be supplied with power or be charged via USB port (e.g. mobile phones, MP3 players, GPS units)
  • High energy efficiency, corresponds to the EU ecodesign directive
  • Saves electricity costs due to a low power consumption in stand-by mode (< 0.3 W)
  • Input voltage: 100-240 V /50-60 Hz
  • Output voltage: 5 V DC current
  • Output current: 1,000 mA max.
  • USB A output jack



Price per unit   (Order No mo-282560) EUR 7,60 excl. VAT: € 6.39 / $ 7.54



Switch-mode PSU, 12 V DC current /0.5 A PSS-1205DC

Enlarge Enlarge Switch-mode PSU, 12 V DC current /0.5 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Compact lightweight design
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/130 mA
  • Output voltage: 12 V DC current
  • Charging/output current: 500 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 38x49x67 mm
  • Weight: 65 g

Price per unit   (Order No mo-273200) EUR 6,90 excl. VAT: € 5.80 / $ 6.84

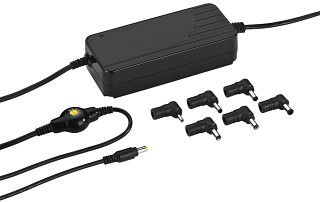

Switch-mode PSU, 6 A max. PSS-120NE

Enlarge Switch-mode PSU, 6 A max., with a high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.5 W)
  • Output voltage: 15-24 V DC current , to be adjusted in 7 steps
  • Suitable e.g. for 24 V applications or notebooks
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable with moulded hollow plug 5.5/2.5 mm
  • 6 plug-in adapters: hollow plugs: 3.5/1.35 mm, 4.75/1.75mm, 5.5/1.75 mm, 5.5/2.1 mm, 5.5/2.5 mm, 6.5/1.0 mm

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/1,800 mA
  • Output voltage: 15/16/18/19/20/22/24 V DC current
  • Charging/output current: 6/6/6/6/6/5/5 A
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 64x35x170 mm
  • Weight: 500 g

Price per unit   (Order No mo-273460) EUR 56,00 excl. VAT: € 47.06 / $ 55.53



Switch-mode PSU, 12V DC current /1A PSS-1210DC

Enlarge Enlarge Switch-mode PSU, 12V DC current /1A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/250 mA
  • Output voltage: 12 V DC current
  • Charging/output current: 1,000 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 43x54x76 mm
  • Weight: 135 g

Price per unit   (Order No mo-273210) EUR 9,70 excl. VAT: € 8.15 / $ 9.62



Switch-mode PSU, 12 V DC current /3 A PSS-1230DC

Enlarge Enlarge Switch-mode PSU, 12 V DC current /3 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/800 mA
  • Output voltage: 12 V DC current
  • Charging/output current: 3,000 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 50x32x116 mm
  • Weight: 280 g

Price per unit   (Order No mo-273220) EUR 22,00 excl. VAT: € 18.49 / $ 21.82



Switch-mode PSU, 12 V DC current /5 A PSS-1250DC

Enlarge Enlarge Switch-mode PSU, 12 V DC current /5 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.5 W)
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/1,260 mA
  • Output voltage: 12 V DC current
  • Charging/output current: 5,000 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 55x32x128 mm
  • Weight: 340 g

Price per unit   (Order No mo-273230) EUR 38,50 excl. VAT: € 32.35 / $ 38.18

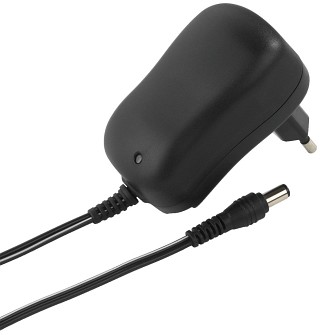

Switch-mode PSU, 24 V DC current /0.5 A PSS-2405DC

Enlarge Enlarge Switch-mode PSU, 24 V DC current /0.5 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/300 mA
  • Output voltage: 24 V DC current
  • Charging/output current: 500 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 43x54x76 mm
  • Weight: 135 g

Price per unit   (Order No mo-273260) EUR 9,40 excl. VAT: € 7.90 / $ 9.32

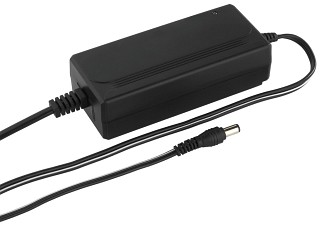

Switch-mode PSU, 24 V DC current /1.5 A PSS-2415DC

Enlarge Enlarge Switch-mode PSU, 24 V DC current /1.5 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3W)
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/750 mA
  • Output voltage: 24 V DC current
  • Charging/output current: 1,500 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 50x32x116 mm
  • Weight: 280 g

Price per unit   (Order No mo-273240) EUR 22,00 excl. VAT: € 18.49 / $ 21.82

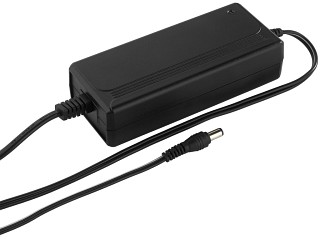

Switch-mode PSU, 24 V DC current /3 A PSS-2430DC

Enlarge Enlarge Switch-mode PSU, 24 V DC current /3 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.5 W)
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/1,300 mA
  • Output voltage: 24 V DC current
  • Charging/output current: 3,000 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 55x32x128 mm
  • Weight: 340 g

Price per unit   (Order No mo-273250) EUR 38,50 excl. VAT: € 32.35 / $ 38.18



Switch-mode PSU, 5 V DC current /1 A PSS-510DC

Enlarge Enlarge Switch-mode PSU, 5 V DC current /1 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Compact lightweight design
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/130 mA
  • Output voltage: 5 V DC current
  • Charging/output current: 1,000 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 38x49x67 mm
  • Weight: 65 g

Price per unit   (Order No mo-273170) EUR 6,90 excl. VAT: € 5.80 / $ 6.84



Switch-mode PSU, 6 V DC current /0.8 A PSS-608DC

Enlarge Enlarge Switch-mode PSU, 6 V DC current /0.8 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3 W)
  • Compact lightweight design
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/130 mA
  • Output voltage: 6 V DC current
  • Charging/output current: 800 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 38x49x67 mm
  • Weight: 65 g

Price per unit   (Order No mo-273180) EUR 6,90 excl. VAT: € 5.80 / $ 6.84

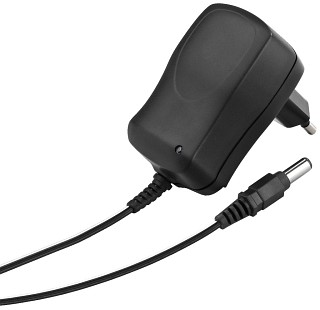

Switch-mode PSU, 9 V DC current /0.66 A PSS-906DC

Enlarge Enlarge Switch-mode PSU, 9 V DC current /0.66 A, high energy efficiency, corresponds to the EU ecodesign directive.

  • Saves electricity costs due to a low power consumption in standby mode (< 0.3W)
  • Compact lightweight design
  • Protected against short circuit, overload and overheating
  • Power LED
  • 1.8 m connection cable
  • Low-voltage plug 5.5/2.1 mm, positive pole at the internal contact

Specifications:

  • Input voltage: 100-240 V /50-60 Hz/130 mA
  • Output voltage: 9 V DC current
  • Charging/output current: 660 mA
  • Charging time: -
  • Trickle charge: -
  • Reactivation: -
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 38x49x67 mm
  • Weight: 65 g

Price per unit   (Order No mo-273190) EUR 6,90 excl. VAT: € 5.80 / $ 6.84
