Eighteen Sound

Eighteen Sound is a designer and manufacturer of high quality professional audio loudspeakers, with advanced development and manufacturing technologies, and located in Reggio Emilia, Italy.ound




5 inch woofer

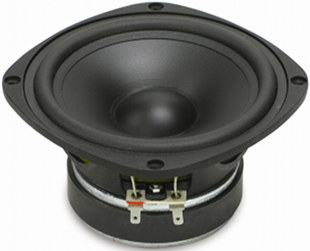

Eighteen Sound 5 W 430
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,4 L volume
from 130/82 Hz (-3dB/-8dB)

recommended cabinet 2:
7,5 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 70/54 Hz (-3dB/-8dB).

Eighteen Sound 5 W 430

order no. 18s-5w430

EUR 73,90 excl. VAT: € 62.10 / $ 67.07

13 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 80/120 W
  • frequency range = 60-8000 Hz
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,49 mH
  • effective piston radiating area Sd = 90 cm2
  • effective mechanical mass incl. air load mms = 8,2 g
  • equivalent volume of compliance Vas = 15 l
  • total Q factor Qts = 0,32 (Qms=2,77, Qes=0,36)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 124 mm
  • overall diameter d = 134 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1,24 kg
PDF data sheet




6 inch woofer

Eighteen Sound 6 ND 430
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 180/113 Hz (-3dB/-8dB)

recommended cabinet 2:
3,9 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 104/79 Hz (-3dB/-8dB).

Eighteen Sound 6 ND 430

order no. 18s-6nd430

EUR 197,10 excl. VAT: € 165.63 / $ 178.88

15 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 260/500 W
  • frequency range = 63-5500 Hz
  • resonance frequency fs = 61 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 0,28 mH
  • effective piston radiating area Sd = 133 cm2
  • effective mechanical mass incl. air load mms = 13,3 g
  • equivalent volume of compliance Vas = 13,4 l
  • total Q factor Qts = 0,27 (Qms=6,5, Qes=0,28)
  • voice coil diameter = 44 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 148 mm
  • overall diameter d = 162 mm
  • mounting depth (not countersunk) t = 73 mm
  • mass m = 1,25 kg
PDF data sheet

Eighteen Sound 6 ND 430, 4 Ohm

order no. 18s-6nd430-4

EUR 172,40 excl. VAT: € 144.87 / $ 156.46

15 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 260/500 W
  • frequency range = 63-5500 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 133 cm2
  • voice coil diameter = 44 mm
  • mounting diameter d = 148 mm
  • overall diameter d = 162 mm
  • mounting depth (not countersunk) t = 73 mm
  • mass m = 1,25 kg
PDF data sheet

Eighteen Sound 6 ND 430, 16 Ohm

order no. 18s-6nd430-16

EUR 172,40 excl. VAT: € 144.87 / $ 156.46

15 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 260/500 W
  • frequency range = 63-5500 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 133 cm2
  • voice coil diameter = 44 mm
  • mounting diameter d = 148 mm
  • overall diameter d = 162 mm
  • mounting depth (not countersunk) t = 73 mm
  • mass m = 1,25 kg
PDF data sheet

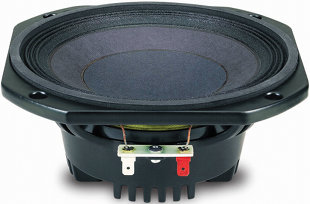

Eighteen Sound 6 NMB 420
open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 267/168 Hz (-3dB/-8dB)

recommended cabinet 2:
3,4 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 142/111 Hz (-3dB/-8dB).

Eighteen Sound 6 NMB 420

order no. 18s-6nmb420

EUR 205,30 excl. VAT: € 172.52 / $ 186.32

15 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 260/500 W
  • frequency range = 200-7000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 9 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 130 cm2
  • effective mechanical mass incl. air load mms = 8,5 g
  • equivalent volume of compliance Vas = 6,1 l
  • total Q factor Qts = 0,33 (Qms=2,7, Qes=0,38)
  • voice coil diameter = 44 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 148 mm
  • overall diameter d = 162 mm
  • mounting depth (not countersunk) t = 73 mm
  • mass m = 1,25 kg
PDF data sheet

Eighteen Sound 6 NMB 420, 16 Ohm

order no. 18s-6nmb420-16

EUR 183,90 excl. VAT: € 154.54 / $ 166.90

15 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 260/500 W
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 130 cm2
  • voice coil diameter = 44 mm
  • mounting diameter d = 148 mm
  • overall diameter d = 162 mm
  • mounting depth (not countersunk) t = 73 mm
  • mass m = 1,25 kg
PDF data sheet




8 inch woofer

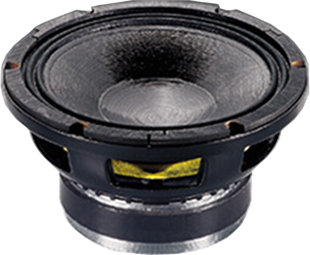

Eighteen Sound 8 MB 400

recommended cabinet 1:
closed cabinet with 5,8 L volume
from 135/85 Hz (-3dB/-8dB)

recommended cabinet 2:
21 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 68/54 Hz (-3dB/-8dB).

Eighteen Sound 8 MB 400

order no. 18s-8mb400

EUR 162,60 excl. VAT: € 136.64 / $ 147.57

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 280/400 W
  • frequency range = 55-5200 Hz
  • resonance frequency fs = 64 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 9,3 N/A
  • voice coil inductance L = 0,96 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 18 g
  • equivalent volume of compliance Vas = 23,9 l
  • total Q factor Qts = 0,38 (Qms=3,23, Qes=0,43)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,8 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 100 mm
  • mass m = 3,6 kg
PDF data sheet

Eighteen Sound 8 MB 400, 16 Ohm

Eighteen Sound 8 MB 400, 16 Ohm

order no. 18s-8mb400-16

EUR 152,70 excl. VAT: € 128.32 / $ 138.58

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 280/400 W
  • frequency range = 55-5200 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 227 cm2
  • voice coil diameter = 51 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 102 mm
  • mass m = 3,6 kg
PDF data sheet

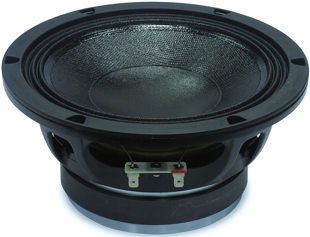

Eighteen Sound 8 MB 500
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,2 L volume
from 139/87 Hz (-3dB/-8dB)

recommended cabinet 2:
28 L volume bass reflex cabinet
with HP100 reflex tube, 9 cm long.
from 67/55 Hz (-3dB/-8dB).

Eighteen Sound 8 MB 500

order no. 18s-8mb500

EUR 162,60 excl. VAT: € 136.64 / $ 147.57

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/800 W
  • frequency range = 60-4000 Hz
  • resonance frequency fs = 74 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 9 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 230 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 21,5 l
  • total Q factor Qts = 0,43 (Qms=2,66, Qes=0,51)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 186 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 99,5 mm
  • mass m = 3,4 kg
PDF data sheet

Eighteen Sound 8 MB 500, 4 Ohm

order no. 18s-8mb500-4

EUR 152,70 excl. VAT: € 128.32 / $ 138.58

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/800 W
  • frequency range = 60-4000 Hz
  • impedance R = 4 Ohm
  • voice coil diameter = 51 mm
  • mounting diameter d = 186 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 99,5 mm
  • mass m = 3,4 kg
PDF data sheet

Eighteen Sound 8 MB 500, 16 Ohm

order no. 18s-8mb500-16

EUR 152,70 excl. VAT: € 128.32 / $ 138.58

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/800 W
  • frequency range = 60-4000 Hz
  • impedance R = 16 Ohm
  • voice coil diameter = 51 mm
  • mounting diameter d = 186 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 99,5 mm
  • mass m = 3,4 kg
PDF data sheet

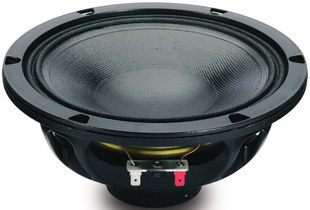

Eighteen Sound 8 NMB 420
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,2 L volume
from 168/106 Hz (-3dB/-8dB)

recommended cabinet 2:
12 L volume bass reflex cabinet
with HP100 reflex tube, 20 cm long.
from 94/72 Hz (-3dB/-8dB).

Eighteen Sound 8 NMB 420

order no. 18s-8nmb420

EUR 225,00 excl. VAT: € 189.08 / $ 204.20

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 280/400 W
  • frequency range = 60-5500 Hz
  • resonance frequency fs = 61 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 222 cm2
  • effective mechanical mass incl. air load mms = 14,9 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,29 (Qms=4, Qes=0,31)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,75 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 99 mm
  • mass m = 1,7 kg
PDF data sheet

Eighteen Sound 8 NMB 420, 4 Ohm

order no. 18s-8nmb420-4

EUR 192,10 excl. VAT: € 161.43 / $ 174.34

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 280/400 W
  • frequency range = 60-5500 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 222 cm2
  • voice coil diameter = 51 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 99 mm
  • mass m = 1,7 kg
PDF data sheet

Eighteen Sound 8 NMB 420, 16 Ohm

order no. 18s-8nmb420-16

EUR 192,10 excl. VAT: € 161.43 / $ 174.34

20 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 280/400 W
  • frequency range = 60-5500 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 222 cm2
  • voice coil diameter = 51 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 99 mm
  • mass m = 1,7 kg
PDF data sheet

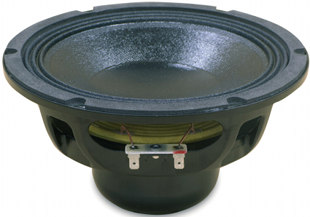

Eighteen Sound 8 NW 650
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 200/126 Hz (-3dB/-8dB)

recommended cabinet 2:
4 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 119/90 Hz (-3dB/-8dB).

Eighteen Sound 8 NW 650

order no. 18s-8nw650

EUR 249,60 excl. VAT: € 209.75 / $ 226.53

20 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 300/600 W
  • frequency range = 55-6300 Hz
  • resonance frequency fs = 63 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 15,2 N/A
  • voice coil inductance L = 0,71 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 26 g
  • equivalent volume of compliance Vas = 17,8 l
  • total Q factor Qts = 0,25 (Qms=3,7, Qes=0,27)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 111,3 mm
  • mass m = 2,2 kg
PDF data sheet

Eighteen Sound 8 NW 650, 16 Ohm

order no. 18s-8nw650-16

EUR 206,90 excl. VAT: € 173.87 / $ 187.77

20 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 300/600 W
  • frequency range = 55-6300 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 227 cm2
  • voice coil diameter = 65 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 111,3 mm
  • mass m = 2,2 kg
PDF data sheet




10 inch woofer

Eighteen Sound 10 W 500
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,8 L volume
from 146/92 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 82/62 Hz (-3dB/-8dB).

Eighteen Sound 10 W 500

order no. 18s-10w500

EUR 195,40 excl. VAT: € 164.20 / $ 177.34

25 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 280/400 W
  • frequency range = 55-4500 Hz
  • resonance frequency fs = 53 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 14,6 N/A
  • voice coil inductance L = 0,72 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 33 g
  • equivalent volume of compliance Vas = 45,2 l
  • total Q factor Qts = 0,29 (Qms=4,22, Qes=0,31)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 121,5 mm
  • mass m = 4,7 kg
PDF data sheet

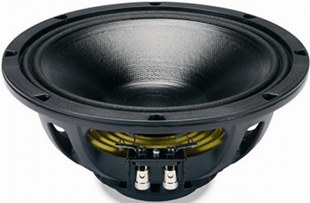

Eighteen Sound 10 NMB 420
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,5 L volume
from 153/97 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with HP100 reflex tube, 14 cm long.
from 81/63 Hz (-3dB/-8dB).

Eighteen Sound 10 NMB 420

order no. 18s-10nmb420

EUR 344,90 excl. VAT: € 289.83 / $ 313.02

25 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 65-5000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 10,5 Ohm
  • force factor BL = 19,5 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 31,5 g
  • equivalent volume of compliance Vas = 30 l
  • total Q factor Qts = 0,33 (Qms=4,6, Qes=0,36)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 122 mm
  • mass m = 3 kg
PDF data sheet

Eighteen Sound 10 NMB 420, 16 Ohm

order no. 18s-10nmb420-16

EUR 236,50 excl. VAT: € 198.74 / $ 214.64

25 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 65-5000 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 346 cm2
  • voice coil diameter = 65 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 122 mm
  • mass m = 3 kg
PDF data sheet

Eighteen Sound 10 NMBA 520
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,3 L volume
from 206/130 Hz (-3dB/-8dB)

recommended cabinet 2:
7,3 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 127/95 Hz (-3dB/-8dB).

Eighteen Sound 10 NMBA 520

order no. 18s-10nmba520

EUR 395,80 excl. VAT: € 332.61 / $ 359.21

25 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 600/900 W
  • frequency range = 60-7000 Hz
  • resonance frequency fs = 60 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100,5 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 14,6 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 28 g
  • equivalent volume of compliance Vas = 42 l
  • total Q factor Qts = 0,23 (Qms=4,2, Qes=0,24)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 104 mm
  • mass m = 3 kg
PDF data sheet

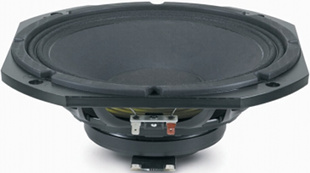

Eighteen Sound 10 NDA 610
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 306/193 Hz (-3dB/-8dB)

recommended cabinet 2:
3,1 L volume bass reflex cabinet
with HP70 reflex tube, 10 cm long.
from 189/141 Hz (-3dB/-8dB).

Eighteen Sound 10 NDA 610

order no. 18s-10nda610

EUR 482,80 excl. VAT: € 405.71 / $ 438.17

25 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 400/600 W
  • frequency range = 100-6100 Hz
  • resonance frequency fs = 89 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 103 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 20,3 N/A
  • voice coil inductance L = 0,06 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 30 g
  • equivalent volume of compliance Vas = 18 l
  • total Q factor Qts = 0,23 (Qms=7,1, Qes=0,24)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 96 mm
  • mass m = 3,5 kg
PDF data sheet

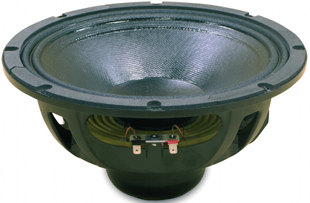

Eighteen Sound 10 NW 650
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,7 L volume
from 145/91 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP100 reflex tube, 21 cm long.
from 82/63 Hz (-3dB/-8dB).

Eighteen Sound 10 NW 650

order no. 18s-10nw650-8

EUR 271,00 excl. VAT: € 227.73 / $ 245.95

25 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 60-6000 Hz
  • resonance frequency fs = 51 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 14 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 34 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,28 (Qms=8, Qes=0,29)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 230 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 131,8 mm
  • mass m = 2,7 kg
PDF data sheet

Eighteen Sound 10 NW 650, 16 Ohm

order no. 18s-10nw650-16

EUR 213,50 excl. VAT: € 179.41 / $ 193.76

25 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 60-6000 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 346 cm2
  • voice coil diameter = 65 mm
  • mounting diameter d = 230 mm
  • overall diameter d = 260 mm
  • mounting depth (not countersunk) t = 131,8 mm
  • mass m = 2,7 kg
PDF data sheet




12 inch woofer

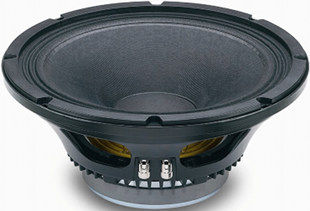

Eighteen Sound 12 W 500
open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 102/65 Hz (-3dB/-8dB)

recommended cabinet 2:
90 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 53/42 Hz (-3dB/-8dB).

Eighteen Sound 12 W 500

order no. 18s-12w500

EUR 203,60 excl. VAT: € 171.09 / $ 184.78

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 350/500 W
  • frequency range = 50-6000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99,5 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 12,1 N/A
  • voice coil inductance L = 1,12 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 36,5 g
  • equivalent volume of compliance Vas = 123 l
  • total Q factor Qts = 0,36 (Qms=6,02, Qes=0,38)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 141 mm
  • mass m = 4,5 kg
PDF data sheet

Eighteen Sound 12 W 500, 4 Ohm

order no. 18s-12w500-4

EUR 170,80 excl. VAT: € 143.53 / $ 155.01

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 350/500 W
  • frequency range = 50-6000 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 531 cm2
  • voice coil diameter = 64 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 141 mm
  • mass m = 4,5 kg
PDF data sheet

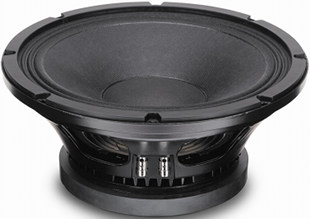

Eighteen Sound 12 MB 700
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,3 L volume
from 202/127 Hz (-3dB/-8dB)

recommended cabinet 2:
9,5 L volume bass reflex cabinet
with HP100 reflex tube, 17 cm long.
from 136/100 Hz (-3dB/-8dB).

Eighteen Sound 12 MB 700

order no. 18s-12mb700

EUR 280,80 excl. VAT: € 235.97 / $ 254.84

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 450/600 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101,5 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 17,8 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 41 g
  • equivalent volume of compliance Vas = 101 l
  • total Q factor Qts = 0,19 (Qms=4,7, Qes=0,2)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 148 mm
  • mass m = 8 kg
PDF data sheet

Eighteen Sound 12 MB 700, 16 Ohm

order no. 18s-12mb700-16

EUR 233,20 excl. VAT: € 195.97 / $ 211.64

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 450/600 W
  • frequency range = 60-5000 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 531 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 148 mm
  • mass m = 8 kg
PDF data sheet

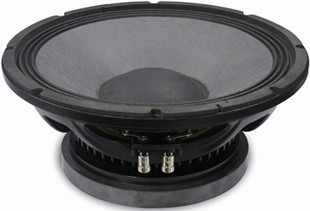

Eighteen Sound 12 W 750
open a bigger photo

recommended cabinet 1:
closed cabinet with 9,3 L volume
from 135/85 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with 2x HP100 reflex tube, 26 cm long.
from 75/58 Hz (-3dB/-8dB).

Eighteen Sound 12 W 750

order no. 18s-12w750-8

EUR 253,00 excl. VAT: € 212.61 / $ 229.61

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 50-4600 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 18 N/A
  • voice coil inductance L = 0,95 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 57 g
  • equivalent volume of compliance Vas = 73 l
  • total Q factor Qts = 0,29 (Qms=7, Qes=0,3)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 148 mm
  • mass m = 7,5 kg
PDF data sheet

Eighteen Sound 12 W 750, 4 Ohm

order no. 18s-12w750-4

EUR 262,80 excl. VAT: € 220.84 / $ 238.51

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 50-4600 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 531 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 148 mm
  • mass m = 7,5 kg
PDF data sheet

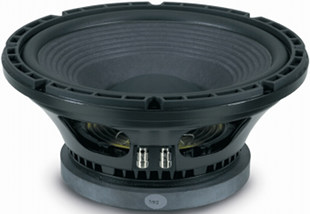

Eighteen Sound 12 LW 801
open a bigger photo

recommended cabinet 1:
closed cabinet with 12,5 L volume
from 131/83 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 70/54 Hz (-3dB/-8dB).

Eighteen Sound 12 LW 801

order no. 18s-12lw801

EUR 308,70 excl. VAT: € 259.41 / $ 280.16

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 500/800 W
  • frequency range = 40-4000 Hz
  • resonance frequency fs = 54 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 20,3 N/A
  • voice coil inductance L = 1,7 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 84 g
  • equivalent volume of compliance Vas = 73 l
  • total Q factor Qts = 0,33 (Qms=9, Qes=0,34)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 149 mm
  • mass m = 8,1 kg
PDF data sheet

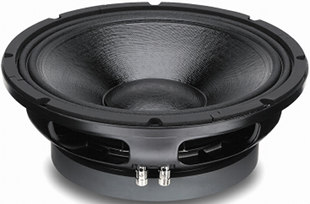

Eighteen Sound 12 MB 1000
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,1 L volume
from 222/140 Hz (-3dB/-8dB)

recommended cabinet 2:
5,6 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 150/111 Hz (-3dB/-8dB).

Eighteen Sound 12 MB 1000

order no. 18s-12mb1000

EUR 318,60 excl. VAT: € 267.73 / $ 289.15

30 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 800/1600 W
  • frequency range = 80-3500 Hz
  • resonance frequency fs = 54 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 102 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 23,5 N/A
  • voice coil inductance L = 1,46 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 55,5 g
  • equivalent volume of compliance Vas = 60 l
  • total Q factor Qts = 0,19 (Qms=6, Qes=0,2)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 120 mm
  • mass m = 9,6 kg
PDF data sheet

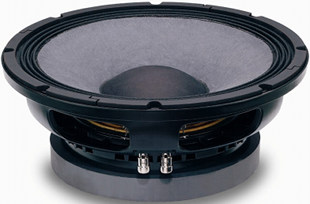

Eighteen Sound 12 LW 1400
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,6 L volume
from 120/75 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP100 reflex tube, 21 cm long.
from 66/51 Hz (-3dB/-8dB).

Eighteen Sound 12 LW 1400

order no. 18s-12lw1400

EUR 381,00 excl. VAT: € 320.17 / $ 345.78

30 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 900/1400 W
  • frequency range = 51-4000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 20 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 88 g
  • equivalent volume of compliance Vas = 55 l
  • total Q factor Qts = 0,3 (Qms=5, Qes=0,32)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8,25 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 141 mm
  • mass m = 10,9 kg
PDF data sheet

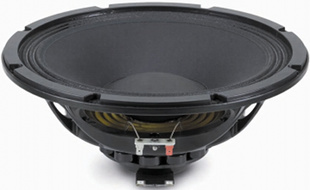

Eighteen Sound 12 NDA 520
open a bigger photo

recommended cabinet 1:
closed cabinet with 12,1 L volume
from 147/93 Hz (-3dB/-8dB)

recommended cabinet 2:
32 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 85/64 Hz (-3dB/-8dB).

Eighteen Sound 12 NDA 520

order no. 18s-12nda520

EUR 392,50 excl. VAT: € 329.83 / $ 356.22

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/900 W
  • frequency range = 55-6000 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100,5 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 14,4 N/A
  • voice coil inductance L = 0,03 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 36 g
  • equivalent volume of compliance Vas = 111 l
  • total Q factor Qts = 0,27 (Qms=5,5, Qes=0,284)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 125 mm
  • mass m = 2,2 kg
PDF data sheet

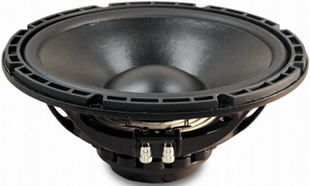

Eighteen Sound 12 NW 530
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,1 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with HP100 reflex tube, 15 cm long.
from 61/48 Hz (-3dB/-8dB).

Eighteen Sound 12 NW 530

order no. 18s-12nw530

- not available (_)

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 800/1600 W
  • frequency range = 48-3200 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • force factor BL = 19,7 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 93 g
  • equivalent volume of compliance Vas = 36 l
  • total Q factor Qts = 0,37 (Qms=9,7, Qes=0,384)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 136 mm
  • mass m = 4 kg
PDF data sheet

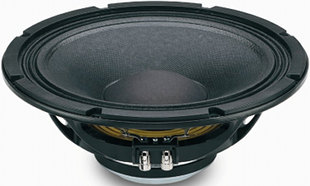

Eighteen Sound 12 ND 610
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 253/159 Hz (-3dB/-8dB)

recommended cabinet 2:
3,4 L volume bass reflex cabinet
with HP100 reflex tube, 37 cm long.
from 196/145 Hz (-3dB/-8dB).

Eighteen Sound 12 ND 610

order no. 18s-12nd610

EUR 491,00 excl. VAT: € 412.61 / $ 445.61

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 80-5500 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 102 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 24 N/A
  • voice coil inductance L = 1,17 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 49 g
  • equivalent volume of compliance Vas = 94,4 l
  • total Q factor Qts = 0,14 (Qms=4,3, Qes=0,15)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 124 mm
  • mass m = 3,4 kg
PDF data sheet

Eighteen Sound 12 ND 610, 16 Ohm

order no. 18s-12nd610-16

EUR 402,30 excl. VAT: € 338.07 / $ 365.11

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 80-5500 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 531 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 124 mm
  • mass m = 3,4 kg
PDF data sheet

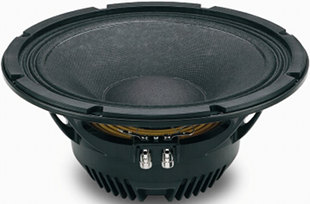

Eighteen Sound 12 ND 710
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,8 L volume
from 214/135 Hz (-3dB/-8dB)

recommended cabinet 2:
8,7 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 144/107 Hz (-3dB/-8dB).

Eighteen Sound 12 ND 710

order no. 18s-12nd710

EUR 440,10 excl. VAT: € 369.83 / $ 399.42

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 60-6000 Hz
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 18 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 40 g
  • equivalent volume of compliance Vas = 92 l
  • total Q factor Qts = 0,19 (Qms=6, Qes=0,2)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 141 mm
  • mass m = 4,7 kg
PDF data sheet

Eighteen Sound 12 ND 710, 16 Ohm

order no. 18s-12nd710-16

EUR 316,90 excl. VAT: € 266.30 / $ 287.61

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 60-6000 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 531 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 141 mm
  • mass m = 4,7 kg
PDF data sheet

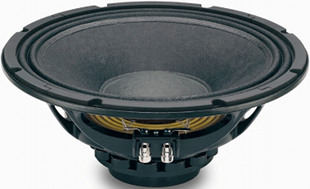

Eighteen Sound 12 ND 730
open a bigger photo

recommended cabinet 1:
closed cabinet with 7 L volume
from 155/98 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP100 reflex tube, 18 cm long.
from 95/71 Hz (-3dB/-8dB).

Eighteen Sound 12 ND 730

order no. 18s-12nd730

EUR 410,60 excl. VAT: € 345.04 / $ 372.65

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 400/600 W
  • frequency range = 53-5000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 19,2 N/A
  • voice coil inductance L = 1,73 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 55 g
  • equivalent volume of compliance Vas = 90 l
  • total Q factor Qts = 0,23 (Qms=5,13, Qes=0,24)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 132,5 mm
  • mass m = 3,8 kg
PDF data sheet

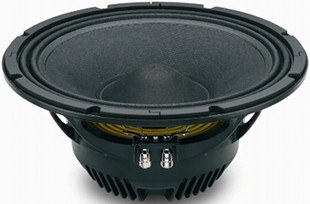

Eighteen Sound 12 ND 830
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,5 L volume
from 156/99 Hz (-3dB/-8dB)

recommended cabinet 2:
23 L volume bass reflex cabinet
with 2x HP100 reflex tube, 20 cm long.
from 89/68 Hz (-3dB/-8dB).

Eighteen Sound 12 ND 830

order no. 18s-12nd830

EUR 417,10 excl. VAT: € 350.50 / $ 378.54

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 53-5000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 17,6 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 46 g
  • equivalent volume of compliance Vas = 72 l
  • total Q factor Qts = 0,28 (Qms=5,15, Qes=0,296)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 140 mm
  • mass m = 4 kg
PDF data sheet

Eighteen Sound 12 ND 830, 4 Ohm

order no. 18s-12nd830-4

EUR 417,10 excl. VAT: € 350.50 / $ 378.54

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 53-5000 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 531 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 140 mm
  • mass m = 4 kg
PDF data sheet

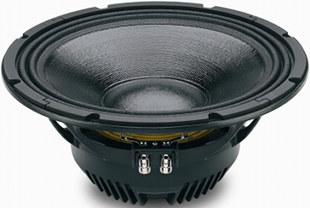

Eighteen Sound 12 ND 930
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,5 L volume
from 187/118 Hz (-3dB/-8dB)

recommended cabinet 2:
9 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 120/89 Hz (-3dB/-8dB).

Eighteen Sound 12 ND 930

order no. 18s-12nd930

EUR 420,40 excl. VAT: € 353.28 / $ 381.54

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 800/800 W
  • frequency range = 46-4500 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 21,2 N/A
  • voice coil inductance L = 1,65 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 57 g
  • equivalent volume of compliance Vas = 70 l
  • total Q factor Qts = 0,21 (Qms=5,64, Qes=0,218)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 140 mm
  • mass m = 4 kg
PDF data sheet

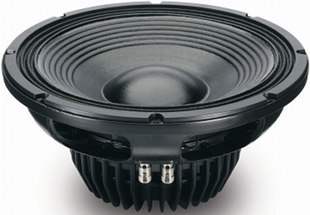

Eighteen Sound 12 NLW 9300
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,4 L volume
from 132/83 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 80/60 Hz (-3dB/-8dB).

Eighteen Sound 12 NLW 9300

order no. 18s-12nlw9300

EUR 528,80 excl. VAT: € 444.37 / $ 479.92

30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 800/1200 W
  • frequency range = 45-3200 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 4,7 Ohm
  • force factor BL = 18 N/A
  • voice coil inductance L = 0,49 mH
  • effective piston radiating area Sd = 530 cm2
  • effective mechanical mass incl. air load mms = 72 g
  • equivalent volume of compliance Vas = 87 l
  • total Q factor Qts = 0,24 (Qms=4,67, Qes=0,25)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 153 mm
  • mass m = 6,2 kg
PDF data sheet




15 inch woofer

Eighteen Sound 15 MB 606
open a bigger photo

recommended cabinet 1:
closed cabinet with 44 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
149 L volume bass reflex cabinet
with 4x HP100 reflex tube, 11 cm long.
from 51/40 Hz (-3dB/-8dB).

Eighteen Sound 15 MB 606

order no. 18s-15mb606

EUR 318,60 excl. VAT: € 267.73 / $ 289.15

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/600 W
  • frequency range = 45-4800 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 15,1 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 850 cm2
  • effective mechanical mass incl. air load mms = 63 g
  • equivalent volume of compliance Vas = 223 l
  • total Q factor Qts = 0,35 (Qms=6,2, Qes=0,37)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 171,5 mm
  • mass m = 6,9 kg
PDF data sheet

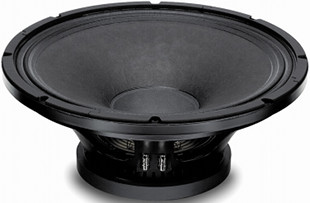

Eighteen Sound 15 MB 650
open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
47 L volume bass reflex cabinet
with 2x HP100 reflex tube, 13 cm long.
from 76/57 Hz (-3dB/-8dB).

Eighteen Sound 15 MB 650

order no. 18s-15mb650

EUR 318,60 excl. VAT: € 267.73 / $ 289.15

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/600 W
  • frequency range = 50-4800 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101,5 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 20 N/A
  • voice coil inductance L = 1,36 mH
  • effective piston radiating area Sd = 850 cm2
  • effective mechanical mass incl. air load mms = 77 g
  • equivalent volume of compliance Vas = 210 l
  • total Q factor Qts = 0,25 (Qms=3,95, Qes=0,27)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 167,5 mm
  • mass m = 8,4 kg
PDF data sheet

Eighteen Sound 15 MB 650, 4 Ohm

order no. 18s-15mb650-4

EUR 257,80 excl. VAT: € 216.64 / $ 233.97

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 400/600 W
  • frequency range = 50-4800 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 850 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 167,5 mm
  • mass m = 8,4 kg
PDF data sheet

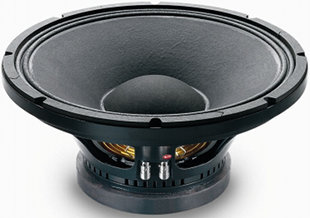

Eighteen Sound 15 W 700
open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 101/64 Hz (-3dB/-8dB)

recommended cabinet 2:
88 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 56/43 Hz (-3dB/-8dB).

Eighteen Sound 15 W 700

order no. 18s-15w700

EUR 280,80 excl. VAT: € 235.97 / $ 254.84

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 38-5000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 18,4 N/A
  • voice coil inductance L = 1,57 mH
  • effective piston radiating area Sd = 850 cm2
  • effective mechanical mass incl. air load mms = 80 g
  • equivalent volume of compliance Vas = 217 l
  • total Q factor Qts = 0,3 (Qms=3,8, Qes=0,33)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 168,5 mm
  • mass m = 8,6 kg
PDF data sheet

Eighteen Sound 15 W 700, 4 Ohm

order no. 18s-15w700-4

EUR 246,30 excl. VAT: € 206.97 / $ 223.53

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 38-5000 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 850 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 168,5 mm
  • mass m = 8,6 kg
PDF data sheet

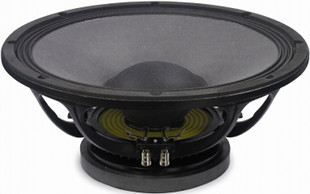

Eighteen Sound 15 W 750
open a bigger photo

recommended cabinet 1:
closed cabinet with 53 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
190 L volume bass reflex cabinet
with 2x HP100 reflex tube, 3 cm long.
from 42/33 Hz (-3dB/-8dB).

Eighteen Sound 15 W 750

order no. 18s-15w750-8

EUR 280,00 excl. VAT: € 235.29 / $ 254.12

38 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 50-4300 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 17,6 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 910 cm2
  • effective mechanical mass incl. air load mms = 88 g
  • equivalent volume of compliance Vas = 218 l
  • total Q factor Qts = 0,37 (Qms=9,34, Qes=0,39)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 184,5 mm
  • mass m = 7,6 kg
PDF data sheet

Eighteen Sound 15 W 750, 4 Ohm

order no. 18s-15w750-4

EUR 280,00 excl. VAT: € 235.29 / $ 254.12

38 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 50-4300 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 910 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 184,5 mm
  • mass m = 7,6 kg
PDF data sheet

Eighteen Sound 15 MB 1000
open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 128/81 Hz (-3dB/-8dB)

recommended cabinet 2:
54 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 71/54 Hz (-3dB/-8dB).

Eighteen Sound 15 MB 1000

order no. 18s-15mb1000

EUR 394,10 excl. VAT: € 331.18 / $ 357.67

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 850/1200 W
  • frequency range = 45-5100 Hz
  • resonance frequency fs = 48 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 21 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 855 cm2
  • effective mechanical mass incl. air load mms = 85 g
  • equivalent volume of compliance Vas = 132,5 l
  • total Q factor Qts = 0,3 (Qms=6, Qes=0,32)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 156,4 mm
  • mass m = 12,4 kg
PDF data sheet

Eighteen Sound 15 LW 1401
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,3 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
38 L volume bass reflex cabinet
with 2x HP100 reflex tube, 20 cm long.
from 71/54 Hz (-3dB/-8dB).

Eighteen Sound 15 LW 1401

order no. 18s-15lw1401

EUR 385,90 excl. VAT: € 324.29 / $ 350.23

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 40-2400 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 24,2 N/A
  • voice coil inductance L = 2,15 mH
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 125 g
  • equivalent volume of compliance Vas = 131 l
  • total Q factor Qts = 0,27 (Qms=5,36, Qes=0,28)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 163,4 mm
  • mass m = 12,4 kg
PDF data sheet

Eighteen Sound 15 LW 1401, 4 Ohm

order no. 18s-15lw1401-4

EUR 338,30 excl. VAT: € 284.29 / $ 307.03

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 40-2400 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 900 cm2
  • voice coil diameter = 100 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 163,4 mm
  • mass m = 12,4 kg
PDF data sheet

Eighteen Sound 15 LW 1500
open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
63 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 55/42 Hz (-3dB/-8dB).

Eighteen Sound 15 LW 1500

order no. 18s-15lw1500

EUR 413,80 excl. VAT: € 347.73 / $ 375.55

37 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 34 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 22,1 N/A
  • voice coil inductance L = 2,4 mH
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 130 g
  • equivalent volume of compliance Vas = 195 l
  • total Q factor Qts = 0,28 (Qms=11,5, Qes=0,29)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 165,9 mm
  • mass m = 12,4 kg
PDF data sheet

Eighteen Sound 15 LW 2400
open a bigger photo

recommended cabinet 1:
closed cabinet with 18 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
53 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 59/45 Hz (-3dB/-8dB).

Eighteen Sound 15 LW 2400

order no. 18s-15lw2400

EUR 395,80 excl. VAT: € 332.61 / $ 359.21

38 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 40-2200 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 24 N/A
  • voice coil inductance L = 1,25 mH
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 138 g
  • equivalent volume of compliance Vas = 131 l
  • total Q factor Qts = 0,3 (Qms=4,75, Qes=0,32)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 181 mm
  • mass m = 11,2 kg
PDF data sheet

Eighteen Sound 15 LW 2400, 4 Ohm

order no. 18s-15lw2400-4

EUR 346,50 excl. VAT: € 291.18 / $ 314.47

38 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 40-2200 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 900 cm2
  • voice coil diameter = 100 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 181 mm
  • mass m = 11,2 kg
PDF data sheet

Eighteen Sound 15 NMB 420
open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 115/73 Hz (-3dB/-8dB)

recommended cabinet 2:
82 L volume bass reflex cabinet
with 2x HP100 reflex tube, 6 cm long.
from 65/49 Hz (-3dB/-8dB).

Eighteen Sound 15 NMB 420

order no. 18s-15nmb420

EUR 367,90 excl. VAT: € 309.16 / $ 333.89

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 40-5000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 19 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 73 g
  • equivalent volume of compliance Vas = 225 l
  • total Q factor Qts = 0,29 (Qms=6, Qes=0,3)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 169,5 mm
  • mass m = 3,9 kg
PDF data sheet

Eighteen Sound 15 NMB 420, 4 Ohm

order no. 18s-15nmb420-4

EUR 298,90 excl. VAT: € 251.18 / $ 271.27

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 700/1400 W
  • frequency range = 40-5000 Hz
  • impedance R = 4 Ohm
  • voice coil diameter = 75 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 169,5 mm
  • mass m = 3,9 kg
PDF data sheet

Eighteen Sound 15 NW 530
open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
85 L volume bass reflex cabinet
with 2x HP100 reflex tube, 14 cm long.
from 49/38 Hz (-3dB/-8dB).

Eighteen Sound 15 NW 530

order no. 18s-15nw530

EUR 436,80 excl. VAT: € 367.06 / $ 396.42

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 500/800 W
  • frequency range = 47-3500 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 22 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 135 g
  • equivalent volume of compliance Vas = 154 l
  • total Q factor Qts = 0,33 (Qms=5,81, Qes=0,35)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 169,5 mm
  • mass m = 4 kg
PDF data sheet

Eighteen Sound 15 ND 830
open a bigger photo

recommended cabinet 1:
closed cabinet with 34 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
106 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 53/41 Hz (-3dB/-8dB).

Eighteen Sound 15 ND 830

order no. 18s-15nd830

EUR 427,00 excl. VAT: € 358.82 / $ 387.53

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 450/700 W
  • frequency range = 38-5000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 18 N/A
  • voice coil inductance L = 1,54 mH
  • effective piston radiating area Sd = 850 cm2
  • effective mechanical mass incl. air load mms = 80 g
  • equivalent volume of compliance Vas = 213 l
  • total Q factor Qts = 0,32 (Qms=3,9, Qes=0,35)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 177 mm
  • mass m = 4,1 kg
PDF data sheet

Eighteen Sound 15 ND 930
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,5 L volume
from 129/81 Hz (-3dB/-8dB)

recommended cabinet 2:
31 L volume bass reflex cabinet
with 2x HP100 reflex tube, 24 cm long.
from 81/61 Hz (-3dB/-8dB).

Eighteen Sound 15 ND 930

order no. 18s-15nd930

EUR 448,30 excl. VAT: € 376.72 / $ 406.86

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 500/800 W
  • frequency range = 40-4100 Hz
  • resonance frequency fs = 36 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 23,8 N/A
  • voice coil inductance L = 1,61 mH
  • effective piston radiating area Sd = 850 cm2
  • effective mechanical mass incl. air load mms = 101 g
  • equivalent volume of compliance Vas = 206 l
  • total Q factor Qts = 0,22 (Qms=5,3, Qes=0,23)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 177 mm
  • mass m = 4,1 kg
PDF data sheet

Eighteen Sound 15 ND 930, 4 Ohm

order no. 18s-15nd930-4

EUR 448,30 excl. VAT: € 376.72 / $ 406.86

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 500/800 W
  • frequency range = 40-4100 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 850 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 177 mm
  • mass m = 4,1 kg
PDF data sheet

Eighteen Sound 15 ND 930, 16 Ohm

order no. 18s-15nd930-16

EUR 448,30 excl. VAT: € 376.72 / $ 406.86

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 500/800 W
  • frequency range = 40-4100 Hz
  • impedance R = 16 Ohm
  • effective piston radiating area Sd = 850 cm2
  • voice coil diameter = 75 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 177 mm
  • mass m = 4,1 kg
PDF data sheet

Eighteen Sound 15 NLW 1500
open a bigger photo

recommended cabinet 1:
closed cabinet with 28 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
90 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 45/35 Hz (-3dB/-8dB).

Eighteen Sound 15 NLW 1500

order no. 18s-15nlw9500

EUR 629,00 excl. VAT: € 528.57 / $ 570.86

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 42-2000 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • force factor BL = 21,6 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 910 cm2
  • effective mechanical mass incl. air load mms = 146 g
  • equivalent volume of compliance Vas = 163 l
  • total Q factor Qts = 0,32 (Qms=6,7, Qes=0,34)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 177,4 mm
  • mass m = 7 kg
PDF data sheet

Eighteen Sound 15 NLW 1500, 4 Ohm

order no. 18s-15nlw9500-4

EUR 522,20 excl. VAT: € 438.82 / $ 473.93

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 42-2000 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 910 cm2
  • voice coil diameter = 100 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 177,4 mm
  • mass m = 7 kg
PDF data sheet

Eighteen Sound 15 NLW 9300
open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
43 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 70/53 Hz (-3dB/-8dB).

Eighteen Sound 15 NLW 9300

order no. 18s-15nlw9300

EUR 569,80 excl. VAT: € 478.82 / $ 517.13

37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 24,4 N/A
  • voice coil inductance L = 0,95 mH
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 107 g
  • equivalent volume of compliance Vas = 170 l
  • total Q factor Qts = 0,26 (Qms=6,7, Qes=0,274)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 353 mm
  • overall diameter d = 387 mm
  • mounting depth (not countersunk) t = 174 mm
  • mass m = 6,8 kg
PDF data sheet

Eighteen Sound 15 NLW 9401
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,5 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with 2x HP100 reflex tube, 26 cm long.
from 70/53 Hz (-3dB/-8dB).

Eighteen Sound 15 NLW 9401

order no. 18s-15nlw9401

EUR 528,80 excl. VAT: € 444.37 / $ 479.92

38 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 37-2300 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97,5 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 25,4 N/A
  • voice coil inductance L = 1,9 mH
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 140 g
  • equivalent volume of compliance Vas = 134 l
  • total Q factor Qts = 0,26 (Qms=4,13, Qes=0,28)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 180 mm
  • mass m = 7,6 kg
PDF data sheet

Eighteen Sound 15 NLW 9401, 4 Ohm

order no. 18s-15nlw9401-4

EUR 463,10 excl. VAT: € 389.16 / $ 420.29

38 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 37-2300 Hz
  • impedance R = 4 Ohm
  • voice coil diameter = 100 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 393 mm
  • mounting depth (not countersunk) t = 180 mm
  • mass m = 7,6 kg
PDF data sheet




18 inch woofer

Eighteen Sound 18 W 1300
open a bigger photo

recommended cabinet 1:
closed cabinet with 58 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
185 L volume bass reflex cabinet
with 4x HP100 reflex tube, 15 cm long.
from 45/35 Hz (-3dB/-8dB).

Eighteen Sound 18 W 1300

order no. 18s-18w1300

EUR 423,70 excl. VAT: € 356.05 / $ 384.53

44 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 850/1200 W
  • frequency range = 38-3300 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99,5 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 20,4 N/A
  • voice coil inductance L = 1,48 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 129 g
  • equivalent volume of compliance Vas = 336 l
  • total Q factor Qts = 0,33 (Qms=5, Qes=0,35)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 8,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 211,9 mm
  • mass m = 13 kg
PDF data sheet

Eighteen Sound 18 LW 1400
open a bigger photo

recommended cabinet 1:
closed cabinet with 41 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
120 L volume bass reflex cabinet
with 4x HP100 reflex tube, 34 cm long.
from 46/35 Hz (-3dB/-8dB).

Eighteen Sound 18 LW 1400

order no. 18s-18lw1400

EUR 413,80 excl. VAT: € 347.73 / $ 375.55

44 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 28-2500 Hz
  • resonance frequency fs = 31 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 24,7 N/A
  • voice coil inductance L = 2,3 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 190 g
  • equivalent volume of compliance Vas = 297 l
  • total Q factor Qts = 0,3 (Qms=7,2, Qes=0,31)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 215,4 mm
  • mass m = 13,3 kg
PDF data sheet

Eighteen Sound 18 LW 1400, 4 Ohm

order no. 18s-18lw1400-4

EUR 367,90 excl. VAT: € 309.16 / $ 333.89

44 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 28-2500 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 1225 cm2
  • voice coil diameter = 100 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 215,4 mm
  • mass m = 13,3 kg
PDF data sheet

Eighteen Sound 18 LW 2400
open a bigger photo

recommended cabinet 1:
closed cabinet with 34 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
103 L volume bass reflex cabinet
with 4x HP100 reflex tube, 33 cm long.
from 49/38 Hz (-3dB/-8dB).

Eighteen Sound 18 LW 2400

order no. 18s-18lw2400

EUR 420,40 excl. VAT: € 353.28 / $ 381.54

44 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 31-2500 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 25,6 N/A
  • voice coil inductance L = 1,35 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 192 g
  • equivalent volume of compliance Vas = 230 l
  • total Q factor Qts = 0,31 (Qms=7,2, Qes=0,32)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 214,4 mm
  • mass m = 11,9 kg
PDF data sheet

Eighteen Sound 18 LW 2400, 4 Ohm

order no. 18s-18lw2400-4

EUR 374,40 excl. VAT: € 314.62 / $ 339.79

44 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 31-2500 Hz
  • impedance R = 8 Ohm
  • effective piston radiating area Sd = 1225 cm2
  • voice coil diameter = 100 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 214,4 mm
  • mass m = 11,9 kg
PDF data sheet

Eighteen Sound 18 TLW 3000
open a bigger photo

recommended cabinet 1:
closed cabinet with 54 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
206 L volume bass reflex cabinet
with 4x HP100 reflex tube, 30 cm long.
from 32/26 Hz (-3dB/-8dB).

Eighteen Sound 18 TLW 3000

order no. 18s-18tlw3000

EUR 556,70 excl. VAT: € 467.82 / $ 505.24

44 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 30-2000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 4,6 Ohm
  • force factor BL = 24,5 N/A
  • voice coil inductance L = 1,8 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 266 g
  • equivalent volume of compliance Vas = 185 l
  • total Q factor Qts = 0,41 (Qms=13, Qes=0,42)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 12 mm
  • mounting diameter d = 425 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 275 mm
  • mass m = 13,2 kg
PDF data sheet

Eighteen Sound 18 NLW 9000
open a bigger photo

recommended cabinet 1:
closed cabinet with 31 L volume
from 88/55 Hz (-3dB/-8dB)

recommended cabinet 2:
93 L volume bass reflex cabinet
with 4x HP100 reflex tube, 41 cm long.
from 48/37 Hz (-3dB/-8dB).

Eighteen Sound 18 NLW 9000

order no. 18s-18nlw9000

EUR 904,90 excl. VAT: € 760.42 / $ 821.25

44 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 32-2500 Hz
  • resonance frequency fs = 34 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 27 N/A
  • voice coil inductance L = 1,9 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 218 g
  • equivalent volume of compliance Vas = 206 l
  • total Q factor Qts = 0,31 (Qms=7, Qes=0,32)
  • voice coil diameter = 135 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 237,5 mm
  • mass m = 12,5 kg
PDF data sheet

Eighteen Sound 18 NLW 9000, 4 Ohm

order no. 18s-18nlw9000-4

EUR 702,90 excl. VAT: € 590.67 / $ 637.93

44 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 32-2500 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 1225 cm2
  • voice coil diameter = 135 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 237,5 mm
  • mass m = 12,5 kg
PDF data sheet

Eighteen Sound 18 ND 9300
open a bigger photo

recommended cabinet 1:
closed cabinet with 37 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
102 L volume bass reflex cabinet
with 4x HP100 reflex tube, 39 cm long.
from 48/37 Hz (-3dB/-8dB).

Eighteen Sound 18 ND 9300

order no. 18s-18nd9300

EUR 620,80 excl. VAT: € 521.68 / $ 563.42

44 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1000/1400 W
  • frequency range = 28-2500 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 24,4 N/A
  • voice coil inductance L = 2,02 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 184 g
  • equivalent volume of compliance Vas = 316 l
  • total Q factor Qts = 0,28 (Qms=7,86, Qes=0,29)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 223,5 mm
  • mass m = 7,6 kg
PDF data sheet

Eighteen Sound 18 NLW 9400
open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
77 L volume bass reflex cabinet
with 4x HP100 reflex tube, 40 cm long.
from 56/42 Hz (-3dB/-8dB).

Eighteen Sound 18 NLW 9400

order no. 18s-18nlw9400

EUR 569,80 excl. VAT: € 478.82 / $ 517.13

44 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 30-2500 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 26 N/A
  • voice coil inductance L = 1,9 mH
  • effective piston radiating area Sd = 1225 cm2
  • effective mechanical mass incl. air load mms = 180 g
  • equivalent volume of compliance Vas = 268 l
  • total Q factor Qts = 0,27 (Qms=6,1, Qes=0,28)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 223,5 mm
  • mass m = 8,7 kg
PDF data sheet

Eighteen Sound 18 NLW 9400, 4 Ohm

order no. 18s-18nlw9400-4

EUR 479,50 excl. VAT: € 402.94 / $ 435.18

44 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1200/2400 W
  • frequency range = 30-2500 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 1225 cm2
  • voice coil diameter = 100 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 223,5 mm
  • mass m = 8,7 kg
PDF data sheet

Eighteen Sound 18 NLW 9601
open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
42 L volume bass reflex cabinet
with 2x HP100 reflex tube, 33 cm long.
from 57/43 Hz (-3dB/-8dB).

Eighteen Sound 18 NLW 9601

order no. 18s-18nlw9601

EUR 922,90 excl. VAT: € 775.55 / $ 837.59

44 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 30-2500 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 4,7 Ohm
  • force factor BL = 30 N/A
  • voice coil inductance L = 2,1 mH
  • effective piston radiating area Sd = 1130 cm2
  • effective mechanical mass incl. air load mms = 270 g
  • equivalent volume of compliance Vas = 164 l
  • total Q factor Qts = 0,27 (Qms=5, Qes=0,28)
  • voice coil diameter = 135 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 236 mm
  • mass m = 12,5 kg
PDF data sheet

Eighteen Sound 18 NLW 9601, 4 Ohm

order no. 18s-18nlw9601-4

EUR 773,50 excl. VAT: € 650.00 / $ 702.00

44 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 30-2500 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 1130 cm2
  • voice coil diameter = 135 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 462 mm
  • mounting depth (not countersunk) t = 236 mm
  • mass m = 12,5 kg
PDF data sheet




21 inch woofer

Eighteen Sound 21 LW 1400
open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 96/61 Hz (-3dB/-8dB)

recommended cabinet 2:
66 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 59/44 Hz (-3dB/-8dB).

Eighteen Sound 21 LW 1400

order no. 18s-21lw1400

EUR 635,50 excl. VAT: € 534.03 / $ 576.76

52 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 1400/1600 W
  • frequency range = 24-2000 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 33,5 N/A
  • voice coil inductance L = 2,85 mH
  • effective piston radiating area Sd = 1662 cm2
  • effective mechanical mass incl. air load mms = 296 g
  • equivalent volume of compliance Vas = 385 l
  • total Q factor Qts = 0,24 (Qms=9,32, Qes=0,242)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9,5 mm
  • mounting diameter d = 492 mm
  • overall diameter d = 545 mm
  • mounting depth (not countersunk) t = 256,3 mm
  • mass m = 19,2 kg
PDF data sheet

Eighteen Sound 21 NLW 9001
open a bigger photo

recommended cabinet 1:
closed cabinet with 39 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
122 L volume bass reflex cabinet
with 4x HP100 reflex tube, 36 cm long.
from 43/33 Hz (-3dB/-8dB).

Eighteen Sound 21 NLW 9001

order no. 18s-21nlw9001

EUR 982,00 excl. VAT: € 825.21 / $ 891.23

52 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 25-1500 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 37 N/A
  • voice coil inductance L = 3,1 mH
  • effective piston radiating area Sd = 1662 cm2
  • effective mechanical mass incl. air load mms = 390 g
  • equivalent volume of compliance Vas = 244 l
  • total Q factor Qts = 0,32 (Qms=4,5, Qes=0,34)
  • voice coil diameter = 135 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 492 mm
  • overall diameter d = 545 mm
  • mounting depth (not countersunk) t = 250 mm
  • mass m = 14 kg
PDF data sheet

Eighteen Sound 21 NLW 9001, 4 Ohm

order no. 18s-21nlw9001-4

- not available (_)

52 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 25-1500 Hz
  • impedance R = 4 Ohm
  • effective piston radiating area Sd = 1662 cm2
  • voice coil diameter = 135 mm
  • mounting diameter d = 492 mm
  • overall diameter d = 545 mm
  • mounting depth (not countersunk) t = 250 mm
  • mass m = 14 kg
PDF data sheet

Eighteen Sound 21 NLW 9601
open a bigger photo

recommended cabinet 1:
closed cabinet with 22 L volume
from 102/64 Hz (-3dB/-8dB)

recommended cabinet 2:
64 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 57/44 Hz (-3dB/-8dB).

Eighteen Sound 21 NLW 9601

order no. 18s-21nlw9601

EUR 1075,60 excl. VAT: € 903.87 / $ 976.17

52 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 43 N/A
  • voice coil inductance L = 3,1 mH
  • effective piston radiating area Sd = 1662 cm2
  • effective mechanical mass incl. air load mms = 408 g
  • equivalent volume of compliance Vas = 175 l
  • total Q factor Qts = 0,29 (Qms=5,5, Qes=0,31)
  • voice coil diameter = 135 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 492 mm
  • overall diameter d = 545 mm
  • mounting depth (not countersunk) t = 250 mm
  • mass m = 14 kg
PDF data sheet

Eighteen Sound 21 NLW 9601, 4 Ohm

order no. 18s-21nlw9601-4

EUR 880,20 excl. VAT: € 739.66 / $ 798.84

52 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 1800/3600 W
  • frequency range = 25-2000 Hz
  • impedance R = 4 Ohm
  • voice coil diameter = 135 mm
  • mounting diameter d = 492 mm
  • overall diameter d = 545 mm
  • mounting depth (not countersunk) t = 250 mm
  • mass m = 14 kg
PDF data sheet

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
