Faital

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,8 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with HP70 reflex tube, 6 cm long.
from 40/35 Hz (-3dB/-8dB).

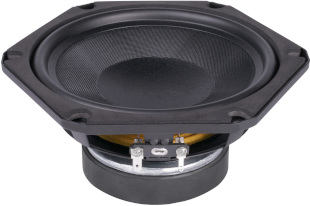

Faital Pro 6 FE 100 A

order no. ah-FP6FE100A

EUR 41,00 excl. VAT: € 34.45 / $ 37.21

16 cm bass driver with high quality cone.

• power handling (continuous/programme) = 100/200 W
• frequency range = 63-5000 Hz
• resonance frequency fs = 61 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 6,8 N/A
• voice coil inductance L = 0,5 mH
• effective piston radiating area Sd = 149 cm²
• effective mechanical mass incl. air load mms = 14 g
• equivalent volume of compliance Vas = 15,1 l
• total Q factor Qts = 0,55 (Qms=6, Qes=0,6)
• voice coil diameter = 32 mm
• maximum peak linear excursion vibration x_lin = +/- 3,3 mm
• mounting diameter d = 147 mm
• overall diameter d = 181,2 mm
• mounting depth (not countersunk) t = 84,5 mm
• mass m = 1,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,8 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with HP70 reflex tube, 6 cm long.
from 40/35 Hz (-3dB/-8dB).

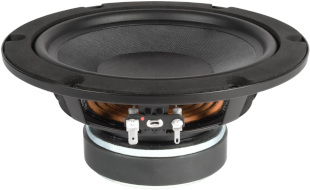

Faital Pro 6 FE 125 A

order no. ah-fp6fe125a

EUR 41,00 excl. VAT: € 34.45 / $ 37.21

17 cm bass driver with high quality cone.

• power handling (continuous/programme) = 100/200 W
• frequency range = 63-5000 Hz
• resonance frequency fs = 61 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 6,8 N/A
• voice coil inductance L = 0,5 mH
• effective piston radiating area Sd = 149 cm²
• effective mechanical mass incl. air load mms = 14 g
• equivalent volume of compliance Vas = 15,1 l
• total Q factor Qts = 0,55 (Qms=6, Qes=0,6)
• voice coil diameter = 32 mm
• maximum peak linear excursion vibration x_lin = +/- 3,3 mm
• mounting diameter d = 147 mm
• overall diameter d = 181,8 mm
• mounting depth (not countersunk) t = 84,5 mm
• mass m = 1,2 kg

PDF data sheet

open a bigger photo

Faital Pro 6 FE 200 A

order no. ah-FP6FE200A

EUR 45,00 excl. VAT: € 37.82 / $ 40.84

15 cm midrange driver with paper cone.

• power handling (continuous/programme) = 130/260 W
• frequency range = 85-6000 Hz
• resonance frequency fs = 120 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,9 Ohm
• force factor BL = 8,2 N/A
• voice coil inductance L = 0,4 mH
• effective piston radiating area Sd = 131 cm²
• effective mechanical mass incl. air load mms = 11,5 g
• equivalent volume of compliance Vas = 3,6 l
• total Q factor Qts = 0,67 (Qms=6,2, Qes=0,75)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 144 mm
• overall diameter d = 167,4 mm
• mounting depth (not countersunk) t = 77 mm
• mass m = 2 kg

PDF data sheet

open a bigger photo

Faital Pro 6 FE 200 B

order no. ah-fp6fe200b

EUR 45,00 excl. VAT: € 37.82 / $ 40.84

15 cm midrange driver with paper cone.

• power handling (continuous/programme) = 130/260 W
• frequency range = 85-6000 Hz
• resonance frequency fs = 120 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 12 Ohm
• force factor BL = 11,4 N/A
• voice coil inductance L = 0,65 mH
• effective piston radiating area Sd = 131 cm²
• effective mechanical mass incl. air load mms = 9,9 g
• equivalent volume of compliance Vas = 4,2 l
• total Q factor Qts = 0,66 (Qms=10,8, Qes=0,7)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 144 mm
• overall diameter d = 167,4 mm
• mounting depth (not countersunk) t = 77 mm
• mass m = 2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 220/139 Hz (-3dB/-8dB)

recommended cabinet 2:
6 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 106/87 Hz (-3dB/-8dB).

Faital Pro 6 FE 200 C

order no. ah-fp6fe200c

EUR 45,00 excl. VAT: € 37.82 / $ 40.84

15 cm midrange driver with paper cone.

• power handling (continuous/programme) = 130/260 W
• frequency range = 85-6000 Hz
• resonance frequency fs = 120 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 7 N/A
• voice coil inductance L = 0,2 mH
• effective piston radiating area Sd = 131 cm²
• effective mechanical mass incl. air load mms = 9,7 g
• equivalent volume of compliance Vas = 4,3 l
• total Q factor Qts = 0,42 (Qms=6,2, Qes=0,45)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 144 mm
• overall diameter d = 167,4 mm
• mounting depth (not countersunk) t = 77 mm
• mass m = 2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 153/96 Hz (-3dB/-8dB)

recommended cabinet 2:
14,4 L volume bass reflex cabinet
with HP70 reflex tube, 7 cm long.
from 70/59 Hz (-3dB/-8dB).

Faital Pro 6 PR 110 A

order no. ah-FP6PR110A

EUR 99,00 excl. VAT: € 83.19 / $ 89.85

17 cm midrange driver with paper cone.

• power handling (continuous/programme) = 150/300 W
• frequency range = 100-6000 Hz
• resonance frequency fs = 100 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 6 Ohm
• force factor BL = 8,5 N/A
• voice coil inductance L = 0,22 mH
• effective piston radiating area Sd = 137 cm²
• effective mechanical mass incl. air load mms = 12 g
• equivalent volume of compliance Vas = 5,6 l
• total Q factor Qts = 0,53 (Qms=4,2, Qes=0,6)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 0,8 mm
• mounting diameter d = 147 mm
• overall diameter d = 186,5 mm
• mounting depth (not countersunk) t = 80 mm
• mass m = 2,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 227/143 Hz (-3dB/-8dB)

recommended cabinet 2:
4,4 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 114/91 Hz (-3dB/-8dB).

Faital Pro 6 PR 122 A

order no. ah-fp6pr122a

EUR 134,00 excl. VAT: € 112.61 / $ 121.61

17 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 120/240 W
• frequency range = 125-10000 Hz
• resonance frequency fs = 110 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 6 Ohm
• force factor BL = 10,5 N/A
• voice coil inductance L = 0,15 mH
• effective piston radiating area Sd = 137,3 cm²
• effective mechanical mass incl. air load mms = 11,7 g
• equivalent volume of compliance Vas = 4,7 l
• total Q factor Qts = 0,39 (Qms=3,3, Qes=0,44)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 0,8 mm
• mounting diameter d = 147 mm
• overall diameter d = 186,5 mm
• mounting depth (not countersunk) t = 78 mm
• mass m = 1,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 0,9 L volume
from 235/149 Hz (-3dB/-8dB)

recommended cabinet 2:
3 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 124/97 Hz (-3dB/-8dB).

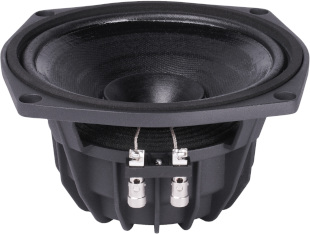

Faital Pro 6 PR 150 A

order no. ah-FP6PR150A

EUR 141,00 excl. VAT: € 118.49 / $ 127.97

17 cm midrange driver with paper cone.

• power handling (continuous/programme) = 150/300 W
• frequency range = 100-5000 Hz
• resonance frequency fs = 100 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,5 Ohm
• force factor BL = 11,6 N/A
• voice coil inductance L = 0,28 mH
• effective piston radiating area Sd = 137 cm²
• effective mechanical mass incl. air load mms = 13,5 g
• equivalent volume of compliance Vas = 4,9 l
• total Q factor Qts = 0,34 (Qms=8,8, Qes=0,35)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 0,7 mm
• mounting diameter d = 147 mm
• overall diameter d = 186,5 mm
• mounting depth (not countersunk) t = 89 mm
• mass m = 1,4 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 218/138 Hz (-3dB/-8dB)

recommended cabinet 2:
3,2 L volume bass reflex cabinet
with HP50 reflex tube, 10 cm long.
from 116/90 Hz (-3dB/-8dB).

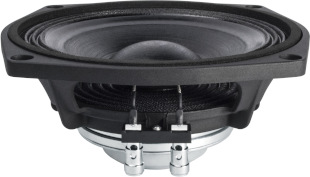

Faital Pro 6 PR 160 A

order no. ah-fp6pr160a

EUR 136,00 excl. VAT: € 114.29 / $ 123.43

17 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 120/240 W
• frequency range = 80-8000 Hz
• resonance frequency fs = 90 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,9 Ohm
• force factor BL = 11 N/A
• voice coil inductance L = 0,28 mH
• effective piston radiating area Sd = 130 cm²
• effective mechanical mass incl. air load mms = 12,5 g
• equivalent volume of compliance Vas = 5,9 l
• total Q factor Qts = 0,33 (Qms=6,6, Qes=0,35)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 147 mm
• overall diameter d = 186,5 mm
• mounting depth (not countersunk) t = 73 mm
• mass m = 1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 191/121 Hz (-3dB/-8dB)

recommended cabinet 2:
2,7 L volume bass reflex cabinet
with HP50 reflex tube, 18 cm long.
from 110/84 Hz (-3dB/-8dB).

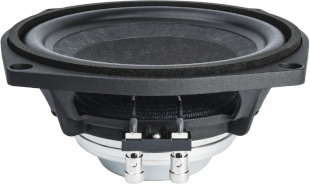

Faital Pro 6 RS 140 A

order no. ah-fp6rs140a

EUR 140,00 excl. VAT: € 117.65 / $ 127.06

17 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 200/400 W
• frequency range = 60-6000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 11 N/A
• voice coil inductance L = 0,28 mH
• effective piston radiating area Sd = 133 cm²
• effective mechanical mass incl. air load mms = 16 g
• equivalent volume of compliance Vas = 9,3 l
• total Q factor Qts = 0,27 (Qms=5,8, Qes=0,28)
• voice coil diameter = 44 mm
• maximum peak linear excursion vibration x_lin = +/- 3,6 mm
• mounting diameter d = 147 mm
• overall diameter d = 186,5 mm
• mounting depth (not countersunk) t = 76 mm
• mass m = 1,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 149/94 Hz (-3dB/-8dB)

recommended cabinet 2:
6,6 L volume bass reflex cabinet
with HP50 reflex tube, 11 cm long.
from 78/61 Hz (-3dB/-8dB).

Faital Pro 6 RS 140 B

order no. ah-fp6rs140b

EUR 140,00 excl. VAT: € 117.65 / $ 127.06

17 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 200/400 W
• frequency range = 60-6000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 92 dB (1W; 1m)
• DC resistance Re = 12,6 Ohm
• force factor BL = 14,2 N/A
• voice coil inductance L = 0,34 mH
• effective piston radiating area Sd = 133 cm²
• effective mechanical mass incl. air load mms = 15 g
• equivalent volume of compliance Vas = 9,9 l
• total Q factor Qts = 0,36 (Qms=6, Qes=0,38)
• voice coil diameter = 44 mm
• maximum peak linear excursion vibration x_lin = +/- 3,5 mm
• mounting diameter d = 147 mm
• overall diameter d = 186,5 mm
• mounting depth (not countersunk) t = 76 mm
• mass m = 1,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 172/108 Hz (-3dB/-8dB)

recommended cabinet 2:
8,2 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 81/67 Hz (-3dB/-8dB).

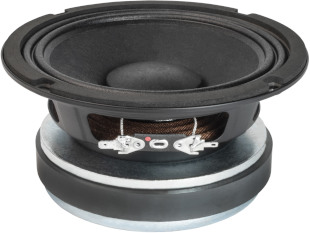

Faital Pro 6 FE 300 A

order no. ah-FP6FE300A

EUR 70,00 excl. VAT: € 58.82 / $ 63.53

15 cm bass driver with paper cone.

• power handling (continuous/programme) = 175/350 W
• frequency range = 90-4000 Hz
• resonance frequency fs = 100 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 10 N/A
• voice coil inductance L = 0,4 mH
• effective piston radiating area Sd = 138 cm²
• effective mechanical mass incl. air load mms = 14,2 g
• equivalent volume of compliance Vas = 4,7 l
• total Q factor Qts = 0,46 (Qms=10,5, Qes=0,48)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 1,9 mm
• mounting diameter d = 146 mm
• overall diameter d = 166,5 mm
• mounting depth (not countersunk) t = 81 mm
• mass m = 2,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 184/116 Hz (-3dB/-8dB)

recommended cabinet 2:
5,7 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 89/73 Hz (-3dB/-8dB).

Faital Pro 6 FE 300 C

order no. ah-FP6FE300C

EUR 70,00 excl. VAT: € 58.82 / $ 63.53

15 cm bass driver with paper cone.

• power handling (continuous/programme) = 175/350 W
• frequency range = 90-4000 Hz
• resonance frequency fs = 98 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 92 dB (1W; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 8,33 N/A
• voice coil inductance L = 0,26 mH
• effective piston radiating area Sd = 138 cm²
• effective mechanical mass incl. air load mms = 16 g
• equivalent volume of compliance Vas = 4,4 l
• total Q factor Qts = 0,41 (Qms=9,8, Qes=0,43)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 1,9 mm
• mounting diameter d = 146 mm
• overall diameter d = 166,5 mm
• mounting depth (not countersunk) t = 81 mm
• mass m = 2,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 223/141 Hz (-3dB/-8dB)

recommended cabinet 2:
3,6 L volume bass reflex cabinet
with HP50 reflex tube, 8 cm long.
from 115/91 Hz (-3dB/-8dB).

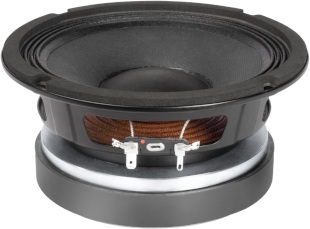

Faital Pro 6 FE 400 A

order no. ah-fp6fe400a

EUR 58,00 excl. VAT: € 48.74 / $ 52.64

15 cm bass driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 100-7000 Hz
• resonance frequency fs = 100 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 10,5 N/A
• voice coil inductance L = 0,42 mH
• effective piston radiating area Sd = 141 cm²
• effective mechanical mass incl. air load mms = 14 g
• equivalent volume of compliance Vas = 5 l
• total Q factor Qts = 0,36 (Qms=3,7, Qes=0,4)
• voice coil diameter = 44 mm
• maximum peak linear excursion vibration x_lin = +/- 2,1 mm
• mounting diameter d = 146 mm
• overall diameter d = 166,5 mm
• mounting depth (not countersunk) t = 84 mm
• mass m = 2,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 180/113 Hz (-3dB/-8dB)

recommended cabinet 2:
8,2 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 91/72 Hz (-3dB/-8dB).

Faital Pro 8 PR 155 A

order no. ah-fp8pr155a

EUR 147,00 excl. VAT: € 123.53 / $ 133.41

21 cm bass driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 80-6300 Hz
• resonance frequency fs = 85 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 13,4 N/A
• voice coil inductance L = 0,41 mH
• effective piston radiating area Sd = 217 cm²
• effective mechanical mass incl. air load mms = 24,5 g
• equivalent volume of compliance Vas = 9,4 l
• total Q factor Qts = 0,37 (Qms=8,8, Qes=0,39)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 0,9 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,75 mm
• mounting depth (not countersunk) t = 98,5 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,8 L volume
from 126/79 Hz (-3dB/-8dB)

recommended cabinet 2:
13,5 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 64/51 Hz (-3dB/-8dB).

Faital Pro 8 PR 200 A

order no. ah-FP8PR200A

EUR 172,00 excl. VAT: € 144.54 / $ 156.10

21 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 200/400 W
• frequency range = 70-5000 Hz
• resonance frequency fs = 58 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 11,5 N/A
• voice coil inductance L = 0,55 mH
• effective piston radiating area Sd = 209 cm²
• effective mechanical mass incl. air load mms = 27,2 g
• equivalent volume of compliance Vas = 16,9 l
• total Q factor Qts = 0,37 (Qms=9,4, Qes=0,38)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 5,2 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,75 mm
• mounting depth (not countersunk) t = 116,7 mm
• mass m = 2,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,5 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with HP100 reflex tube, 23 cm long.
from 50/41 Hz (-3dB/-8dB).

Faital Pro 8 PR 200 B

order no. ah-fp8pr200b

EUR 172,00 excl. VAT: € 144.54 / $ 156.10

21 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 200/400 W
• frequency range = 70-5000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 11,8 Ohm
• force factor BL = 15,5 N/A
• voice coil inductance L = 0,87 mH
• effective piston radiating area Sd = 209 cm²
• effective mechanical mass incl. air load mms = 26,7 g
• equivalent volume of compliance Vas = 16,1 l
• total Q factor Qts = 0,46 (Qms=8,8, Qes=0,49)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 5,7 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,75 mm
• mounting depth (not countersunk) t = 116,7 mm
• mass m = 2,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 179/113 Hz (-3dB/-8dB)

recommended cabinet 2:
5,6 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 100/76 Hz (-3dB/-8dB).

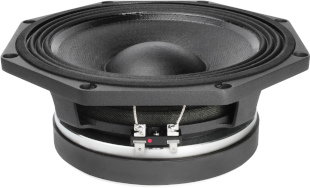

Faital Pro 8 PR 210 A

order no. ah-fp8pr210a

EUR 155,00 excl. VAT: € 130.25 / $ 140.67

21 cm bass driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 70-5000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,7 Ohm
• force factor BL = 13,5 N/A
• voice coil inductance L = 0,46 mH
• effective piston radiating area Sd = 216 cm²
• effective mechanical mass incl. air load mms = 25,3 g
• equivalent volume of compliance Vas = 15,4 l
• total Q factor Qts = 0,29 (Qms=3,1, Qes=0,32)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 4,3 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,7 mm
• mounting depth (not countersunk) t = 98,5 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,9 L volume
from 153/97 Hz (-3dB/-8dB)

recommended cabinet 2:
9,5 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 81/63 Hz (-3dB/-8dB).

Faital Pro 8 PR 210 B

order no. ah-fp8pr210b

EUR 155,00 excl. VAT: € 130.25 / $ 140.67

21 cm bass driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 70-5000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 11,2 Ohm
• force factor BL = 17,4 N/A
• voice coil inductance L = 0,75 mH
• effective piston radiating area Sd = 216 cm²
• effective mechanical mass incl. air load mms = 24,8 g
• equivalent volume of compliance Vas = 15,7 l
• total Q factor Qts = 0,34 (Qms=4,3, Qes=0,37)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 4,5 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,7 mm
• mounting depth (not countersunk) t = 98,5 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,8 L volume
from 128/80 Hz (-3dB/-8dB)

recommended cabinet 2:
14,6 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 63/51 Hz (-3dB/-8dB).

Faital Pro 8 PR 320 A

order no. ah-fp8pr320a

EUR 197,00 excl. VAT: € 165.55 / $ 178.79

21 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 12,9 N/A
• voice coil inductance L = 0,52 mH
• effective piston radiating area Sd = 223 cm²
• effective mechanical mass incl. air load mms = 31,7 g
• equivalent volume of compliance Vas = 13,1 l
• total Q factor Qts = 0,41 (Qms=8,2, Qes=0,43)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,6 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,7 mm
• mounting depth (not countersunk) t = 99,5 mm
• mass m = 2,45 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,1 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
37 L volume bass reflex cabinet
with HP100 reflex tube, 10 cm long.
from 53/45 Hz (-3dB/-8dB).

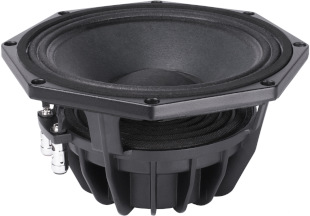

Faital Pro W8N8 150 A

order no. ah-FPW8N8150A

EUR 142,00 excl. VAT: € 119.33 / $ 128.87

21 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 150/300 W
• frequency range = 80-6300 Hz
• resonance frequency fs = 76 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 5,8 Ohm
• force factor BL = 9,9 N/A
• voice coil inductance L = 0,55 mH
• effective piston radiating area Sd = 222 cm²
• effective mechanical mass incl. air load mms = 20,9 g
• equivalent volume of compliance Vas = 14,4 l
• total Q factor Qts = 0,52 (Qms=4,72, Qes=0,59)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,9 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,75 mm
• mounting depth (not countersunk) t = 116,7 mm
• mass m = 1,7 kg

PDF data sheet

open a bigger photo

Faital Pro W8N8 150 B

order no. ah-fpw8n8150b

EUR 142,00 excl. VAT: € 119.33 / $ 128.87

21 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 150/300 W
• frequency range = 80-6300 Hz
• resonance frequency fs = 76 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 11,8 Ohm
• force factor BL = 12,3 N/A
• voice coil inductance L = 0,9 mH
• effective piston radiating area Sd = 222 cm²
• effective mechanical mass incl. air load mms = 23,8 g
• equivalent volume of compliance Vas = 12,7 l
• total Q factor Qts = 0,84 (Qms=19,5, Qes=0,88)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,9 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,75 mm
• mounting depth (not countersunk) t = 116,7 mm
• mass m = 1,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,9 L volume
from 140/88 Hz (-3dB/-8dB)

recommended cabinet 2:
9,1 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 75/58 Hz (-3dB/-8dB).

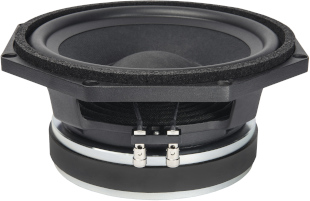

Faital Pro 8 RS 250 A

order no. ah-fp8rs250a

EUR 160,00 excl. VAT: € 134.45 / $ 145.21

21 cm bass driver with paper cone.

• power handling (continuous/programme) = 200400 W
• frequency range = 60-6300 Hz
• resonance frequency fs = 56 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 5,7 Ohm
• force factor BL = 13,5 N/A
• voice coil inductance L = 0,35 mH
• effective piston radiating area Sd = 223 cm²
• effective mechanical mass incl. air load mms = 30,6 g
• equivalent volume of compliance Vas = 18,3 l
• total Q factor Qts = 0,32 (Qms=5,7, Qes=0,34)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 4,3 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,7 mm
• mounting depth (not countersunk) t = 108 mm
• mass m = 4,4 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,7 L volume
from 99/62 Hz (-3dB/-8dB)

recommended cabinet 2:
15 L volume bass reflex cabinet
with HP70 reflex tube, 22 cm long.
from 52/41 Hz (-3dB/-8dB).

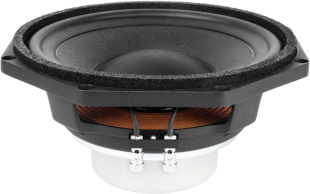

Faital Pro 8 RS 340 A

order no. ah-fp8rs340a

EUR 220,00 excl. VAT: € 184.87 / $ 199.66

21 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-6300 Hz
• resonance frequency fs = 42 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 13 N/A
• voice coil inductance L = 0,64 mH
• effective piston radiating area Sd = 227,8 cm²
• effective mechanical mass incl. air load mms = 40,8 g
• equivalent volume of compliance Vas = 25,5 l
• total Q factor Qts = 0,34 (Qms=6,6, Qes=0,36)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,6 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,7 mm
• mounting depth (not countersunk) t = 104,8 mm
• mass m = 2,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,3 L volume
from 112/70 Hz (-3dB/-8dB)

recommended cabinet 2:
9,6 L volume bass reflex cabinet
with HP70 reflex tube, 29 cm long.
from 62/47 Hz (-3dB/-8dB).

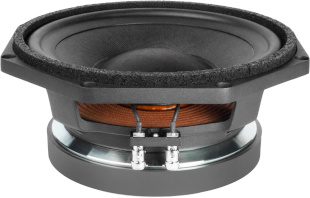

Faital Pro 8 RS 350 A

order no. ah-fp8rs350a

EUR 175,00 excl. VAT: € 147.06 / $ 158.82

21 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-6300 Hz
• resonance frequency fs = 42 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 90 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 13,9 N/A
• voice coil inductance L = 0,6 mH
• effective piston radiating area Sd = 226 cm²
• effective mechanical mass incl. air load mms = 43,3 g
• equivalent volume of compliance Vas = 23,7 l
• total Q factor Qts = 0,3 (Qms=6,9, Qes=0,31)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 183 mm
• overall diameter d = 223,7 mm
• mounting depth (not countersunk) t = 106,5 mm
• mass m = 4,1 kg

PDF data sheet

open a bigger photo

Faital Pro 8 FE 200 A

order no. ah-FP8FE200A

EUR 49,00 excl. VAT: € 41.18 / $ 44.47

19 cm bass driver with paper cone.

• power handling (continuous/programme) = 130/260 W
• frequency range = 60-5000 Hz
• resonance frequency fs = 80 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,9 Ohm
• force factor BL = 8,2 N/A
• voice coil inductance L = 0,44 mH
• effective piston radiating area Sd = 209 cm²
• effective mechanical mass incl. air load mms = 15 g
• equivalent volume of compliance Vas = 16,1 l
• total Q factor Qts = 0,63 (Qms=13, Qes=0,66)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 178 mm
• overall diameter d = 209,2 mm
• mounting depth (not countersunk) t = 89 mm
• mass m = 2,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,8 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with HP70 reflex tube, 3 cm long.
from 65/54 Hz (-3dB/-8dB).

Faital Pro 8 FE 200 C

order no. ah-fp8fe200c

EUR 49,00 excl. VAT: € 41.18 / $ 44.47

19 cm bass driver with paper cone.

• power handling (continuous/programme) = 130/260 W
• frequency range = 60-5000 Hz
• resonance frequency fs = 80 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 7 N/A
• voice coil inductance L = 0,25 mH
• effective piston radiating area Sd = 209 cm²
• effective mechanical mass incl. air load mms = 15,3 g
• equivalent volume of compliance Vas = 15,8 l
• total Q factor Qts = 0,45 (Qms=8,7, Qes=0,47)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 178 mm
• overall diameter d = 209,2 mm
• mounting depth (not countersunk) t = 89 mm
• mass m = 2,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,9 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with HP70 reflex tube, 6 cm long.
from 60/49 Hz (-3dB/-8dB).

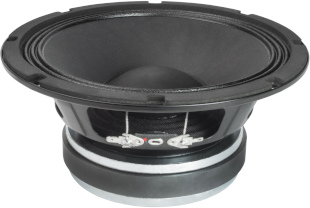

Faital Pro 8 FE 300 A

order no. ah-fp8fe300a

EUR 82,00 excl. VAT: € 68.91 / $ 74.42

20 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 80-5000 Hz
• resonance frequency fs = 70 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,8 Ohm
• force factor BL = 11,3 N/A
• voice coil inductance L = 0,55 mH
• effective piston radiating area Sd = 223 cm²
• effective mechanical mass incl. air load mms = 22,9 g
• equivalent volume of compliance Vas = 15,7 l
• total Q factor Qts = 0,44 (Qms=13,4, Qes=0,46)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,9 mm
• mounting diameter d = 183 mm
• overall diameter d = 209 mm
• mounting depth (not countersunk) t = 95 mm
• mass m = 3,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,7 L volume
from 131/83 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 64/52 Hz (-3dB/-8dB).

Faital Pro 8 FE 300 C

order no. ah-fp8fe300c

EUR 82,00 excl. VAT: € 68.91 / $ 74.42

20 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 80-5000 Hz
• resonance frequency fs = 70 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 9,7 N/A
• voice coil inductance L = 0,36 mH
• effective piston radiating area Sd = 223 cm²
• effective mechanical mass incl. air load mms = 25,7 g
• equivalent volume of compliance Vas = 14 l
• total Q factor Qts = 0,41 (Qms=11,1, Qes=0,43)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,8 mm
• mounting diameter d = 183 mm
• overall diameter d = 209 mm
• mounting depth (not countersunk) t = 95 mm
• mass m = 3,04 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,9 L volume
from 153/96 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with 4x HP100 reflex tube, 47 cm long.
from 70/59 Hz (-3dB/-8dB).

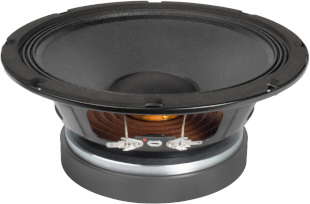

Faital Pro 8 FE 400 A

order no. ah-fp8fe400a

EUR 67,00 excl. VAT: € 56.30 / $ 60.81

20 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 100-6000 Hz
• resonance frequency fs = 100 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 10,5 N/A
• voice coil inductance L = 0,44 mH
• effective piston radiating area Sd = 233 cm²
• effective mechanical mass incl. air load mms = 20,5 g
• equivalent volume of compliance Vas = 9,4 l
• total Q factor Qts = 0,52 (Qms=5,3, Qes=0,58)
• voice coil diameter = 44 mm
• maximum peak linear excursion vibration x_lin = +/- 2,1 mm
• mounting diameter d = 183 mm
• overall diameter d = 209 mm
• mounting depth (not countersunk) t = 96 mm
• mass m = 2,78 kg

PDF data sheet

open a bigger photo

Faital Pro 10 FE 200 A

order no. ah-FP10FE200A

EUR 55,00 excl. VAT: € 46.22 / $ 49.92

24 cm bass driver with paper cone.

• power handling (continuous/programme) = 150/300 W
• frequency range = 50-4500 Hz
• resonance frequency fs = 55 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,9 Ohm
• force factor BL = 8,2 N/A
• voice coil inductance L = 0,42 mH
• effective piston radiating area Sd = 360 cm²
• effective mechanical mass incl. air load mms = 24,5 g
• equivalent volume of compliance Vas = 61,7 l
• total Q factor Qts = 0,69 (Qms=11,3, Qes=0,74)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 233,8 mm
• overall diameter d = 256,8 mm
• mounting depth (not countersunk) t = 102 mm
• mass m = 2,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 36 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
147 L volume bass reflex cabinet
with 4x HP100 reflex tube, 18 cm long.
from 39/33 Hz (-3dB/-8dB).

Faital Pro 10 FE 200 C

order no. ah-FP10FE200C

EUR 55,00 excl. VAT: € 46.22 / $ 49.92

24 cm bass driver with paper cone.

• power handling (continuous/programme) = 150/300 W
• frequency range = 50-4500 Hz
• resonance frequency fs = 55 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 7 N/A
• voice coil inductance L = 0,3 mH
• effective piston radiating area Sd = 360 cm²
• effective mechanical mass incl. air load mms = 24,8 g
• equivalent volume of compliance Vas = 61 l
• total Q factor Qts = 0,49 (Qms=9,2, Qes=0,52)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 233,8 mm
• overall diameter d = 256,8 mm
• mounting depth (not countersunk) t = 102 mm
• mass m = 2,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 32 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
130 L volume bass reflex cabinet
with HP100 reflex tube, 4 cm long.
from 35/30 Hz (-3dB/-8dB).

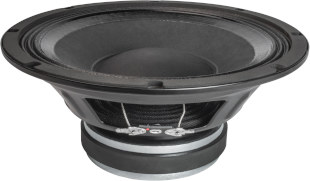

Faital Pro 10 FE 300 A

order no. ah-fp10fe300a

EUR 94,00 excl. VAT: € 78.99 / $ 85.31

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,8 Ohm
• force factor BL = 11,3 N/A
• voice coil inductance L = 0,6 mH
• effective piston radiating area Sd = 358 cm²
• effective mechanical mass incl. air load mms = 35,9 g
• equivalent volume of compliance Vas = 50,5 l
• total Q factor Qts = 0,52 (Qms=13,1, Qes=0,54)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,9 mm
• mounting diameter d = 233 mm
• overall diameter d = 260 mm
• mounting depth (not countersunk) t = 110 mm
• mass m = 3,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 14,4 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
55 L volume bass reflex cabinet
with HP100 reflex tube, 10 cm long.
from 48/39 Hz (-3dB/-8dB).

Faital Pro 10 FE 300 C

order no. ah-fp10fe300c

EUR 94,00 excl. VAT: € 78.99 / $ 85.31

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 9,7 N/A
• voice coil inductance L = 0,45 mH
• effective piston radiating area Sd = 358 cm²
• effective mechanical mass incl. air load mms = 37 g
• equivalent volume of compliance Vas = 49 l
• total Q factor Qts = 0,4 (Qms=10,8, Qes=0,41)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,8 mm
• mounting diameter d = 233 mm
• overall diameter d = 260 mm
• mounting depth (not countersunk) t = 110 mm
• mass m = 3,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 21 L volume
from 69/43 Hz (-3dB/-8dB)

recommended cabinet 2:
81 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 34/27 Hz (-3dB/-8dB).

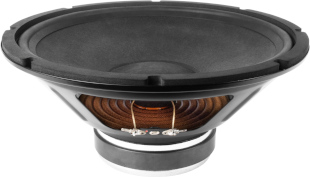

Faital Pro 10 FE 330 A

order no. ah-fp10fe330a

EUR 99,00 excl. VAT: € 83.19 / $ 89.85

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 35-4000 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 92 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 12,6 N/A
• voice coil inductance L = 1,1 mH
• effective piston radiating area Sd = 382 cm²
• effective mechanical mass incl. air load mms = 58,2 g
• equivalent volume of compliance Vas = 72,4 l
• total Q factor Qts = 0,4 (Qms=6,7, Qes=0,43)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 5,7 mm
• mounting diameter d = 233 mm
• overall diameter d = 260 mm
• mounting depth (not countersunk) t = 110 mm
• mass m = 3,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 101/64 Hz (-3dB/-8dB)

recommended cabinet 2:
66 L volume bass reflex cabinet
with HP100 reflex tube, 6 cm long.
from 47/40 Hz (-3dB/-8dB).

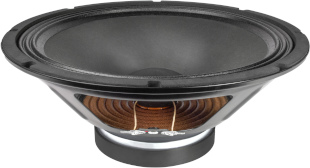

Faital Pro 10 FE 400 A

order no. ah-fp10fe400a

EUR 76,00 excl. VAT: € 63.87 / $ 68.97

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 60-4500 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 11,5 N/A
• voice coil inductance L = 0,68 mH
• effective piston radiating area Sd = 362 cm²
• effective mechanical mass incl. air load mms = 36,5 g
• equivalent volume of compliance Vas = 35,3 l
• total Q factor Qts = 0,47 (Qms=5,2, Qes=0,52)
• voice coil diameter = 44 mm
• maximum peak linear excursion vibration x_lin = +/- 2,8 mm
• mounting diameter d = 233 mm
• overall diameter d = 260 mm
• mounting depth (not countersunk) t = 111 mm
• mass m = 3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,6 L volume
from 183/116 Hz (-3dB/-8dB)

recommended cabinet 2:
6,6 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 107/81 Hz (-3dB/-8dB).

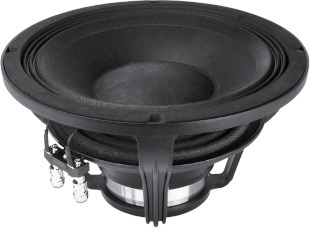

Faital Pro 10 FH 500 A

order no. ah-FP10FH500A

EUR 236,00 excl. VAT: € 198.32 / $ 214.18

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 17,9 N/A
• voice coil inductance L = 0,85 mH
• effective piston radiating area Sd = 351 cm²
• effective mechanical mass incl. air load mms = 47 g
• equivalent volume of compliance Vas = 25,8 l
• total Q factor Qts = 0,26 (Qms=3,3, Qes=0,28)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 141,3 mm
• mass m = 3,4 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,3 L volume
from 131/82 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 65/52 Hz (-3dB/-8dB).

Faital Pro 10 FH 500 B

order no. ah-FP10FH500B

EUR 236,00 excl. VAT: € 198.32 / $ 214.18

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 12,8 Ohm
• force factor BL = 23,8 N/A
• voice coil inductance L = 1,37 mH
• effective piston radiating area Sd = 328 cm²
• effective mechanical mass incl. air load mms = 47,5 g
• equivalent volume of compliance Vas = 19,2 l
• total Q factor Qts = 0,4 (Qms=5,7, Qes=0,43)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3,8 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 141,3 mm
• mass m = 3,4 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,4 L volume
from 183/116 Hz (-3dB/-8dB)

recommended cabinet 2:
6,2 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 107/81 Hz (-3dB/-8dB).

Faital Pro 10 FH 500 C

order no. ah-FP10FH500C

EUR 236,00 excl. VAT: € 198.32 / $ 214.18

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 15,5 N/A
• voice coil inductance L = 0,64 mH
• effective piston radiating area Sd = 328 cm²
• effective mechanical mass incl. air load mms = 50,1 g
• equivalent volume of compliance Vas = 24,2 l
• total Q factor Qts = 0,25 (Qms=6,2, Qes=0,26)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3,8 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 141,3 mm
• mass m = 3,4 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3 L volume
from 165/104 Hz (-3dB/-8dB)

recommended cabinet 2:
8,5 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 92/71 Hz (-3dB/-8dB).

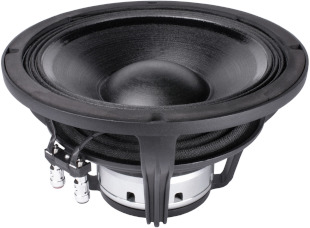

Faital Pro 10 FH 520 A

order no. ah-FP10FH520A

EUR 260,00 excl. VAT: € 218.49 / $ 235.97

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 18 N/A
• voice coil inductance L = 0,9 mH
• effective piston radiating area Sd = 347 cm²
• effective mechanical mass incl. air load mms = 50,3 g
• equivalent volume of compliance Vas = 23,5 l
• total Q factor Qts = 0,29 (Qms=11,1, Qes=0,3)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3,3 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 141,3 mm
• mass m = 3,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,7 L volume
from 128/80 Hz (-3dB/-8dB)

recommended cabinet 2:
25 L volume bass reflex cabinet
with HP100 reflex tube, 14 cm long.
from 63/51 Hz (-3dB/-8dB).

Faital Pro 10 FH 520 B

order no. ah-fp10fh520b

EUR 260,00 excl. VAT: € 218.49 / $ 235.97

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 12,8 Ohm
• force factor BL = 23,5 N/A
• voice coil inductance L = 1,7 mH
• effective piston radiating area Sd = 347 cm²
• effective mechanical mass incl. air load mms = 44,5 g
• equivalent volume of compliance Vas = 22,7 l
• total Q factor Qts = 0,41 (Qms=15,3, Qes=0,42)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 141,3 mm
• mass m = 3,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 198/125 Hz (-3dB/-8dB)

recommended cabinet 2:
4,6 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 120/90 Hz (-3dB/-8dB).

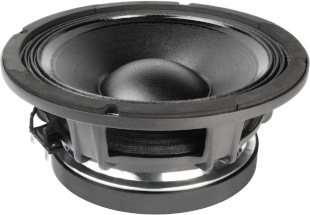

Faital Pro 10 FH 530 A

order no. ah-fp10fh530a

EUR 239,00 excl. VAT: € 200.84 / $ 216.91

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 19,5 N/A
• voice coil inductance L = 0,8 mH
• effective piston radiating area Sd = 347 cm²
• effective mechanical mass incl. air load mms = 50,3 g
• equivalent volume of compliance Vas = 23,5 l
• total Q factor Qts = 0,25 (Qms=12,4, Qes=0,25)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 130 mm
• mass m = 7,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,9 L volume
from 142/89 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with HP100 reflex tube, 18 cm long.
from 72/57 Hz (-3dB/-8dB).

Faital Pro 10 FH 530 B

order no. ah-fp10fh530b

EUR 239,00 excl. VAT: € 200.84 / $ 216.91

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 67 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 12,8 Ohm
• force factor BL = 25,1 N/A
• voice coil inductance L = 1,42 mH
• effective piston radiating area Sd = 347 cm²
• effective mechanical mass incl. air load mms = 47 g
• equivalent volume of compliance Vas = 20,2 l
• total Q factor Qts = 0,39 (Qms=10,9, Qes=0,4)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 130 mm
• mass m = 7,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
35 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 44/35 Hz (-3dB/-8dB).

Faital Pro 10 RS 350 A

order no. ah-fp10rs350a

EUR 184,00 excl. VAT: € 154.62 / $ 166.99

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 40-2500 Hz
• resonance frequency fs = 40 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 14 N/A
• voice coil inductance L = 0,95 mH
• effective piston radiating area Sd = 344 cm²
• effective mechanical mass incl. air load mms = 59 g
• equivalent volume of compliance Vas = 44,3 l
• total Q factor Qts = 0,37 (Qms=5,2, Qes=0,4)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 116,5 mm
• mass m = 4,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 7 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 52/40 Hz (-3dB/-8dB).

Faital Pro 10 RS 350 C

order no. ah-fp10rs350c

EUR 184,00 excl. VAT: € 154.62 / $ 166.99

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 40-2500 Hz
• resonance frequency fs = 40 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 91 dB (1W; 1m)
• DC resistance Re = 3,2 Ohm
• force factor BL = 12,5 N/A
• voice coil inductance L = 0,45 mH
• effective piston radiating area Sd = 344 cm²
• effective mechanical mass incl. air load mms = 64,5 g
• equivalent volume of compliance Vas = 40,6 l
• total Q factor Qts = 0,31 (Qms=6,2, Qes=0,33)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,5 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 116,5 mm
• mass m = 4,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 7 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 52/39 Hz (-3dB/-8dB).

Faital Pro 10 RS 430 A

order no. ah-fp10rs430a

EUR 233,00 excl. VAT: € 195.80 / $ 211.46

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 30-2500 Hz
• resonance frequency fs = 32 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (1W; 1m)
• DC resistance Re = 6,8 Ohm
• force factor BL = 18 N/A
• voice coil inductance L = 0,78 mH
• effective piston radiating area Sd = 344 cm²
• effective mechanical mass incl. air load mms = 69 g
• equivalent volume of compliance Vas = 59,2 l
• total Q factor Qts = 0,28 (Qms=10, Qes=0,29)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 11 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 136 mm
• mass m = 6,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5 L volume
from 170/108 Hz (-3dB/-8dB)

recommended cabinet 2:
13,7 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 97/74 Hz (-3dB/-8dB).

Faital Pro 10 PR 300 A

order no. ah-FP10PR300A

EUR 201,00 excl. VAT: € 168.91 / $ 182.42

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-5000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 14,1 N/A
• voice coil inductance L = 0,6 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 28,2 g
• equivalent volume of compliance Vas = 42,2 l
• total Q factor Qts = 0,28 (Qms=5,8, Qes=0,29)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 115,3 mm
• mass m = 2,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 14 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
57 L volume bass reflex cabinet
with HP100 reflex tube, 6 cm long.
from 51/43 Hz (-3dB/-8dB).

Faital Pro 10 PR 300 B

order no. ah-FP10PR300B

EUR 201,00 excl. VAT: € 168.91 / $ 182.42

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 65-5000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 12,1 Ohm
• force factor BL = 18 N/A
• voice coil inductance L = 0,85 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 33,1 g
• equivalent volume of compliance Vas = 30,6 l
• total Q factor Qts = 0,48 (Qms=5,8, Qes=0,52)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 115,3 mm
• mass m = 2,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,6 L volume
from 158/100 Hz (-3dB/-8dB)

recommended cabinet 2:
11,2 L volume bass reflex cabinet
with HP70 reflex tube, 10 cm long.
from 94/71 Hz (-3dB/-8dB).

Faital Pro 10 PR 300 C

order no. ah-fp10pr300c

EUR 201,00 excl. VAT: € 168.91 / $ 182.42

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-5000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 11,8 N/A
• voice coil inductance L = 0,45 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 34,4 g
• equivalent volume of compliance Vas = 49,8 l
• total Q factor Qts = 0,24 (Qms=5,8, Qes=0,25)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 115,3 mm
• mass m = 2,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,9 L volume
from 141/89 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 74/58 Hz (-3dB/-8dB).

Faital Pro 10 PR 310 A

order no. ah-FP10PR310A

EUR 168,00 excl. VAT: € 141.18 / $ 152.47

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 14,4 N/A
• voice coil inductance L = 0,64 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 36,9 g
• equivalent volume of compliance Vas = 32,2 l
• total Q factor Qts = 0,34 (Qms=5,7, Qes=0,36)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 109 mm
• mass m = 4,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,4 L volume
from 112/70 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with HP100 reflex tube, 7 cm long.
from 53/44 Hz (-3dB/-8dB).

Faital Pro 10 PR 310 B

order no. ah-fp10pr310b

EUR 168,00 excl. VAT: € 141.18 / $ 152.47

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 65 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 12,1 Ohm
• force factor BL = 18,7 N/A
• voice coil inductance L = 1,22 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 35 g
• equivalent volume of compliance Vas = 29 l
• total Q factor Qts = 0,47 (Qms=5,3, Qes=0,52)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 109 mm
• mass m = 4,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,4 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 17 cm long.
from 74/57 Hz (-3dB/-8dB).

Faital Pro 10 PR 310 C

order no. ah-FP10PR310C

EUR 168,00 excl. VAT: € 141.18 / $ 152.47

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-4000 Hz
• resonance frequency fs = 55 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 11,5 N/A
• voice coil inductance L = 0,45 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 35,1 g
• equivalent volume of compliance Vas = 40,3 l
• total Q factor Qts = 0,31 (Qms=7,4, Qes=0,32)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 109 mm
• mass m = 4,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,7 L volume
from 132/83 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP100 reflex tube, 20 cm long.
from 74/56 Hz (-3dB/-8dB).

Faital Pro 10 PR 320 A

order no. ah-fp10pr320a

EUR 212,00 excl. VAT: € 178.15 / $ 192.40

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 48 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 13,5 N/A
• voice coil inductance L = 0,57 mH
• effective piston radiating area Sd = 347 cm²
• effective mechanical mass incl. air load mms = 35 g
• equivalent volume of compliance Vas = 52,7 l
• total Q factor Qts = 0,29 (Qms=4,6, Qes=0,31)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 110 mm
• mass m = 2,55 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,2 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with HP100 reflex tube, 11 cm long.
from 53/43 Hz (-3dB/-8dB).

Faital Pro 10 PR 320 B

order no. ah-fp10pr320b

EUR 212,00 excl. VAT: € 178.15 / $ 192.40

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 11,3 Ohm
• force factor BL = 16,7 N/A
• voice coil inductance L = 0,98 mH
• effective piston radiating area Sd = 347 cm²
• effective mechanical mass incl. air load mms = 33,6 g
• equivalent volume of compliance Vas = 50,6 l
• total Q factor Qts = 0,38 (Qms=3,3, Qes=0,43)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 110 mm
• mass m = 2,55 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6 L volume
from 141/89 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 74/58 Hz (-3dB/-8dB).

Faital Pro 10 PR 330 A

order no. ah-fp10pr330a

EUR 172,00 excl. VAT: € 144.54 / $ 156.10

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-3150 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 14,3 N/A
• voice coil inductance L = 0,64 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 36,5 g
• equivalent volume of compliance Vas = 32,5 l
• total Q factor Qts = 0,33 (Qms=4,6, Qes=0,36)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 111 mm
• mass m = 4,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,9 L volume
from 134/84 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with HP100 reflex tube, 14 cm long.
from 69/54 Hz (-3dB/-8dB).

Faital Pro 10 PR 330 B

order no. ah-fp10pr330b

EUR 172,00 excl. VAT: € 144.54 / $ 156.10

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 60-3150 Hz
• resonance frequency fs = 60 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 11,3 Ohm
• force factor BL = 19,5 N/A
• voice coil inductance L = 1,12 mH
• effective piston radiating area Sd = 348 cm²
• effective mechanical mass incl. air load mms = 36,1 g
• equivalent volume of compliance Vas = 32,9 l
• total Q factor Qts = 0,36 (Qms=3,6, Qes=0,4)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 111 mm
• mass m = 4,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 215/136 Hz (-3dB/-8dB)

recommended cabinet 2:
4,8 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 135/101 Hz (-3dB/-8dB).

Faital Pro 10 PR 410 A

order no. ah-fp10pr410a

EUR 225,00 excl. VAT: € 189.08 / $ 204.20

25 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 100-2000 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 18,5 N/A
• voice coil inductance L = 0,6 mH
• effective piston radiating area Sd = 345 cm²
• effective mechanical mass incl. air load mms = 36,5 g
• equivalent volume of compliance Vas = 32 l
• total Q factor Qts = 0,23 (Qms=10,5, Qes=0,23)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 1 mm
• mounting diameter d = 230 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 131 mm
• mass m = 7,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 198/125 Hz (-3dB/-8dB)

recommended cabinet 2:
3,2 L volume bass reflex cabinet
with HP70 reflex tube, 29 cm long.
from 120/90 Hz (-3dB/-8dB).

Faital Pro 10 HP 1020 A

order no. ah-FP10HP1020A

EUR 326,00 excl. VAT: € 273.95 / $ 295.87

25 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 60-2500 Hz
• resonance frequency fs = 60 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,5 Ohm
• force factor BL = 24,5 N/A
• voice coil inductance L = 0,85 mH
• effective piston radiating area Sd = 345 cm²
• effective mechanical mass incl. air load mms = 72,5 g
• equivalent volume of compliance Vas = 16,1 l
• total Q factor Qts = 0,24 (Qms=6,5, Qes=0,25)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 232 mm
• overall diameter d = 261 mm
• mounting depth (not countersunk) t = 141,3 mm
• mass m = 5,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 8,1 L volume
from 143/90 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 85/64 Hz (-3dB/-8dB).

Faital Pro 12 FH 500 A

order no. ah-FP12FH500A

EUR 267,00 excl. VAT: € 224.37 / $ 242.32

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 45-4000 Hz
• resonance frequency fs = 45 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 17,5 N/A
• voice coil inductance L = 0,83 mH
• effective piston radiating area Sd = 529 cm²
• effective mechanical mass incl. air load mms = 56 g
• equivalent volume of compliance Vas = 87,3 l
• total Q factor Qts = 0,25 (Qms=6,9, Qes=0,26)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 284 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 155,75 mm
• mass m = 3,9 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 107/67 Hz (-3dB/-8dB)

recommended cabinet 2:
56 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 55/44 Hz (-3dB/-8dB).

Faital Pro 12 FH 500 B

order no. ah-FP12FH500B

EUR 267,00 excl. VAT: € 224.37 / $ 242.32

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 45-4000 Hz
• resonance frequency fs = 48 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 12,8 Ohm
• force factor BL = 23,8 N/A
• voice coil inductance L = 1,2 mH
• effective piston radiating area Sd = 529 cm²
• effective mechanical mass incl. air load mms = 55,5 g
• equivalent volume of compliance Vas = 77,4 l
• total Q factor Qts = 0,37 (Qms=11, Qes=0,38)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3,8 mm
• mounting diameter d = 284 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 155,75 mm
• mass m = 3,9 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,2 L volume
from 155/98 Hz (-3dB/-8dB)

recommended cabinet 2:
13,9 L volume bass reflex cabinet
with HP100 reflex tube, 21 cm long.
from 95/71 Hz (-3dB/-8dB).

Faital Pro 12 FH 500 C

order no. ah-FP12FH500C

EUR 267,00 excl. VAT: € 224.37 / $ 242.32

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 45-4000 Hz
• resonance frequency fs = 45 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 15,5 N/A
• voice coil inductance L = 0,63 mH
• effective piston radiating area Sd = 529 cm²
• effective mechanical mass incl. air load mms = 60,9 g
• equivalent volume of compliance Vas = 80,3 l
• total Q factor Qts = 0,22 (Qms=9,09, Qes=0,23)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3,8 mm
• mounting diameter d = 284 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 155,75 mm
• mass m = 3,9 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,9 L volume
from 148/94 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 90/67 Hz (-3dB/-8dB).

Faital Pro 12 FH 510 A

order no. ah-FP12FH510A

EUR 243,00 excl. VAT: € 204.20 / $ 220.54

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 45-3150 Hz
• resonance frequency fs = 45 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 18,9 N/A
• voice coil inductance L = 0,9 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 61 g
• equivalent volume of compliance Vas = 81,3 l
• total Q factor Qts = 0,24 (Qms=10,9, Qes=0,25)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 140 mm
• mass m = 7,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 7,6 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP100 reflex tube, 18 cm long.
from 81/61 Hz (-3dB/-8dB).

Faital Pro 12 FH 510 C

order no. ah-FP12FH510C

EUR 243,00 excl. VAT: € 204.20 / $ 220.54

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 45-3150 Hz
• resonance frequency fs = 45 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 16,3 N/A
• voice coil inductance L = 0,8 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 66 g
• equivalent volume of compliance Vas = 75,2 l
• total Q factor Qts = 0,25 (Qms=7,9, Qes=0,26)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 140 mm
• mass m = 7,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,4 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with 2x HP100 reflex tube, 24 cm long.
from 77/59 Hz (-3dB/-8dB).

Faital Pro 12 FH 520 A

order no. ah-FP12FH520A

EUR 290,00 excl. VAT: € 243.70 / $ 263.19

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 17,3 N/A
• voice coil inductance L = 0,74 mH
• effective piston radiating area Sd = 540 cm²
• effective mechanical mass incl. air load mms = 56 g
• equivalent volume of compliance Vas = 73,7 l
• total Q factor Qts = 0,29 (Qms=11,1, Qes=0,3)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3,3 mm
• mounting diameter d = 284 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 155,75 mm
• mass m = 4,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 24 L volume
from 94/60 Hz (-3dB/-8dB)

recommended cabinet 2:
98 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 45/37 Hz (-3dB/-8dB).

Faital Pro 12 FH 520 B

order no. ah-fp12fh520b

EUR 290,00 excl. VAT: € 243.70 / $ 263.19

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 55 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 12,8 Ohm
• force factor BL = 23,5 N/A
• voice coil inductance L = 1,6 mH
• effective piston radiating area Sd = 540 cm²
• effective mechanical mass incl. air load mms = 60,5 g
• equivalent volume of compliance Vas = 56,4 l
• total Q factor Qts = 0,47 (Qms=17, Qes=0,48)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 284 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 155,75 mm
• mass m = 4,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 7,7 L volume
from 142/90 Hz (-3dB/-8dB)

recommended cabinet 2:
21 L volume bass reflex cabinet
with HP100 reflex tube, 14 cm long.
from 81/61 Hz (-3dB/-8dB).

Faital Pro 12 FH 520 C

order no. ah-fp12fh520c

EUR 290,00 excl. VAT: € 243.70 / $ 263.19

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 15,3 N/A
• voice coil inductance L = 0,71 mH
• effective piston radiating area Sd = 540 cm²
• effective mechanical mass incl. air load mms = 63 g
• equivalent volume of compliance Vas = 65,5 l
• total Q factor Qts = 0,27 (Qms=6,32, Qes=0,28)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 284 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 155,75 mm
• mass m = 4,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 7,4 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP100 reflex tube, 18 cm long.
from 81/61 Hz (-3dB/-8dB).

Faital Pro 12 FH 530 A

order no. ah-fp12fh530a

EUR 271,00 excl. VAT: € 227.73 / $ 245.95

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 45-3150 Hz
• resonance frequency fs = 45 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 18,9 N/A
• voice coil inductance L = 0,8 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 67 g
• equivalent volume of compliance Vas = 74,1 l
• total Q factor Qts = 0,26 (Qms=6,4, Qes=0,27)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 140 mm
• mass m = 7,9 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,4 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 56/44 Hz (-3dB/-8dB).

Faital Pro 12 HP 1010 A

order no. ah-FP12HP1010A

EUR 289,00 excl. VAT: € 242.86 / $ 262.29

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 45-3150 Hz
• resonance frequency fs = 45 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,5 Ohm
• force factor BL = 19,8 N/A
• voice coil inductance L = 1,33 mH
• effective piston radiating area Sd = 531 cm²
• effective mechanical mass incl. air load mms = 87,2 g
• equivalent volume of compliance Vas = 56,5 l
• total Q factor Qts = 0,34 (Qms=9,4, Qes=0,35)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 142 mm
• mass m = 9,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,2 L volume
from 162/102 Hz (-3dB/-8dB)

recommended cabinet 2:
11,1 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 93/71 Hz (-3dB/-8dB).

Faital Pro 12 HP 1020 A

order no. ah-FP12HP1020A

EUR 365,00 excl. VAT: € 306.72 / $ 331.26

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 55-3150 Hz
• resonance frequency fs = 55 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,5 Ohm
• force factor BL = 24,3 N/A
• voice coil inductance L = 1,1 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 86 g
• equivalent volume of compliance Vas = 38,6 l
• total Q factor Qts = 0,27 (Qms=9,4, Qes=0,28)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 284 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 155,75 mm
• mass m = 5,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,9 L volume
from 120/75 Hz (-3dB/-8dB)

recommended cabinet 2:
14,5 L volume bass reflex cabinet
with HP100 reflex tube, 36 cm long.
from 66/51 Hz (-3dB/-8dB).

Faital Pro 12 HP 1030 A

order no. ah-FP12HP1030A

EUR 345,00 excl. VAT: € 289.92 / $ 313.11

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 45-1600 Hz
• resonance frequency fs = 45 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,3 N/A
• voice coil inductance L = 1,35 mH
• effective piston radiating area Sd = 518 cm²
• effective mechanical mass incl. air load mms = 130,5 g
• equivalent volume of compliance Vas = 35,9 l
• total Q factor Qts = 0,3 (Qms=13,8, Qes=0,31)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 147 mm
• mass m = 11,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,9 L volume
from 128/81 Hz (-3dB/-8dB)

recommended cabinet 2:
10,8 L volume bass reflex cabinet
with HP100 reflex tube, 44 cm long.
from 73/55 Hz (-3dB/-8dB).

Faital Pro 12 HP 1030 C

order no. ah-fp12hp1030c

EUR 345,00 excl. VAT: € 289.92 / $ 313.11

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 45-1600 Hz
• resonance frequency fs = 45 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 2,9 Ohm
• force factor BL = 20,5 N/A
• voice coil inductance L = 0,96 mH
• effective piston radiating area Sd = 518 cm²
• effective mechanical mass incl. air load mms = 141 g
• equivalent volume of compliance Vas = 33,2 l
• total Q factor Qts = 0,27 (Qms=9,4, Qes=0,28)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 147 mm
• mass m = 11,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,4 L volume
from 128/81 Hz (-3dB/-8dB)

recommended cabinet 2:
12 L volume bass reflex cabinet
with HP100 reflex tube, 39 cm long.
from 73/55 Hz (-3dB/-8dB).

Faital Pro 12 HP 1060 A

order no. ah-FP12HP1060A

EUR 405,00 excl. VAT: € 340.34 / $ 367.56

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 45-2500 Hz
• resonance frequency fs = 45 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,8 N/A
• voice coil inductance L = 1,38 mH
• effective piston radiating area Sd = 518 cm²
• effective mechanical mass incl. air load mms = 126,9 g
• equivalent volume of compliance Vas = 36,9 l
• total Q factor Qts = 0,28 (Qms=12,1, Qes=0,29)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 168,75 mm
• mass m = 6,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
8,6 L volume bass reflex cabinet
with HP100 reflex tube, 49 cm long.
from 81/61 Hz (-3dB/-8dB).

Faital Pro 12 HP 1060 C

order no. ah-fp12hp1060c

EUR 405,00 excl. VAT: € 340.34 / $ 367.56

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 45-2500 Hz
• resonance frequency fs = 45 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 2,9 Ohm
• force factor BL = 20,7 N/A
• voice coil inductance L = 1,13 mH
• effective piston radiating area Sd = 518 cm²
• effective mechanical mass incl. air load mms = 138,7 g
• equivalent volume of compliance Vas = 33,8 l
• total Q factor Qts = 0,25 (Qms=12,1, Qes=0,26)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 168,75 mm
• mass m = 6,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 69/43 Hz (-3dB/-8dB)

recommended cabinet 2:
87 L volume bass reflex cabinet
with 2x HP100 reflex tube, 31 cm long.
from 36/28 Hz (-3dB/-8dB).

Faital Pro 12 RS 430 A

order no. ah-fp12rs430a

EUR 248,00 excl. VAT: € 208.40 / $ 225.08

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 30-2500 Hz
• resonance frequency fs = 30 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 6,8 Ohm
• force factor BL = 18 N/A
• voice coil inductance L = 0,78 mH
• effective piston radiating area Sd = 552 cm²
• effective mechanical mass incl. air load mms = 91,3 g
• equivalent volume of compliance Vas = 131,2 l
• total Q factor Qts = 0,35 (Qms=10, Qes=0,36)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 11 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 157 mm
• mass m = 7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,2 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
36 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 47/37 Hz (-3dB/-8dB).

Faital Pro 12 RS 550 A

order no. ah-fp12rs550a

EUR 255,00 excl. VAT: € 214.29 / $ 231.43

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 45-2500 Hz
• resonance frequency fs = 42 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 20,5 N/A
• voice coil inductance L = 1,5 mH
• effective piston radiating area Sd = 528 cm²
• effective mechanical mass incl. air load mms = 123 g
• equivalent volume of compliance Vas = 45,4 l
• total Q factor Qts = 0,37 (Qms=6,9, Qes=0,39)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 145,1 mm
• mass m = 8,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,4 L volume
from 102/64 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 43 cm long.
from 54/42 Hz (-3dB/-8dB).

Faital Pro 12 RS 1066 A

order no. ah-fp12rs1066a

EUR 417,00 excl. VAT: € 350.42 / $ 378.45

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 45-2500 Hz
• resonance frequency fs = 42 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,8 N/A
• voice coil inductance L = 1,35 mH
• effective piston radiating area Sd = 496 cm²
• effective mechanical mass incl. air load mms = 156,5 g
• equivalent volume of compliance Vas = 31,5 l
• total Q factor Qts = 0,33 (Qms=13,9, Qes=0,34)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 176,5 mm
• mass m = 6,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,1 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with HP100 reflex tube, 25 cm long.
from 40/33 Hz (-3dB/-8dB).

Faital Pro 12 RS 1066 B

order no. ah-fp12rs1066b

EUR 417,00 excl. VAT: € 350.42 / $ 378.45

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 45-2500 Hz
• resonance frequency fs = 45 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 92 dB (1W; 1m)
• DC resistance Re = 12 Ohm
• force factor BL = 33,5 N/A
• voice coil inductance L = 2,5 mH
• effective piston radiating area Sd = 496 cm²
• effective mechanical mass incl. air load mms = 151,5 g
• equivalent volume of compliance Vas = 28,4 l
• total Q factor Qts = 0,44 (Qms=11,2, Qes=0,46)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 176,5 mm
• mass m = 6,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,8 L volume
from 158/100 Hz (-3dB/-8dB)

recommended cabinet 2:
8,8 L volume bass reflex cabinet
with HP100 reflex tube, 35 cm long.
from 96/72 Hz (-3dB/-8dB).

Faital Pro 12 FX 600 A

order no. ah-fp12fx600a

EUR 379,00 excl. VAT: € 318.49 / $ 343.97

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 50-3150 Hz
• resonance frequency fs = 48 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 25,3 N/A
• voice coil inductance L = 1,34 mH
• effective piston radiating area Sd = 538 cm²
• effective mechanical mass incl. air load mms = 100 g
• equivalent volume of compliance Vas = 44,4 l
• total Q factor Qts = 0,24 (Qms=6,88, Qes=0,25)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,9 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 168,8 mm
• mass m = 5,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 20 L volume
from 111/70 Hz (-3dB/-8dB)

recommended cabinet 2:
68 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 57/45 Hz (-3dB/-8dB).

Faital Pro 12 PR 300 A

order no. ah-FP12PR300A

EUR 214,00 excl. VAT: € 179.83 / $ 194.22

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-5000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 14,1 N/A
• voice coil inductance L = 0,42 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 43,4 g
• equivalent volume of compliance Vas = 92,6 l
• total Q factor Qts = 0,36 (Qms=9,9, Qes=0,37)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 283 mm
• overall diameter d = 315,2 mm
• mounting depth (not countersunk) t = 140,6 mm
• mass m = 2,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 44 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
178 L volume bass reflex cabinet
with 2x HP100 reflex tube, 4 cm long.
from 38/32 Hz (-3dB/-8dB).

Faital Pro 12 PR 300 B

order no. ah-fp12pr300b

EUR 214,00 excl. VAT: € 179.83 / $ 194.22

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-5000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 12,1 Ohm
• force factor BL = 17,5 N/A
• voice coil inductance L = 0,98 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 44,8 g
• equivalent volume of compliance Vas = 89,7 l
• total Q factor Qts = 0,49 (Qms=4,8, Qes=0,55)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 283 mm
• overall diameter d = 315,2 mm
• mounting depth (not countersunk) t = 140,6 mm
• mass m = 2,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 25 L volume
from 94/59 Hz (-3dB/-8dB)

recommended cabinet 2:
96 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 45/37 Hz (-3dB/-8dB).

Faital Pro 12 PR 300 C

order no. ah-fp12pr300c

EUR 214,00 excl. VAT: € 179.83 / $ 194.22

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-5000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 11,8 N/A
• voice coil inductance L = 0,46 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 54,4 g
• equivalent volume of compliance Vas = 73,9 l
• total Q factor Qts = 0,41 (Qms=19,4, Qes=0,42)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 283 mm
• overall diameter d = 315,2 mm
• mounting depth (not countersunk) t = 140,6 mm
• mass m = 2,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 20 L volume
from 109/68 Hz (-3dB/-8dB)

recommended cabinet 2:
75 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 54/43 Hz (-3dB/-8dB).

Faital Pro 12 PR 310 A

order no. ah-FP12PR310A

EUR 189,00 excl. VAT: € 158.82 / $ 171.53

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 54 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 14,4 N/A
• voice coil inductance L = 0,61 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 46,9 g
• equivalent volume of compliance Vas = 73,5 l
• total Q factor Qts = 0,4 (Qms=11,6, Qes=0,41)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 135 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

Faital Pro 12 PR 310 B

order no. ah-fp12pr310b

EUR 189,00 excl. VAT: € 158.82 / $ 171.53

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 55 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 12,1 Ohm
• force factor BL = 17,3 N/A
• voice coil inductance L = 0,98 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 51 g
• equivalent volume of compliance Vas = 65,1 l
• total Q factor Qts = 0,66 (Qms=12,2, Qes=0,7)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 135 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 27 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
108 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 44/36 Hz (-3dB/-8dB).

Faital Pro 12 PR 310 C

order no. ah-fp12pr310c

EUR 189,00 excl. VAT: € 158.82 / $ 171.53

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 11,2 N/A
• voice coil inductance L = 0,44 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 52 g
• equivalent volume of compliance Vas = 77,3 l
• total Q factor Qts = 0,42 (Qms=13,6, Qes=0,43)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 135 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
90 L volume bass reflex cabinet
with 2x HP100 reflex tube, 13 cm long.
from 47/37 Hz (-3dB/-8dB).

Faital Pro 12 PR 320 A

order no. ah-fp12pr320a

EUR 231,00 excl. VAT: € 194.12 / $ 209.65

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 45-5000 Hz
• resonance frequency fs = 42 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 13,5 N/A
• voice coil inductance L = 0,67 mH
• effective piston radiating area Sd = 539 cm²
• effective mechanical mass incl. air load mms = 51,4 g
• equivalent volume of compliance Vas = 113,3 l
• total Q factor Qts = 0,37 (Qms=7,8, Qes=0,39)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 120 mm
• mass m = 2,75 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 57 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
234 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 32/27 Hz (-3dB/-8dB).

Faital Pro 12 PR 320 B

order no. ah-fp12pr320b

EUR 231,00 excl. VAT: € 194.12 / $ 209.65

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 45-5000 Hz
• resonance frequency fs = 45 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 11,3 Ohm
• force factor BL = 17,3 N/A
• voice coil inductance L = 0,96 mH
• effective piston radiating area Sd = 539 cm²
• effective mechanical mass incl. air load mms = 52,5 g
• equivalent volume of compliance Vas = 96,7 l
• total Q factor Qts = 0,52 (Qms=7,6, Qes=0,56)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 120 mm
• mass m = 2,75 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
88 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 48/39 Hz (-3dB/-8dB).

Faital Pro 12 PR 330 A

order no. ah-fp12pr330a

EUR 194,00 excl. VAT: € 163.03 / $ 176.07

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 50 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 14,2 N/A
• voice coil inductance L = 0,76 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 50,8 g
• equivalent volume of compliance Vas = 79,1 l
• total Q factor Qts = 0,4 (Qms=10,9, Qes=0,42)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 135 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 35 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
142 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 41/34 Hz (-3dB/-8dB).

Faital Pro 12 PR 330 B

order no. ah-fp12pr330b

EUR 194,00 excl. VAT: € 163.03 / $ 176.07

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 300/600 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 52 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 11,3 Ohm
• force factor BL = 18,5 N/A
• voice coil inductance L = 1,34 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 48,7 g
• equivalent volume of compliance Vas = 76,3 l
• total Q factor Qts = 0,49 (Qms=5,8, Qes=0,53)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 4,7 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 135 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 49 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
202 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 33/28 Hz (-3dB/-8dB).

Faital Pro 12 FE 300 A

order no. ah-fp12fe300a

EUR 106,00 excl. VAT: € 89.08 / $ 96.20

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 47 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 12,5 N/A
• voice coil inductance L = 0,8 mH
• effective piston radiating area Sd = 543 cm²
• effective mechanical mass incl. air load mms = 56,4 g
• equivalent volume of compliance Vas = 83,7 l
• total Q factor Qts = 0,51 (Qms=15,5, Qes=0,53)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,4 mm
• mounting diameter d = 284 mm
• overall diameter d = 311 mm
• mounting depth (not countersunk) t = 133 mm
• mass m = 3,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 33 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
132 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 39/32 Hz (-3dB/-8dB).

Faital Pro 12 FE 300 C

order no. ah-fp12fe300c

EUR 106,00 excl. VAT: € 89.08 / $ 96.20

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 50-4000 Hz
• resonance frequency fs = 47 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 3,1 Ohm
• force factor BL = 10,9 N/A
• voice coil inductance L = 0,55 mH
• effective piston radiating area Sd = 543 cm²
• effective mechanical mass incl. air load mms = 58 g
• equivalent volume of compliance Vas = 81,4 l
• total Q factor Qts = 0,44 (Qms=13,2, Qes=0,45)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 2,8 mm
• mounting diameter d = 284 mm
• overall diameter d = 311 mm
• mounting depth (not countersunk) t = 133 mm
• mass m = 3,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 55 L volume
from 59/37 Hz (-3dB/-8dB)

recommended cabinet 2:
221 L volume bass reflex cabinet
with 2x HP100 reflex tube, 12 cm long.
from 28/23 Hz (-3dB/-8dB).

Faital Pro 12 FE 330 A

order no. ah-fp12fe330a

EUR 112,00 excl. VAT: € 94.12 / $ 101.65

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 250/500 W
• frequency range = 30-3000 Hz
• resonance frequency fs = 33 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 13 N/A
• voice coil inductance L = 1,1 mH
• effective piston radiating area Sd = 533 cm²
• effective mechanical mass incl. air load mms = 74,2 g
• equivalent volume of compliance Vas = 146,7 l
• total Q factor Qts = 0,45 (Qms=7, Qes=0,48)
• voice coil diameter = 52 mm
• maximum peak linear excursion vibration x_lin = +/- 5,7 mm
• mounting diameter d = 284 mm
• overall diameter d = 311 mm
• mounting depth (not countersunk) t = 133 mm
• mass m = 3,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 65 L volume
from 77/48 Hz (-3dB/-8dB)

recommended cabinet 2:
254 L volume bass reflex cabinet
with 4x HP100 reflex tube, 9 cm long.
from 34/30 Hz (-3dB/-8dB).

Faital Pro 12 FE 400 A

order no. ah-fp12fe400a

EUR 88,00 excl. VAT: € 73.95 / $ 79.87

30 cm bass driver with paper cone.

• power handling (continuous/programme) = 200/400 W
• frequency range = 55-4000 Hz
• resonance frequency fs = 55 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 11,5 N/A
• voice coil inductance L = 0,75 mH
• effective piston radiating area Sd = 549 cm²
• effective mechanical mass incl. air load mms = 47,9 g
• equivalent volume of compliance Vas = 73,6 l
• total Q factor Qts = 0,58 (Qms=6,6, Qes=0,63)
• voice coil diameter = 44 mm
• maximum peak linear excursion vibration x_lin = +/- 2,8 mm
• mounting diameter d = 284 mm
• overall diameter d = 311 mm
• mounting depth (not countersunk) t = 131 mm
• mass m = 3,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 7,8 L volume
from 96/60 Hz (-3dB/-8dB)

recommended cabinet 2:
30 L volume bass reflex cabinet
with HP100 reflex tube, 25 cm long.
from 47/38 Hz (-3dB/-8dB).

Faital Pro 12 XL 1200 A

order no. ah-fp12xl1200a

EUR 503,00 excl. VAT: € 422.69 / $ 456.50

30 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1400/2800 W
• frequency range = 50-2500 Hz
• resonance frequency fs = 50 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 93 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 23,6 N/A
• voice coil inductance L = 1,3 mH
• effective piston radiating area Sd = 518 cm²
• effective mechanical mass incl. air load mms = 152 g
• equivalent volume of compliance Vas = 25 l
• total Q factor Qts = 0,42 (Qms=14,8, Qes=0,43)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 316 mm
• mounting depth (not countersunk) t = 168,8 mm
• mass m = 6,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
90 L volume bass reflex cabinet
with 2x HP100 reflex tube, 14 cm long.
from 49/38 Hz (-3dB/-8dB).

Faital Pro 15 FH 500 A

order no. ah-FP15FH500A

EUR 298,00 excl. VAT: € 250.42 / $ 270.45

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 35-3150 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 19,2 N/A
• voice coil inductance L = 1,3 mH
• effective piston radiating area Sd = 847 cm²
• effective mechanical mass incl. air load mms = 104 g
• equivalent volume of compliance Vas = 199,2 l
• total Q factor Qts = 0,31 (Qms=10,4, Qes=0,32)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 181,3 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 82 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
327 L volume bass reflex cabinet
with 2x HP100 reflex tube, 3 cm long.
from 30/25 Hz (-3dB/-8dB).

Faital Pro 15 FH 500 B

order no. ah-fp15fh500b

EUR 298,00 excl. VAT: € 250.42 / $ 270.45

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 35-3150 Hz
• resonance frequency fs = 35 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 12,7 Ohm
• force factor BL = 23,8 N/A
• voice coil inductance L = 2 mH
• effective piston radiating area Sd = 847 cm²
• effective mechanical mass incl. air load mms = 95,4 g
• equivalent volume of compliance Vas = 217,1 l
• total Q factor Qts = 0,45 (Qms=13,2, Qes=0,47)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 181,3 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 27 L volume
from 91/57 Hz (-3dB/-8dB)

recommended cabinet 2:
76 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 51/39 Hz (-3dB/-8dB).

Faital Pro 15 FH 500 C

order no. ah-fp15fh500c

EUR 298,00 excl. VAT: € 250.42 / $ 270.45

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 35-3150 Hz
• resonance frequency fs = 33 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 16,2 N/A
• voice coil inductance L = 1,02 mH
• effective piston radiating area Sd = 847 cm²
• effective mechanical mass incl. air load mms = 111,2 g
• equivalent volume of compliance Vas = 209,5 l
• total Q factor Qts = 0,28 (Qms=8,5, Qes=0,29)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 6 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 181,3 mm
• mass m = 4,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 107/67 Hz (-3dB/-8dB)

recommended cabinet 2:
49 L volume bass reflex cabinet
with 2x HP100 reflex tube, 21 cm long.
from 63/47 Hz (-3dB/-8dB).

Faital Pro 15 FH 510 A

order no. ah-FP15FH510A

EUR 283,00 excl. VAT: € 237.82 / $ 256.84

38 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 35-3150 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 21 N/A
• voice coil inductance L = 1,4 mH
• effective piston radiating area Sd = 847 cm²
• effective mechanical mass incl. air load mms = 108 g
• equivalent volume of compliance Vas = 191,8 l
• total Q factor Qts = 0,26 (Qms=10,7, Qes=0,27)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 180 mm
• mass m = 8,4 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 51 L volume
from 72/46 Hz (-3dB/-8dB)

recommended cabinet 2:
192 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 36/29 Hz (-3dB/-8dB).

Faital Pro 15 FH 520 A

order no. ah-FP15FH520A

EUR 321,00 excl. VAT: € 269.75 / $ 291.33

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 40-3150 Hz
• resonance frequency fs = 36 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,6 Ohm
• force factor BL = 18,4 N/A
• voice coil inductance L = 0,89 mH
• effective piston radiating area Sd = 847 cm²
• effective mechanical mass incl. air load mms = 105 g
• equivalent volume of compliance Vas = 186,5 l
• total Q factor Qts = 0,39 (Qms=10,1, Qes=0,41)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 181,3 mm
• mass m = 4,6 kg

PDF data sheet

open a bigger photo

Faital Pro 15 FH 520 B

order no. ah-fp15fh520b

EUR 321,00 excl. VAT: € 269.75 / $ 291.33

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 40-4000 Hz
• resonance frequency fs = 42 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 12,7 Ohm
• force factor BL = 23,5 N/A
• voice coil inductance L = 1,7 mH
• effective piston radiating area Sd = 847 cm²
• effective mechanical mass incl. air load mms = 107,2 g
• equivalent volume of compliance Vas = 134,2 l
• total Q factor Qts = 0,62 (Qms=13,5, Qes=0,65)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 181,3 mm
• mass m = 4,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
102 L volume bass reflex cabinet
with 2x HP100 reflex tube, 12 cm long.
from 45/36 Hz (-3dB/-8dB).

Faital Pro 15 FH 520 C

order no. ah-fp15fh520c

EUR 321,00 excl. VAT: € 269.75 / $ 291.33

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 40-3150 Hz
• resonance frequency fs = 38 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 2,7 Ohm
• force factor BL = 14,3 N/A
• voice coil inductance L = 0,68 mH
• effective piston radiating area Sd = 847 cm²
• effective mechanical mass incl. air load mms = 114,7 g
• equivalent volume of compliance Vas = 153,2 l
• total Q factor Qts = 0,34 (Qms=9, Qes=0,35)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,2 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 181,3 mm
• mass m = 4,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 28 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
94 L volume bass reflex cabinet
with 2x HP100 reflex tube, 13 cm long.
from 47/37 Hz (-3dB/-8dB).

Faital Pro 15 FH 530 A

order no. ah-FP15FH530A

EUR 290,00 excl. VAT: € 243.70 / $ 263.19

38 cm bass driver with paper cone.

• power handling (continuous/programme) = 500/1000 W
• frequency range = 40-3150 Hz
• resonance frequency fs = 39 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 20,7 N/A
• voice coil inductance L = 1,1 mH
• effective piston radiating area Sd = 864 cm²
• effective mechanical mass incl. air load mms = 123,5 g
• equivalent volume of compliance Vas = 140,6 l
• total Q factor Qts = 0,35 (Qms=8,9, Qes=0,36)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 180 mm
• mass m = 8,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 22 L volume
from 101/64 Hz (-3dB/-8dB)

recommended cabinet 2:
64 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 56/43 Hz (-3dB/-8dB).

Faital Pro 15 FX 560 A

order no. ah-FP15FX560A

EUR 423,00 excl. VAT: € 355.46 / $ 383.90

39 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 40-4000 Hz
• resonance frequency fs = 38 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 5,2 Ohm
• force factor BL = 21,5 N/A
• voice coil inductance L = 0,64 mH
• effective piston radiating area Sd = 864 cm²
• effective mechanical mass incl. air load mms = 115 g
• equivalent volume of compliance Vas = 159 l
• total Q factor Qts = 0,3 (Qms=6,8, Qes=0,31)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 354 mm
• overall diameter d = 418,4 mm
• mounting depth (not countersunk) t = 185 mm
• mass m = 7,5 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 14 L volume
from 112/71 Hz (-3dB/-8dB)

recommended cabinet 2:
37 L volume bass reflex cabinet
with 2x HP100 reflex tube, 27 cm long.
from 65/49 Hz (-3dB/-8dB).

Faital Pro 15 FX 600 A

order no. ah-fp15fx600a

EUR 408,00 excl. VAT: € 342.86 / $ 370.29

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 40-3150 Hz
• resonance frequency fs = 38 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 23,2 N/A
• voice coil inductance L = 1,26 mH
• effective piston radiating area Sd = 864 cm²
• effective mechanical mass incl. air load mms = 142,5 g
• equivalent volume of compliance Vas = 128,3 l
• total Q factor Qts = 0,27 (Qms=6,9, Qes=0,28)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 7,5 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 194,3 mm
• mass m = 5,9 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 24 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
86 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 44/35 Hz (-3dB/-8dB).

Faital Pro 15 HP 1010 A

order no. ah-FP15HP1010A

EUR 309,00 excl. VAT: € 259.66 / $ 280.44

38 cm bass driver with paper cone.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 40-2500 Hz
• resonance frequency fs = 40 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 22 N/A
• voice coil inductance L = 1,8 mH
• effective piston radiating area Sd = 822 cm²
• effective mechanical mass incl. air load mms = 138,9 g
• equivalent volume of compliance Vas = 107,5 l
• total Q factor Qts = 0,37 (Qms=10, Qes=0,38)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 6,3 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 183 mm
• mass m = 9,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 13,8 L volume
from 118/74 Hz (-3dB/-8dB)

recommended cabinet 2:
37 L volume bass reflex cabinet
with 2x HP100 reflex tube, 24 cm long.
from 68/51 Hz (-3dB/-8dB).

Faital Pro 15 HP 1020 A

order no. ah-FP15HP1020A

EUR 384,00 excl. VAT: € 322.69 / $ 348.50

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 700/1400 W
• frequency range = 40-4000 Hz
• resonance frequency fs = 40 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,5 Ohm
• force factor BL = 24,2 N/A
• voice coil inductance L = 1,2 mH
• effective piston radiating area Sd = 822 cm²
• effective mechanical mass incl. air load mms = 118 g
• equivalent volume of compliance Vas = 126,6 l
• total Q factor Qts = 0,27 (Qms=10,2, Qes=0,28)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 181,3 mm
• mass m = 6,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 17 L volume
from 94/59 Hz (-3dB/-8dB)

recommended cabinet 2:
58 L volume bass reflex cabinet
with 2x HP100 reflex tube, 23 cm long.
from 50/39 Hz (-3dB/-8dB).

Faital Pro 15 HP 1030 A

order no. ah-FP15HP1030A

EUR 386,00 excl. VAT: € 324.37 / $ 350.32

38 cm bass driver with paper cone.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 40-2000 Hz
• resonance frequency fs = 40 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,3 N/A
• voice coil inductance L = 1,4 mH
• effective piston radiating area Sd = 842 cm²
• effective mechanical mass incl. air load mms = 165 g
• equivalent volume of compliance Vas = 95 l
• total Q factor Qts = 0,34 (Qms=11,83, Qes=0,35)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 188 mm
• mass m = 11,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 14,1 L volume
from 100/63 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with 2x HP100 reflex tube, 29 cm long.
from 54/42 Hz (-3dB/-8dB).

Faital Pro 15 HP 1030 C

order no. ah-fp15hp1030c

EUR 386,00 excl. VAT: € 324.37 / $ 350.32

38 cm bass driver with paper cone.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 40-2000 Hz
• resonance frequency fs = 40 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 3,97 Ohm
• force factor BL = 20,5 N/A
• voice coil inductance L = 1 mH
• effective piston radiating area Sd = 842 cm²
• effective mechanical mass incl. air load mms = 177,5 g
• equivalent volume of compliance Vas = 88,3 l
• total Q factor Qts = 0,3 (Qms=13,4, Qes=0,31)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 188 mm
• mass m = 11,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 14,9 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
45 L volume bass reflex cabinet
with 2x HP100 reflex tube, 26 cm long.
from 56/43 Hz (-3dB/-8dB).

Faital Pro 15 HP 1060 A

order no. ah-FP15HP1060A

EUR 434,00 excl. VAT: € 364.71 / $ 393.88

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 40-2000 Hz
• resonance frequency fs = 40 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,8 N/A
• voice coil inductance L = 1,32 mH
• effective piston radiating area Sd = 842 cm²
• effective mechanical mass incl. air load mms = 156,3 g
• equivalent volume of compliance Vas = 100,3 l
• total Q factor Qts = 0,31 (Qms=11,4, Qes=0,32)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 194,3 mm
• mass m = 7,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 15 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
51 L volume bass reflex cabinet
with 2x HP100 reflex tube, 30 cm long.
from 48/37 Hz (-3dB/-8dB).

Faital Pro 15 HP 1060 C

order no. ah-FP15HP1060C

EUR 434,00 excl. VAT: € 364.71 / $ 393.88

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 40-2000 Hz
• resonance frequency fs = 40 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 2,9 Ohm
• force factor BL = 20,7 N/A
• voice coil inductance L = 1,25 mH
• effective piston radiating area Sd = 842 cm²
• effective mechanical mass incl. air load mms = 205,4 g
• equivalent volume of compliance Vas = 76,3 l
• total Q factor Qts = 0,34 (Qms=10,3, Qes=0,35)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 194,3 mm
• mass m = 7,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 107 L volume
from 58/36 Hz (-3dB/-8dB)

recommended cabinet 2:
438 L volume bass reflex cabinet
with 4x HP100 reflex tube, 10 cm long.
from 27/23 Hz (-3dB/-8dB).

Faital Pro 15 PR 300 A

order no. ah-fp15pr300a

EUR 235,00 excl. VAT: € 197.48 / $ 213.28

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 300/600 W
• frequency range = 35-4000 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 15,6 N/A
• voice coil inductance L = 0,89 mH
• effective piston radiating area Sd = 870 cm²
• effective mechanical mass incl. air load mms = 99,2 g
• equivalent volume of compliance Vas = 220,1 l
• total Q factor Qts = 0,48 (Qms=14, Qes=0,5)
• voice coil diameter = 65 mm
• maximum peak linear excursion vibration x_lin = +/- 2,5 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 165 mm
• mass m = 3,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 40 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
124 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 47/36 Hz (-3dB/-8dB).

Faital Pro 15 PR 400 A

order no. ah-FP15PR400A

EUR 275,00 excl. VAT: € 231.09 / $ 249.58

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 400/800 W
• frequency range = 35-4000 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 16,7 N/A
• voice coil inductance L = 0,72 mH
• effective piston radiating area Sd = 857 cm²
• effective mechanical mass incl. air load mms = 85,2 g
• equivalent volume of compliance Vas = 248,9 l
• total Q factor Qts = 0,32 (Qms=6, Qes=0,34)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 165 mm
• mass m = 3,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 40 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
124 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 47/36 Hz (-3dB/-8dB).

Faital Pro 15 PR 400 C

order no. ah-fp15pr400c

EUR 275,00 excl. VAT: € 231.09 / $ 249.58

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 400/800 W
• frequency range = 35-4000 Hz
• resonance frequency fs = 35 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 13,6 N/A
• voice coil inductance L = 0,6 mH
• effective piston radiating area Sd = 857 cm²
• effective mechanical mass incl. air load mms = 85,2 g
• equivalent volume of compliance Vas = 248,9 l
• total Q factor Qts = 0,31 (Qms=6, Qes=0,33)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 165 mm
• mass m = 3,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 46 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
157 L volume bass reflex cabinet
with 2x HP100 reflex tube, 7 cm long.
from 42/33 Hz (-3dB/-8dB).

Faital Pro 15 PR 450 A

order no. ah-fp15pr450a

EUR 249,00 excl. VAT: € 209.24 / $ 225.98

38 cm bass driver with paper cone.

• power handling (continuous/programme) = 400/800 W
• frequency range = 35-4000 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 16,6 N/A
• voice coil inductance L = 0,65 mH
• effective piston radiating area Sd = 857 cm²
• effective mechanical mass incl. air load mms = 90 g
• equivalent volume of compliance Vas = 235,6 l
• total Q factor Qts = 0,35 (Qms=6,9, Qes=0,37)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 3 mm
• mounting diameter d = 356 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 172,6 mm
• mass m = 7,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 24 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
89 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 40/32 Hz (-3dB/-8dB).

Faital Pro 15 XL 1200 A

order no. ah-FP15XL1200A

EUR 563,00 excl. VAT: € 473.11 / $ 510.96

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1400/2800 W
• frequency range = 40-2000 Hz
• resonance frequency fs = 40 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 23,6 N/A
• voice coil inductance L = 1,34 mH
• effective piston radiating area Sd = 841 cm²
• effective mechanical mass incl. air load mms = 180 g
• equivalent volume of compliance Vas = 86,9 l
• total Q factor Qts = 0,4 (Qms=10,9, Qes=0,41)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 194,3 mm
• mass m = 7,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with 2x HP100 reflex tube, 30 cm long.
from 49/38 Hz (-3dB/-8dB).

Faital Pro 15 XL 1400 A

order no. ah-FP15XL1400A

EUR 610,00 excl. VAT: € 512.61 / $ 553.61

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1400/2800 W
• frequency range = 40-2500 Hz
• resonance frequency fs = 38 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 26,7 N/A
• voice coil inductance L = 1,6 mH
• effective piston radiating area Sd = 841 cm²
• effective mechanical mass incl. air load mms = 190 g
• equivalent volume of compliance Vas = 91,2 l
• total Q factor Qts = 0,33 (Qms=10,4, Qes=0,34)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 7,8 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 217 mm
• mass m = 11,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,5 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
38 L volume bass reflex cabinet
with HP100 reflex tube, 18 cm long.
from 53/41 Hz (-3dB/-8dB).

Faital Pro 15 XL 1400 C

order no. ah-fp15xl1400c

EUR 610,00 excl. VAT: € 512.61 / $ 553.61

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1400/2800 W
• frequency range = 40-2500 Hz
• resonance frequency fs = 38 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 21,7 N/A
• voice coil inductance L = 1,25 mH
• effective piston radiating area Sd = 841 cm²
• effective mechanical mass incl. air load mms = 205,4 g
• equivalent volume of compliance Vas = 84,3 l
• total Q factor Qts = 0,3 (Qms=10,3, Qes=0,31)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 7,8 mm
• mounting diameter d = 354 mm
• overall diameter d = 393 mm
• mounting depth (not countersunk) t = 217 mm
• mass m = 11,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 82 L volume
from 69/43 Hz (-3dB/-8dB)

recommended cabinet 2:
278 L volume bass reflex cabinet
with 4x HP100 reflex tube, 15 cm long.
from 36/28 Hz (-3dB/-8dB).

Faital Pro 18 FH 500 A

order no. ah-FP18FH500A

EUR 333,00 excl. VAT: € 279.83 / $ 302.22

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 30-3150 Hz
• resonance frequency fs = 30 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 19 N/A
• voice coil inductance L = 1,35 mH
• effective piston radiating area Sd = 1207 cm²
• effective mechanical mass incl. air load mms = 137 g
• equivalent volume of compliance Vas = 417,9 l
• total Q factor Qts = 0,35 (Qms=12,5, Qes=0,36)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 424 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 202 mm
• mass m = 4,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 283 L volume
from 46/29 Hz (-3dB/-8dB)

recommended cabinet 2:
1157 L volume bass reflex cabinet
with 4x HP100 reflex tube, 0 cm long.
from 21/18 Hz (-3dB/-8dB).

Faital Pro 18 FH 500 B

order no. ah-fp18fh500b

EUR 333,00 excl. VAT: € 279.83 / $ 302.22

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 30-3150 Hz
• resonance frequency fs = 30 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 12,7 Ohm
• force factor BL = 23,3 N/A
• voice coil inductance L = 2,1 mH
• effective piston radiating area Sd = 1207 cm²
• effective mechanical mass incl. air load mms = 127,2 g
• equivalent volume of compliance Vas = 450,1 l
• total Q factor Qts = 0,53 (Qms=10, Qes=0,56)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 6 mm
• mounting diameter d = 424 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 202 mm
• mass m = 4,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 63 L volume
from 74/47 Hz (-3dB/-8dB)

recommended cabinet 2:
185 L volume bass reflex cabinet
with 4x HP100 reflex tube, 24 cm long.
from 41/32 Hz (-3dB/-8dB).

Faital Pro 18 FH 500 C

order no. ah-fp18fh500c

EUR 333,00 excl. VAT: € 279.83 / $ 302.22

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 30-3150 Hz
• resonance frequency fs = 28 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 16,7 N/A
• voice coil inductance L = 1,07 mH
• effective piston radiating area Sd = 1207 cm²
• effective mechanical mass incl. air load mms = 143,9 g
• equivalent volume of compliance Vas = 456,7 l
• total Q factor Qts = 0,29 (Qms=7,2, Qes=0,3)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 6 mm
• mounting diameter d = 424 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 202 mm
• mass m = 4,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 53 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
149 L volume bass reflex cabinet
with 4x HP100 reflex tube, 25 cm long.
from 46/35 Hz (-3dB/-8dB).

Faital Pro 18 FH 510 A

order no. ah-FP18FH510A

EUR 301,00 excl. VAT: € 252.94 / $ 273.18

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 30-2500 Hz
• resonance frequency fs = 30 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,1 Ohm
• force factor BL = 21 N/A
• voice coil inductance L = 1,06 mH
• effective piston radiating area Sd = 1207 cm²
• effective mechanical mass incl. air load mms = 139 g
• equivalent volume of compliance Vas = 411,9 l
• total Q factor Qts = 0,29 (Qms=13,6, Qes=0,3)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 421 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 201,5 mm
• mass m = 8,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 43 L volume
from 88/56 Hz (-3dB/-8dB)

recommended cabinet 2:
113 L volume bass reflex cabinet
with 4x HP100 reflex tube, 31 cm long.
from 51/39 Hz (-3dB/-8dB).

Faital Pro 18 FH 510 C

order no. ah-fp18fh510c

EUR 301,00 excl. VAT: € 252.94 / $ 273.18

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 600/1200 W
• frequency range = 30-2500 Hz
• resonance frequency fs = 30 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 3,3 Ohm
• force factor BL = 18,3 N/A
• voice coil inductance L = 1,06 mH
• effective piston radiating area Sd = 1207 cm²
• effective mechanical mass incl. air load mms = 146,3 g
• equivalent volume of compliance Vas = 391,4 l
• total Q factor Qts = 0,26 (Qms=13,6, Qes=0,27)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 5,8 mm
• mounting diameter d = 421 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 201,5 mm
• mass m = 8,8 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 35 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
104 L volume bass reflex cabinet
with 4x HP100 reflex tube, 38 cm long.
from 47/36 Hz (-3dB/-8dB).

Faital Pro 18 FX 600 A

order no. ah-fp18fx600a

EUR 461,00 excl. VAT: € 387.39 / $ 418.39

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 7001400 W
• frequency range = 35-2500 Hz
• resonance frequency fs = 32 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 99 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,5 N/A
• voice coil inductance L = 1,35 mH
• effective piston radiating area Sd = 1213 cm²
• effective mechanical mass incl. air load mms = 175 g
• equivalent volume of compliance Vas = 257,3 l
• total Q factor Qts = 0,3 (Qms=9,8, Qes=0,31)
• voice coil diameter = 77 mm
• maximum peak linear excursion vibration x_lin = +/- 7,3 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 215 mm
• mass m = 6,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 66 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
247 L volume bass reflex cabinet
with 4x HP100 reflex tube, 17 cm long.
from 35/28 Hz (-3dB/-8dB).

Faital Pro 18 HP 1010 A

order no. ah-FP18HP1010A

EUR 343,00 excl. VAT: € 288.24 / $ 311.29

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 35-2000 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 22 N/A
• voice coil inductance L = 1,8 mH
• effective piston radiating area Sd = 1207 cm²
• effective mechanical mass incl. air load mms = 175,2 g
• equivalent volume of compliance Vas = 240,1 l
• total Q factor Qts = 0,4 (Qms=7,8, Qes=0,42)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 6,3 mm
• mounting diameter d = 421 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 203,5 mm
• mass m = 10,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 36 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
113 L volume bass reflex cabinet
with 4x HP100 reflex tube, 31 cm long.
from 47/36 Hz (-3dB/-8dB).

Faital Pro 18 HP 1010 C

order no. ah-fp18hp1010c

EUR 343,00 excl. VAT: € 288.24 / $ 311.29

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 35-2000 Hz
• resonance frequency fs = 35 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 2,7 Ohm
• force factor BL = 18,4 N/A
• voice coil inductance L = 1,26 mH
• effective piston radiating area Sd = 1207 cm²
• effective mechanical mass incl. air load mms = 186,2 g
• equivalent volume of compliance Vas = 225,9 l
• total Q factor Qts = 0,31 (Qms=7,8, Qes=0,32)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 6,3 mm
• mounting diameter d = 421 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 203,5 mm
• mass m = 10,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 28 L volume
from 93/59 Hz (-3dB/-8dB)

recommended cabinet 2:
83 L volume bass reflex cabinet
with 4x HP100 reflex tube, 41 cm long.
from 51/39 Hz (-3dB/-8dB).

Faital Pro 18 HP 1022 A

order no. ah-fp18hp1022a

EUR 423,00 excl. VAT: € 355.46 / $ 383.90

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 35-1600 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 28 N/A
• voice coil inductance L = 1,75 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 207 g
• equivalent volume of compliance Vas = 204,9 l
• total Q factor Qts = 0,3 (Qms=14,4, Qes=0,31)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 5,5 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 202 mm
• mass m = 6,6 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 58 L volume
from 67/42 Hz (-3dB/-8dB)

recommended cabinet 2:
223 L volume bass reflex cabinet
with 4x HP100 reflex tube, 24 cm long.
from 33/27 Hz (-3dB/-8dB).

Faital Pro 18 HP 1030 A

order no. ah-FP18HP1030A

EUR 429,00 excl. VAT: € 360.50 / $ 389.34

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 1200/2400 W
• frequency range = 35-1600 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,3 N/A
• voice coil inductance L = 1,48 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 228,6 g
• equivalent volume of compliance Vas = 185,5 l
• total Q factor Qts = 0,41 (Qms=11,6, Qes=0,43)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 421 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 208,5 mm
• mass m = 12,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
95 L volume bass reflex cabinet
with 4x HP100 reflex tube, 43 cm long.
from 45/35 Hz (-3dB/-8dB).

Faital Pro 18 HP 1030 C

order no. ah-fp18hp1030c

EUR 429,00 excl. VAT: € 360.50 / $ 389.34

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 1200/2400 W
• frequency range = 35-1600 Hz
• resonance frequency fs = 35 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 2,9 Ohm
• force factor BL = 21,7 N/A
• voice coil inductance L = 1,08 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 246,3 g
• equivalent volume of compliance Vas = 172,2 l
• total Q factor Qts = 0,32 (Qms=12,3, Qes=0,33)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 421 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 208,5 mm
• mass m = 12,1 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 60 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
231 L volume bass reflex cabinet
with 4x HP100 reflex tube, 17 cm long.
from 36/29 Hz (-3dB/-8dB).

Faital Pro 18 HP 1042 A

order no. ah-fp18hp1042a

EUR 423,00 excl. VAT: € 355.46 / $ 383.90

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1000/2000 W
• frequency range = 38-2500 Hz
• resonance frequency fs = 38 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,5 Ohm
• force factor BL = 24,5 N/A
• voice coil inductance L = 1,26 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 187,5 g
• equivalent volume of compliance Vas = 191,9 l
• total Q factor Qts = 0,41 (Qms=10,3, Qes=0,43)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 5 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 202 mm
• mass m = 6,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 45 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
160 L volume bass reflex cabinet
with 4x HP100 reflex tube, 28 cm long.
from 39/31 Hz (-3dB/-8dB).

Faital Pro 18 HP 1060 A

order no. ah-FP18HP1060A

EUR 491,00 excl. VAT: € 412.61 / $ 445.61

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1200/2400 W
• frequency range = 35-1600 Hz
• resonance frequency fs = 35 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5 Ohm
• force factor BL = 24,8 N/A
• voice coil inductance L = 1,26 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 211,8 g
• equivalent volume of compliance Vas = 200,3 l
• total Q factor Qts = 0,37 (Qms=11,1, Qes=0,38)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 215 mm
• mass m = 7,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 36 L volume
from 80/51 Hz (-3dB/-8dB)

recommended cabinet 2:
123 L volume bass reflex cabinet
with 4x HP100 reflex tube, 35 cm long.
from 42/33 Hz (-3dB/-8dB).

Faital Pro 18 HP 1060 C

order no. ah-fp18hp1060c

EUR 491,00 excl. VAT: € 412.61 / $ 445.61

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1200/2400 W
• frequency range = 35-1600 Hz
• resonance frequency fs = 35 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 2,9 Ohm
• force factor BL = 20,7 N/A
• voice coil inductance L = 1,09 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 230 g
• equivalent volume of compliance Vas = 184,4 l
• total Q factor Qts = 0,33 (Qms=13,3, Qes=0,34)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 215 mm
• mass m = 7,3 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 47 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
170 L volume bass reflex cabinet
with 4x HP100 reflex tube, 36 cm long.
from 34/27 Hz (-3dB/-8dB).

Faital Pro 18 HW 1070 A

order no. fp-04604151

EUR 530,00 excl. VAT: € 445.38 / $ 481.01

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 1600/3200 W
• frequency range = 30-1500 Hz
• resonance frequency fs = 32 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 27 N/A
• voice coil inductance L = 1,68 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 259 g
• equivalent volume of compliance Vas = 195,9 l
• total Q factor Qts = 0,38 (Qms=10, Qes=0,39)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 223 mm
• mass m = 16,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 35 L volume
from 75/48 Hz (-3dB/-8dB)

recommended cabinet 2:
116 L volume bass reflex cabinet
with 4x HP100 reflex tube, 45 cm long.
from 40/31 Hz (-3dB/-8dB).

Faital Pro 18 HW 1070 C

order no. fp-fp18hw1070c

EUR 530,00 excl. VAT: € 445.38 / $ 481.01

44 cm bass driver with paper cone.

• power handling (continuous/programme) = 1600/3200 W
• frequency range = 30-1500 Hz
• resonance frequency fs = 32 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 96 dB (1W; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 21,6 N/A
• voice coil inductance L = 1,26 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 265 g
• equivalent volume of compliance Vas = 191,5 l
• total Q factor Qts = 0,33 (Qms=10,6, Qes=0,34)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 8 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 223 mm
• mass m = 16,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 32 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
100 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 43/33 Hz (-3dB/-8dB).

Faital Pro 18 XL 1600 C

order no. ah-fp18xl1600c

EUR 620,00 excl. VAT: € 521.01 / $ 562.69

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1600/3200 W
• frequency range = 30-1500 Hz
• resonance frequency fs = 32 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 21,7 N/A
• voice coil inductance L = 1,17 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 252,3 g
• equivalent volume of compliance Vas = 201,1 l
• total Q factor Qts = 0,31 (Qms=8,6, Qes=0,32)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 7,8 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 231 mm
• mass m = 12,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 45 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
154 L volume bass reflex cabinet
with 4x HP100 reflex tube, 35 cm long.
from 37/29 Hz (-3dB/-8dB).

Faital Pro 18 XL 1600 A

order no. ah-FP18XL1600A

EUR 620,00 excl. VAT: € 521.01 / $ 562.69

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1600/3200 W
• frequency range = 30-1500 Hz
• resonance frequency fs = 32 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 98 dB (1W; 1m)
• DC resistance Re = 5,4 Ohm
• force factor BL = 26,7 N/A
• voice coil inductance L = 1,45 mH
• effective piston radiating area Sd = 1212 cm²
• effective mechanical mass incl. air load mms = 240 g
• equivalent volume of compliance Vas = 211,4 l
• total Q factor Qts = 0,36 (Qms=9,3, Qes=0,37)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 7,8 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 231 mm
• mass m = 12,2 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 63 L volume
from 57/36 Hz (-3dB/-8dB)

recommended cabinet 2:
240 L volume bass reflex cabinet
with 4x HP100 reflex tube, 35 cm long.
from 28/23 Hz (-3dB/-8dB).

Faital Pro 18 XL 1800 A

order no. ah-fp18xl1800a

EUR 678,00 excl. VAT: € 569.75 / $ 615.33

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 1600/3200 W
• frequency range = 30-1600 Hz
• resonance frequency fs = 29 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (1W; 1m)
• DC resistance Re = 5,35 Ohm
• force factor BL = 25,4 N/A
• voice coil inductance L = 2,04 mH
• effective piston radiating area Sd = 1187 cm²
• effective mechanical mass incl. air load mms = 275 g
• equivalent volume of compliance Vas = 215,5 l
• total Q factor Qts = 0,4 (Qms=9,9, Qes=0,42)
• voice coil diameter = 100 mm
• maximum peak linear excursion vibration x_lin = +/- 15,5 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 233 mm
• mass m = 11,7 kg

PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 25 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
67 L volume bass reflex cabinet
with 2x HP100 reflex tube, 28 cm long.
from 48/36 Hz (-3dB/-8dB).

Faital Pro 18 XL 2000 A

order no. ah-fp18xl2000a

EUR 750,00 excl. VAT: € 630.25 / $ 680.67

44 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

• power handling (continuous/programme) = 2000/4000 W
• frequency range = 30-1600 Hz
• resonance frequency fs = 28 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 97 dB (1W; 1m)
• DC resistance Re = 5,3 Ohm
• force factor BL = 30,8 N/A
• voice coil inductance L = 1,45 mH
• effective piston radiating area Sd = 1213 cm²
• effective mechanical mass incl. air load mms = 286 g
• equivalent volume of compliance Vas = 232,1 l
• total Q factor Qts = 0,27 (Qms=10,1, Qes=0,28)
• voice coil diameter = 118 mm
• maximum peak linear excursion vibration x_lin = +/- 11,7 mm
• mounting diameter d = 422 mm
• overall diameter d = 460 mm
• mounting depth (not countersunk) t = 227 mm
• mass m = 12,8 kg

PDF data sheet
