Cable And Connectors

PA loudspeaker cable, 2 wire

Lautsprecherkabel, 2-adrig circular high signal cable with large diameter: 2x2.5 mm2 with black sheathing and oxygen-free copper wire. Outside diameter: 7.5 mm. Well suited for Neutrik Speakon Plugs.
SPC-225/SW/1       Price per metre: EUR 3,06 excl. VAT: € 2.57 / $ 2.78
SPC-225/SW/100   Price per 100 metres: - not available (_)

smaller diameter and different colours upon request

PA loudspeaker cable 4 and 8 wire

Lautsprecherkabel, mehradrig highly flexible high signal cable made of oxygen-free copper wire with large diameter: 4 x 2.5 mm2 (4 wire) resp. 8 x 2 mm2 (8 wire). Outside diameter: 11 resp. 13 mm. Well suited for Neutrik Speakon Plug.

4 x 2.5 mm2 (4 wire) with a outside diameter of 11 mm:
SPC-540/SW/1       Price per metre: EUR 8,00 excl. VAT: € 6.72 / $ 7.26
SPC-540/SW   Price per 50 metre: EUR 377,00 excl. VAT: € 316.81 / $ 342.15

8 x 2.0 mm2 (8 wire)with a outside diameter of 13 mm:
SPC-580/SW/1       Price per metre: EUR 7,11 excl. VAT: € 5.97 / $ 6.45
SPC-580/SW   Price per 50 metre: EUR 358,60 excl. VAT: € 301.34 / $ 325.45

smaller diameter and different colours upon request

Adam Hall loudspeaker cable

Solid loudspeaker cable with 2.5 mm2 diameter per wire
with round, black and solid sheathing
Type Length Colour Wires Price
KLS225 1 m grey 2 - not available (_)
KLS225/100 100 m grey 2 - not available (_)
KLS240 1 m grey 2 EUR 5,00 excl. VAT: € 4.20 / $ 4.54
KLS425 1 m grey 4 EUR 5,30 excl. VAT: € 4.45 / $ 4.81
KLS425/100 100 m grey 4 - not available

Adam Hall microphone cable

with round, black sheathing with 2 XLR connectors (male, female).
Type Length Colour Wires Price
KM10AHN 10 m black 3 - not available (_)

Reasonable priced PA loudspeaker cable with NEUTRIK Speakon plugs

High signal cable with large diameter: 2x2.5 mm2 with round sheathing and 2 NEUTRIK Speakon plugs
Type Length Colour Wires Price
ah-MTL2.0NL-2.5 2 m grey blue 2 x 2.5 mm2 - not available (_)
ah-MTL5.0NL-2.5 5 m grey blue 2 x 2.5 mm2 - not available (_)
ah-KL10NL-2.5 10 m light grey 2 x 2.5 mm2 - not available (_)

PA microphone cable

Mikrofonkabel high quality, shielded microphone cable with 1 metre marking and oxygen-free copper wire. 2 wire with 0.29mm2 each, Outside diameter 6.5 mm, capacitance 80pF/m.

MLC-102/SW/1     Price per metre: - not available (_)
MLC-102/SW       Price per 100 metres: EUR 96,41 excl. VAT: € 81.02 / $ 87.50

Multicore

Solid multicore by Adam Hall. Solid sheet steel with integrated carrying handle, all plugs and jack made of metal.

High quality multicore with strain relief and number code at the split.

K20C30

16in, 4 returns, 30 m cable

XLR plugs / XLR metal jacks

EUR 331,40 excl. VAT: € 278.49 / $ 300.77



K28C30

24in, 4 returns, 30 m cable

XLR plugs / XLR metal jacks

- not available (_)

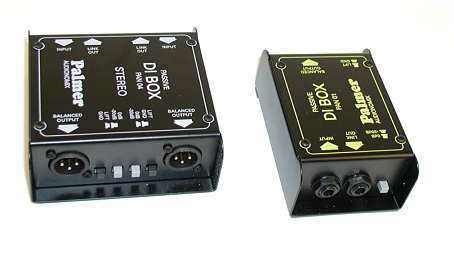

DI units

For DC decoupling of devices (for hum suppression):

Passive (no power supply needed) DI units in mono or stereo with 6 dB level boost and: Palmer DI-BOx
- 30 dB level reduction, switchable,
- lift ground
- symmetrical XLR output (male)
- input: jack 6.3 mm
- additional link out (jack 6.3 mm)
either in mono or 2 channel.

1 channel: ah-PAN-01 - not available (_)

2 channel: ah-PAN-04 EUR 84,30 excl. VAT: € 70.84 / $ 76.51
