Oberton Professional Sound Systems

If you are dealer please ask for our dealer conditions
Oberton is producing in Bulgarie, the speakers are of superiore quality.

OBERTON Co. has been creating professional audio equipment since 1989. They help the customers build products that meet or exceed the highest audio performance standards. The achievement of perfect characteristics of their products relies on the use of high-end technologies and materials inside as well as the precision engineering design and measurements. The main aim in its business is to produce high reliability professional loudspeakers and boxes, which meets the increased requirements of the end users and the new generation power amplifiers. To ensure the original and clear sound of each model loudspeaker and box the recommendations of well-known musicians, broadcast and recording engineers are very important for Oberton. Oberton can produce low series top quality custom design loudspeakers and boxes in a very reasonable price.

Oberton, Recone Kits


Oberton D 2544/45 replacement voice coil 1 inch, 16 Ohm EUR 26,00 excl. VAT: € 21.85 / $ 25.67
Oberton D 2544/45 replacement voice coil 1 inch, 8 Ohm EUR 26,00 excl. VAT: € 21.85 / $ 25.67

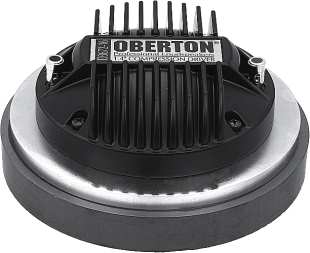

Oberton D 3672 1.5 inch 16 Ohm replacement voice coil EUR 68,00 excl. VAT: € 57.14 / $ 67.14
Oberton ND 3672 1.5 inch 8 Ohm replacement voice coil EUR 68,00 excl. VAT: € 57.14 / $ 67.14

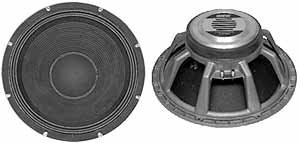

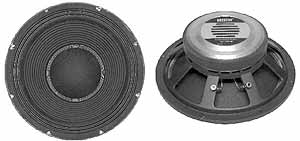

Oberton 15 XB 600, recone kit EUR 79,00 excl. VAT: € 66.39 / $ 78.00

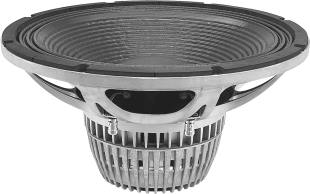

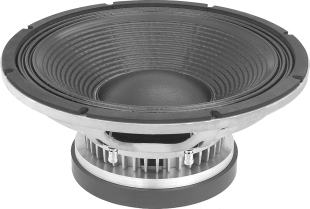

Oberton 15 XB 700, recone kit EUR 79,00 excl. VAT: € 66.39 / $ 78.00

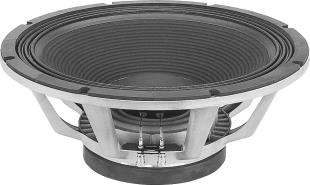

Oberton 18 XB 700, recone kit EUR 89,00 excl. VAT: € 74.79 / $ 87.88

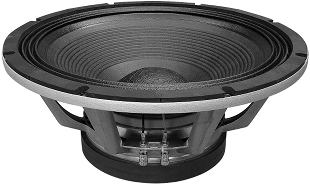

Oberton 18 XB 1500, recone kit EUR 126,00 excl. VAT: € 105.88 / $ 124.41




Tweeter


open a bigger photo

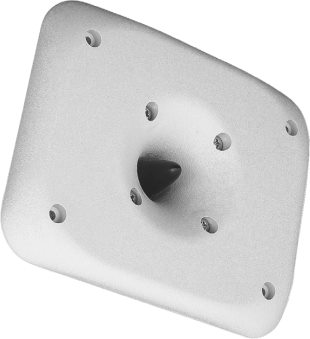

HL 50       order no. ob-hl50       EUR 33,80 excl. VAT: € 28.40 / $ 33.37
77 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 100 W
  • frequency range = 4000-15000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 103 dB (2,83V; 1m)
  • overall diameter d = 160x128 mm
  • mounting depth (not countersunk) t = 68 mm
PDF data sheet

open a bigger photo

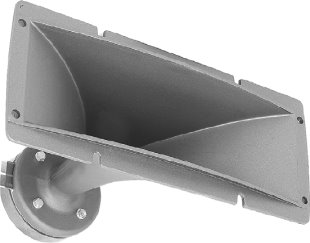

HL 60       order no. ob-hl60       EUR 39,00 excl. VAT: € 32.77 / $ 38.51
77 mm tweeter with high quality cone.
  • power handling (continuous/programme) = 100 W
  • frequency range = 3000-14000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • overall diameter d = 207x110 mm
  • mounting depth (not countersunk) t = 203 mm
PDF data sheet

open a bigger photo

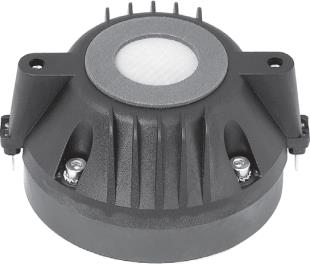

D 2525 / 8 Ohm, 1500 - 20000 Hz       order no. ob-d2525       EUR 31,00 excl. VAT: € 26.05 / $ 30.61
1 inch high frequency compression driver.
  • power handling (continuous/programme) = 20/40 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 5,65 Ohm
  • voice coil diameter = 25 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 86 mm
  • mounting depth (not countersunk) t = 58 mm
  • mass m = 0,86 kg
PDF data sheet

open a bigger photo

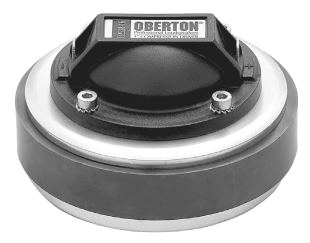

D 2538 / 16 Ohm, 1500 - 20000 Hz       order no. ob-d2538-16       EUR 49,00 excl. VAT: € 41.18 / $ 48.38
1 inch high frequency compression driver.
  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 9,1 Ohm
  • voice coil diameter = 38 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 96 mm
  • mounting depth (not countersunk) t = 56 mm
  • mass m = 1,27 kg
PDF data sheet

open a bigger photo

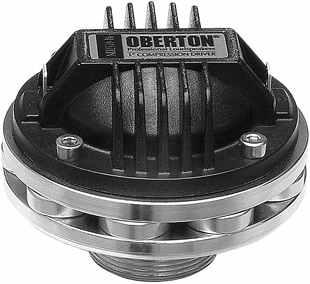

ND 2539 / 16 Ohm, 1500 - 20000 Hz       order no. ob-nd2539       EUR 79,00 excl. VAT: € 66.39 / $ 78.00
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 105 dB (2,83V; 1m)
  • DC resistance Re = 10,7 Ohm
  • voice coil diameter = 38 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 56 mm
  • mass m = 0,67 kg
PDF data sheet

open a bigger photo

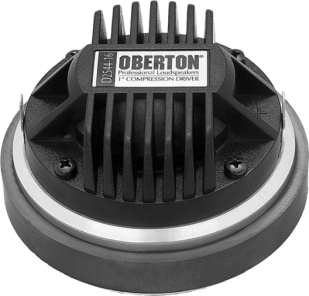

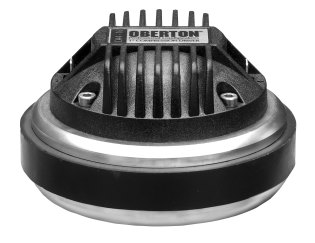

D 2544 / 8 Ohm, 1500 - 20000 Hz       order no. ob-d2544       EUR 67,00 excl. VAT: € 56.30 / $ 66.16
1 inch high frequency compression driver.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 1,65 kg
PDF data sheet

open a bigger photo

D 2544 / 16 Ohm, 1500 - 20000 Hz       order no. ob-d2544-16       EUR 67,00 excl. VAT: € 56.30 / $ 66.16
1 inch high frequency compression driver.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 10,8 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 1,65 kg
PDF data sheet

open a bigger photo

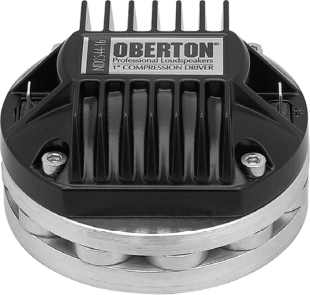

ND 2544 / 8 Ohm, 1500 - 20000 Hz       order no. ob-nd2544       EUR 89,00 excl. VAT: € 74.79 / $ 87.88
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 86 mm
  • mounting depth (not countersunk) t = 50 mm
  • mass m = 0,86 kg
PDF data sheet

open a bigger photo

ND 2544 / 16 Ohm, 1500 - 20000 Hz       order no. ob-nd2544-16       EUR 88,00 excl. VAT: € 73.95 / $ 86.89
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (2,83V; 1m)
  • DC resistance Re = 10,8 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 85 mm
  • mounting depth (not countersunk) t = 50 mm
  • mass m = 0,86 kg
PDF data sheet

open a bigger photo

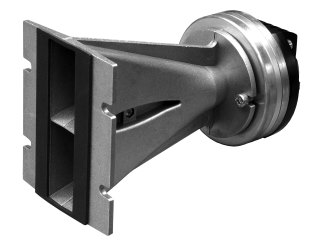

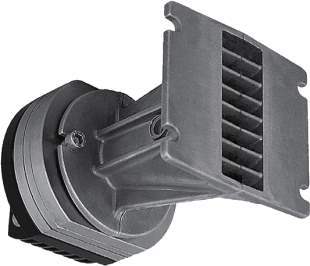

WS 2544 / 8 Ohm, 1500 - 20000 Hz       order no. ob-ws2544       EUR 109,00 excl. VAT: € 91.60 / $ 107.63
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107,5 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 70x25,4 mm
  • overall diameter d = 87x74 mm
  • mounting depth (not countersunk) t = 130 mm
  • mass m = 1,05 kg
PDF data sheet

open a bigger photo

WS 2544 / 16 Ohm, 1500 - 20000 Hz       order no. ob-ws2544-16       EUR 109,00 excl. VAT: € 91.60 / $ 107.63
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107,5 dB (2,83V; 1m)
  • DC resistance Re = 10,8 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 70x25,4 mm
  • overall diameter d = 87x74 mm
  • mounting depth (not countersunk) t = 130 mm
  • mass m = 1,05 kg
PDF data sheet

open a bigger photo

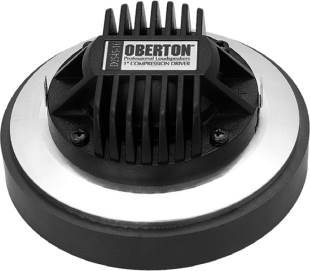

D 2545 / 8 Ohm, 1500 - 20000 Hz       order no. ob-d2545       EUR 76,00 excl. VAT: € 63.87 / $ 75.04
1 inch high frequency compression driver.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 2,3 kg
PDF data sheet

open a bigger photo

D 2545 / 16 Ohm, 1500 - 20000 Hz       order no. ob-d2545-16       EUR 76,00 excl. VAT: € 63.87 / $ 75.04
1 inch high frequency compression driver.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 10,8 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 2,3 kg
PDF data sheet

open a bigger photo

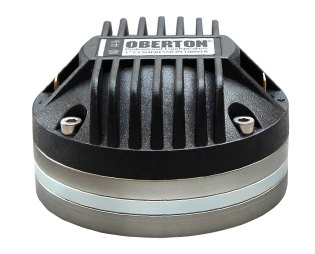

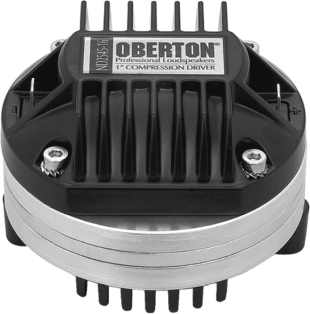

ND 2545 / 8 Ohm, 1500 - 20000 Hz       order no. ob-nd2545       EUR 99,00 excl. VAT: € 83.19 / $ 97.75
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 85 mm
  • mounting depth (not countersunk) t = 69 mm
  • mass m = 0,93 kg
PDF data sheet

open a bigger photo

ND 2545 / 16 Ohm, 1500 - 20000 Hz       order no. ob-nd2545-16       EUR 99,00 excl. VAT: € 83.19 / $ 97.75
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (2,83V; 1m)
  • DC resistance Re = 10,8 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 85 mm
  • mounting depth (not countersunk) t = 69 mm
  • mass m = 0,93 kg
PDF data sheet

open a bigger photo

D 3645 / 8 Ohm, 1200 - 20000 Hz       order no. ob-d3645       - not available
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1200-15000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 135 mm
  • mounting depth (not countersunk) t = 69 mm
  • mass m = 2,7 kg
PDF data sheet

open a bigger photo

D 3645 / 16 Ohm, 1200 - 20000 Hz       order no. ob-d3645-16       - not available
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1200-15000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 10,8 Ohm
  • voice coil diameter = 44 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 135 mm
  • mounting depth (not countersunk) t = 69 mm
  • mass m = 2,7 kg
PDF data sheet

open a bigger photo

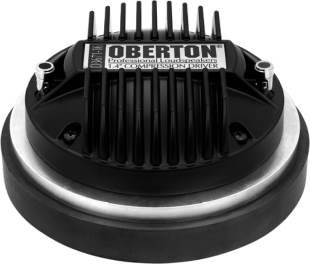

D 3671 / 8 Ohm, 500 - 15000 Hz       order no. ob-d3671       EUR 127,00 excl. VAT: € 106.72 / $ 125.40
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 500-15000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 83 mm
  • mass m = 4,2 kg
PDF data sheet

open a bigger photo

D 3671 / 16 Ohm, 500 - 15000 Hz       order no. ob-d3671-16       EUR 127,00 excl. VAT: € 106.72 / $ 125.40
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 500-15000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 83 mm
  • mass m = 4,2 kg
PDF data sheet

open a bigger photo

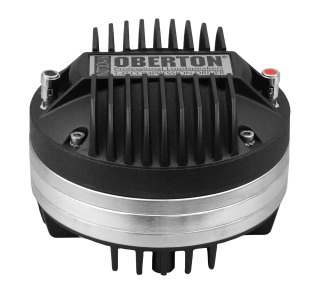

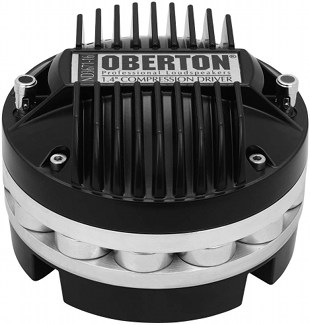

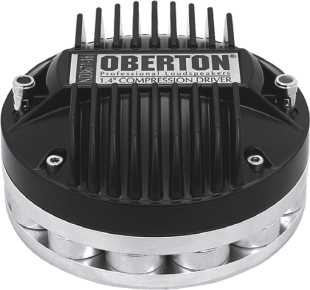

ND 3671 / 8 Ohm, 600 - 16000 Hz       order no. ob-nd3671       EUR 239,00 excl. VAT: € 200.84 / $ 235.99
1.4 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 800-16000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 68 mm
  • mass m = 2,57 kg
PDF data sheet

open a bigger photo

ND 3671 / 16 Ohm, 600 - 16000 Hz       order no. ob-nd3671-16       EUR 239,00 excl. VAT: € 200.84 / $ 235.99
1.4 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 800-16000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 68 mm
  • mass m = 2,57 kg
PDF data sheet

open a bigger photo

ND 3671-A / 8 Ohm, 600 - 16000 Hz       order no. ob-nd3671-a       EUR 219,00 excl. VAT: € 184.03 / $ 216.24
1.4 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 800-16000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 89 mm
  • mass m = 2,85 kg
PDF data sheet

open a bigger photo

ND 3671-A / 16 Ohm, 600 - 16000 Hz       order no. ob-nd3671-a-16       EUR 219,00 excl. VAT: € 184.03 / $ 216.24
1.4 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 800-16000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 89 mm
  • mass m = 2,85 kg
PDF data sheet

open a bigger photo

D 3672 / 8 Ohm, 500 - 16000 Hz       order no. ob-d3672       EUR 155,00 excl. VAT: € 130.25 / $ 153.05
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 500-16000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109,5 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 85 mm
  • mass m = 5,1 kg
PDF data sheet

open a bigger photo

D 3672 / 16 Ohm, 500 - 16000 Hz       order no. ob-d3672-16       - not available
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 500-16000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109,5 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 85 mm
  • mass m = 5,1 kg
PDF data sheet

open a bigger photo

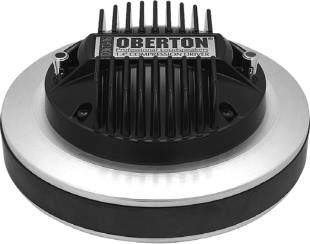

D 3673 / 8 Ohm, 600 - 17000 Hz       order no. ob-d3673       EUR 194,00 excl. VAT: € 163.03 / $ 191.55
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 600-17000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110,5 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 83 mm
  • mass m = 6,9 kg
PDF data sheet

open a bigger photo

D 3673 / 16 Ohm, 600 - 17000 Hz       order no. ob-d3673-16       EUR 194,00 excl. VAT: € 163.03 / $ 191.55
1.4 inch high frequency compression driver.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 600-17000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110,5 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 83 mm
  • mass m = 6,9 kg
PDF data sheet

open a bigger photo

ND 3672 / 8 Ohm, 600 - 16000 Hz       order no. ob-nd3672       EUR 249,00 excl. VAT: € 209.24 / $ 245.86
1.4 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 600-16000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 87 mm
  • mass m = 2,95 kg
PDF data sheet

open a bigger photo

ND 3672 / 16 Ohm, 600 - 16000 Hz       order no. ob-nd3672-16       EUR 249,00 excl. VAT: € 209.24 / $ 245.86
1.4 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 600-16000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 36 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 87 mm
  • mass m = 2,95 kg
PDF data sheet

open a bigger photo

D 5073 / 8 Ohm, 600 - 17000 Hz       order no. ob-d5073       EUR 209,00 excl. VAT: € 175.63 / $ 206.37
2 inch high frequency compression driver.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 600-17000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110,5 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 50,8 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 128 mm
  • mass m = 7,3 kg
PDF data sheet

open a bigger photo

D 5073 / 16 Ohm, 600 - 17000 Hz       order no. ob-d5073-16       EUR 209,00 excl. VAT: € 175.63 / $ 206.37
2 inch high frequency compression driver.
  • power handling (continuous/programme) = 80/160 W
  • frequency range = 600-17000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110,5 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 50,8 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 128 mm
  • mass m = 7,3 kg
PDF data sheet

open a bigger photo

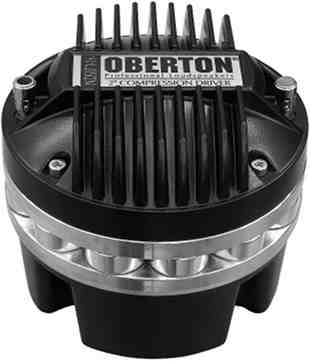

ND 5071 / 8 Ohm, 800 - 20000 Hz       order no. ob-nd5071       EUR 229,00 excl. VAT: € 192.44 / $ 226.11
2 inch high frequency compression driver.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 50,8 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 112 mm
  • mass m = 3,18 kg
PDF data sheet

open a bigger photo

ND 5071 / 16 Ohm, 800 - 20000 Hz       order no. ob-nd5071-16       EUR 229,00 excl. VAT: € 192.44 / $ 226.11
2 inch high frequency compression driver.
  • power handling (continuous/programme) = 75/150 W
  • frequency range = 800-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (2,83V; 1m)
  • DC resistance Re = 10 Ohm
  • voice coil diameter = 72 mm
  • mounting diameter d = 50,8 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 112 mm
  • mass m = 3,18 kg
PDF data sheet



Horn

H 86       order no. ob-h86-abs       EUR 14,00 excl. VAT: € 11.76 / $ 13.82
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 80x60 Deg
  • Cut off frequency : 1200 Hz
  • over all dimensions (HxWxD) = 172 x 172 x 99 mm
  • baffle Cutout dimensions (HxW) = 135 x 135 mm
  • net weight = 0,28 kg
  • material: synthetics ABS

H 96       order no. ob-h96-abs       EUR 13,80 excl. VAT: € 11.60 / $ 13.63
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90x60 Deg
  • Cut off frequency : 1500 Hz
  • over all dimensions (HxWxD) = 138 x 152 x 90 mm
  • baffle Cutout dimensions (HxW) = 109 x 120 mm
  • net weight = 0,275 kg
  • material: synthetics ABS

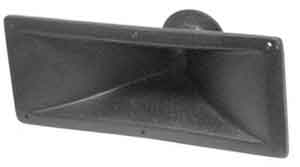

H 124       order no. ob-h124       - not available (_)
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 120x40 Deg
  • Cut off frequency : 1000 Hz
  • over all dimensions (HxWxD) = 148 x 381 x 164 mm
  • baffle Cutout dimensions (HxW) = 112 x 331 mm
  • net weight = 0,85 kg
  • material: glass fibre

H 640       order no. ob-h6402       EUR 88,00 excl. VAT: € 73.95 / $ 86.89
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 60x40 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 280 x 280 x 224 mm
  • baffle Cutout dimensions (HxW) = 220 x 233 mm
  • net weight = 1,25 kg
  • material: glass fibre

H 940       order no. ob-h9402       - not available
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 90x40 Deg
  • material: glass fibre

open a bigger photo

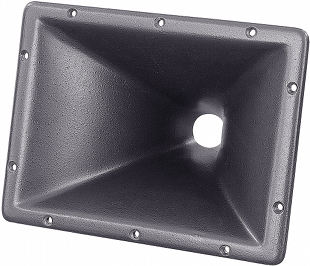

H 1464       order no. ob-h1464       EUR 64,00 excl. VAT: € 53.78 / $ 63.19
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 60x40 Deg
  • over all dimensions (HxWxD) = 232 x 310 x 178 mm
  • baffle Cutout dimensions (HxW) = 190 x 265 mm
  • net weight = 1 kg
  • material: glass fibre

open a bigger photo

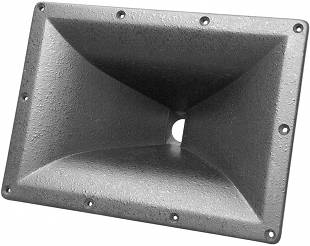

H 950       order no. ob-h950       EUR 91,00 excl. VAT: € 76.47 / $ 89.85
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 90x50 Deg
  • Cut off frequency : 800 Hz
  • over all dimensions (HxWxD) = 279 x 380 x 207 mm
  • baffle Cutout dimensions (HxW) = 235 x 338 mm
  • net weight = 1 kg
  • material: glass fibre

H 860       order no. ob-h860       - not available
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 80x60 Deg
  • Cut off frequency : 900 Hz
  • over all dimensions (HxWxD) = 272 x 272 x 142 mm
  • baffle Cutout dimensions (HxW) = 233 x 233 mm
  • net weight = 1,05 kg
  • material: glass fibre

H 941       order no. ob-h941       - not available (_)
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90x40 Deg
  • Cut off frequency : 1000 Hz
  • over all dimensions (HxWxD) = 170 x 300 x 112 mm
  • baffle Cutout dimensions (HxW) = 130 x 260 mm
  • net weight = 0,58 kg
  • material: glass fibre

H 942       order no. ob-h942       - not available
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90x40 Deg
  • Cut off frequency : 1000 Hz
  • over all dimensions (HxWxD) = 144 x 310 x 125 mm
  • baffle Cutout dimensions (HxW) = 120 x 265 mm
  • net weight = 0,52 kg
  • material: glass fibre

H 955, 1,4 Zoll       order no. ob-h955-14       EUR 74,00 excl. VAT: € 62.18 / $ 73.07
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 90x55 Deg
  • Cut off frequency : 600 Hz
  • over all dimensions (HxWxD) = 233 x 320 x 116 mm
  • baffle Cutout dimensions (HxW) = 193 x 275 mm
  • net weight = 0,95 kg
  • material: glass fibre

H 955, 2 Zoll       order no. ob-h955-2       - not available (_)
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 90x55 Deg
  • Cut off frequency : 600 Hz
  • over all dimensions (HxWxD) = 233 x 320 x 116 mm
  • baffle Cutout dimensions (HxW) = 193 x 275 mm
  • material: glass fibre

open a bigger photo

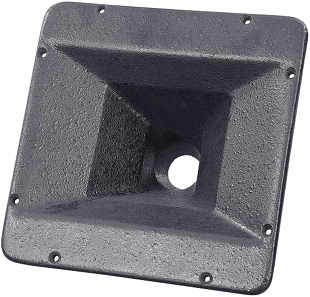

H 955-S       order no. ob-h955-s       - not available (_)
Horn for a compression driver with 1,4 inch throat.
  • nominal angle (HxV) = 90x55 Deg
  • Cut off frequency : 600 Hz
  • over all dimensions (HxWxD) = 272 x 272 x 148 mm
  • baffle Cutout dimensions (HxW) = 233 x 233 mm
  • material: glass fibre

H 975       order no. ob-h975-abs       - not available
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90x75 Deg
  • Cut off frequency : 850 Hz
  • over all dimensions (HxWxD) = 224 x 224 x 133 mm
  • baffle Cutout dimensions (HxW) = 182 x 182 mm
  • net weight = 0,525 kg
  • material: synthetics ABS

H 1064       order no. ob-h1064       - not available
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 60x40 Deg
  • material: glass fibre

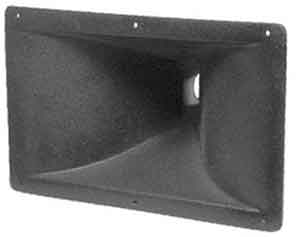

H 6040       order no. ob-h60402       - not available
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 60x40 Deg
  • Cut off frequency : 500 Hz
  • over all dimensions (HxWxD) = 264 x 415 x 227 mm
  • baffle Cutout dimensions (HxW) = 220 x 365 mm
  • net weight = 1,35 kg
  • material: glass fibre

H 9040       order no. ob-h90402       - not available
Horn for a compression driver with 2 inch throat.
  • nominal angle (HxV) = 90x60 Deg
  • Cut off frequency : 500 Hz
  • over all dimensions (HxWxD) = 328 x 531 x 288 mm
  • baffle Cutout dimensions (HxW) = 288 x 481 mm
  • net weight = 2,25 kg
  • material: glass fibre

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 151/95 Hz (-3dB/-8dB)

recommended cabinet 2:
5,3 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 85/65 Hz (-3dB/-8dB).

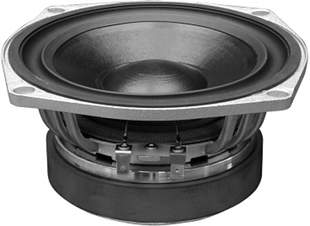

6 B 150       order no. ob-6b150       EUR 59,00 excl. VAT: € 49.58 / $ 58.26
17 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 150 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 55,04 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 10,11 N/A
  • voice coil inductance L = 0,79 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 16,38 g
  • equivalent volume of compliance Vas = 14,61 l
  • total Q factor Qts = 0,29 (Qms=4,72, Qes=0,311)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 185 mm
  • mounting depth (not countersunk) t = 86 mm
  • mass m = 2,4 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 216/136 Hz (-3dB/-8dB)

recommended cabinet 2:
7 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 105/85 Hz (-3dB/-8dB).

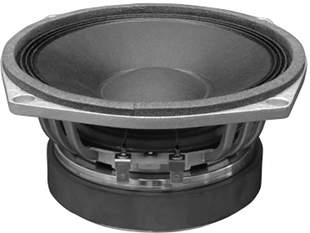

6 M 150       order no. ob-6m150       EUR 59,00 excl. VAT: € 49.58 / $ 58.26
17 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 150 W
  • frequency range = 100-5000 Hz
  • resonance frequency fs = 115,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6,21 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 0,438 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 10,22 g
  • equivalent volume of compliance Vas = 5,35 l
  • total Q factor Qts = 0,42 (Qms=5,46, Qes=0,457)
  • voice coil diameter = 44 mm
  • maximum peak linear excursion vibration xlin = +/- 2,25 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 185 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,1 L volume
from 177/112 Hz (-3dB/-8dB)

recommended cabinet 2:
3 L volume bass reflex cabinet
with HP50 reflex tube, 19 cm long.
from 101/77 Hz (-3dB/-8dB).

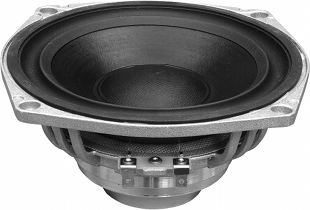

6 NB 150       order no. ob-6nb150       EUR 69,00 excl. VAT: € 57.98 / $ 68.13
17 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 150 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 62,32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,57 Ohm
  • force factor BL = 10,77 N/A
  • voice coil inductance L = 0,65 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 15,72 g
  • equivalent volume of compliance Vas = 9,3 l
  • total Q factor Qts = 0,28 (Qms=5,22, Qes=0,296)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 185 mm
  • mounting depth (not countersunk) t = 78,5 mm
  • mass m = 1,25 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 0,96 L volume
from 262/165 Hz (-3dB/-8dB)

recommended cabinet 2:
3,5 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 133/106 Hz (-3dB/-8dB).

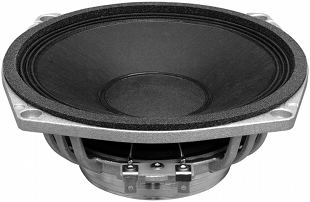

6 NM 150       order no. ob-6nm150       EUR 66,00 excl. VAT: € 55.46 / $ 65.17
17 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 150 W
  • frequency range = 100-6000 Hz
  • resonance frequency fs = 124 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 6,25 Ohm
  • force factor BL = 11,58 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 139 cm2
  • effective mechanical mass incl. air load mms = 11,08 g
  • equivalent volume of compliance Vas = 4 l
  • total Q factor Qts = 0,38 (Qms=5,96, Qes=0,403)
  • voice coil diameter = 44 mm
  • maximum peak linear excursion vibration xlin = +/- 2,25 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 185 mm
  • mounting depth (not countersunk) t = 72 mm
  • mass m = 1,05 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 255/161 Hz (-3dB/-8dB)

recommended cabinet 2:
2,8 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 164/122 Hz (-3dB/-8dB).

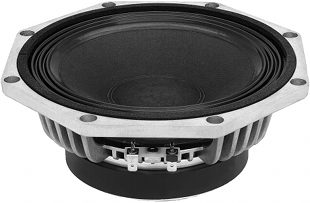

8 M 150       order no. ob-8m150       EUR 65,00 excl. VAT: € 54.62 / $ 64.18
21 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 68,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99,5 dB (2,83V; 1m)
  • DC resistance Re = 5,05 Ohm
  • force factor BL = 11,62 N/A
  • voice coil inductance L = 0,74 mH
  • effective piston radiating area Sd = 202 cm2
  • effective mechanical mass incl. air load mms = 14,07 g
  • equivalent volume of compliance Vas = 21,62 l
  • total Q factor Qts = 0,22 (Qms=6,07, Qes=0,225)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 3,25 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 3,25 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 0,7 L volume
from 329/208 Hz (-3dB/-8dB)

recommended cabinet 2:
1,3 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 216/160 Hz (-3dB/-8dB).

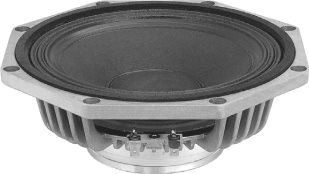

8 NM 200       order no. ob-8nm200       EUR 105,00 excl. VAT: € 88.24 / $ 103.68
21 cm midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 100-4000 Hz
  • resonance frequency fs = 83,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 14,88 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 202 cm2
  • effective mechanical mass incl. air load mms = 16,6 g
  • equivalent volume of compliance Vas = 12,11 l
  • total Q factor Qts = 0,2 (Qms=11,3, Qes=0,208)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 2,75 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 81,5 mm
  • mass m = 2 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,2 L volume
from 174/110 Hz (-3dB/-8dB)

recommended cabinet 2:
6,6 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 95/73 Hz (-3dB/-8dB).

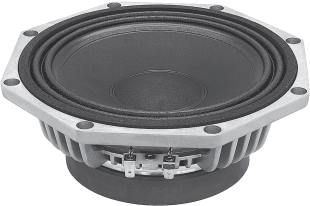

8 MB 201       order no. ob-8mb201       EUR 67,00 excl. VAT: € 56.30 / $ 66.16
21 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 65-3000 Hz
  • resonance frequency fs = 67,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 12,54 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 200 cm2
  • effective mechanical mass incl. air load mms = 21 g
  • equivalent volume of compliance Vas = 14,74 l
  • total Q factor Qts = 0,31 (Qms=6,24, Qes=0,33)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 3,22 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 0,97 L volume
from 242/153 Hz (-3dB/-8dB)

recommended cabinet 2:
2,2 L volume bass reflex cabinet
with HP70 reflex tube, 28 cm long.
from 150/112 Hz (-3dB/-8dB).

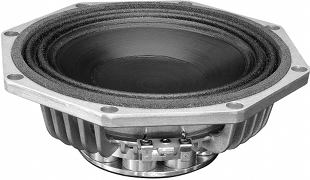

8 NB 201       order no. ob-8nb201       EUR 102,00 excl. VAT: € 85.71 / $ 100.71
21 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 70-5000 Hz
  • resonance frequency fs = 70,56 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,27 Ohm
  • force factor BL = 14,4 N/A
  • voice coil inductance L = 0,96 mH
  • effective piston radiating area Sd = 202 cm2
  • effective mechanical mass incl. air load mms = 22,67 g
  • equivalent volume of compliance Vas = 12,54 l
  • total Q factor Qts = 0,24 (Qms=5,97, Qes=0,245)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 89 mm
  • mass m = 2,38 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 0,91 L volume
from 292/184 Hz (-3dB/-8dB)

recommended cabinet 2:
1,7 L volume bass reflex cabinet
with HP70 reflex tube, 24 cm long.
from 192/142 Hz (-3dB/-8dB).

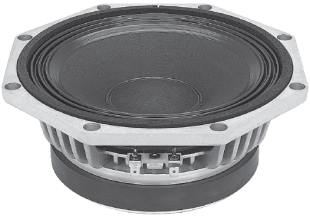

8 M 250       order no. ob-8m250       EUR 69,00 excl. VAT: € 57.98 / $ 68.13
21 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 90-5000 Hz
  • resonance frequency fs = 74,37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 13,7 N/A
  • voice coil inductance L = 0,42 mH
  • effective piston radiating area Sd = 202 cm2
  • effective mechanical mass incl. air load mms = 16,38 g
  • equivalent volume of compliance Vas = 15,63 l
  • total Q factor Qts = 0,2 (Qms=14,01, Qes=0,204)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 2,75 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 4,3 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 8,6 L volume
from 139/87 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with HP100 reflex tube, 7 cm long.
from 67/55 Hz (-3dB/-8dB).

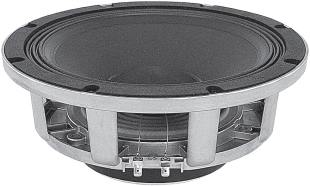

10 M 150       order no. ob-10m150       EUR 78,00 excl. VAT: € 65.55 / $ 77.02
25 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 75-6000 Hz
  • resonance frequency fs = 74 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,15 Ohm
  • force factor BL = 11,62 N/A
  • voice coil inductance L = 0,88 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 25,54 g
  • equivalent volume of compliance Vas = 25,9 l
  • total Q factor Qts = 0,43 (Qms=8,89, Qes=0,45)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 3,25 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 113 mm
  • mass m = 3,45 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,2 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP100 reflex tube, 26 cm long.
from 62/48 Hz (-3dB/-8dB).

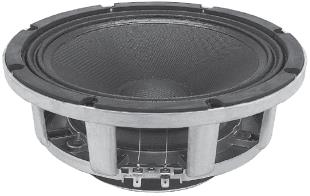

10 B 200       order no. ob-10b200       EUR 79,00 excl. VAT: € 66.39 / $ 78.00
25 cm midrange driver with glass fibre cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 47,88 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 14,02 N/A
  • voice coil inductance L = 0,84 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 43,75 g
  • equivalent volume of compliance Vas = 36,21 l
  • total Q factor Qts = 0,33 (Qms=9,27, Qes=0,341)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,75 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 113 mm
  • mass m = 3,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 2,7 L volume
from 218/137 Hz (-3dB/-8dB)

recommended cabinet 2:
7,5 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 124/94 Hz (-3dB/-8dB).

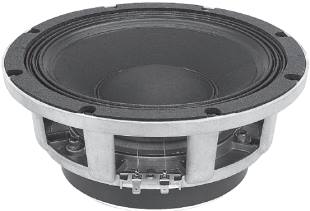

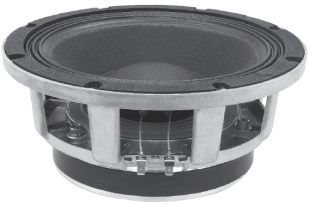

10 M 250       order no. ob-10m250       EUR 99,00 excl. VAT: € 83.19 / $ 97.75
25 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 250/500 W
  • frequency range = 70-5000 Hz
  • resonance frequency fs = 76,65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 6,09 Ohm
  • force factor BL = 16,61 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 26,82 g
  • equivalent volume of compliance Vas = 23,05 l
  • total Q factor Qts = 0,28 (Qms=14,62, Qes=0,285)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 2,75 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 122,5 mm
  • mass m = 6,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 189/120 Hz (-3dB/-8dB)

recommended cabinet 2:
4,4 L volume bass reflex cabinet
with HP70 reflex tube, 22 cm long.
from 113/85 Hz (-3dB/-8dB).

10 M 300       order no. ob-10m300       EUR 109,00 excl. VAT: € 91.60 / $ 107.63
25 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 75-3500 Hz
  • resonance frequency fs = 59,79 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,48 Ohm
  • force factor BL = 18,22 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 32,3 g
  • equivalent volume of compliance Vas = 19,43 l
  • total Q factor Qts = 0,25 (Qms=8,47, Qes=0,255)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 120 mm
  • mass m = 6,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,3 L volume
from 267/169 Hz (-3dB/-8dB)

recommended cabinet 2:
2,7 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 172/128 Hz (-3dB/-8dB).

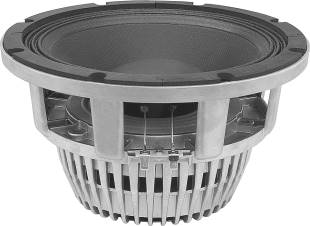

10 NM 300       order no. ob-10nm300       EUR 146,00 excl. VAT: € 122.69 / $ 144.16
25 cm midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 80-2500 Hz
  • resonance frequency fs = 71,36 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 7,16 Ohm
  • force factor BL = 20,12 N/A
  • voice coil inductance L = 0,62 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 34,62 g
  • equivalent volume of compliance Vas = 20,61 l
  • total Q factor Qts = 0,21 (Qms=9,15, Qes=0,214)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 148,3 mm
  • mass m = 4,75 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 213/135 Hz (-3dB/-8dB)

recommended cabinet 2:
4,5 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 129/97 Hz (-3dB/-8dB).

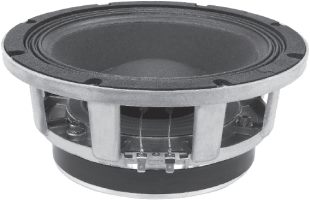

10 MB 300       order no. ob-10mb300       EUR 114,00 excl. VAT: € 95.80 / $ 112.56
25 cm midrange driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 80-2500 Hz
  • resonance frequency fs = 64,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,43 Ohm
  • force factor BL = 18,32 N/A
  • voice coil inductance L = 0,72 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 38,13 g
  • equivalent volume of compliance Vas = 22,75 l
  • total Q factor Qts = 0,24 (Qms=9,66, Qes=0,251)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 120 mm
  • mass m = 6,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 233/147 Hz (-3dB/-8dB)

recommended cabinet 2:
2,9 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 149/111 Hz (-3dB/-8dB).

10 NMB 300       order no. ob-10nmb300       EUR 155,00 excl. VAT: € 130.25 / $ 153.05
25 cm bass-midrange driver with paper with kevlar cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 300/800 W
  • frequency range = 80-2500 Hz
  • resonance frequency fs = 62,08 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99,5 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 20,76 N/A
  • voice coil inductance L = 0,66 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 42,72 g
  • equivalent volume of compliance Vas = 22,06 l
  • total Q factor Qts = 0,21 (Qms=10,61, Qes=0,216)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 148,3 mm
  • mass m = 4,75 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 7,4 L volume
from 171/108 Hz (-3dB/-8dB)

recommended cabinet 2:
18 L volume bass reflex cabinet
with 2x HP100 reflex tube, 23 cm long.
from 102/76 Hz (-3dB/-8dB).

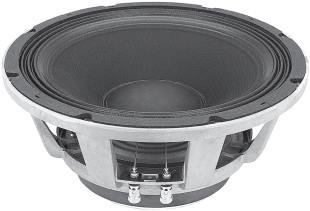

12 L 300       order no. ob-12l300       EUR 104,00 excl. VAT: € 87.39 / $ 102.69
30 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 53,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100,5 dB (2,83V; 1m)
  • DC resistance Re = 5,35 Ohm
  • force factor BL = 16,78 N/A
  • voice coil inductance L = 0,69 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 40,65 g
  • equivalent volume of compliance Vas = 79,63 l
  • total Q factor Qts = 0,25 (Qms=9,98, Qes=0,261)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 3,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 144,7 mm
  • mass m = 6,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,9 L volume
from 160/101 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 14 cm long.
from 95/72 Hz (-3dB/-8dB).

12 B 400       order no. ob-12b400       EUR 109,00 excl. VAT: € 91.60 / $ 107.63
30 cm midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 50-2500 Hz
  • resonance frequency fs = 50,47 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,55 Ohm
  • force factor BL = 18,4 N/A
  • voice coil inductance L = 0,81 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 49,22 g
  • equivalent volume of compliance Vas = 74,74 l
  • total Q factor Qts = 0,25 (Qms=9,69, Qes=0,256)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 144,5 mm
  • mass m = 7,25 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 3,3 L volume
from 189/119 Hz (-3dB/-8dB)

recommended cabinet 2:
5,6 L volume bass reflex cabinet
with HP100 reflex tube, 40 cm long.
from 130/96 Hz (-3dB/-8dB).

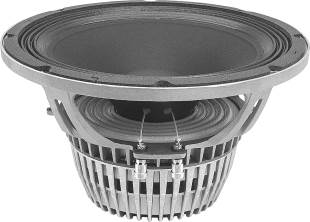

12 NB 400       order no. ob-12nb400       EUR 155,00 excl. VAT: € 130.25 / $ 153.05
30 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 50-2000 Hz
  • resonance frequency fs = 43,58 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 6,96 Ohm
  • force factor BL = 20,34 N/A
  • voice coil inductance L = 0,83 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 59,82 g
  • equivalent volume of compliance Vas = 70,45 l
  • total Q factor Qts = 0,18 (Qms=10,39, Qes=0,183)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 180,3 mm
  • mass m = 5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,6 L volume
from 191/120 Hz (-3dB/-8dB)

recommended cabinet 2:
8,8 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 125/93 Hz (-3dB/-8dB).

12 NXL 400       order no. ob-12nxl400       EUR 155,00 excl. VAT: € 130.25 / $ 153.05
30 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 48,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 20,57 N/A
  • voice coil inductance L = 0,69 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 50,06 g
  • equivalent volume of compliance Vas = 79,24 l
  • total Q factor Qts = 0,2 (Qms=11,9, Qes=0,207)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 180,3 mm
  • mass m = 5,05 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 5,6 L volume
from 159/100 Hz (-3dB/-8dB)

recommended cabinet 2:
12,4 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 98/73 Hz (-3dB/-8dB).

12 B 450       order no. ob-12b450       EUR 109,00 excl. VAT: € 91.60 / $ 107.63
30 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 46,29 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,07 Ohm
  • force factor BL = 19,31 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 60,97 g
  • equivalent volume of compliance Vas = 71,75 l
  • total Q factor Qts = 0,24 (Qms=9,56, Qes=0,241)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,75 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 144,5 mm
  • mass m = 7,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,2 L volume
from 182/115 Hz (-3dB/-8dB)

recommended cabinet 2:
8 L volume bass reflex cabinet
with HP100 reflex tube, 28 cm long.
from 120/89 Hz (-3dB/-8dB).

12 NB 450       order no. ob-12nb450       EUR 159,00 excl. VAT: € 133.61 / $ 157.00
30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 50-2000 Hz
  • resonance frequency fs = 46,46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 6,54 Ohm
  • force factor BL = 20,34 N/A
  • voice coil inductance L = 0,83 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 59,82 g
  • equivalent volume of compliance Vas = 72,57 l
  • total Q factor Qts = 0,2 (Qms=10,53, Qes=0,208)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,75 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 181,3 mm
  • mass m = 5,25 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 210/132 Hz (-3dB/-8dB)

recommended cabinet 2:
3,4 L volume bass reflex cabinet
with HP100 reflex tube, 56 cm long.
from 141/104 Hz (-3dB/-8dB).

12 NB 600       order no. ob-12nb600       EUR 247,00 excl. VAT: € 207.56 / $ 243.89
30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 50-2000 Hz
  • resonance frequency fs = 50,85 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 4,95 Ohm
  • force factor BL = 28,39 N/A
  • voice coil inductance L = 1,82 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 101,61 g
  • equivalent volume of compliance Vas = 35,66 l
  • total Q factor Qts = 0,19 (Qms=6,97, Qes=0,2)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 184 mm
  • mass m = 5,25 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 241/152 Hz (-3dB/-8dB)

recommended cabinet 2:
2 L volume bass reflex cabinet
with HP100 reflex tube, 74 cm long.
from 194/144 Hz (-3dB/-8dB).

12 NMB 600       order no. ob-12nmb600       EUR 247,00 excl. VAT: € 207.56 / $ 243.89
30 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 40-3000 Hz
  • resonance frequency fs = 41,03 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,23 Ohm
  • force factor BL = 27,77 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 78,61 g
  • equivalent volume of compliance Vas = 70,8 l
  • total Q factor Qts = 0,13 (Qms=4,77, Qes=0,137)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 181 mm
  • mass m = 7,55 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
83 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 67/51 Hz (-3dB/-8dB).

15 L 400       order no. ob-15l400       EUR 119,00 excl. VAT: € 100.00 / $ 117.50
37 cm bass-midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 45-4000 Hz
  • resonance frequency fs = 43,25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 102,5 dB (2,83V; 1m)
  • DC resistance Re = 5,45 Ohm
  • force factor BL = 16,87 N/A
  • voice coil inductance L = 0,62 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 56,6 g
  • equivalent volume of compliance Vas = 229,9 l
  • total Q factor Qts = 0,29 (Qms=11,56, Qes=0,294)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 3,25 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 164,5 mm
  • mass m = 7,25 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 115/72 Hz (-3dB/-8dB)

recommended cabinet 2:
85 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 61/47 Hz (-3dB/-8dB).

15 XL 400       order no. ob-15xl400       EUR 121,00 excl. VAT: € 101.68 / $ 119.47
37 cm bass-midrange driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 50-3500 Hz
  • resonance frequency fs = 48,78 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 102 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 18,92 N/A
  • voice coil inductance L = 0,76 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 73,05 g
  • equivalent volume of compliance Vas = 140 l
  • total Q factor Qts = 0,34 (Qms=9,3, Qes=0,35)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 162,5 mm
  • mass m = 7,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
53 L volume bass reflex cabinet
with 2x HP100 reflex tube, 11 cm long.
from 69/53 Hz (-3dB/-8dB).

15 B 450       order no. ob-15b450       EUR 119,00 excl. VAT: € 100.00 / $ 117.50
37 cm bass driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 45-2500 Hz
  • resonance frequency fs = 45,08 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,32 Ohm
  • force factor BL = 20,43 N/A
  • voice coil inductance L = 1,08 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 81,56 g
  • equivalent volume of compliance Vas = 146,85 l
  • total Q factor Qts = 0,29 (Qms=9,6, Qes=0,294)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 6,75 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 162,5 mm
  • mass m = 7,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 14,6 L volume
from 121/76 Hz (-3dB/-8dB)

recommended cabinet 2:
37 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 71/53 Hz (-3dB/-8dB).

15 NB 451       order no. ob-15nb451       EUR 169,00 excl. VAT: € 142.02 / $ 166.87
37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 48-3000 Hz
  • resonance frequency fs = 39,57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 6,07 Ohm
  • force factor BL = 22,87 N/A
  • voice coil inductance L = 1,6 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 100,63 g
  • equivalent volume of compliance Vas = 145,21 l
  • total Q factor Qts = 0,26 (Qms=10,54, Qes=0,263)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 196,3 mm
  • mass m = 4,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 112/71 Hz (-3dB/-8dB)

recommended cabinet 2:
42 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 65/49 Hz (-3dB/-8dB).

15 B 500       order no. ob-15b500       EUR 129,00 excl. VAT: € 108.40 / $ 127.37
37 cm bass-midrange driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 38-2500 Hz
  • resonance frequency fs = 38,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,23 Ohm
  • force factor BL = 22,91 N/A
  • voice coil inductance L = 1,25 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 114,4 g
  • equivalent volume of compliance Vas = 145,82 l
  • total Q factor Qts = 0,27 (Qms=12,06, Qes=0,274)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,25 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 169 mm
  • mass m = 7,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 98/62 Hz (-3dB/-8dB)

recommended cabinet 2:
98 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 51/40 Hz (-3dB/-8dB).

15 MB 500       order no. ob-15mb500       EUR 129,00 excl. VAT: € 108.40 / $ 127.37
37 cm bass-midrange driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 41,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,25 Ohm
  • force factor BL = 18,54 N/A
  • voice coil inductance L = 0,92 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 87,5 g
  • equivalent volume of compliance Vas = 161,54 l
  • total Q factor Qts = 0,34 (Qms=12,85, Qes=0,349)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,25 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 176,4 mm
  • mass m = 7,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 11,2 L volume
from 136/86 Hz (-3dB/-8dB)

recommended cabinet 2:
27 L volume bass reflex cabinet
with 2x HP100 reflex tube, 24 cm long.
from 81/61 Hz (-3dB/-8dB).

15 NB 500       order no. ob-15nb500       EUR 177,00 excl. VAT: € 148.74 / $ 174.77
37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 42-2500 Hz
  • resonance frequency fs = 42,77 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 6,65 Ohm
  • force factor BL = 24,31 N/A
  • voice coil inductance L = 1,14 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 109,57 g
  • equivalent volume of compliance Vas = 121,46 l
  • total Q factor Qts = 0,25 (Qms=11,97, Qes=0,26)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,25 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 197,3 mm
  • mass m = 5,4 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 16 L volume
from 123/78 Hz (-3dB/-8dB)

recommended cabinet 2:
46 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 69/53 Hz (-3dB/-8dB).

15 NMB 500       order no. ob-15nmb500       EUR 179,00 excl. VAT: € 150.42 / $ 176.74
37 cm bass-midrange driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 45-3500 Hz
  • resonance frequency fs = 44,74 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100,5 dB (2,83V; 1m)
  • DC resistance Re = 6,25 Ohm
  • force factor BL = 21,34 N/A
  • voice coil inductance L = 0,86 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 95,03 g
  • equivalent volume of compliance Vas = 127,95 l
  • total Q factor Qts = 0,29 (Qms=12,4, Qes=0,298)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,75 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 197,3 mm
  • mass m = 5,4 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 8,5 L volume
from 148/94 Hz (-3dB/-8dB)

recommended cabinet 2:
13,5 L volume bass reflex cabinet
with HP100 reflex tube, 25 cm long.
from 105/77 Hz (-3dB/-8dB).

15 MB 600       order no. ob-15mb600       EUR 184,00 excl. VAT: € 154.62 / $ 181.68
37 cm bass-midrange driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 37-2000 Hz
  • resonance frequency fs = 32,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,23 Ohm
  • force factor BL = 26,38 N/A
  • voice coil inductance L = 1,05 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 113,28 g
  • equivalent volume of compliance Vas = 204 l
  • total Q factor Qts = 0,17 (Qms=10,94, Qes=0,173)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 174,4 mm
  • mass m = 10,45 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 9,6 L volume
from 153/97 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP100 reflex tube, 13 cm long.
from 98/73 Hz (-3dB/-8dB).

15 XL 600       order no. ob-15xl600       EUR 189,00 excl. VAT: € 158.82 / $ 186.62
37 cm bass-midrange driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 40,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 24,7 N/A
  • voice coil inductance L = 1,09 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 96,91 g
  • equivalent volume of compliance Vas = 150,32 l
  • total Q factor Qts = 0,22 (Qms=10,9, Qes=0,22)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 176,4 mm
  • mass m = 10,85 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 13,1 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
36 L volume bass reflex cabinet
with 2x HP100 reflex tube, 33 cm long.
from 60/46 Hz (-3dB/-8dB).

15 XB 700       order no. ob-15xb700       EUR 184,00 excl. VAT: € 154.62 / $ 181.68
37 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 37-2000 Hz
  • resonance frequency fs = 37,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,19 Ohm
  • force factor BL = 25,64 N/A
  • voice coil inductance L = 1,9 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 158,39 g
  • equivalent volume of compliance Vas = 111,02 l
  • total Q factor Qts = 0,28 (Qms=9,2, Qes=0,292)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 179,4 mm
  • mass m = 11,95 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 12,5 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with 2x HP100 reflex tube, 32 cm long.
from 62/47 Hz (-3dB/-8dB).

15 NXB 700       order no. ob-15nxb700       EUR 269,00 excl. VAT: € 226.05 / $ 265.61
37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 38-1000 Hz
  • resonance frequency fs = 38,34 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 7,23 Ohm
  • force factor BL = 25,99 N/A
  • voice coil inductance L = 1,98 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 156,94 g
  • equivalent volume of compliance Vas = 105,5 l
  • total Q factor Qts = 0,28 (Qms=8,75, Qes=0,293)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 195 mm
  • mass m = 8,1 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 6,1 L volume
from 198/125 Hz (-3dB/-8dB)

recommended cabinet 2:
9,6 L volume bass reflex cabinet
with HP100 reflex tube, 18 cm long.
from 140/103 Hz (-3dB/-8dB).

15 NMB 600       order no. ob-15nmb600       EUR 268,00 excl. VAT: € 225.21 / $ 264.62
37 cm bass driver with paper cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 43,25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,49 Ohm
  • force factor BL = 27,43 N/A
  • voice coil inductance L = 1,01 mH
  • effective piston radiating area Sd = 830 cm2
  • effective mechanical mass incl. air load mms = 89,65 g
  • equivalent volume of compliance Vas = 145,15 l
  • total Q factor Qts = 0,17 (Qms=7,22, Qes=0,178)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 354 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 198,3 mm
  • mass m = 7,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 44 L volume
from 81/51 Hz (-3dB/-8dB)

recommended cabinet 2:
146 L volume bass reflex cabinet
with 4x HP100 reflex tube, 26 cm long.
from 43/33 Hz (-3dB/-8dB).

18 B 450       order no. ob-18b450       EUR 139,00 excl. VAT: € 116.81 / $ 137.25
44 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 35-1000 Hz
  • resonance frequency fs = 34,38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,29 Ohm
  • force factor BL = 22,12 N/A
  • voice coil inductance L = 1,49 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 152,76 g
  • equivalent volume of compliance Vas = 241,55 l
  • total Q factor Qts = 0,34 (Qms=8,03, Qes=0,357)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,25 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 192,5 mm
  • mass m = 8,55 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 99/63 Hz (-3dB/-8dB)

recommended cabinet 2:
79 L volume bass reflex cabinet
with 4x HP100 reflex tube, 37 cm long.
from 56/43 Hz (-3dB/-8dB).

18 B 500       order no. ob-18b500       EUR 199,00 excl. VAT: € 167.23 / $ 196.49
44 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 35-1000 Hz
  • resonance frequency fs = 34,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 24,06 N/A
  • voice coil inductance L = 1,37 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 146,79 g
  • equivalent volume of compliance Vas = 243,91 l
  • total Q factor Qts = 0,28 (Qms=9,24, Qes=0,284)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 8,75 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 204 mm
  • mass m = 12,3 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 25 L volume
from 96/61 Hz (-3dB/-8dB)

recommended cabinet 2:
74 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 53/41 Hz (-3dB/-8dB).

18 XB 700       order no. ob-18xb700       EUR 219,00 excl. VAT: € 184.03 / $ 216.24
44 cm bass driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 35-1000 Hz
  • resonance frequency fs = 36,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,02 Ohm
  • force factor BL = 26,1 N/A
  • voice coil inductance L = 1,83 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 182,62 g
  • equivalent volume of compliance Vas = 183,22 l
  • total Q factor Qts = 0,3 (Qms=9,26, Qes=0,314)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 201 mm
  • mass m = 12,55 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 93/59 Hz (-3dB/-8dB)

recommended cabinet 2:
70 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 51/39 Hz (-3dB/-8dB).

18 NXB 700       order no. ob-18nxb700       EUR 289,00 excl. VAT: € 242.86 / $ 285.36
44 cm bass driver with paper with kevlar cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1000/2000 W
  • frequency range = 36-1000 Hz
  • resonance frequency fs = 36,24 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,17 Ohm
  • force factor BL = 27,82 N/A
  • voice coil inductance L = 1,97 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 213,6 g
  • equivalent volume of compliance Vas = 155,46 l
  • total Q factor Qts = 0,31 (Qms=7,94, Qes=0,325)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 217 mm
  • mass m = 8,95 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 30 L volume
from 84/53 Hz (-3dB/-8dB)

recommended cabinet 2:
99 L volume bass reflex cabinet
with 4x HP100 reflex tube, 42 cm long.
from 44/35 Hz (-3dB/-8dB).

18 XB 800       order no. ob-18xb800       - not available
44 cm bass driver with paper with kevlar cone. The basket is made of die-cast. The diaphragm is varnished with a hydrophabic coat.
  • power handling (continuous/programme) = 1100/2200 W
  • frequency range = 35-500 Hz
  • resonance frequency fs = 35,83 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97,5 dB (2,83V; 1m)
  • DC resistance Re = 5,02 Ohm
  • force factor BL = 27,85 N/A
  • voice coil inductance L = 1,87 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 208,66 g
  • equivalent volume of compliance Vas = 162,78 l
  • total Q factor Qts = 0,34 (Qms=8,76, Qes=0,353)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 202,5 mm
  • mass m = 8,95 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 22 L volume
from 95/60 Hz (-3dB/-8dB)

recommended cabinet 2:
70 L volume bass reflex cabinet
with 2x HP100 reflex tube, 17 cm long.
from 51/40 Hz (-3dB/-8dB).

18 NXB 800       order no. ob-18nxb800       - not available
44 cm bass driver with paper with kevlar cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1100/2200 W
  • frequency range = 36-1000 Hz
  • resonance frequency fs = 38,02 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 27,67 N/A
  • voice coil inductance L = 2,04 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 208,66 g
  • equivalent volume of compliance Vas = 139,5 l
  • total Q factor Qts = 0,32 (Qms=6,57, Qes=0,336)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 11,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 217 mm
  • mass m = 8,95 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 26 L volume
from 83/53 Hz (-3dB/-8dB)

recommended cabinet 2:
78 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 46/35 Hz (-3dB/-8dB).

18 NXB 1600       order no. ob-18nxb1600       EUR 399,00 excl. VAT: € 335.29 / $ 393.97
44 cm bass driver with paper with kevlar cone. The basket is made of die-cast. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 1600/3200 W
  • frequency range = 30-1000 Hz
  • resonance frequency fs = 32,37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 29,58 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 1158 cm2
  • effective mechanical mass incl. air load mms = 261,56 g
  • equivalent volume of compliance Vas = 173,11 l
  • total Q factor Qts = 0,31 (Qms=5,11, Qes=0,332)
  • voice coil diameter = 115 mm
  • maximum peak linear excursion vibration xlin = +/- 13,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 224 mm
  • mass m = 11,7 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,6 L volume
from 153/96 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 15 cm long.
from 76/61 Hz (-3dB/-8dB).

8 CX       order no. ob-8cx       EUR 139,00 excl. VAT: € 116.81 / $ 137.25
21 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 76,07 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,68 Ohm
  • force factor BL = 9,43 N/A
  • voice coil inductance L = 0,638 mH
  • effective piston radiating area Sd = 202 cm2
  • effective mechanical mass incl. air load mms = 14,52 g
  • equivalent volume of compliance Vas = 16,84 l
  • total Q factor Qts = 0,4 (Qms=4,28, Qes=0,44)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 121 mm
  • mass m = 4,5 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 4,4 L volume
from 152/96 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 75/60 Hz (-3dB/-8dB).

8 NCX       order no. ob-8ncx       EUR 169,00 excl. VAT: € 142.02 / $ 166.87
21 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 200/400 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 77,23 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 10,1 N/A
  • voice coil inductance L = 0,648 mH
  • effective piston radiating area Sd = 202 cm2
  • effective mechanical mass incl. air load mms = 15,94 g
  • equivalent volume of compliance Vas = 14,89 l
  • total Q factor Qts = 0,4 (Qms=4,66, Qes=0,44)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 4,75 mm
  • mounting diameter d = 187 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 115 mm
  • mass m = 2,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 168/106 Hz (-3dB/-8dB)

recommended cabinet 2:
6,1 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 81/66 Hz (-3dB/-8dB).

6 NCX       order no. ob-6ncx       EUR 149,00 excl. VAT: € 125.21 / $ 147.12
17 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 150/300 W
  • frequency range = 80-20000 Hz
  • resonance frequency fs = 91,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,27 Ohm
  • force factor BL = 10,27 N/A
  • voice coil inductance L = 0,52 mH
  • effective piston radiating area Sd = 131 cm2
  • effective mechanical mass incl. air load mms = 16,6 g
  • equivalent volume of compliance Vas = 4,35 l
  • total Q factor Qts = 0,43 (Qms=4,94, Qes=0,476)
  • voice coil diameter = 44 mm
  • maximum peak linear excursion vibration xlin = +/- 5,75 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 185 mm
  • mounting depth (not countersunk) t = 98,2 mm
  • mass m = 1,35 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 15 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
55 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 64/51 Hz (-3dB/-8dB).

12 CX-1       order no. ob-12cx1       EUR 199,00 excl. VAT: € 167.23 / $ 196.49
30 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 300/600 W
  • frequency range = 50-20000 Hz
  • resonance frequency fs = 57,58 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,22 Ohm
  • force factor BL = 13,94 N/A
  • voice coil inductance L = 0,737 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 41,27 g
  • equivalent volume of compliance Vas = 68,49 l
  • total Q factor Qts = 0,37 (Qms=4,84, Qes=0,4)
  • voice coil diameter = 65 mm
  • maximum peak linear excursion vibration xlin = +/- 4,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 173 mm
  • mass m = 7,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 11,5 L volume
from 117/74 Hz (-3dB/-8dB)

recommended cabinet 2:
39 L volume bass reflex cabinet
with 2x HP100 reflex tube, 21 cm long.
from 61/48 Hz (-3dB/-8dB).

12 CX       order no. ob-12cx       EUR 279,00 excl. VAT: € 234.45 / $ 275.48
30 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 50-20000 Hz
  • resonance frequency fs = 51,24 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,65 Ohm
  • force factor BL = 17,4 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 60,97 g
  • equivalent volume of compliance Vas = 58,55 l
  • total Q factor Qts = 0,35 (Qms=6,35, Qes=0,366)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 196 mm
  • mass m = 7,8 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 10,2 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with 2x HP100 reflex tube, 23 cm long.
from 65/51 Hz (-3dB/-8dB).

12 HCX       order no. ob-12hcx       EUR 369,00 excl. VAT: € 310.08 / $ 364.35
30 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 50-20000 Hz
  • resonance frequency fs = 52,61 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95,5 dB (2,83V; 1m)
  • DC resistance Re = 5,57 Ohm
  • force factor BL = 17,82 N/A
  • voice coil inductance L = 0,61 mH
  • effective piston radiating area Sd = 515 cm2
  • effective mechanical mass incl. air load mms = 60,97 g
  • equivalent volume of compliance Vas = 55,54 l
  • total Q factor Qts = 0,33 (Qms=5,75, Qes=0,354)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 208 mm
  • mass m = 5,75 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 8,7 L volume
from 155/98 Hz (-3dB/-8dB)

recommended cabinet 2:
25 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 86/66 Hz (-3dB/-8dB).

12 NCX       order no. ob-12ncx       EUR 339,00 excl. VAT: € 284.87 / $ 334.73
30 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 350/700 W
  • frequency range = 55-20000 Hz
  • resonance frequency fs = 58,23 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 17,19 N/A
  • voice coil inductance L = 0,58 mH
  • effective piston radiating area Sd = 515 cm2
  • effective mechanical mass incl. air load mms = 43,92 g
  • equivalent volume of compliance Vas = 62,92 l
  • total Q factor Qts = 0,3 (Qms=6,18, Qes=0,31)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 190 mm
  • mass m = 5,4 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 32 L volume
from 87/55 Hz (-3dB/-8dB)

recommended cabinet 2:
109 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 46/36 Hz (-3dB/-8dB).

15 CX       order no. ob-15cx       EUR 309,00 excl. VAT: € 259.66 / $ 305.11
37 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 35-16000 Hz
  • resonance frequency fs = 38,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,18 Ohm
  • force factor BL = 18,49 N/A
  • voice coil inductance L = 0,69 mH
  • effective piston radiating area Sd = 829 cm2
  • effective mechanical mass incl. air load mms = 101,84 g
  • equivalent volume of compliance Vas = 163,8 l
  • total Q factor Qts = 0,35 (Qms=5,61, Qes=0,372)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 212 mm
  • mass m = 10,9 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 28 L volume
from 108/68 Hz (-3dB/-8dB)

recommended cabinet 2:
83 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 60/46 Hz (-3dB/-8dB).

15 HCX       order no. ob-15hcx       EUR 389,00 excl. VAT: € 326.89 / $ 384.10
37 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 35-16000 Hz
  • resonance frequency fs = 40,72 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,05 Ohm
  • force factor BL = 17,08 N/A
  • voice coil inductance L = 0,642 mH
  • effective piston radiating area Sd = 829 cm2
  • effective mechanical mass incl. air load mms = 71,41 g
  • equivalent volume of compliance Vas = 205,54 l
  • total Q factor Qts = 0,3 (Qms=6,1, Qes=0,316)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,75 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 227 mm
  • mass m = 6,6 kg
PDF data sheet

open a bigger photo

recommended cabinet 1:
closed cabinet with 29 L volume
from 97/61 Hz (-3dB/-8dB)

recommended cabinet 2:
101 L volume bass reflex cabinet
with 2x HP100 reflex tube, 8 cm long.
from 50/40 Hz (-3dB/-8dB).

15 NCX       order no. ob-15ncx       EUR 484,00 excl. VAT: € 406.72 / $ 477.90
37 cm coax driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 450/900 W
  • frequency range = 50-16000 Hz
  • resonance frequency fs = 43,74 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 18,55 N/A
  • voice coil inductance L = 0,776 mH
  • effective piston radiating area Sd = 829 cm2
  • effective mechanical mass incl. air load mms = 91,88 g
  • equivalent volume of compliance Vas = 138,45 l
  • total Q factor Qts = 0,36 (Qms=10,02, Qes=0,375)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 7,75 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 207 mm
  • mass m = 5,65 kg
PDF data sheet

H 94       order no. ob-h94       EUR 33,00 excl. VAT: € 27.73 / $ 32.58
Horn for a compression driver with 1 inch throat.
  • nominal angle (HxV) = 90x40 Deg
  • Cut off frequency : 1000 Hz
  • over all dimensions (HxWxD) = 199 x 234 x 130 mm
  • baffle Cutout dimensions (HxW) = 163 x 207 mm
  • net weight = 0,54 kg
  • material: glass fibre

open a bigger photo

ND 2540 / 16 Ohm, 1500 - 20000 Hz       order no. ob-nd2540-16       - not available
1 inch high frequency compression driver. The magnet system is based on Neodymium technology.
  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 106,5 dB (2,83V; 1m)
  • DC resistance Re = 11,8 Ohm
  • voice coil diameter = 38 mm
  • mounting diameter d = 25,4 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 56 mm
  • mass m = 0,6 kg

recommended cabinet 1:
closed cabinet with 15 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
61 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 38/31 Hz (-3dB/-8dB).

10 B 100       order no. ob-10b100       - not available
25 cm midrange driver with glass fibre cone.
  • power handling (continuous/programme) = 100/200 W
  • frequency range = 44-4000 Hz
  • resonance frequency fs = 44 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 11,85 N/A
  • voice coil inductance L = 1,09 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 45,7 g
  • equivalent volume of compliance Vas = 40,5 l
  • total Q factor Qts = 0,45 (Qms=9,13, Qes=0,47)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 107 mm

recommended cabinet 1:
closed cabinet with 19 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
80 L volume bass reflex cabinet
with HP100 reflex tube, 7 cm long.
from 41/35 Hz (-3dB/-8dB).

10 M 100       order no. ob-10m100       EUR 90,00 excl. VAT: € 75.63 / $ 88.87
25 cm midrange driver with paper cone.
  • power handling (continuous/programme) = 100/200 W
  • frequency range = 5-6000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96,5 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 11,3 N/A
  • voice coil inductance L = 0,96 mH
  • effective piston radiating area Sd = 317,3 cm2
  • effective mechanical mass incl. air load mms = 31,15 g
  • equivalent volume of compliance Vas = 37,5 l
  • total Q factor Qts = 0,49 (Qms=11,19, Qes=0,51)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 228 mm
  • overall diameter d = 262 mm
  • mounting depth (not countersunk) t = 107 mm

recommended cabinet 1:
closed cabinet with 10,3 L volume
from 137/87 Hz (-3dB/-8dB)

recommended cabinet 2:
35 L volume bass reflex cabinet
with 2x HP100 reflex tube, 16 cm long.
from 72/56 Hz (-3dB/-8dB).

12 L pro       order no. ob-12lpro       EUR 149,00 excl. VAT: € 125.21 / $ 147.12
30 cm midrange driver with glass fibre cone.
  • power handling (continuous/programme) = 300/600 W
  • frequency range = 60-6000 Hz
  • resonance frequency fs = 60 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 16,8 N/A
  • voice coil inductance L = 1,34 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 47,2 g
  • equivalent volume of compliance Vas = 52,3 l
  • total Q factor Qts = 0,34 (Qms=19,4, Qes=0,35)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 145 mm

recommended cabinet 1:
closed cabinet with 4,4 L volume
from 193/122 Hz (-3dB/-8dB)

recommended cabinet 2:
10,3 L volume bass reflex cabinet
with HP100 reflex tube, 17 cm long.
from 117/88 Hz (-3dB/-8dB).

12 B pro       order no. ob-12bpro       - not available
30 cm midrange driver with high quality cone.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 58-2500 Hz
  • resonance frequency fs = 58,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99,5 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 20,4 N/A
  • voice coil inductance L = 1,46 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 56,4 g
  • equivalent volume of compliance Vas = 52,3 l
  • total Q factor Qts = 0,24 (Qms=7,73, Qes=0,25)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 145 mm

recommended cabinet 1:
closed cabinet with 1,8 L volume
from 268/169 Hz (-3dB/-8dB)

recommended cabinet 2:
2,5 L volume bass reflex cabinet
with HP100 reflex tube, 47 cm long.
from 201/148 Hz (-3dB/-8dB).

N12C4       order no. ob-12c4n       EUR 197,00 excl. VAT: € 165.55 / $ 194.52
30 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,15 Ohm
  • force factor BL = 27 N/A
  • voice coil inductance L = 1,44 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 59 g
  • equivalent volume of compliance Vas = 55 l
  • total Q factor Qts = 0,16 (Qms=17,3, Qes=0,16)
  • voice coil diameter = 100 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 310 mm
  • mounting depth (not countersunk) t = 115 mm

recommended cabinet 1:
closed cabinet with 35 L volume
from 99/62 Hz (-3dB/-8dB)

recommended cabinet 2:
117 L volume bass reflex cabinet
with 2x HP100 reflex tube, 5 cm long.
from 52/41 Hz (-3dB/-8dB).

15 L pro       order no. ob-15lpro       EUR 173,00 excl. VAT: € 145.38 / $ 170.82
37 cm bass driver with glass fibre cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 42-5000 Hz
  • resonance frequency fs = 41,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 101 dB (2,83V; 1m)
  • force factor BL = 17,1 N/A
  • voice coil inductance L = 1,41 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 71,8 g
  • equivalent volume of compliance Vas = 193 l
  • total Q factor Qts = 0,34 (Qms=12,67, Qes=0,35)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 158 mm

recommended cabinet 1:
closed cabinet with 26 L volume
from 102/65 Hz (-3dB/-8dB)

recommended cabinet 2:
86 L volume bass reflex cabinet
with 2x HP100 reflex tube, 9 cm long.
from 54/42 Hz (-3dB/-8dB).

15 B 400       order no. ob-15b400       - not available
37 cm bass driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 43-3500 Hz
  • resonance frequency fs = 43,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 19,5 N/A
  • voice coil inductance L = 1,76 mH
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 90,3 g
  • equivalent volume of compliance Vas = 142,5 l
  • total Q factor Qts = 0,34 (Qms=10,1, Qes=0,35)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 158 mm

recommended cabinet 1:
closed cabinet with 17 L volume
from 99/63 Hz (-3dB/-8dB)

recommended cabinet 2:
49 L volume bass reflex cabinet
with 2x HP100 reflex tube, 25 cm long.
from 55/42 Hz (-3dB/-8dB).

15 XB 600       order no. ob-15xb600       - not available (_)
37 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 38-2000 Hz
  • resonance frequency fs = 37,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 22,2 N/A
  • voice coil inductance L = 2,25 mH
  • effective piston radiating area Sd = 785,6 cm2
  • effective mechanical mass incl. air load mms = 128,6 g
  • equivalent volume of compliance Vas = 121,6 l
  • total Q factor Qts = 0,3 (Qms=14,3, Qes=0,31)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 345 mm
  • overall diameter d = 385 mm
  • mounting depth (not countersunk) t = 150 mm

recommended cabinet 1:
closed cabinet with 33 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
96 L volume bass reflex cabinet
with 4x HP100 reflex tube, 39 cm long.
from 49/38 Hz (-3dB/-8dB).

18 XB 600       order no. ob-18xb600       - not available (_)
44 cm bass driver with paper with kevlar cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 40-1000 Hz
  • resonance frequency fs = 33,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,1 Ohm
  • force factor BL = 23,7 N/A
  • voice coil inductance L = 1,82 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 165 g
  • equivalent volume of compliance Vas = 236 l
  • total Q factor Qts = 0,3 (Qms=14,2, Qes=0,31)
  • voice coil diameter = 100 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 203 mm

open a bigger photo

recommended cabinet 1:
closed cabinet with 20 L volume
from 115/72 Hz (-3dB/-8dB)

recommended cabinet 2:
62 L volume bass reflex cabinet
with 2x HP100 reflex tube, 11 cm long.
from 62/48 Hz (-3dB/-8dB).

CX 15       order no. ob-cx15       EUR 355,00 excl. VAT: € 298.32 / $ 350.53
37 cm coax driver with high quality cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 350/900 W
  • frequency range = 40-16000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,3 Ohm
  • force factor BL = 20,55 N/A
  • voice coil inductance L = 1,42 mH
  • effective piston radiating area Sd = 829 cm2
  • effective mechanical mass incl. air load mms = 92,5 g
  • equivalent volume of compliance Vas = 124 l
  • total Q factor Qts = 0,32 (Qms=10,44, Qes=0,33)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 352 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 224 mm
  • mass m = 11,9 kg

recommended cabinet 1:
closed cabinet with 57 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
201 L volume bass reflex cabinet
with 4x HP100 reflex tube, 19 cm long.
from 39/31 Hz (-3dB/-8dB).

18 B 400       order no. ob-18b400       - not available
44 cm bass driver with paper cone. The basket is made of die-cast.
  • power handling (continuous/programme) = 400/800 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 35,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 21,05 N/A
  • voice coil inductance L = 1,74 mH
  • effective piston radiating area Sd = 1110 cm2
  • effective mechanical mass incl. air load mms = 140 g
  • equivalent volume of compliance Vas = 252 l
  • total Q factor Qts = 0,37 (Qms=11,34, Qes=0,38)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 416 mm
  • overall diameter d = 461 mm
  • mounting depth (not countersunk) t = 200 mm
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2009 Iris Strassacker; All rights reserved. - errors and omissions excepted
