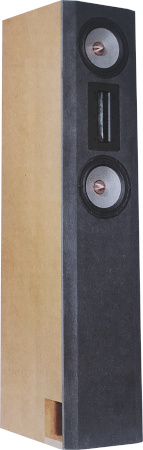

Audimax Core MK2   Floorstanding as in Hobby Hifi 6/2024

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 87 dB
  • size (HxWxD): 1200 x 250 x 370 mm
  • frequency range (-8dB): 32 - 40000 Hz
  • crossover frequency(s): 1600 Hz
  • speaker type: bass reflex

Audimax Core MK2 is a two way floorstanding speaker.

Audimax Core MK2 is a bass-reflex cabinet loudspeaker with drivers of Audaphon and SEAS.

The kit is delivered with the following drivers:
- a Audaphon APR 1.0 ribbon-tweeter
- two Hobby-HiFi/SEAS 18MW12T woofers

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,4% above 300 Hz.

An excerpt from the Hobby HiFi review

Conclusion of the magazine Hobby HiFi:

Our kit consists of

  • Audaphon Aluminium Ribbon Tweeter APR 1.0
  • 2x Hobby-HiFi woofer 18MW12T, produced by SEAS
  • 1,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 5m Speaker cable 2x2.5 mm2, transparent
  • 2,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 0.68 μF / 400 Vdc
  • Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
  • Audaphon MKP CAP Superior 5.6 μF / 400 Vdc
  • Audaphon MKP CAP Superior 12 μF / 400 Vdc
  • Audaphon MKP CAP Superior 15 μF / 400 Vdc
  • 2x Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL100, 0.68 mH/0.39 Ohm
  • Mundorf baked varnish air core coil BL140, 2.2 mH/0.46 Ohm
  • Metal-oxide resistor, 10W 5.6 Ohm (green-blue-gold)
  • Metal-oxide resistor, 10W 15 Ohm (brown-green-black)
  • Metal-oxide resistor, 5W 0.47 Ohm 5% (yellow-purple-silver)
  • Metal-oxide resistor, 5W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker   EUR 1866,00 excl. VAT: € 1568.07 / $ 1818.96

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Audaphon APR 1.0 are of type polypropylen (MKP) Mundorf Mcap Supreme EVO Öl.

  • Mundorf Mcap Supreme EVO Oil 5,6 μF / 800V
  • Mundorf Mcap Supreme EVO Oil 15 μF / 800V
  • Audaphon MKP CAP Superior 0.68 μF / 400 Vdc
  • Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
  • Audaphon MKP CAP Superior 12 μF / 400 Vdc
  • Mundorf copper foil coil CFC14-0.68 mH/0.20Ohm
  • Mundorf copper foil coil CFC14-2.2 mH/0.41Ohm
  • 2x Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • MResist Supreme 5.6 Ohm / 20 Watt
  • MResist Supreme 15 Ohm / 20 Watt
  • Metal-oxide resistor, 5W 0.47 Ohm 5% (yellow-purple-silver)
  • Metal-oxide resistor, 5W 10 Ohm (brown-black-black)

Kit with high-end-crossover without cabinet, price per speaker   EUR 2113,00 excl. VAT: € 1775.63 / $ 2059.73

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • Audaphon MKT CAP 2.2 μF / 160 Vdc
  • Audaphon MKT CAP 47 μF / 160 Vdc
  • Mundorf baked varnish air core coil BL71, 0.33 mH/0.48 Ohm
  • ceramic resistor 6.8 Ohm/20 Watt
  • Metal-oxide resistor, 10W 15 Ohm (brown-green-black)

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 27,89 excl. VAT: € 23.44 / $ 27.19

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit:   EUR 8,60 excl. VAT: € 7.23 / $ 8.38
We recommend one board per kit (two boards for a speaker pair)
