Damping Material

Audaphon puffy polyester fleece

The polyester fleece has good absorbent properties, applicable without whirling up dust and fibre. Sonofil consists of a mixture of polyester fibres - it's not flame-retardant. Heat resistant up to 140 degrees Celsius. For each 20 cdm (litre) cabinet volume 1 to 1.5 packets are needed; 1000 mm x 350 mm x 40 mm. Colour: white

Price per unit (Order No. "str-sonofil") EUR 6,40 excl. VAT: € 5.38 / $ 6.24

Bondum 800 damping

Bondum 800 is a material damping frequencies above 800 Hz. Measurements: 300 x 500 x 20 mm

Price per package (Order No. "I-3325") EUR 5,85 excl. VAT: € 4.92 / $ 5.70

PW-15, puffy polyester fleece

The polyester fleece has good absorbent properties, applicable without whirling up dust and fibre. It consists of polyester. For each 20 to 25 cdm (litre) cabinet volume one packet is needed; 10 m x 1.5 m x 1 cm . Colour: white

Price per unit (Order No. "str-pw15") - not available

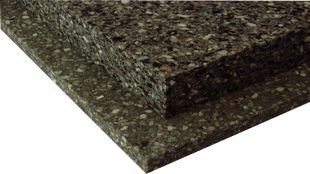

Tyrofoam

Tyrofoam, a heavy, high damping foam to absorb airborne sound, for lining the interior walls of a loudspeaker cabinet. Weight / volume: 140 kg / cubic metre.

Type	Tyrofoam SG140/10	Tyrofoam SG140/30
Order No.	I-3346	I-3347
Thickness	10 mm	30 mm
Dimensions	245 x 325 mm	245 x 325 mm
Price per unit	EUR 4,00 excl. VAT: € 3.36 / $ 3.90	EUR 9,80 excl. VAT: € 8.24 / $ 9.55

Bitumex

Heavy, high damping bitumen board for reducing structure-borne noise of loudspeaker cabinets and other vibrating surfaces. Single-sided self-adhesive. Weight / volume: 1.800 kg / cubic metre.

Type	Bitumex FG 2 SK	Bitumex FG 4 SK	Bitumex FG 6 SK
Order No.	str-bitum25	I-3345	str-bitum6
Thickness	2 mm	4 mm	5.5 mm
Dimensions	245 x 325 mm	245 x 325 mm	245 x 325 mm
Price per unit	EUR 3,40 excl. VAT: € 2.86 / $ 3.31	- not available	EUR 6,30 excl. VAT: € 5.29 / $ 6.14

Needle and wool felt

Nadelfilz Needle felt (left) and woo felt (same appearance, but denser) suitable for lining interior cabinet walls.

Type	Needle felt NF10	Needle felt NF20
Order No.	fz-NF10	fz-NF20
Thickness	10 mm	20 mm
Dimensions	400 x 1000 mm	400 x 1000 mm
Price per unit	EUR 10,60 excl. VAT: € 8.91 / $ 10.33	- not available

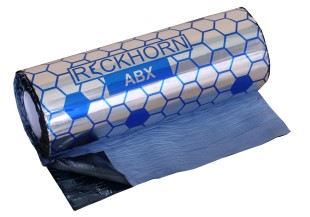

Alubutyl for your car

Reckhorn ABX 2 mm Alubutyl sound insulation & damping material has a strong surface adhesion. It is odorless and self-adhesive. Dimensions: 5 m x 0.4 m = 2m², thickness 2mm. Weight per qm² = approx. 3,5 kg The 2 m² are enough for 2 car doors.

Price per unit (Order No. reck-abx) EUR 29,90 excl. VAT: € 25.13 / $ 29.15

Damping 10

Recycled felt self adhesiv.

Type	Damping 10
Order No.	139 9014
Thickness	10 mm
Dimensions	970 x 470 mm

Price per unit EUR 19,34 excl. VAT: € 16.25 / $ 18.85

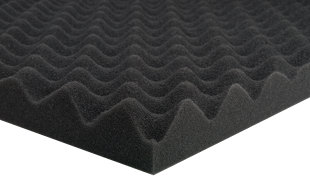

Tyrotex

Tyrotex Soft polyurethane foam based on polyester.

Type	Tyrotex N20	Foam N25	Foam N25/3
Order No.	I-3338	py-n1054a	py-n1053a
Weight/Volume	20 kg/m3	25 kg/m3	25 kg/m3
Thickness	42 mm	40 mm	30 mm
Dimensions	490 x 970 mm	490 x 970 mm	490 x 970 mm
Price per unit	EUR 20,00 excl. VAT: € 16.81 / $ 19.50	EUR 9,90 excl. VAT: € 8.32 / $ 9.65	EUR 7,20 excl. VAT: € 6.05 / $ 7.02

Absorption according to DIN 52221

Absorption according to DIN 52221
Typ / Freq.	125 Hz	250 Hz	500 Hz	1 kHz	2 kHz	4 kHz
N20	0,11	0,32	0,63	0,90	0,91	0,95
N30	0,16	0,54	1,01	0,99	1,01	1,02

Damping Material, Mundorf MSilence TWARON© Angel Hair

(Order No. "M-angel-200g") EUR 62,00 excl. VAT: € 52.10 / $ 60.44 for 200 g

(Order No. "M-angel-1000g") EUR 250,00 excl. VAT: € 210.08 / $ 243.70 for 1000 g

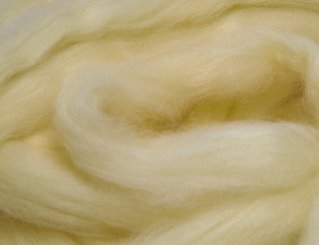

Damping Material, Mundorf MSilence TWARON © Unicorn Tail

(Order No. "M-unicorn-200g") EUR 62,00 excl. VAT: € 52.10 / $ 60.44 for 200 g

(Order No. "M-unicorn-1000g") EUR 250,00 excl. VAT: € 210.08 / $ 243.70 for 1000 g
