Plugs

Every set contains a black and a red marked plug.

Banana plug BS2 for wire up to 4 mm²

Banana plug for wire up to 4 mm². Also accepts side-entry banana plugs for stacking.

The plug is 36 mm long.

Price per pair (Order No. "str-bs2") EUR 1,60 excl. VAT: € 1.34 / $ 1.57

Highly elastic banana plug BS10 for cables with up to 4 mm2 wire

Enlarge

Banana plug for wire up to 4 mm². To open up the plug the three parts (split is roughly in the centre of the grip) need to be twisted. The wire is then inserted from behind. Stacking is not supported.

The plug is 49 mm long and has a diameter of 11 mm.

Price per pair (Order No. "str-bs10") - not available

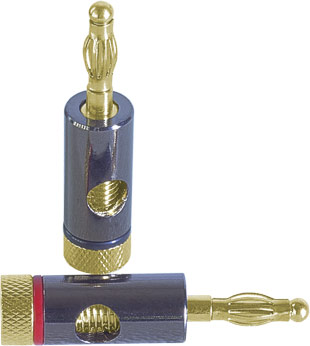

Banana plug BS30 for wire up to 30 mm²

Banana plug for wire up to 30 mm². To open up the plug the two parts need to be twisted anticlockwise. The wire is then inserted through the visible opening on the side. To close the plug just twist the two parts clockwise. Also accepts rear-entry banana plugs for stacking.

The plug is 48 mm long and has a diameter of 10.8 mm.

Price per pair (Order No. "str-bs30") EUR 3,90 excl. VAT: € 3.28 / $ 3.83

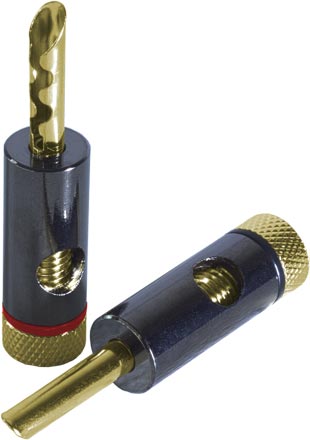

Banana plug BS31 for wire up to 30 mm²

Price per pair (Order No. "str-bs31") EUR 3,90 excl. VAT: € 3.28 / $ 3.83

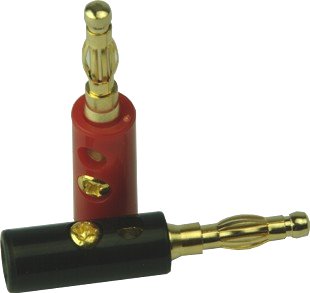

Gold plated banana plug for wire up to 6 mm²

Gold plated banana plug for wire up to 6 mm². To open up the plug the two parts (split is roughly in the centre of the grip) need to be twisted anticlockwise. The wire is then inserted through the rear opening. To close the plug just twist the two parts clockwise.

The plug is 39 mm long and has a diameter of 10 mm.

Price per pair (Order No. "str-bs6") EUR 3,60 excl. VAT: € 3.03 / $ 3.54

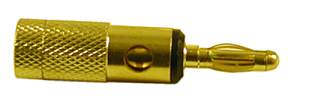

Gold plated banana plug BS10 for wire up to 10 mm²

Gold plated banana plug for wire up to 10 mm². To open up the plug the two parts (split is roughly in the centre of the grip) need to be twisted anticlockwise. The wire is then inserted through the visible opening on the side. To close the plug just twist the two parts clockwise. Also accepts rear-entry banana plugs for stacking.

The plug is 48 mm long and has a diameter of 10.6 mm.

Price per pair (Order No. "str-bs8") EUR 4,90 excl. VAT: € 4.12 / $ 4.82

Quality hint: Beryllium Copper gold plated Banana Tube LS4

The 4 mm, 24 ct gold plated Banana Tube shown on the left is one of the best connectors we know. The wire is attached by feeding it through the opening on the left of the connector and then soldered. Any banana socket accepts this connector. Also accepts rear-entry plugs of the same type or banana plugs for stacking.

One disadvantage, however, is that it may break by stepping on it.

Price for 1 pcs (Order No. "str-LS4") EUR 1,20 excl. VAT: € 1.01 / $ 1.18

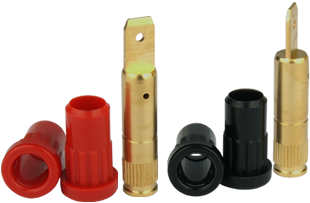

Insulating sleeves for the Banana Tube

The finished connector looks like in the picture on the right. What you need is the Banana Tube (pictured above) and the insulating sleeve (pictured left below). After the wire has been soldered to the Banana Tube, the insulating sleeve has to be pushed over the tube from the front and locked by folding down the lever.

Price per unit (Order No. "MC-222060-21") EUR 0,60 excl. VAT: € 0.50 / $ 0.59 black

Price per unit (Order No. "MC-222060-22") EUR 0,60 excl. VAT: € 0.50 / $ 0.59 red

Price per unit (Order No. "MC-222060-23") EUR 0,50 excl. VAT: € 0.42 / $ 0.49 blue

Price per unit (Order No. "MC-222060-24") EUR 0,50 excl. VAT: € 0.42 / $ 0.49 yellow

Price per unit (Order No. "MC-222060-25") EUR 0,50 excl. VAT: € 0.42 / $ 0.49 green

Price per unit (Order No. "MC-222060-29") EUR 0,50 excl. VAT: € 0.42 / $ 0.49 white

Ready made cables are also available for e.g. labs, schools with either 2 mm or 4 mm tube (like above) including holder.

For example ready made measuring cables in red, blue, white, black, yellow, green with highly flexible wire 1mm² and with 0.003 Ohm contact resistance

Price per unit (Order No. "MC-280055-025") EUR 5,20 excl. VAT: € 4.37 / $ 5.11 25 cm probe lead

Price per unit (Order No. "MC-280055-050") EUR 5,40 excl. VAT: € 4.54 / $ 5.31 50 cm probe lead

Price per unit (Order No. "MC-280055-075") EUR 5,70 excl. VAT: € 4.79 / $ 5.60 75 cm probe lead

Price per unit (Order No. "MC-280055-100") EUR 6,20 excl. VAT: € 5.21 / $ 6.10 100 cm probe lead

Price per unit (Order No. "MC-280055-150") EUR 6,70 excl. VAT: € 5.63 / $ 6.59 150 cm probe lead

Price per unit (Order No. "MC-280055-200") EUR 7,20 excl. VAT: € 6.05 / $ 7.08 200 cm probe lead

Female banana jacks / nuts

Price per set (Order No. "str-einban-r") EUR 3,19 excl. VAT: € 2.68 / $ 3.14 female banana jack, red (2 parts)

Price per set (Order No. "str-einban-s") EUR 3,19 excl. VAT: € 2.68 / $ 3.14 female banana jack, black (2 parts)

Price per set (Order No. "str-einban-p") EUR 6,39 excl. VAT: € 5.37 / $ 6.28 Set black and red (4 parts)

WBT Connectors

It's certainly debatable whether a lot of money should be spent on connectors, especially for connecting home-made speakers. Our high-end customers are definitely prepared to go for the best. WBT connectors in particular are very popular with this community. These connectors don't have much of a competition and are often used for high-end ready made cables.

To the WBT banana plugs.

For these we recommend high quality cables.

RCA Plugs C1

RCA Plugs Packs of 2, with red and black colour-coded rings

Technical Facts

Colour: chrom
Cable inlet: Ø 5-7mm
Strain relief: self-adjusting clamps

Price per pair (Order No. "str-cinch-1") EUR 3,30 excl. VAT: € 2.77 / $ 3.24
