Susa Sub   Subwoofer as in K+T 6/2022

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 93 dB
  • size (HxWxD): 600 x 430 x 490 mm
  • frequency range (-8dB): 35 - 300 Hz
  • crossover frequency(s): Hz
  • speaker type: bass reflex
Enlarge

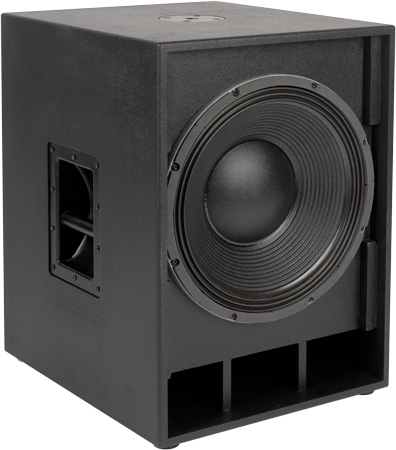

Susa Sub is a versatile subwoofer which complements the rest of the loudspeakers with a powerful and deep bass.

Susa Sub is a bass-reflex cabinet loudspeaker with drivers of Oberton .

The kit is delivered with a Oberton 15 XB 1201 subwoofer

The loudspeaker has been developed by Dennis Frank and Daniel Gattig.

The frequency response of this speaker is nearly linear.

The decay spectrum is nearly perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 5,9% above 40 Hz and doesn't exceed 6% at 95 dB at 1 m between 300 and 15000 Hz.

An excerpt from the Klang+Ton review (Translation of the author into English)

Conclusion of the magazine Klang+Ton:

Our kit consists of

  • Oberton 15 XB 1201, 8 Ohm
  • 2x st-BN202278
  • PE sealing tape, 5x2 mm, 7.5 m
  • 2x Neutrik Speakon NL4MPR, connector round, 4 pin
  • 1,5m Speaker cable 2x2.5 mm2 black/red
  • Pan screws 3.5x17 black, torx, 8 pieces
  • 2,5x Pan screws 4x20 black, torx, 8 pieces
  • Allen wood screws, black, 5x30 mm, 8 pieces
  • 4x Adam Hall 4907 rubber foot
  • Plan for DIY kit
