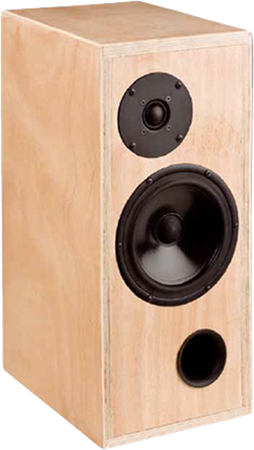

Vintage One   Shelf speaker as in K+T 1/2014

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 85 dB
  • size (HxWxD): 490 x 215 x 280 mm
  • frequency range (-8dB): 49 - 38000 Hz
  • crossover frequency(s): Hz
  • speaker type: closed box

Vintage one is a classic monitor with Seas speaker drivers. Thomas Schmidt used the Seas dome 27TFF (KT27F) known for many years and the Seas CA18RLY paper cone woofer.

The crossover is designed as third-order filter (18db/octave slope).

An excerpt from the Klang+Ton review

Our kit consists of

  • Seas 27TFF (KT27 F, H0831-06)
  • Seas CA18RLY (H1217-08)
  • Bass reflex tube HP50, 50x143mm, black
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 1,5x Damping Sonofil 100 x 35 cm for 20 litres
  • 0,5x Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x2.5 mm2, transparent
  • 1,5x Pan screws 4x20 black, cross recess, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Jantzen Cross Cap MKP capacitor 4.7 μF / 400V
  • Jantzen Cross Cap MKP capacitor 5.6 μF / 400V
  • Jantzen Cross Cap MKP capacitor 8.2 μF / 400V
  • Mundorf air core coil L140, 0.18 mH/0.11 Ohm
  • Mundorf air core coil L140, 2.2 mH/0.46 Ohm
  • 1.0 mm air core coil, 0.33 mH/0.26 Ohm
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 12 Ohm (brown-red-black)

Kit without cabinet, price per speaker   EUR 285,00 excl. VAT: € 239.50 / $ 277.82

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the fullrange driver are of type polypropylen Mundorf MKP 400 V.

Kit with high-end-crossover without cabinet, price per speaker   EUR 321,00 excl. VAT: € 269.75 / $ 312.91

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).


Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 13,10 excl. VAT: € 11.01 / $ 12.77

universal PCB

If you prefer to mount the crossover components on a 159 x 127 mm universal PCB instead on wood:
Universal PCB RA160, order no.. str-RA160, price per unit:   EUR 5,90 excl. VAT: € 4.96 / $ 5.75
We recommend two boards per kit (four boards for a speaker pair)
