ViTraL 100   Floorstanding as in Hobby Hifi 1/2025

Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 81 dB
  • size (HxWxD): 750 x 162 x 260 mm
  • frequency range (-8dB): 38 - 36000 Hz
  • crossover frequency(s): 3000 Hz
  • speaker type: transmission line

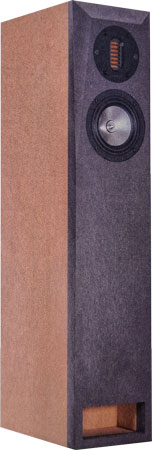

ViTraL 100 is a two way floorstanding speaker.

ViTraL 100 is a transmission-line loudspeaker with drivers of Mundorf and Visaton.

The kit is delivered with the following drivers:
- a Mundorf AMTU60W1.1-C air motion transformer (ribbon-tweeter)
- a Visaton TI 100 woofer

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 3rd order low-pass filter (18 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum is perfect.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 1% above 400 Hz.

An excerpt from the Hobby HiFi review

Conclusion of the magazine Hobby HiFi:

Our kit consists of

  • Mundorf AMTU60W1.1-C
  • Visaton TI 100, 8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Damping Sonofil 100 x 35 cm for 20 litres
  • 0,5x Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x1.5 mm2, transparent
  • Visaton Countersunk screws 3.5x25, 8 pcs
  • 0,5x Allen wood screws, black, 4x25 mm, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 0.68 μF / 400 Vdc
  • Audaphon MKP CAP Superior 2.7 μF / 400 Vdc
  • Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
  • Audaphon MKP CAP Superior 5.6 μF / 400 Vdc
  • Electrolytic capacitor, etched 390 μF / 63V
  • 1.0 mm air core coil, 0.68 mH/0.39 Ohm
  • 0.7 mm air core coil, 0.18 mH/0.36 Ohm
  • 0.7 mm air core coil, 0.39 mH/0.49 Ohm
  • 0.7 mm air core coil, 6.8 mH/2.68 Ohm
  • Audaphon M core coil M12, 2.2 mH/0.2 0hm
  • Metal-oxide resistor, 10W 1.5 Ohm (brown-green-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 5W 2.2 Ohm (red-red-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)

Kit without cabinet, price per speaker   EUR 572,00 excl. VAT: € 480.67 / $ 557.58

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Mundorf AMTU60W1.1-C are of type polypropylen (MKP) Mundorf MCAP EVO Öl 450 V.

  • Mundorf MCAP EVO Oil 0.68 μF / 450 V
  • Mundorf MCAP EVO Oil 2.7 μF / 450 V
  • Mundorf MCAP EVO Oil 5.6 μF / 450 V
  • Audaphon MKP CAP Superior 4.7 μF / 400 Vdc
  • Electrolytic capacitor, etched 390 μF / 63V
  • Mundorf Hepta Coil II45, 0.68 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.18 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.39 mH/0.51 Ohm
  • Mundorf baked varnish air core coil BL71, 6.8 mH/2.68 Ohm
  • Mundorf H core Hepta Coil LH45, 2,2 mH/0.21 Ohm
  • Metal-oxide resistor, 10W 1.5 Ohm (brown-green-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 5W 2.2 Ohm (red-red-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)

Kit with high-end-crossover without cabinet, price per speaker   EUR 666,00 excl. VAT: € 559.66 / $ 649.21

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • JB, electrolytic capacitor, bipolar advanced, 68μF / 50 Vdc
  • 0.7 mm air core coil, 0.10 mH/0.27 Ohm
  • ceramic resistor 6.8 Ohm/20 Watt

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 9,50 excl. VAT: € 7.98 / $ 9.26

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit:   EUR 8,60 excl. VAT: € 7.23 / $ 8.38
We recommend one board per kit (two boards for a speaker pair)
