recommended cabinet 1: closed cabinet with 2,7 L volume from 109/69 Hz (-3dB/-8dB) recommended cabinet 2: 10,9 L volume bass reflex cabinet with HP50 reflex tube, 12 cm long. from 51/43 Hz (-3dB/-8dB).	W100S 4 Ohm order no. V-9020 EUR 24,35 11 cm bass driver with high quality cone. power handling (continuous/programme) = 30/50 W frequency range = 70-15000 Hz resonance frequency fs = 66 Hz impedance R = 8 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 3,3 Ohm force factor BL = 3,1 N/A voice coil inductance L = 0,5 mH effective piston radiating area Sd = 53 cm² effective mechanical mass incl. air load mms = 4,2 g equivalent volume of compliance Vas = 5,5 l total Q factor Qts = 0,49 (Qms=2,45, Qes=0,61) voice coil diameter = 20 mm mounting diameter d = 94 mm overall diameter d = 122 mm mounting depth (not countersunk) t = 54 mm
show kits to this chassis hide kits
	W100S 8 Ohm order no. V-9021 EUR 25,90 11 cm bass driver with high quality cone. power handling (continuous/programme) = 30/50 W frequency range = 70-15000 Hz resonance frequency fs = 64 Hz impedance R = 8 Ohm sound pressure level SPL = 86 dB (2,83V; 1m) DC resistance Re = 6,6 Ohm force factor BL = 3,9 N/A voice coil inductance L = 0,9 mH effective piston radiating area Sd = 53 cm² effective mechanical mass incl. air load mms = 4,5 g equivalent volume of compliance Vas = 5,5 l total Q factor Qts = 0,63 (Qms=3,17, Qes=0,78) voice coil diameter = 20 mm mounting diameter d = 94 mm overall diameter d = 122 mm mounting depth (not countersunk) t = 54 mm
show kits to this chassis hide kits
recommended cabinet 1: closed cabinet with 1,7 L volume from 131/83 Hz (-3dB/-8dB) recommended cabinet 2: 6 L volume bass reflex cabinet with HP50 reflex tube, 17 cm long. from 66/53 Hz (-3dB/-8dB).	TI100 order no. V-1271 EUR 142,00 11 cm bass driver with high quality cone. power handling (continuous/programme) = 40/60 W frequency range = 70-20000 Hz resonance frequency fs = 62 Hz impedance R = 8 Ohm sound pressure level SPL = 86 dB (2,83V; 1m) DC resistance Re = 6 Ohm force factor BL = 4,8 N/A voice coil inductance L = 0,7 mH effective piston radiating area Sd = 54 cm² effective mechanical mass incl. air load mms = 4 g equivalent volume of compliance Vas = 6,92 l total Q factor Qts = 0,38 (Qms=7,05, Qes=0,4) voice coil diameter = 20 mm mounting diameter d = 100 mm overall diameter d = 122 mm mounting depth (not countersunk) t = 72 mm
show kits to this chassis hide kits
recommended cabinet 1: closed cabinet with 3,9 L volume from 104/65 Hz (-3dB/-8dB) recommended cabinet 2: 13,9 L volume bass reflex cabinet with HP50 reflex tube, 11 cm long. from 52/42 Hz (-3dB/-8dB).	W130S 4 Ohm order no. V-9022 EUR 25,55 13 cm bass driver with high quality cone. power handling (continuous/programme) = 50/80 W frequency range = 55-12000 Hz resonance frequency fs = 49 Hz impedance R = 4 Ohm sound pressure level SPL = 90 dB (2,83V; 1m) DC resistance Re = 3,7 Ohm force factor BL = 3,6 N/A voice coil inductance L = 0,55 mH effective piston radiating area Sd = 79 cm² effective mechanical mass incl. air load mms = 5,4 g equivalent volume of compliance Vas = 16 l total Q factor Qts = 0,37 (Qms=2,58, Qes=0,43) voice coil diameter = 25 mm mounting diameter d = 108 mm overall diameter d = 146 mm mounting depth (not countersunk) t = 54 mm
show kits to this chassis hide kits
recommended cabinet 1: closed cabinet with 3,6 L volume from 106/67 Hz (-3dB/-8dB) recommended cabinet 2: 12,8 L volume bass reflex cabinet with HP50 reflex tube, 11 cm long. from 54/43 Hz (-3dB/-8dB).	W130S 8 Ohm order no. V-9023 EUR 27,90 13 cm bass driver with high quality cone. power handling (continuous/programme) = 50/80 W frequency range = 55-12000 Hz resonance frequency fs = 49 Hz impedance R = 8 Ohm sound pressure level SPL = 87 dB (2,83V; 1m) DC resistance Re = 3,7 Ohm force factor BL = 3,6 N/A voice coil inductance L = 0,55 mH effective piston radiating area Sd = 79 cm² effective mechanical mass incl. air load mms = 6,2 g equivalent volume of compliance Vas = 16 l total Q factor Qts = 0,37 (Qms=2,58, Qes=0,43) voice coil diameter = 25 mm mounting diameter d = 108 mm overall diameter d = 146 mm mounting depth (not countersunk) t = 54 mm
show kits to this chassis hide kits
recommended cabinet 1: closed cabinet with 3,5 L volume from 87/55 Hz (-3dB/-8dB) recommended cabinet 2: 12,4 L volume bass reflex cabinet with HP50 reflex tube, 19 cm long. from 44/35 Hz (-3dB/-8dB).	AL130 8 Ohm order no. V-1301 EUR 89,00 14 cm bass driver with high quality cone. power handling (continuous/programme) = 60/90 W frequency range = 50-8000 Hz resonance frequency fs = 40 Hz impedance R = 8 Ohm sound pressure level SPL = 87 dB (2,83V; 1m) DC resistance Re = 5,6 Ohm force factor BL = 5,64 N/A voice coil inductance L = 0,85 mH effective piston radiating area Sd = 78,5 cm² effective mechanical mass incl. air load mms = 8,8 g equivalent volume of compliance Vas = 15,6 l total Q factor Qts = 0,36 (Qms=5,19, Qes=0,39) voice coil diameter = 25 mm mounting diameter d = 114 mm overall diameter d = 153 mm mounting depth (not countersunk) t = 58 mm
show kits to this chassis hide kits

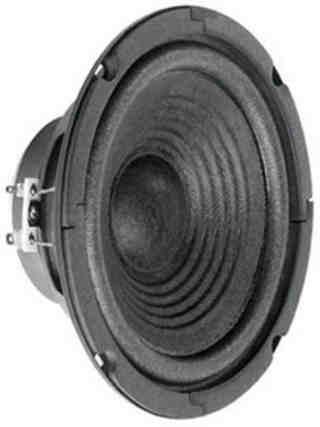

open a bigger photo	W170 8 Ohm order no. V-9063 EUR 16,80 16 cm bass driver with high quality cone. power handling (continuous/programme) = 40/70 W frequency range = -6000 Hz resonance frequency fs = 57 Hz impedance R = 8 Ohm sound pressure level SPL = 87 dB (2,83V; 1m) DC resistance Re = 7,2 Ohm force factor BL = 5,0 N/A voice coil inductance L = 0,9 mH effective piston radiating area Sd = 137 cm² effective mechanical mass incl. air load mms = 8,7 g equivalent volume of compliance Vas = 24 l total Q factor Qts = 0,69 (Qms=2,92, Qes=0,9) voice coil diameter = 25 mm mounting diameter d = 146 mm overall diameter d = 170 mm mounting depth (not countersunk) t = 73 mm mass m = 0,77 kg
show kits to this chassis hide kits

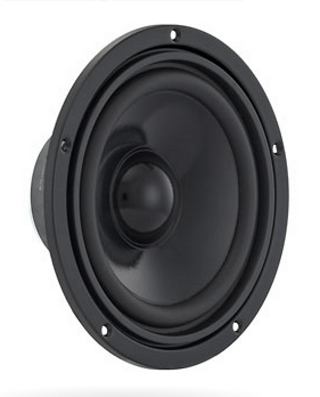

open a bigger photo recommended cabinet 1: closed cabinet with 12,7 L volume from 67/43 Hz (-3dB/-8dB) recommended cabinet 2: 49 L volume bass reflex cabinet with HP70 reflex tube, 13 cm long. from 33/27 Hz (-3dB/-8dB).	W170S 4 Ohm order no. V-9024 EUR 32,45 17 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 50/80 W frequency range = -8000 Hz resonance frequency fs = 36 Hz impedance R = 4 Ohm sound pressure level SPL = 89 dB (2,83V; 1m) DC resistance Re = 3,2 Ohm force factor BL = 4,4 N/A voice coil inductance L = 0,6 mH effective piston radiating area Sd = 129 cm² effective mechanical mass incl. air load mms = 12 g equivalent volume of compliance Vas = 38 l total Q factor Qts = 0,41 (Qms=2,16, Qes=0,51) voice coil diameter = 25 mm mounting diameter d = 148 mm overall diameter d = 187 mm mounting depth (not countersunk) t = 81 mm mass m = 1,1 kg
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 22 L volume from 56/35 Hz (-3dB/-8dB) recommended cabinet 2: 92 L volume bass reflex cabinet with HP70 reflex tube, 9 cm long. from 26/22 Hz (-3dB/-8dB).	W170S 8 Ohm order no. V-9025 EUR 32,45 17 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 50/80 W frequency range = -8000 Hz resonance frequency fs = 36 Hz impedance R = 8 Ohm sound pressure level SPL = 86 dB (2,83V; 1m) DC resistance Re = 5,9 Ohm force factor BL = 5,4 N/A voice coil inductance L = 1,2 mH effective piston radiating area Sd = 129 cm² effective mechanical mass incl. air load mms = 13 g equivalent volume of compliance Vas = 38 l total Q factor Qts = 0,52 (Qms=2,43, Qes=0,66) voice coil diameter = 25 mm mounting diameter d = 148 mm overall diameter d = 187 mm mounting depth (not countersunk) t = 81 mm mass m = 1,1 kg
show kits to this chassis hide kits

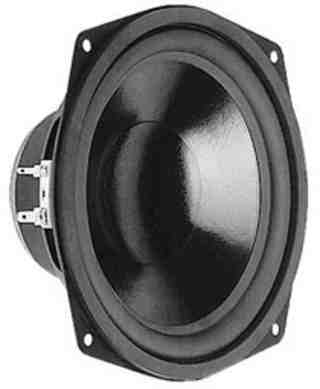

open a bigger photo	WS17E 4 Ohm order no. V-1054 EUR 20,75 17 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 60/90 W frequency range = -7000 Hz resonance frequency fs = 45 Hz impedance R = 4 Ohm sound pressure level SPL = 91 dB (2,83V; 1m) DC resistance Re = 3,2 Ohm force factor BL = 3,9 N/A voice coil inductance L = 0,6 mH effective piston radiating area Sd = 143 cm² effective mechanical mass incl. air load mms = 16 g equivalent volume of compliance Vas = 22 l total Q factor Qts = 0,65 (Qms=2,35, Qes=0,9) voice coil diameter = 25 mm mounting diameter d = 150 mm overall diameter d = 188 mm mounting depth (not countersunk) t = 79 mm mass m = 0,97 kg
show kits to this chassis hide kits
open a bigger photo	WS17E 8 Ohm order no. V-1055 EUR 23,00 17 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 60/90 W frequency range = -7000 Hz resonance frequency fs = 45 Hz impedance R = 8 Ohm sound pressure level SPL = 88 dB (2,83V; 1m) DC resistance Re = 5,8 Ohm force factor BL = 3,9 N/A voice coil inductance L = 0,9 mH effective piston radiating area Sd = 143 cm² effective mechanical mass incl. air load mms = 16 g equivalent volume of compliance Vas = 22 l total Q factor Qts = 0,81 (Qms=2,2, Qes=1,28) voice coil diameter = 25 mm mounting diameter d = 150 mm overall diameter d = 188 mm mounting depth (not countersunk) t = 79 mm mass m = 0,97 kg
show kits to this chassis hide kits

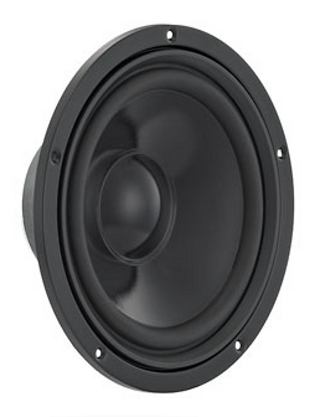

open a bigger photo recommended cabinet 1: closed cabinet with 13,7 L volume from 65/41 Hz (-3dB/-8dB) recommended cabinet 2: 47 L volume bass reflex cabinet with HP70 reflex tube, 16 cm long. from 33/26 Hz (-3dB/-8dB).	W200S 4 Ohm order no. V-9029 EUR 47,25 21 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 75/115 W frequency range = -6000 Hz resonance frequency fs = 29 Hz impedance R = 4 Ohm sound pressure level SPL = 91 dB (2,83V; 1m) DC resistance Re = 3,4 Ohm force factor BL = 7,7 N/A voice coil inductance L = 1,5 mH effective piston radiating area Sd = 214 cm² effective mechanical mass incl. air load mms = 28 g equivalent volume of compliance Vas = 65 l total Q factor Qts = 0,35 (Qms=3,99, Qes=0,38) voice coil diameter = 35 mm mounting diameter d = 184 mm overall diameter d = 232 mm mounting depth (not countersunk) t = 95 mm mass m = 1,5 kg
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 12 L volume from 73/46 Hz (-3dB/-8dB) recommended cabinet 2: 39 L volume bass reflex cabinet with HP70 reflex tube, 15 cm long. from 39/30 Hz (-3dB/-8dB).	W200S 8 Ohm order no. V-9030 EUR 49,90 21 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 75/115 W frequency range = -6000 Hz resonance frequency fs = 30 Hz impedance R = 8 Ohm sound pressure level SPL = 88 dB (2,83V; 1m) DC resistance Re = 6,0 Ohm force factor BL = 9,0 N/A voice coil inductance L = 2,2 mH effective piston radiating area Sd = 214 cm² effective mechanical mass incl. air load mms = 26 g equivalent volume of compliance Vas = 70 l total Q factor Qts = 0,33 (Qms=3,59, Qes=0,36) voice coil diameter = 35 mm mounting diameter d = 184 mm overall diameter d = 232 mm mounting depth (not countersunk) t = 95 mm mass m = 1,5 kg
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 28 L volume from 75/47 Hz (-3dB/-8dB) recommended cabinet 2: 116 L volume bass reflex cabinet with HP70 reflex tube, 1 cm long. from 34/29 Hz (-3dB/-8dB).	W200 4 Ohm order no. V-9064 EUR 23,85 19 cm bass driver with high quality cone. power handling (continuous/programme) = 50/80 W frequency range = -8000 Hz resonance frequency fs = 49 Hz impedance R = 4 Ohm sound pressure level SPL = 91 dB (2,83V; 1m) DC resistance Re = 3,2 Ohm force factor BL = 4,0 N/A voice coil inductance L = 0,5 mH effective piston radiating area Sd = 207 cm² effective mechanical mass incl. air load mms = 14 g equivalent volume of compliance Vas = 45 l total Q factor Qts = 0,51 (Qms=2,81, Qes=0,62) voice coil diameter = 25 mm mounting diameter d = 185 mm overall diameter d = 206 mm mounting depth (not countersunk) t = 87 mm mass m = 1045 kg
show kits to this chassis hide kits

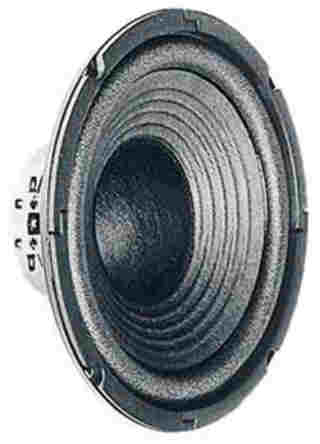

open a bigger photo	W200 8 Ohm order no. V-9065 EUR 23,85 19 cm bass driver with high quality cone. power handling (continuous/programme) = 80/80 W frequency range = -8000 Hz resonance frequency fs = 46 Hz impedance R = 8 Ohm sound pressure level SPL = 88 dB (2,83V; 1m) DC resistance Re = 6,8 Ohm force factor BL = 5,6 N/A voice coil inductance L = 0,9 mH effective piston radiating area Sd = 207 cm² effective mechanical mass incl. air load mms = 14 g equivalent volume of compliance Vas = 51 l total Q factor Qts = 0,62 (Qms=2,82, Qes=0,80) voice coil diameter = 25 mm mounting diameter d = 185 mm overall diameter d = 206 mm mounting depth (not countersunk) t = 87 mm mass m = 1045 kg
show kits to this chassis hide kits
open a bigger photo	WS20E 4 Ohm order no. V-1057 EUR 25,15 21 cm bass driver with polyethylene cone. power handling (continuous/programme) = 80/120 W frequency range = -7000 Hz resonance frequency fs = 47 Hz impedance R = 4 Ohm sound pressure level SPL = 91 dB (2,83V; 1m) DC resistance Re = 3,3 Ohm force factor BL = 4,5 N/A voice coil inductance L = 0,7 mH effective piston radiating area Sd = 240 cm² effective mechanical mass incl. air load mms = 23 g equivalent volume of compliance Vas = 39 l total Q factor Qts = 1,14 (Qms=5,56, Qes=1,44) voice coil diameter = 30 mm mounting diameter d = 186 mm overall diameter d = 236 mm mounting depth (not countersunk) t = 85,9 mm mass m = 1,3 kg
show kits to this chassis hide kits

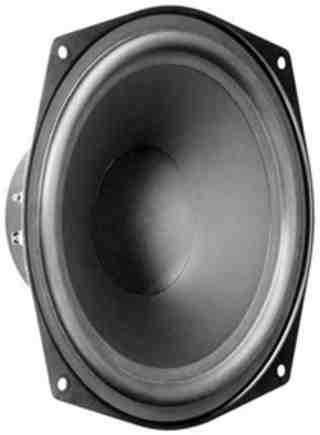

open a bigger photo	WS20E 8 Ohm order no. V-1056 EUR 25,15 21 cm bass driver with polypropylene cone. power handling (continuous/programme) = 80/120 W frequency range = -7000 Hz resonance frequency fs = 47 Hz impedance R = 8 Ohm sound pressure level SPL = 88 dB (2,83V; 1m) DC resistance Re = 6,8 Ohm force factor BL = 5,5 N/A voice coil inductance L = 1,0 mH effective piston radiating area Sd = 240 cm² effective mechanical mass incl. air load mms = 21 g equivalent volume of compliance Vas = 44 l total Q factor Qts = 1,23 (Qms=5,36, Qes=1,59) voice coil diameter = 30 mm mounting diameter d = 186 mm overall diameter d = 236 mm mounting depth (not countersunk) t = 85,9 mm mass m = 1,3 kg
show kits to this chassis hide kits
recommended cabinet 1: closed cabinet with 12,3 L volume from 80/50 Hz (-3dB/-8dB) recommended cabinet 2: 38 L volume bass reflex cabinet with HP100 reflex tube, 30 cm long. from 43/33 Hz (-3dB/-8dB).	AL 200 8 Ohm order no. V-1281 EUR 139,00 21 cm bass driver with high quality cone. power handling (continuous/programme) = 120/180 W frequency range = 40-9000 Hz resonance frequency fs = 32 Hz impedance R = 8 Ohm sound pressure level SPL = 88 dB (2,83V; 1m) DC resistance Re = 6,7 Ohm force factor BL = 8,82 N/A voice coil inductance L = 1,2 mH effective piston radiating area Sd = 216 cm² effective mechanical mass incl. air load mms = 21 g equivalent volume of compliance Vas = 77 l total Q factor Qts = 0,32 (Qms=3,92, Qes=0,35) voice coil diameter = 38 mm mounting diameter d = 189 mm overall diameter d = 222 mm mounting depth (not countersunk) t = 90 mm
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 21 L volume from 53/33 Hz (-3dB/-8dB) recommended cabinet 2: 83 L volume bass reflex cabinet with HP100 reflex tube, 31 cm long. from 25/21 Hz (-3dB/-8dB).	TIW200XS order no. V-1340 EUR 126,00 21 cm bass driver with sandwich cone. The basket is made of die-cast. The voice coil is ventilated. power handling (continuous/programme) = 120/180 W frequency range = -7500 Hz resonance frequency fs = 30 Hz impedance R = 8 Ohm sound pressure level SPL = 84 dB (2,83V; 1m) DC resistance Re = 6,0 Ohm force factor BL = 8,51 N/A voice coil inductance L = 1,6 mH effective piston radiating area Sd = 206 cm² effective mechanical mass incl. air load mms = 33 g equivalent volume of compliance Vas = 51,5 l total Q factor Qts = 0,46 (Qms=5,19, Qes=0,5) voice coil diameter = 38 mm mounting diameter d = 190 mm overall diameter d = 222 mm mounting depth (not countersunk) t = 112 mm mass m = 3,5 kg
show kits to this chassis hide kits

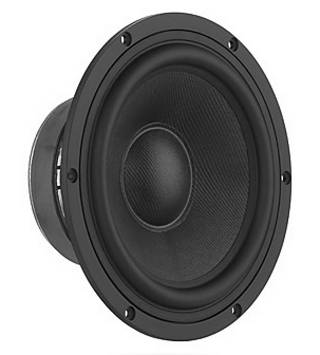

open a bigger photo	GF200 (one coil) order no. V-1330 EUR 114,00 21 cm bass driver with high quality cone. The basket is made of die-cast. The spider is rear ventilated for better cooling. power handling (continuous/programme) = 120/180 W frequency range = -8000 Hz resonance frequency fs = 34 Hz impedance R = 4 Ohm sound pressure level SPL = 85 dB (2,83V; 1m) DC resistance Re = 2,9 Ohm force factor BL = 4,6 N/A voice coil inductance L = 0,4 mH effective piston radiating area Sd = 214 cm² effective mechanical mass incl. air load mms = 25 g equivalent volume of compliance Vas = 62 l total Q factor Qts = 0,77 (Qms=4,51, Qes=0,93) voice coil diameter = 38 mm mounting diameter d = 190 mm overall diameter d = 222 mm mounting depth (not countersunk) t = 96 mm mass m = 2,5 kg
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 12,5 L volume from 71/45 Hz (-3dB/-8dB) recommended cabinet 2: 41 L volume bass reflex cabinet with HP70 reflex tube, 15 cm long. from 37/29 Hz (-3dB/-8dB).	GF200 order no. V-1330 EUR 114,00 21 cm bass driver with high quality cone. The basket is made of die-cast. The spider is rear ventilated for better cooling. power handling (continuous/programme) = 120/180 W frequency range = -8000 Hz resonance frequency fs = 30 Hz impedance R = 8 Ohm sound pressure level SPL = 88 dB (2,83V; 1m) DC resistance Re = 5,8 Ohm force factor BL = 9,2 N/A voice coil inductance L = 1,1 mH effective piston radiating area Sd = 214 cm² effective mechanical mass incl. air load mms = 25 g equivalent volume of compliance Vas = 68 l total Q factor Qts = 0,34 (Qms=4,12, Qes=0,37) voice coil diameter = 38 mm mounting diameter d = 190 mm overall diameter d = 222 mm mounting depth (not countersunk) t = 96 mm mass m = 2,5 kg
show kits to this chassis hide kits

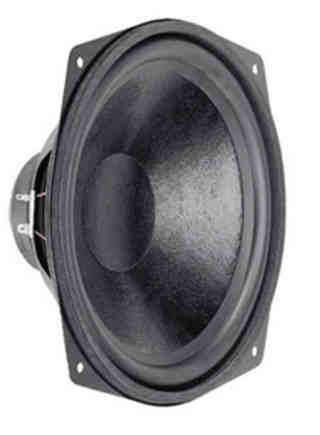

open a bigger photo	WS25E order no. V-1061 EUR 35,20 26 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 80/110 W frequency range = -6000 Hz resonance frequency fs = 34 Hz impedance R = 8 Ohm sound pressure level SPL = 88 dB (2,83V; 1m) DC resistance Re = 5,9 Ohm force factor BL = 3,8 N/A voice coil inductance L = 0,8 mH effective piston radiating area Sd = 346 cm² effective mechanical mass incl. air load mms = 33 g equivalent volume of compliance Vas = 113 l total Q factor Qts = 1,43 (Qms=2,82, Qes=2,92) voice coil diameter = 25 mm mounting diameter d = 225 mm overall diameter d = 283 mm mounting depth (not countersunk) t = 107 mm mass m = 1,25 kg
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 30 L volume from 72/45 Hz (-3dB/-8dB) recommended cabinet 2: 108 L volume bass reflex cabinet with HP100 reflex tube, 9 cm long. from 37/29 Hz (-3dB/-8dB).	W250S 4 Ohm order no. V-9034 EUR 68,90 26 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 100/150 W frequency range = -5500 Hz resonance frequency fs = 33 Hz impedance R = 4 Ohm sound pressure level SPL = 93 dB (2,83V; 1m) DC resistance Re = 3,6 Ohm force factor BL = 8,94 N/A voice coil inductance L = 0,93 mH effective piston radiating area Sd = 346 cm² effective mechanical mass incl. air load mms = 32 g equivalent volume of compliance Vas = 135 l total Q factor Qts = 0,35 (Qms=2,01, Qes=0,43) voice coil diameter = 38 mm mounting diameter d = 233 mm overall diameter d = 283 mm mounting depth (not countersunk) t = 120 mm mass m = 3,0 kg
show kits to this chassis hide kits

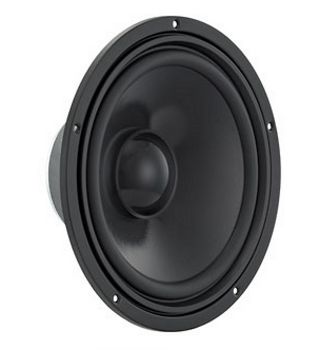

open a bigger photo recommended cabinet 1: closed cabinet with 19 L volume from 77/49 Hz (-3dB/-8dB) recommended cabinet 2: 60 L volume bass reflex cabinet with HP100 reflex tube, 18 cm long. from 42/32 Hz (-3dB/-8dB).	W250S 8 Ohm order no. V-9035 EUR 68,90 26 cm bass driver with paper cone. The diaphragm is varnished with a hydrophabic coat. power handling (continuous/programme) = 100/150 W frequency range = -5500 Hz resonance frequency fs = 31 Hz impedance R = 8 Ohm sound pressure level SPL = 90 dB (2,83V; 1m) DC resistance Re = 6,6 Ohm force factor BL = 9,2 N/A voice coil inductance L = 1,5 mH effective piston radiating area Sd = 345 cm² effective mechanical mass incl. air load mms = 38 g equivalent volume of compliance Vas = 121 l total Q factor Qts = 0,32 (Qms=1,88, Qes=0,39) voice coil diameter = 38 mm mounting diameter d = 233 mm overall diameter d = 283 mm mounting depth (not countersunk) t = 120 mm mass m = 3,0 kg
show kits to this chassis hide kits

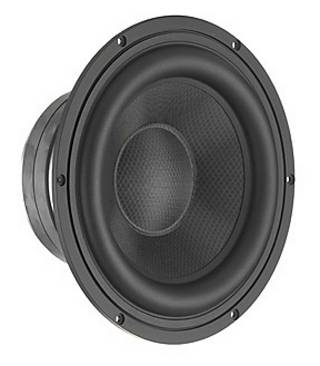

open a bigger photo recommended cabinet 1: closed cabinet with 11,3 L volume from 80/50 Hz (-3dB/-8dB) recommended cabinet 2: 36 L volume bass reflex cabinet with HP100 reflex tube, 31 cm long. from 43/33 Hz (-3dB/-8dB).	TIW250XS 8 Ohm order no. V-1342 EUR 215,00 25 cm bass driver with sandwich cone. power handling (continuous/programme) = 200/300 W frequency range = -3000 Hz resonance frequency fs = 33 Hz impedance R = 8 Ohm sound pressure level SPL = 89 dB (2,83V; 1m) DC resistance Re = 5,6 Ohm force factor BL = 13 N/A voice coil inductance L = 1,7 mH effective piston radiating area Sd = 314 cm² effective mechanical mass incl. air load mms = 49 g equivalent volume of compliance Vas = 66 l total Q factor Qts = 0,33 (Qms=5,21, Qes=0,35) voice coil diameter = 50 mm mounting diameter d = 235 mm overall diameter d = 264 mm mounting depth (not countersunk) t = 121,2 mm mass m = 5,3 kg
show kits to this chassis hide kits

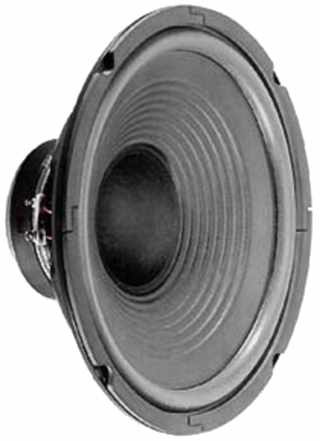

open a bigger photo	W250 order no. V-9067 EUR 39,55 24 cm bass driver with high quality cone. power handling (continuous/programme) = 90/130 W frequency range = -6000 Hz resonance frequency fs = 37 Hz impedance R = 8 Ohm sound pressure level SPL = 90 dB (2,83V; 1m) DC resistance Re = 6,8 Ohm force factor BL = 6,4 N/A voice coil inductance L = 1,1 mH effective piston radiating area Sd = 360 cm² effective mechanical mass incl. air load mms = 27 g equivalent volume of compliance Vas = 135 l total Q factor Qts = 0,78 (Qms=3,57, Qes=1,0) voice coil diameter = 35 mm mounting diameter d = 236 mm overall diameter d = 255 mm mounting depth (not countersunk) t = 110 mm mass m = 1,5 kg
show kits to this chassis hide kits

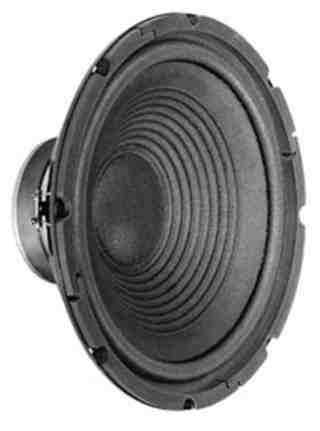

open a bigger photo recommended cabinet 1: closed cabinet with 146 L volume from 46/29 Hz (-3dB/-8dB) recommended cabinet 2: 585 L volume bass reflex cabinet with 2x HP100 reflex tube, 3 cm long. from 21/18 Hz (-3dB/-8dB).	W300 8 Ohm order no. V-9069 EUR 66,90 29 cm bass driver with high quality cone. power handling (continuous/programme) = 120/180 W frequency range = -2500 Hz resonance frequency fs = 32 Hz impedance R = 8 Ohm sound pressure level SPL = 91 dB (2,83V; 1m) DC resistance Re = 6,9 Ohm force factor BL = 9,44 N/A voice coil inductance L = 1,77 mH effective piston radiating area Sd = 490 cm² effective mechanical mass incl. air load mms = 43 g equivalent volume of compliance Vas = 190 l total Q factor Qts = 0,55 (Qms=2,85, Qes=0,68) voice coil diameter = 50 mm mounting diameter d = 280 mm overall diameter d = 305 mm mounting depth (not countersunk) t = 132 mm mass m = 2,8 kg
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 30 L volume from 70/44 Hz (-3dB/-8dB) recommended cabinet 2: 77 L volume bass reflex cabinet with 2x HP100 reflex tube, 36 cm long. from 41/31 Hz (-3dB/-8dB).	W300S 4 Ohm order no. V-9040 EUR 112,00 31 cm bass driver with high quality cone. power handling (continuous/programme) = 150/200 W frequency range = -4200 Hz resonance frequency fs = 23 Hz impedance R = 4 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 3,5 Ohm force factor BL = 8,4 N/A voice coil inductance L = 1,1 mH effective piston radiating area Sd = 507 cm² effective mechanical mass incl. air load mms = 62 g equivalent volume of compliance Vas = 300 l total Q factor Qts = 0,25 (Qms=1,6, Qes=0,3) voice coil diameter = 50 mm mounting diameter d = 280 mm overall diameter d = 332 mm mounting depth (not countersunk) t = 144 mm mass m = 4,5 kg
show kits to this chassis hide kits
open a bigger photo recommended cabinet 1: closed cabinet with 58 L volume from 56/35 Hz (-3dB/-8dB) recommended cabinet 2: 187 L volume bass reflex cabinet with 2x HP100 reflex tube, 19 cm long. from 30/23 Hz (-3dB/-8dB).	W300S 8 Ohm order no. V-9041 EUR 112,00 31 cm bass driver with high quality cone. power handling (continuous/programme) = 150/200 W frequency range = -4200 Hz resonance frequency fs = 23 Hz impedance R = 8 Ohm sound pressure level SPL = 92 dB (2,83V; 1m) DC resistance Re = 6,7 Ohm force factor BL = 11 N/A voice coil inductance L = 1,8 mH effective piston radiating area Sd = 507 cm² effective mechanical mass incl. air load mms = 57 g equivalent volume of compliance Vas = 340 l total Q factor Qts = 0,33 (Qms=1,65, Qes=0,42) voice coil diameter = 50 mm mounting diameter d = 280 mm overall diameter d = 332 mm mounting depth (not countersunk) t = 144 mm mass m = 4,5 kg
show kits to this chassis hide kits

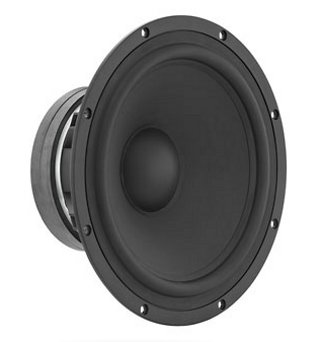

open a bigger photo recommended cabinet 1: closed cabinet with 19 L volume from 71/45 Hz (-3dB/-8dB) recommended cabinet 2: 52 L volume bass reflex cabinet with HP100 reflex tube, 28 cm long. from 40/31 Hz (-3dB/-8dB).	TIW300 8 Ohm order no. V-1364 EUR 289,00 31 cm bass driver with high quality cone. The voice coil is ventilated. power handling (continuous/programme) = 300/600 W frequency range = -4000 Hz resonance frequency fs = 25 Hz impedance R = 8 Ohm sound pressure level SPL = 90 dB (2,83V; 1m) DC resistance Re = 5,4 Ohm force factor BL = 16,5 N/A voice coil inductance L = 1,7 mH effective piston radiating area Sd = 510 cm² effective mechanical mass incl. air load mms = 92 g equivalent volume of compliance Vas = 160 l total Q factor Qts = 0,28 (Qms=4,59, Qes=0,30) voice coil diameter = 65 mm mounting diameter d = 288 mm overall diameter d = 329 mm mounting depth (not countersunk) t = 149 mm mass m = 7,0 kg
show kits to this chassis hide kits
recommended cabinet 1: closed cabinet with 36 L volume from 101/64 Hz (-3dB/-8dB) recommended cabinet 2: 106 L volume bass reflex cabinet with 2x HP100 reflex tube, 6 cm long. from 56/43 Hz (-3dB/-8dB).	BGS 40 8 Ohm order no. V-3040 EUR 147,00 38 cm bass driver with high quality cone. power handling (continuous/programme) = 300/700 W frequency range = 40-4000 Hz resonance frequency fs = 38 Hz impedance R = 8 Ohm sound pressure level SPL = 98 dB (2,83V; 1m) DC resistance Re = 6,5 Ohm force factor BL = 16,8 N/A voice coil inductance L = 1,55 mH effective piston radiating area Sd = 855 cm² effective mechanical mass incl. air load mms = 80 g equivalent volume of compliance Vas = 263 l total Q factor Qts = 0,31 (Qms=1,3, Qes=0,4) voice coil diameter = 65 mm mounting diameter d = 359 mm overall diameter d = 403 mm mounting depth (not countersunk) t = 147 mm
show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
