Mundorf offers a wide range of high-quality Air-Motion-Transformers (AMT).

To our building proposals with Mundorf drivers.

Air Motion Transformer_Concert

open a bigger photo

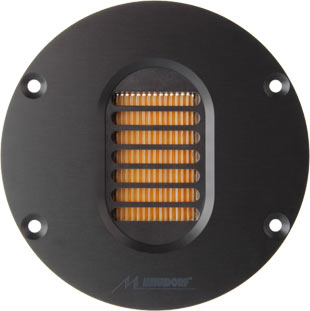

Mundorf AMT 19CM1.1-C

order no. M-amt19cm11-c

EUR 429,00 excl. VAT: € 360.50 / $ 421.79

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 120 W
frequency range = 1500-38000 Hz
resonance frequency fs = 2300 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 8,1 Ohm
effective piston radiating area Sd = 126 cm²
overall diameter d = 104 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

Mundorf AMT 21CM2.1-C

order no. M-amt21cm21-c

EUR 499,00 excl. VAT: € 419.33 / $ 490.61

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 125 W
frequency range = 1200-35000 Hz
resonance frequency fs = 2300 Hz
impedance R = 4 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 4,4 Ohm
effective piston radiating area Sd = 126 cm²
overall diameter d = 104 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

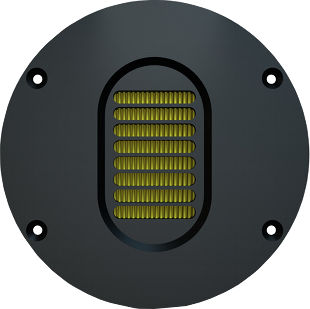

Mundorf AMT 23CM1.1-C

order no. M-amt23cm11-c

EUR 599,00 excl. VAT: € 503.36 / $ 588.93

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 125 W
frequency range = 950-35000 Hz
resonance frequency fs = 1700 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 6,9 Ohm
effective piston radiating area Sd = 175,5 cm²
overall diameter d = 130 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

Mundorf AMT 23CM1.1-R

order no. M-amt23cm11-r

EUR 599,00 excl. VAT: € 503.36 / $ 588.93

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 125 W
frequency range = 950-35000 Hz
resonance frequency fs = 1700 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 6,9 Ohm
effective piston radiating area Sd = 175,5 cm²
overall diameter d = 100x100 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

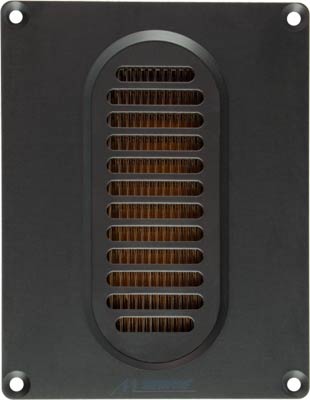

Mundorf AMT 25CM1.1-R

order no. M-amt25cm11-r

EUR 629,00 excl. VAT: € 528.57 / $ 618.43

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 210 W
frequency range = 900-35000 Hz
resonance frequency fs = 1400 Hz
impedance R = 8 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 7,3 Ohm
effective piston radiating area Sd = 646,4 cm²
overall diameter d = 100x130 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

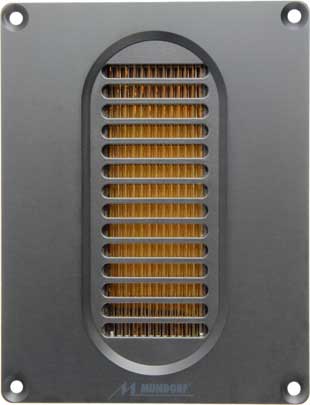

Mundorf AMT 25CS2.1-R

order no. M-amt25cs21-r

EUR 629,00 excl. VAT: € 528.57 / $ 618.43

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 230 W
frequency range = 1000-32000 Hz
resonance frequency fs = 1100 Hz
impedance R = 8 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
DC resistance Re = 7,6 Ohm
effective piston radiating area Sd = 646,4 cm²
overall diameter d = 100x130 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

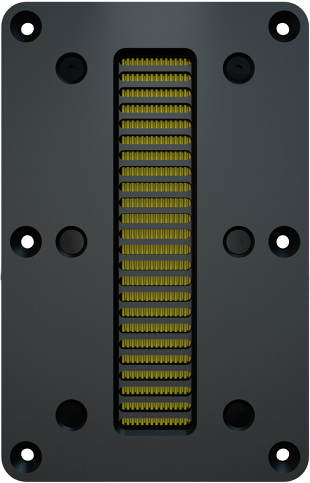

Mundorf AMT 29CM1.1-R

order no. M-amt29cm11-r

EUR 999,00 excl. VAT: € 839.50 / $ 982.21

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 250 W
frequency range = 1000-32000 Hz
resonance frequency fs = 1500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 100 dB (2,83V; 1m)
DC resistance Re = 8,5 Ohm
effective piston radiating area Sd = 651,5 cm²
overall diameter d = 125x195 mm

PDF data sheet

show kits to this chassis hide kits

Air Motion Transformer_U-Series

open a bigger photo

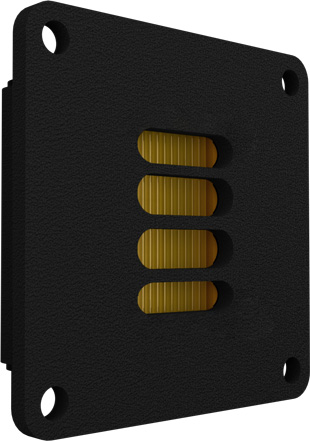

Mundorf AMT U40W1.2

order no. M-amt-u40

EUR 179,00 excl. VAT: € 150.42 / $ 175.99

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 10/80 W
frequency range = 3200-39000 Hz
resonance frequency fs = 3900 Hz
impedance R = 4 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 3,7 Ohm
effective piston radiating area Sd = 13,5 cm²
overall diameter d = 55x55 mm

PDF data sheet

show kits to this chassis hide kits

Mundorf AMT U40W1.2-C

order no. M-amt-u40-c

EUR 209,00 excl. VAT: € 175.63 / $ 205.49

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 10/80 W
frequency range = 3200-39000 Hz
resonance frequency fs = 3900 Hz
impedance R = 4 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 3,7 Ohm
effective piston radiating area Sd = 13,5 cm²
overall diameter d = 80 mm

show kits to this chassis hide kits

open a bigger photo

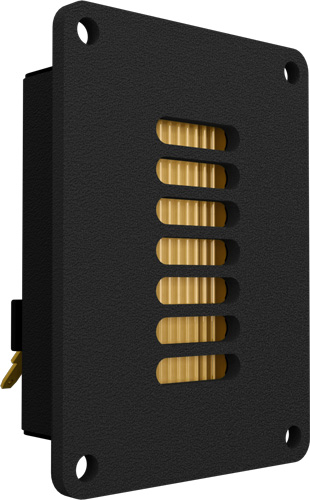

Mundorf AMT U60W1.1

order no. M-amt-u60

EUR 219,00 excl. VAT: € 184.03 / $ 215.32

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 10/70 W
frequency range = 2100-34000 Hz
resonance frequency fs = 2350 Hz
impedance R = 4 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 4 Ohm
effective piston radiating area Sd = 20,1 cm²
overall diameter d = 75x55 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

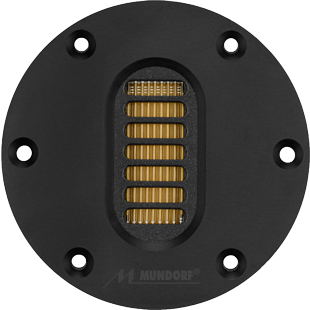

Mundorf AMT U60W1.1-C

order no. M-amt-u60-c

EUR 249,00 excl. VAT: € 209.24 / $ 244.82

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 10/70 W
frequency range = 2100-34000 Hz
resonance frequency fs = 2350 Hz
impedance R = 4 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 4 Ohm
effective piston radiating area Sd = 20,1 cm²
overall diameter d = 94 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

Mundorf AMT U80W1.1

order no. M-amt-u80

EUR 259,00 excl. VAT: € 217.65 / $ 254.65

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 15/90 W
frequency range = 1800-31000 Hz
resonance frequency fs = 2150 Hz
impedance R = 4 Ohm
sound pressure level SPL = 94 dB (2,83V; 1m)
DC resistance Re = 4,4 Ohm
effective piston radiating area Sd = 31,4 cm²
overall diameter d = 95x55 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

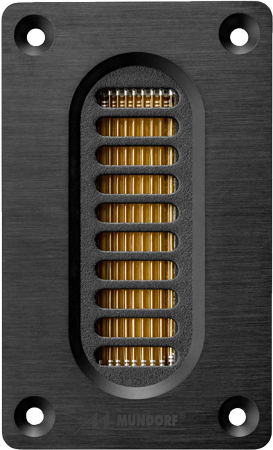

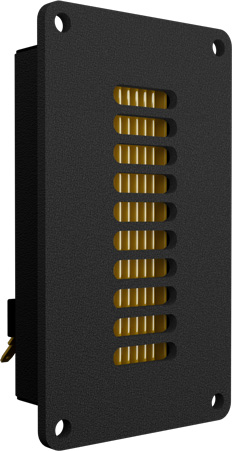

Mundorf AMT U80W1.1-R

order no. M-amt-u80-r

EUR 289,00 excl. VAT: € 242.86 / $ 284.14

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 15/90 W
frequency range = 1800-31000 Hz
resonance frequency fs = 2150 Hz
impedance R = 4 Ohm
sound pressure level SPL = 94 dB (2,83V; 1m)
DC resistance Re = 4,4 Ohm
effective piston radiating area Sd = 31,4 cm²
overall diameter d = 101x61 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

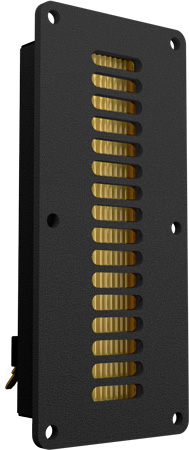

Mundorf AMT U110W1.1

order no. M-amt-u110

EUR 299,00 excl. VAT: € 251.26 / $ 293.97

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 20/110 W
frequency range = 1700-27000 Hz
resonance frequency fs = 1750 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 5,5 Ohm
effective piston radiating area Sd = 43,6 cm²
overall diameter d = 125x55 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

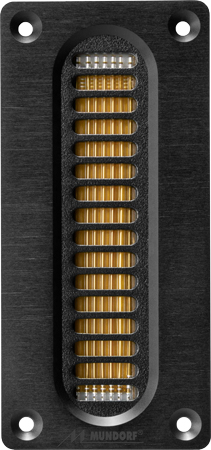

Mundorf AMT U110W1.1-R

order no. M-amt-u110-r

EUR 339,00 excl. VAT: € 284.87 / $ 333.30

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 20/110 W
frequency range = 1700-27000 Hz
resonance frequency fs = 1750 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 5,5 Ohm
effective piston radiating area Sd = 43,6 cm²
overall diameter d = 131x61 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

Mundorf AMT U160W1.1

order no. M-amt-u160

EUR 349,00 excl. VAT: € 293.28 / $ 343.13

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 15/140 W
frequency range = 1200-28000 Hz
resonance frequency fs = 1750 Hz
impedance R = 4 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 4,6 Ohm
effective piston radiating area Sd = 68,1 cm²
overall diameter d = 175x55 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

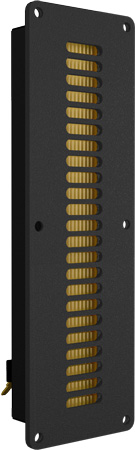

Mundorf AMT U160W1.1-R

order no. M-amt-u160-r

EUR 389,00 excl. VAT: € 326.89 / $ 382.46

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 15/140 W
frequency range = 1200-28000 Hz
resonance frequency fs = 1750 Hz
impedance R = 4 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 4,6 Ohm
effective piston radiating area Sd = 68,1 cm²
overall diameter d = 181x61 mm

PDF data sheet

show kits to this chassis hide kits

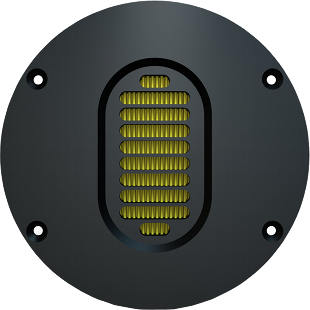

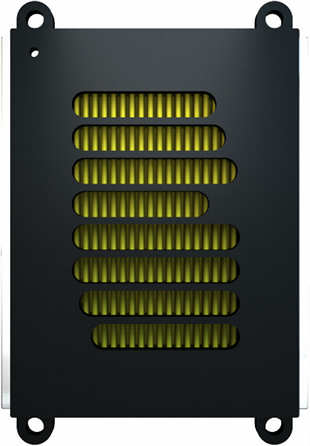

Mundorf AMT 23D6.1-C

order no. M-amt23d61-c

EUR 599,00 excl. VAT: € 503.36 / $ 588.93

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 92 W
frequency range = 1200-30000 Hz
resonance frequency fs = 1500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 6,9 Ohm
effective piston radiating area Sd = 221 cm²
overall diameter d = 130 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

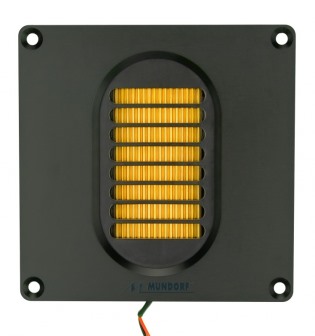

Mundorf AMT 23D6.1-R

order no. M-amt23d61-r

EUR 599,00 excl. VAT: € 503.36 / $ 588.93

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 92 W
frequency range = 1200-30000 Hz
resonance frequency fs = 1500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 6,9 Ohm
effective piston radiating area Sd = 221 cm²
overall diameter d = 100x100 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

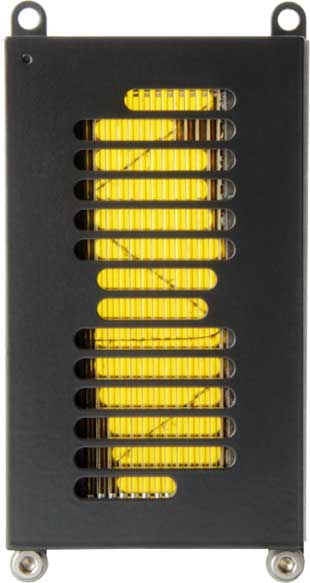

Mundorf AMT 25D1.1

order no. M-amt25d11

EUR 629,00 excl. VAT: € 528.57 / $ 618.43

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 135 W
frequency range = 1100-30000 Hz
resonance frequency fs = 1250 Hz
impedance R = 6 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
effective piston radiating area Sd = 646,4 cm²
overall diameter d = 65x128 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

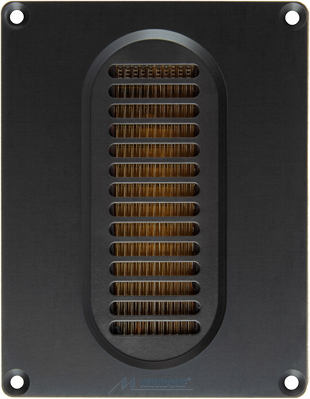

Mundorf AMT 25D6.1-R

order no. M-amt25d61-r

EUR 629,00 excl. VAT: € 528.57 / $ 618.43

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 135 W
frequency range = 1100-30000 Hz
resonance frequency fs = 1400 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
effective piston radiating area Sd = 646,4 cm²
overall diameter d = 100x130 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

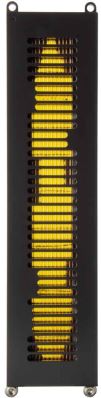

Mundorf AMT 27D1.1

order no. M-amt27d11

EUR 899,00 excl. VAT: € 755.46 / $ 883.89

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 190 W
frequency range = 1000-29000 Hz
resonance frequency fs = 1150 Hz
impedance R = 12 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
DC resistance Re = 13,5 Ohm
effective piston radiating area Sd = 891 cm²
overall diameter d = 59x258 mm

PDF data sheet

show kits to this chassis hide kits

Mundorf AMT 19CM2.1-C

order no. M-amt19cm21-c

- not available

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 120 W
frequency range = 1600-38000 Hz
resonance frequency fs = 2600 Hz
impedance R = 4 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 4,2 Ohm
effective piston radiating area Sd = 126 cm²
overall diameter d = 104 mm

PDF data sheet

show kits to this chassis hide kits

Mundorf AMT 2510C-C, D= 150 mm, schwarz

order no. M-amt2510c

EUR 490,00 excl. VAT: € 411.76 / $ 481.76

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 230 W
frequency range = 800-33000 Hz
resonance frequency fs = 1100 Hz
impedance R = 8 Ohm
sound pressure level SPL = 97 dB (2,83V; 1m)
DC resistance Re = 7,5 Ohm
effective piston radiating area Sd = 646,4 cm²
overall diameter d = 150 mm

PDF data sheet

show kits to this chassis hide kits

Mundorf AMT 25D6.1-C

order no. M-amt25d61-c

EUR 568,00 excl. VAT: € 477.31 / $ 558.45

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 135 W
frequency range = 1100-30000 Hz
resonance frequency fs = 1400 Hz
impedance R = 6 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
effective piston radiating area Sd = 646,4 cm²
overall diameter d = 150 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

Mundorf AMT 23D1.1

order no. M-amt23d11

- not available

air motion transformer. The magnet system is based on Neodymium technology.

power handling (continuous/programme) = 92 W
frequency range = 1200-30000 Hz
resonance frequency fs = 1400 Hz
impedance R = 8 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 6,9 Ohm
effective piston radiating area Sd = 221 cm²
overall diameter d = 61x98 mm

PDF data sheet

show kits to this chassis hide kits

Mundorf AMT 25CS2.1-C

order no. M-amt25cs21-c

EUR 617,00 excl. VAT: € 518.49 / $ 606.63

air motion transformer. The magnet system is based on Neodymium technology. The speaker has a 3 mm solid metal front plate.

power handling (continuous/programme) = 230 W
frequency range = 1000-32000 Hz
resonance frequency fs = 1100 Hz
impedance R = 8 Ohm
sound pressure level SPL = 96 dB (2,83V; 1m)
DC resistance Re = 7,6 Ohm
effective piston radiating area Sd = 646,4 cm²
overall diameter d = 150 mm

PDF data sheet

show kits to this chassis hide kits

Mundorf AMT 29CM2.1

order no. M-amt29cm21

- not available

air motion transformer.

show kits to this chassis hide kits

AMT_Concert Air Motion Transformer_U-Series Air Motion Transformer_Dipol Air Motion Transformer_Divers no longer sold

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
