Visaton

With 40 years of experience in the field of acoustics and loudspeaker technology Visaton is a future oriented Company. With high engagement in research and development plus the high quality standards of production, Visaton is a specialised and world wide successfully operating German loudspeaker manufacturer.

To our building proposals with Visaton drivers.

Tweeter

Visaton CP 13 4 Ohm

order no. V-4454

EUR 39,41 excl. VAT: € 33.12 / $ 38.75

13 mm tweeter with high quality cone.

power handling (continuous/programme) = 60/100 W
frequency range = 1700-22000 Hz
resonance frequency fs = Hz
impedance R = 4 Ohm
sound pressure level SPL = 86 dB (2,83V; 1m)
voice coil diameter = 13 mm
mounting diameter d = 33,5 mm
overall diameter d = 39 mm
mounting depth (not countersunk) t = 20 mm

show kits to this chassis hide kits

Visaton SC5

order no. V-8005

EUR 14,99 excl. VAT: € 12.60 / $ 14.74

13 mm tweeter with high quality cone.

power handling (continuous/programme) = 60/100 W
frequency range = 1500-22000 Hz
resonance frequency fs = 2500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
voice coil diameter = 13 mm
mounting diameter d = 48 mm
overall diameter d = 59,5 mm
mounting depth (not countersunk) t = 22,5 mm

show kits to this chassis hide kits

Visaton DTW72

order no. V-1004

EUR 18,62 excl. VAT: € 15.65 / $ 18.31

14 mm tweeter with high quality cone.

power handling (continuous/programme) = 70/110 W
frequency range = 2200-23000 Hz
resonance frequency fs = 3000 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
voice coil diameter = 14 mm
mounting diameter d = 50 mm
overall diameter d = 72 mm
mounting depth (not countersunk) t = 17,5 mm

show kits to this chassis hide kits

Visaton DR45N

order no. V-6060

EUR 436,60 excl. VAT: € 366.89 / $ 429.26

40 mm tweeter with high quality cone.

power handling (continuous/programme) = 100/150 W
frequency range = 500-12000 Hz
resonance frequency fs = 600 Hz
impedance R = 8 Ohm
sound pressure level SPL = 102 dB (2,83V; 1m)
voice coil diameter = 40 mm
overall diameter d = 121 mm
mounting depth (not countersunk) t = 71 mm

show kits to this chassis hide kits

Visaton G20SC

order no. V-1185

EUR 57,60 excl. VAT: € 48.40 / $ 56.63

20 mm tweeter with high quality cone.

power handling (continuous/programme) = 120/180 W
frequency range = 1200-30000 Hz
resonance frequency fs = 1800 Hz
impedance R = 8 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
voice coil diameter = 20 mm
mounting diameter d = 66 mm
overall diameter d = 94 mm
mounting depth (not countersunk) t = 27 mm

show kits to this chassis hide kits

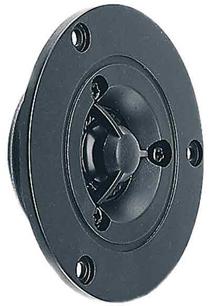

Visaton DT94

order no. V-9003

EUR 32,49 excl. VAT: € 27.30 / $ 31.94

20 mm tweeter with high quality cone.

power handling (continuous/programme) = 70/100 W
frequency range = 1200-22000 Hz
resonance frequency fs = 1900 Hz
impedance R = 4 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
voice coil diameter = 20 mm
mounting diameter d = 64 mm
overall diameter d = 94 mm
mounting depth (not countersunk) t = 19 mm

show kits to this chassis hide kits

Visaton DT94

order no. V-9004

EUR 32,49 excl. VAT: € 27.30 / $ 31.94

20 mm tweeter with high quality cone.

power handling (continuous/programme) = 70/100 W
frequency range = 1200-22000 Hz
resonance frequency fs = 1900 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
voice coil diameter = 20 mm
mounting diameter d = 64 mm
overall diameter d = 94 mm
mounting depth (not countersunk) t = 19 mm

show kits to this chassis hide kits

Visaton SC10N

order no. V-8011

EUR 23,97 excl. VAT: € 20.14 / $ 23.57

25 mm tweeter with high quality cone.

power handling (continuous/programme) = 100/150 W
frequency range = 1000-20000 Hz
resonance frequency fs = 1700 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
voice coil diameter = 25 mm
mounting diameter d = 85 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 32 mm

show kits to this chassis hide kits

Visaton G25FFL

order no. V-1175

EUR 87,10 excl. VAT: € 73.19 / $ 85.64

25 mm tweeter with high quality cone.

power handling (continuous/programme) = 120/180 W
frequency range = 1000-30000 Hz
resonance frequency fs = 1500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
voice coil diameter = 25 mm
mounting diameter d = 80 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 24 mm

show kits to this chassis hide kits

Visaton KE25SC

order no. V-1191

EUR 188,80 excl. VAT: € 158.66 / $ 185.63

25 mm tweeter with high quality cone.

power handling (continuous/programme) = 80/140 W
frequency range = 800-25000 Hz
impedance R = 8 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
voice coil diameter = 25 mm
mounting diameter d = 82 mm
overall diameter d = 104,5 mm
mounting depth (not countersunk) t = 55 mm

show kits to this chassis hide kits

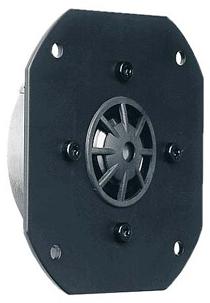

Visaton DSM25FFL

order no. V-1153

EUR 83,52 excl. VAT: € 70.18 / $ 82.12

50 mm tweeter with high quality cone.

power handling (continuous/programme) = 120/180 W
frequency range = 1000-30000 Hz
resonance frequency fs = 1900 Hz
impedance R = 8 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
voice coil diameter = 50 mm
mounting diameter d = 80 mm
overall diameter d = 110 mm
mounting depth (not countersunk) t = 24 mm

show kits to this chassis hide kits

open a bigger photo

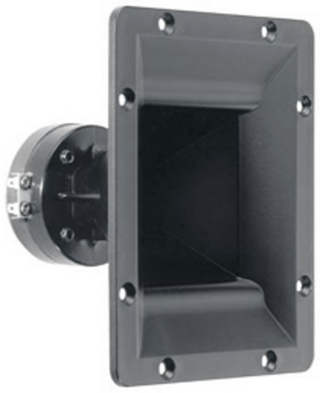

Visaton HTH8.7 8 Ohm

order no. V-6037

EUR 73,85 excl. VAT: € 62.06 / $ 72.61

net weight = 0,95 kg

show kits to this chassis hide kits

open a bigger photo

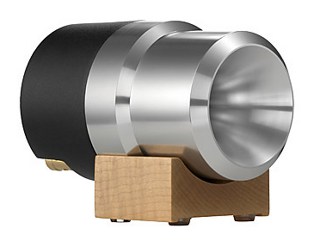

Visaton TL16H

order no. V-24520

EUR 306,70 excl. VAT: € 257.73 / $ 301.55

net weight = 1,3 kg

show kits to this chassis hide kits

Visaton MHT12

order no. V-1080

EUR 279,60 excl. VAT: € 234.96 / $ 274.90

tweeter with high quality cone.

power handling (continuous/programme) = 150/200 W
frequency range = 2000-40000 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
mounting diameter d = 95 mm
overall diameter d = 112 mm
mounting depth (not countersunk) t = 46 mm

show kits to this chassis hide kits

Visaton G50FFL

order no. V-1176

EUR 122,80 excl. VAT: € 103.19 / $ 120.74

50 mm tweeter with high quality cone.

power handling (continuous/programme) = 120/180 W
frequency range = 400-10000 Hz
resonance frequency fs = 700 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
voice coil diameter = 50 mm
mounting diameter d = 106 mm
overall diameter d = 140 mm
mounting depth (not countersunk) t = 48 mm

show kits to this chassis hide kits

Visaton DSM50FFL

order no. V-1163

EUR 137,50 excl. VAT: € 115.55 / $ 135.19

50 mm tweeter with high quality cone.

power handling (continuous/programme) = 120/180 W
frequency range = 400-15000 Hz
resonance frequency fs = 600 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
voice coil diameter = 50 mm
mounting diameter d = 106 mm
overall diameter d = 150 mm
mounting depth (not countersunk) t = 48 mm

show kits to this chassis hide kits

Visaton TW6NG

order no. V-1000

EUR 15,42 excl. VAT: € 12.96 / $ 15.16

14 mm tweeter with high quality cone.

power handling (continuous/programme) = 60/100 W
frequency range = 1000-30000 Hz
resonance frequency fs = 1500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
voice coil diameter = 14 mm
mounting diameter d = 56 mm
overall diameter d = 67 mm
mounting depth (not countersunk) t = 27 mm

show kits to this chassis hide kits

Visaton TW70

order no. V-9002

EUR 15,42 excl. VAT: € 12.96 / $ 15.16

7 cm full range driver with high quality cone.

frequency range = 800-20000 Hz
resonance frequency fs = 1500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
voice coil diameter = 14 mm
mounting diameter d = 64 mm
overall diameter d = 74 mm
mounting depth (not countersunk) t = 29 mm

show kits to this chassis hide kits

Tweeter Mids Woofer Full Range Coaxial speaker Mini Exciter Compression driver for Horns Horn in Wall Wall ELA Slim no longer sold

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.
