ViaBlue Digital cables

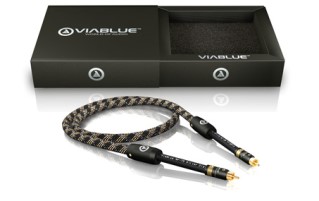

NF-75 Silver Digital RCA Cable

Product description:

ViaBlue™ NF-75 RCA S/PDIF interconnects are coaxial high-end digital cables with ideal electrical values. They enable error-free and correct transmission of digital signals. With a base line requirement of a 75-Ohm surge impedance, a polyethylene foam dielectric and a silver-plated shield are further applied as technical refinements. This leads to extremely low resistance values and thus to maximum transmission speeds of digital electric signals. The ViaBlue™ silver shield, NF-75 interconnects have a 100% surface casing shield from electrical interference fields. The screen is composed of an aluminum foil sheath and a silver-plated braided sheath.

Assembled with T6s RCA connectors.

NF-75 RCA S/PDIF interconnects are manufactured with 24 karat gold-plated ViaBlue™ T6s RCA connectors that have pins made of bronze. They ensure extremely strong contact pressure and thus very low contact resistance. The NF-75 cables are braided with the ViaBlue™ Cobra protective sleeve.

Technical specifications:

Outter diameter: 9 mm
Screenings: 2 (2X foil / 1X spiral)
Connectors: T6s RCA plugs
Finishing: silvered / tinned
Capacity / impedance: 52pF/M / 75 OHM
Marking: black
Play in time: appr. 12 hours

Price per unit (Order No. vib-22905) EUR 133,00 excl. VAT: € 111.76 / $ 127.41 Length: 50 cm

Price per unit (Order No. vib-22908) EUR 147,00 excl. VAT: € 123.53 / $ 140.82 Length: 100 cm

Price per unit (Order No. vib-22914) EUR 188,00 excl. VAT: € 157.98 / $ 180.10 Length: 250 cm

Price per unit (Order No. vib-22922) EUR 257,00 excl. VAT: € 215.97 / $ 246.20 Length: 500 cm

Price per unit (Order No. vib-22930) EUR 340,00 excl. VAT: € 285.71 / $ 325.71 Length: 800 cm

Price per unit (Order No. vib-22934) EUR 388,00 excl. VAT: € 326.05 / $ 371.70 Length: 1000 cm

Price per unit (Order No. vib-22944) EUR 506,00 excl. VAT: € 425.21 / $ 484.74 Length: 1500 cm

H-FLEX Optical Toslink Cable

Product description:

ViaBlue™ H-Flex optical digital fiber cables are optical high-end digital cables that transmit digital signals by fiber optics technology. Electrical interference fields thus have no influence on the transmission.

H-Flex toslink cables are the professional optical connection between high-end devices such as amplifiers, CD/DVD player, etc. The H-Flex toslink cables function with optimal light efficiency through the manufacture of a special fiber for the optical wave guide. A very high flexibility is achieved through several processing sequences with application of insulation layers with different materials, which allows tight bending radii without any problems and without increasing the attenuation rates. Even with higher bending, the H-Flex fiber optic cables transmit without errors.

The very high-quality inner optical wave guide is protected by a special soft plastic mixture. Directly over it, there is another thin, hardened plastic layer for stabilizing the position and fixing the sensitive inner construction. The thick outer shell protects these three inner layers from breaking or other damage.

Technical specifications:

Outter diameter: 8 mm
Features: very high bending protection
Fiber diameter: 1 mm
Fiber material: Polymethyl Methacrylate
Play in time: appr. 12 hours

Price per m (Order No. vib-25200) EUR 8,29 excl. VAT: € 6.97 / $ 7.94

NF-S6 AIR Silver Analogue Cable

Product description:

The ViaBlue™ NF-S6 AIR Silver Analogue cable is specifically designed for the transmission of analogue signals. The designed cable, made up of 2x 6 individual signal conductors and a 6-fold shielding and 23 air pipes with a total cross section of 15 mm² therefore with a total diameter of 16 mm.

The 2x 6 signal conductors consist of 19 silver-plated fine copper wires from selected, highly chemically pure and 99.99999% oxygen free copper and provide a clear, detailed and perfectly well rounded sound.

The unique structure of the NF-S6 AIR Silver Analogue cable is specially developed by the ViaBlue™ air pipe system, an airspace system with a centre of individual conductors, which have been arranged in a circular arrangement.

A six-fold shielding consisting of three laminated, gold foil shields and 3 conflicting strand coil shields, with a shielding factor of 100%, keeps away disturbances such as DECT or mobile phone, microwave, and humming sounds.

A soft banding and a flexible and satin mat sheath protect the entire cable system.

The NF-S6 AIR Silver Analogue cable can be used for both unbalanced (e.g. RCA connections) and balanced (e.g. XLR connections).

Thanks to a nearly loss-free transmission of audio signals, the NF-S6 AIR Silver Analogue cable delivers a fascinating sound, even over long distances. The fine tuning of the individual frequencies of the complex ViaBlue™ air pipe system and the special arrangement of the individual signal conductors with fine silver-plated OFC copper promises a natural, realistic and accurate music reproduction with a clear sense of even the most acute detail. Individual musical elements are sharply defined and illustrated in impressive tones. The result is a large ambiance for free and airy musical pleasure.

Price per m (Order No. vib-25500) EUR 84,99 excl. VAT: € 71.42 / $ 81.42

EPC Silver Earphone Cable

Product description:

ViaBlue EPC silver headphone cable have a tinned copper wires as a centre conductor, a silver-plated spiral shield and an aluminium PET film screen to completely shield all the faults, such as DECT or mobile phones, microwaves and mains hum, on all frequency ranges.

The complete cable system is protected through a soft taping and protected with a flexible and satin sheath.

Through this combination and specific composition of the chosen materials as well as the high-purity OFC copper, a complete and balanced sound map is achieved, that technically allows all frequency ranges to be linear and unaltered.

Technical specifications:

Developed for earphone application
Conductors: 19 x 0,10 mm tinned OFC copper
Screens (EPC-2, EPC-3, EPC-4):
1x silvered OFC copper braid, single-wires: 0,10 mm
1x aluminium-PET foil
Banding: fleece-foil
Flexible sheath, semi-matt
conductor resistance max. 138.0 Ohm/km
Outer diameter EPC-1: 0.90 ± 0.10 mm
Outer diameter EPC-2: 3.50 ± 0.20 mm
Outer diameter EPC-3: 3.70 ± 0.20 mm
Outer diameter EPC-4: 3.90 ± 0.20 mm

Price per m (Order No. vib-23150) EUR 6,50 excl. VAT: € 5.46 / $ 6.23 EPC-1

Price per m (Order No. vib-23000) EUR 9,90 excl. VAT: € 8.32 / $ 9.48 EPC-2

Price per m (Order No. vib-23050) EUR 10,90 excl. VAT: € 9.16 / $ 10.44 EPC-3

Price per m (Order No. vib-23100) EUR 14,90 excl. VAT: € 12.52 / $ 14.27 EPC-4
