WBT Pole Terminals

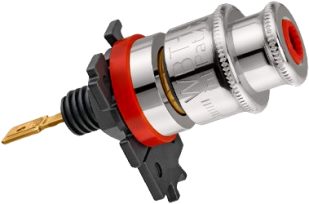

WBT-0705 Ag Pole Terminal

Enlarge
  • Signal conductor made of high-purity silver
  • CE and IEC compliant
  • Casing made of glass fibre and mineral reinforced plastic
  • Surface protection by means of surface passivation
  • Max. constant current 30 A, peak current 200 A
  • Twist-proof mounting
  • Puzzle plate system

nextgen™ Pole Terminal with silver signal conductor, in silver finish

Thanks to the separation of signal transmission and mechanical stability, it is now possible to use optimum materials for the first time. Signals are transmitted using high-purity silver, the best electrical conductor. Silver has severe mechanical limitations, however, and its use is only permitted by an ingenious combination with high-performance plastics. The silver surface is neutralised to prevent oxidation.

Moreover, the soul of the new binding post WBT-0705 Ag is of one-piece design, removing all unnecessary transition resistance. The signal conductor is embedded in a matrix of fibre glass and mineral reinforced plastic and equipped with an anti-magnetic stainless steel strut for perfect strain relief. An additional elastomer damping ring keeps oscillations away from the contact level and successfully suppresses any kind of contact microphonics.

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0705 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection:

The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection:

Solder lugs that can be folded over if needed. WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 4 mm² (11 AWG)
  • inside: 4 mm² (11 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: soldering or 6.3 mm flat push-on cable shoe

Wall thickness: from 0.9 to 10 mm (from 8.0 mm without puzzle plate)

Identification: red, white or black

PDF data sheet

Price per unit EUR 86,90 excl. VAT: € 73.03 / $ 85.44

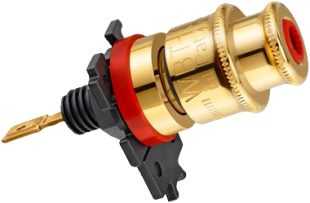

WBT-0705 Cu Pole Terminal

Enlarge
  • Signal conductor made of high-purity copper
  • CE and IEC compliant
  • Casing made of glass fibre and mineral reinforced plastic
  • 24 carat direct gold plating (nickel-free)
  • Max. constant current 30 A, peak current 200 A
  • Twist-proof mounting
  • Puzzle plate system

nextgen™ Pole Terminal with copper signal conductor, gold-plated

Thanks to the separation of signal transmission and mechanical stability, it is now possible to use optimum materials for the first time. Signals are transmitted using high-purity copper, one of the best electrical conductors. Copper has severe mechanical limitations, however, and its use is only permitted by an ingenious combination with high-performance plastics. The copper surface is naturally gold-plated to prevent corrosion.

Moreover, the soul of the new binding post WBT-0705 Cu is of one-piece design, removing all unnecessary transition resistance. The signal conductor is embedded in a matrix of fibre glass and mineral reinforced plastic and equipped with an anti-magnetic stainless steel strut for perfect strain relief. An additional elastomer damping ring keeps oscillations away from the contact level and successfully suppresses any kind of contact microphonics.

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0705 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection:

The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection:

Solder lugs that can be folded over if needed. WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 4 mm² (11 AWG)
  • inside: 4 mm² (11 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: soldering or 6.3 mm flat push-on cable shoe

Wall thickness: from 0.9 to 10 mm (from 8.0 mm without the puzzle plate)

Identification: red, white or black

PDF data sheet

Price per unit EUR 59,95 excl. VAT: € 50.38 / $ 58.94

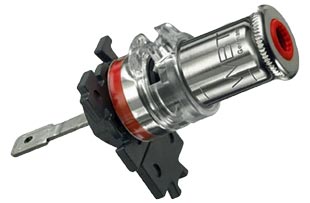

WBT-0710 Ag Pole Terminal

Enlarge
  • Signal conductor made of high-purity silver
  • CE and IEC compliant
  • Casing made of glass fibre and mineral reinforced plastic
  • Surface protection by means of surface passivation
  • Max. constant current 30 A, peak current 200 A
  • Twist-proof mounting
  • Puzzle plate system

nextgen™ Pole Terminal with silver signal conductor, in silver finish

Thanks to the separation of signal transmission and mechanical stability, it is now possible to use optimum materials for the first time. Signals are transmitted using high-purity silver, the best electrical conductor. Silver has severe mechanical limitations, however, and its use is only permitted by an ingenious combination with high-performance plastics. The silver surface is neutralised to prevent oxidation.

Moreover, the soul of the new binding post WBT-0710 Ag is of one-piece design, removing all unnecessary transition resistance. The signal conductor is embedded in a matrix of fibre glass and mineral reinforced plastic and equipped with an anti-magnetic stainless steel strut for perfect strain relief. An additional elastomer damping ring keeps oscillations away from the contact level and successfully suppresses any kind of contact microphonics.

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0710 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection:

The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection:

Solder lugs that can be folded over if needed. WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 10 mm² (7 AWG)
  • inside: 4 mm² (11 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: soldering or 6.3 mm flat push-on cable shoe

Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without puzzle plate)

Identification: red, white or black

PDF data sheet

Price per unit EUR 69,35 excl. VAT: € 58.28 / $ 68.18



WBT-0710 Cu Pole Terminal

Enlarge
  • Signal conductor made of high-purity copper
  • CE and IEC compliant
  • Casing made of glass fibre and mineral reinforced plastic
  • 24 carat direct gold plating (nickel-free)
  • Max. constant current 30 A, peak current 200 A
  • Twist-proof mounting
  • Puzzle plate system

nextgen™ Pole Terminal with copper signal conductor, gold-plated

Thanks to the separation of signal transmission and mechanical stability, it is now possible to use optimum materials for the first time. Signals are transmitted using high-purity copper, one of the best electrical conductors. Copper has severe mechanical limitations, however, and its use is only permitted by an ingenious combination with high-performance plastics. The copper surface is naturally gold-plated to prevent corrosion.

Moreover, the soul of the new binding post WBT-0710 Cu is of one-piece design, removing all unnecessary transition resistance. The signal conductor is embedded in a matrix of fibre glass and mineral reinforced plastic and equipped with an anti-magnetic stainless steel strut for perfect strain relief. An additional elastomer damping ring keeps oscillations away from the contact level and successfully suppresses any kind of contact microphonics.

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0710 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection:

The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection:

Solder lugs that can be folded over if needed. WBT recommends the surface-friendly silver solder WBT-0800 (see also solder connection).

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 10 mm² (7 AWG)
  • inside: 4 mm² (11 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: soldering or 6.3 mm flat push-on cable shoe

Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without the puzzle plate)

Identification: red, white or black

PDF data sheet

Price per unit EUR 44,20 excl. VAT: € 37.14 / $ 43.46

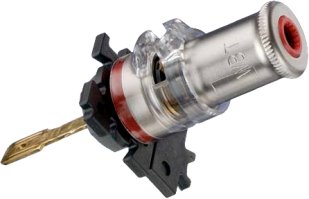

WBT-0710 Cu mC Pole Terminal

Enlarge
  • Signal conductor made of high-purity copper
  • CE and IEC compliant
  • Casing made of glass fibre and mineral reinforced plastic
  • Surface protection of the signal conductor by means of 24 carat direct gold plating (nickel-free)
  • Max. constant current 30 A, peak current 200 A
  • Twist-proof mounting
  • Puzzle plate system

nextgen™ Pole Terminal with copper signal conductor, surface of terminal body in velours chromium

Thanks to the separation of signal transmission and mechanical stability, it is now possible to use optimum materials for the first time. Signals are transmitted using high-purity copper, one of the best electrical conductors. Copper has severe mechanical limitations, however, and its use is only permitted by an ingenious combination with high-performance plastics. The copper surface is naturally gold-plated to prevent corrosion.

Moreover, the soul of the new binding post WBT-0710 Cu mC is of one-piece design, removing all unnecessary transition resistance. The signal conductor is embedded in a matrix of fibre glass and mineral reinforced plastic and equipped with an anti-magnetic stainless steel strut for perfect strain relief. An additional elastomer damping ring keeps oscillations away from the contact level and successfully suppresses any kind of contact microphonics.

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0710 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection:

The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection:

Solder lugs that can be folded over if needed. WBT recommends the surface-friendly silver solder WBT-0800 (see also solder connection).

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 10 mm² (7 AWG)
  • inside: 4 mm² (11 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: soldering or 6.3 mm flat push-on cable shoe

Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without the puzzle plate)

Identification: red, white or black

PDF data sheet

Price per unit EUR 37,35 excl. VAT: € 31.39 / $ 36.72



WBT-0702.11 Pole Terminal

Enlarge
  • Extremely high contact pressure thanks to fine thread and milled grooves
  • Pat. clamping mechanism for 4 mm banana plugs
  • Solder or crimp connection with Torx screw
  • 24 carat direct gold plating (nickel-free)
  • Max. constant current 100 A
  • Twist-proof mounting
  • Puzzle plate system

Signature Pole Terminal Polished, gold-plated

Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design

Superb mechanical properties, solid design and two separate clamping nuts ensure high contact pressure and hence consistently low transition resistance levels – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by the shiny gold-plated surface that reliably prevents corrosion. The terminal is polished prior to gold-plating, creating an extremely robust and abrasion-proof surface.

Outer connection:

  • 4 mm banana plug The integrated clamping mechanism (WBT patent) clamps the banana plug firmly in place when the front clamping nut is tightened and therefore not only protects the connection against accidental disconnection but also ensures an extremely high contact pressure.

  • Spades and crimped cable ends (up to 16 mm²/5 AWG)Thanks to the second nut, you can connect spades or crimped cable ends with high contact pressure via a fine thread. Holding grooves in the base of the nut and in the pressure plate of the terminal unit improve the contact quality and increase the tensile strength of the connection.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800 (see also solder connection).

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 16 mm² (5 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping or soldering

Wall thickness: 0.1 - 10 mm

Identification: red, white or black

PDF data sheet

Price per unit EUR 78,15 excl. VAT: € 65.67 / $ 76.84

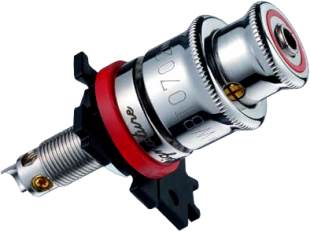

WBT-0702.12 Pole Terminal

Enlarge
  • Extremely high contact pressure thanks to fine thread and milled grooves
  • Pat. clamping mechanism for 4 mm banana plugs
  • Solder or crimp connection with Torx screw
  • Direct platinum plating (nickel-free)
  • Max. constant current 100 A
  • Twist-proof mounting
  • Puzzle plate system

Signature Pole Terminal Polished, platinum-plated

Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design

Superb mechanical properties, solid design and two separate clamping nuts ensure high contact pressure and hence consistently low transition resistance levels – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by the shiny platinum-plated surface that reliably prevents corrosion. The terminal is polished prior to platinum-plating, creating an extremely robust and abrasion-proof surface.

Outer connection:

  • 4 mm banana plugThe integrated clamping mechanism (WBT patent) clamps the banana plug firmly in place when the front clamping nut is tightened and therefore not only protects the connection against accidental disconnection but also ensures an extremely high contact pressure.

  • Spades and crimped cable ends (up to 16 mm²/5 AWG)Thanks to the second nut, you can connect spades or crimped cable ends with high contact pressure via a fine thread. Holding grooves in the base of the nut and in the pressure plate of the terminal unit improve the contact quality and increase the tensile strength of the connection.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 16 mm² (5 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping or soldering

Wall thickness: 0.1 - 10 mm

Identification: red, white or black

PDF data sheet

Price per unit EUR 78,15 excl. VAT: € 65.67 / $ 76.84

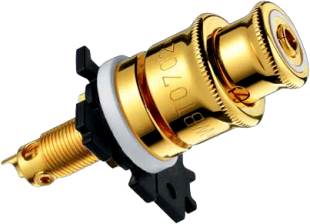

WBT-0702.01 Pole Terminal

Enlarge
  • Extremely high contact pressure thanks to fine thread and milled grooves
  • Pat. clamping mechanism for 4 mm banana plugs
  • Solder or crimp connection with Torx screw
  • 24 carat multi layer gold plating (nickel-free)
  • Max. constant current 100 A
  • Twist-proof mounting
  • Puzzle plate system

Topline Pole Terminal Gold-plated

Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design

Superb mechanical properties, solid design and two separate clamping nuts ensure high contact pressure and hence consistently low transition resistance levels – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by the multi layer gold-plated surface that reliably prevents corrosion.

Outer connection:

  • 4 mm banana plug The integrated clamping mechanism (WBT patent) clamps the banana plug firmly in place when the front clamping nut is tightened and therefore not only protects the connection against accidental disconnection but also ensures an extremely high contact pressure.
  • Spades and crimped cable ends (up to 16 mm²/5 AWG) Thanks to the second nut, you can connect spades or crimped cable ends with high contact pressure via a fine thread. Holding grooves in the base of the nut and in the pressure plate of the terminal unit improve the contact quality and increase the tensile strength of the connection.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 16 mm² (5 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping or soldering

Wall thickness: 0.1 - 10 mm

Identification: red, white or black

PDF data sheet

Price per unit EUR 60,60 excl. VAT: € 50.92 / $ 59.58



WBT-0730.11 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection with Torx screw
  • 24 carat direct gold plating (nickel-free)
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Signature Pole Terminal Polished, gold-plated

Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design

Superb mechanical properties, solid design and the two-piece clamping nut with rotatable pressure piece ensure high contact pressure and hence consistently low transition resistance – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by the shiny gold-plated surface that reliably prevents corrosion. The pole terminal is polished prior to gold-plating, creating an extremely robust and abrasion-proof surface.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²/9 AWG) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0730.11 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (9 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping or soldering

Wall thickness: 0.1 - 6 mm

Identification: red or white

Installation: with the spacer WBT-9404 also as a double terminal

PDF data sheet

Price per unit EUR 49,05 excl. VAT: € 41.22 / $ 48.23

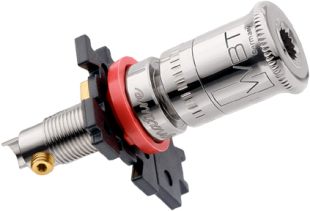

WBT-0730.12 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection with Torx screw
  • Direct platinum plating (nickel-free)
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Signature Pole Terminal Polished, platinum-plated

Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design

Superb mechanical properties, solid design and the two-piece clamping nut with rotatable pressure piece ensure high contact pressure and hence consistently low transition resistance – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by the shiny platinum-plated surface that reliably prevents corrosion. The pole terminal is polished prior to platinum-plating, creating an extremely robust and abrasion-proof surface.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection:

Cables with a conductor cross section of up to 10 mm² can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0730.01 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (10 AWG)
  • inside: 10 mm² (8 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping or soldering

Wall thickness: 0.1 - 6 mm

Identification: red or white

Installation: with the spacer WBT-9404 also as a double terminal

PDF data sheet

Price per unit EUR 49,05 excl. VAT: € 41.22 / $ 48.23

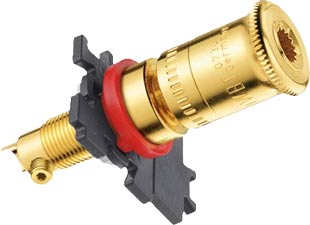

WBT-0730.01 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection with Torx screw
  • 24 carat multi layer gold plating (nickel-free)
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design

Superb mechanical properties, solid design and the two-piece clamping nut with rotatable pressure piece ensure high contact pressure and hence consistently low transition resistance – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by the multi layer gold-plated surface that reliably prevents corrosion.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²/9 AWG) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0730.01 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (9 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping or soldering

Wall thickness: 0.1 - 6 mm

Identification: red or white

Installation: with the spacer WBT-9404 also as a double terminal

PDF data sheet

Price per unit EUR 36,25 excl. VAT: € 30.46 / $ 35.64

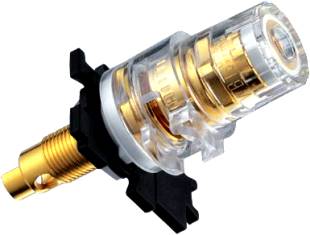

WBT-0735 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection with Torx screw
  • CE and IEC compliant thanks to full Makrolon insulation
  • 24 carat multi layer gold plating (nickel-free)
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Topline Pole Terminal Gold-plated with Makrolon full insulation, CE and IEC compliant

Topline product for the most exacting requirements in terms of signal transmission, mechanical stability and design

Superb mechanical properties, solid design and the two-piece clamping nut with rotatable pressure piece ensure high contact pressure and hence consistently low transition resistance – the precondition for absolutely minimum effects on sound quality. The elegant design of the pole terminal is further enhanced by shiny gold-plated surface that reliably prevents corrosion. IC and IEC compliance are achieved by transparent full Makrolon insulation of all live parts.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²/9 AWG) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly fix crimped cable ends. The connections can also be soldered, however. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0735 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (9 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping or soldering

Wall thickness: 0.1 - 6 mm

Identification: red or white

Installation: with the spacer WBT-9404 also as a double terminal

PDF data sheet

Price per unit EUR 42,30 excl. VAT: € 35.55 / $ 41.59



WBT-0763 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection
  • 24 carat multi layer gold plating
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Midline Pole Terminal Copper alloy, gold-plated

The clamping nut is designed to provide a perfect grip. The gold-plated surface prevents any type of corrosion.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²/9 AWG) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. The connections can be soldered or crimped. For soldered connections, WBT and Strassacker recommends the surface-friendly silver solder WBT-0800. For crimp connections, an additional T.6 Torx screw is required.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0763 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°. (WBT-9404 is supplied with each end consumer package, but in general needs to be ordered separately.)

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (9 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping (T.6 Torx screw required) or soldering

Wall thickness: 0.1 - 10 mm

Identification: red, white or black

Installation: with the spacer WBT-9404 also as a double terminal

PDF data sheet

Price per unit EUR 24,50 excl. VAT: € 20.59 / $ 24.09

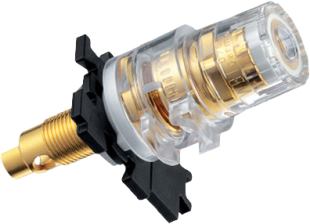

WBT-0765 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection
  • CE and IEC compliant thanks to full Makrolon insulation
  • 24 carat multi layer gold plating
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Midline Pole Terminal Copper alloy, gold-plated with Makrolon full insulation, CE and IEC compliant

The clamping nut is designed to provide a perfect grip. The gold-plated surface prevents any type of corrosion. IC and IEC compliance are achieved by transparent full Makrolon insulation of all live parts.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²/ 9 AWG) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection:

Cables with a conductor cross section of up to 10 mm² (7 AWG) can be used on the inside. The connections can be soldered or crimped. For soldered connections, WBT recommends the surface-friendly silver solder WBT-0800. For crimp connections, an additional T.6 Torx screw is required.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0765 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°. (WBT-9404 is supplied with each end consumer package, but in general needs to be ordered separately.)

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (9 AWG)
  • inside: 10 mm² (7 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: crimping (T.6 Torx screw required) or soldering

Wall thickness: 0.1 - 10 mm

Identification: red, white or black

Installation: with the spacer WBT-9404 also as a double terminal

PDF data sheet

Price per unit EUR 28,50 excl. VAT: € 23.95 / $ 28.02



WBT-0766 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Screw-on connection for direct mounting on to a pc board or with ring terminal
  • CE and IEC compliant thanks to full Makrolon insulation
  • 24 carat multi layer gold plating
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Midline Pole Terminal Copper alloy, gold-plated with Makrolon full insulation, CE and IEC compliant

The clamping nut is designed to provide a perfect grip. The gold-plated surface prevents any type of corrosion. IC and IEC compliance are achieved by transparent full Makrolon insulation of all live parts.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be connected in the front part of the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²/9 AWG) You can use the patented WBT clamping nut system to make high-pressure spade and crimped cable end connections. The cross-milled surface on the bottom of the pressure piece creates a permanently secure connection with extremely low transition resistance. It also prevents the splitting of cable strands if exposed cable ends are used.

Inner connection:

The pole terminal can be directly mounted on to a printed circuit board by means of an anti-fatigue bolt and fan shaped washer. Alternatively, one or more ring terminals can be screwed-on.

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0766 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (9 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: anti-fatigue bolt with fan shaped washer

Wall thickness: 0.1 - 10 mm

Identification: red, white or black

Installation: with the spacer WBT-9404 also as a double terminal

PDF data sheet

Price per unit - not available



WBT-0780 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread
  • One-piece clamping nut with excellent grip design
  • Solder or crimp connection
  • Velours chromium finish for surface protection
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Economy Pole Terminal Copper alloy, with velours chromium finish

The clamping nut is designed to provide a perfect grip. The velours chromium finish, which also reliably prevents corrosion, gives the component a matt satin look.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be inserted in and connected to the clamping nut.
  • Spades and crimped cable ends (up to 6 mm² / 9 AWG) You can use the clamping nut to make high-pressure spade and crimped cable end connections. The cutting edge on the pressure nut ensures a perfect connection with high conductivity and tensile strength.

Inner connection:

Cables with a conductor cross section of up to 4 mm² (11 AWG) can be used on the inside. The connections can be soldered or crimped. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

A Torx screw T.6 is additionally necessary if the crimp connection method is used. The inner connection is fitted with an M4 thread, and this also allows direct PCB mounting. For this purpose, you additionally need the anti-fatigue bolt WBT-9102 with the fan shaped washer .

Mounting

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0780 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.

Hint for OEMs:

Due to the current safety regulations, the 4 mm banana holes of WBT pole terminals should be closed using the safety stick WBT-0799.

Conductor cross section (max.):

  • outside: 6 mm² (9 AWG)
  • inside: 4 mm² (11 AWG)

Connection technology:

  • outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping
  • inside: anti-fatigue bolt with fan shaped washer

Wall thickness: 0.1 - 10 mm

Identification: red, white or black

Installation: with the spacer WBT-9404 also as a double terminal

Recommended tool:

  • Torx T.6 wrench WBT-0488
  • Torque screwdriver WBT-0481 for professional OEM mounting
  • Crimping pliers WBT-0403, also see crimping set WBT-0411

PDF data sheet

Price per unit EUR 20,35 excl. VAT: € 17.10 / $ 20.01



WBT-0785 Pole Terminal

Enlarge
  • Extremely high contact pressure for spades thanks to fine thread
  • One-piece clamping nut with excellent grip design
  • Solder or crimp connection
  • CE and IEC compliant thanks to full Makrolon insulation
  • Velours chromium finish for surface protection
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Economy Pole Terminal Copper alloy, with velours chromium finish and full Makrolon insulation, CE and IEC compliant

The clamping nut is designed to provide a perfect grip. The velours chromium finish, which also reliably prevents corrosion, gives the component a matt satin look. IC and IEC compliance are achieved by transparent full Makrolon insulation of all live parts.

Outer connection:

  • 4 mm banana plug A 4 mm banana plug can be inserted in and connected to the clamping nut.
  • Spades and crimped cable ends (up to 6 mm²/9 AWG) You can use the clamping nut to make high-pressure spade and crimped cable end connections. The cutting edge on the pressure nut ensures a perfect connection with high conductivity and tensile strength.

Inner connection:

Cables with a conductor cross section of up to 4 mm² (11 AWG) can be used on the inside. The connections can be soldered or crimped. If you decide on soldering, WBT recommends the surface-friendly silver solder WBT-0800.

A Torx screw T.6 is additionally necessary if the crimp connection method is used. The inner connection is fitted with an M4 thread, and this also allows direct PCB mounting. For this purpose, you additionally need the anti-fatigue bolt WBT-9102 with the fan shaped washer.

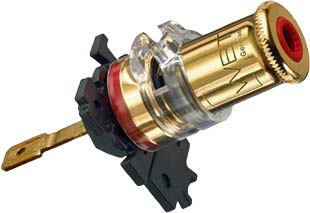

Mounting:

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured – using the WBT serrated lock washer WBT-9150, for example. In case a fixed distance of 19 mm is required, one may use the spacer WBT-9404 and install the WBT-0785 as a double terminal. Thanks to the locking slots in the spacer the inlet opening for the connection cable can be rotated in steps of 45°.

Hints for OEMs:

Due to the relevant safety regulations, the 4 mm banana holes of WBT binding posts have to be sealed using the safety stick WBT-0799.

Conductor cross-section (max.):

  • outside: 6 mm² (9 AWG)
  • inside: 4 mm² (11 AWG)

Home
