Mains Cable / Power Bar

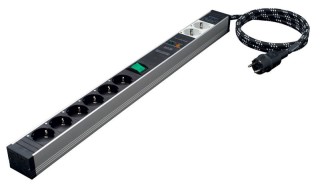

Reference Power Bar AC-2502-SF8

Enlarge The in-akustik mains cables and power strips filter the current and deliver "clean" currents for your HiFi system. Use of the best materials and excellent workmanship guarantee maximum dynamics, even for extreme loads. Complete screening and a special fi lter prevent radio frequencies from being received which would turn the cable into an aerial. Solid line bars in the power strips distribute the power homogeneously to all outlets. Furthermore, the sockets are divided into two groups with the AC-2502-SF8 power strip. Group 1: The two grey sockets are directly and permanently connected to the mains supply. This means that power amplifi ers, active subwoofers or other power-hungry devices that should not be disconnected from the mains, can remain connected. Group 2: The six black sockets can be separated from the mains supply using a switch. The additional mains fi lter makes this group especially suitable for source devices such as CD players, preamplifi ers, phono pre-amps and other precision electronics.

Key-Features

  • 8 AC power sockets
  • 3 x 2.5 mm² cable, mylar foil shielded
  • Foil shielding and additional shielding wire

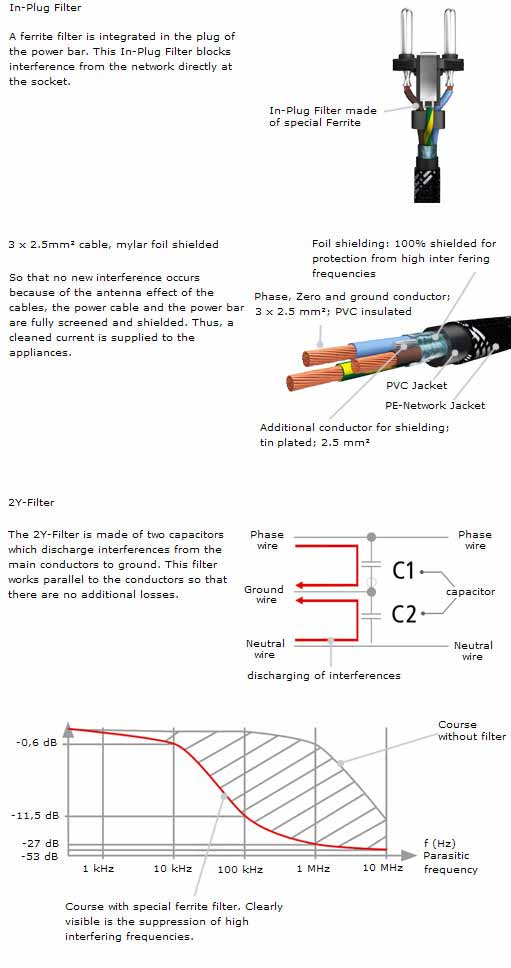

  • In-Plug Filter in the AC plug; 2Y-Filter in the power bar
  • Power bar (8 mm²) for even power distribution
  • Fully shielded metal housing

Additional Product Data

  • Mains switch
  • Additional mains filter
  • Overvoltage protection
  • Child safety protection
  • Compact Design
  • Construction fully compliant to VDE, CE and RoHS regulation
  • Indicator light
  • Includes phase tester

Technical features

Order No. Version Colour Lenght Price
in-00716402 8 (6+2) x Schuko 16A; 3 x 2,5 mm² Black 1.5 m   EUR 427,50 excl. VAT: € 359.24 / $ 423.91
in-00716403 8 (6+2) x Schuko 16A; 3 x 2,5 mm² Black 3.0 m   EUR 465,50 excl. VAT: € 391.18 / $ 461.59

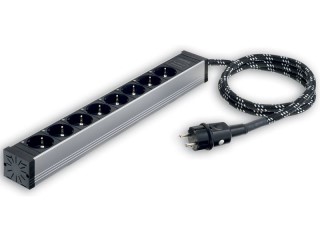

Reference Power Bar AC-2502-P8

Enlarge The Reference power bars filter unwanted interference out of the power supply, without introducing additional source impedance. Thanks to the use of high-quality materials and excellent workmanship, they provide maximum dynamics, even for extreme loads. Their full shielding and special filters prevent radio frequencies from being received. Solid power bars in the power strips distribute the power homogeneously to all outlets.

Key-Features

  • 8 AC power sockets
  • 3 x 2.5 mm² cable, mylar foil shielded
  • Foil shielding and additional shielding wire
  • In-Plug Filter in the AC plug; 2Y-Filter in the power bar
  • Power bar (8 mm²) for even power distribution
  • Fully shielded metal housing

Additional Product Data

  • Child safety protection
  • Compact Design
  • Construction fully compliant to VDE, CE and RoHS regulation
  • Includes phase tester



Order No. Version Colour Lenght Price
in-00716302 8 x Schuko 16 A; 3 x 2.5 mm² Black 1.5 m   EUR 308,70 excl. VAT: € 259.41 / $ 306.11
in-00716303 8 x Schuko 16 A; 3 x 2.5 mm² Black 3.0 m   EUR 346,70 excl. VAT: € 291.34 / $ 343.79

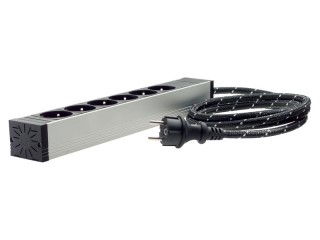

Reference Power Bar AC-1502-P6

Enlarge The Reference power bars filter unwanted interference out of the power supply, without introducing additional source impedance. Thanks to the use of high-quality materials and excellent workmanship, they provide maximum dynamics, even for extreme loads. Their full shielding and special filters prevent radio frequencies from being received. Solid power bars in the power strips distribute the power homogeneously to all outlets.

Key-Features

  • 6 AC power sockets
  • 3 x 1.5 mm² cable, mylar foil shielded
  • Foil shielding and additional shielding wire
  • In-Plug Filter in the AC plug; 2Y-Filter in the power bar
  • Power bar (8 mm²) for even power distribution
  • Fully shielded metal housing

Additional Product Data

  • Child safety protection
  • Compact Design
  • Construction fully compliant to VDE, CE and RoHS regulation
  • Includes phase tester



Order No. Version Colour Lenght Price
in-00716202 6 x Schuko 16 A; 3 x 1.5 mm² Black 1.5 m   EUR 256,50 excl. VAT: € 215.55 / $ 254.34
in-00716203 6 x Schuko 16 A; 3 x 1.5 mm² Black 3.0 m   EUR 294,50 excl. VAT: € 247.48 / $ 292.03

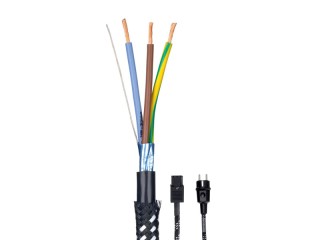

Reference Mains Cable AC-1502

Enlarge The Reference mains cable ensures a stabile and clean supply of power. The shielding provides reliable protection from interference and the innovative in-plug ilter provides additional decoupling for the equipment.

Key-Features

  • Additional shielding wire (CU tin-plated; 1 x 1.5 mm²)
  • Phase markings
  • Foil shielding
  • Ferrite filter in the plug (in-plug filter)
  • PE network jacket
  • Conforms to VDE and CE

Additional Product Data

  • 3 x 1,5 mm²
  • In-plug filter in Schuko plug



Order No. Version Colour Lenght Price
in-00716101 Schuko>IEC Plug; 3 x 1.5 mm² Black 1.0 m   EUR 113,00 excl. VAT: € 94.96 / $ 112.05
in-00716102 Schuko>IEC Plug; 3 x 1.5 mm² Black 1.5 m   EUR 122,50 excl. VAT: € 102.94 / $ 121.47
in-00716103 Schuko>IEC Plug; 3 x 1.5 mm² Black 3.0 m   EUR 134,90 excl. VAT: € 113.36 / $ 133.77
in-00716105 Schuko>IEC Plug; 3 x 1.5 mm² Black 5.0 m   EUR 152,00 excl. VAT: € 127.73 / $ 150.72

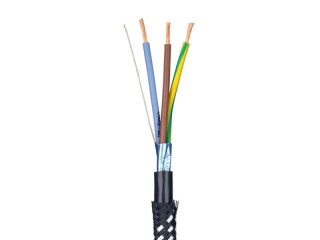

Reference Mains Cable AC-2502F & 1502F

Enlarge The Reference mains cable ensures a stabile and clean supply of power. The shielding provides reliable protection from interference.

Key-Features

  • Additional shielding wire (CU tin-plated; 1 x 1.5 mm²)
  • Foil shielding
  • PE network jacket
  • 3 x 2,5 mm² (AC-2502F)
  • 3 x 1,5 mm² (AC-1502F)
  • Conforms to VDE and CE



Order No. Version Colour Lenght Price
in-00762512 AC-2502F; 3 x 2.5 mm²; 13.0 mm Black 10.0 m   EUR 185,20 excl. VAT: € 155.63 / $ 183.64
in-00762522 AC-2502F; 3 x 2.5 mm²; 13.0 mm Black 20.0 m   EUR 361,00 excl. VAT: € 303.36 / $ 357.97
in-00762552 AC-2502F; 3 x 2.5 mm²; 13.0 mm Black 50.0 m   EUR 879,00 excl. VAT: € 738.66 / $ 871.61
in-00761512 AC-1502F; 3 x 1.5 mm²; 11.0 mm Black 10.0 m   EUR 116,80 excl. VAT: € 98.15 / $ 115.82
in-00761522 AC-1502F; 3 x 1.5 mm²; 11.0 mm Black 20.0 m   EUR 233,70 excl. VAT: € 196.39 / $ 231.74



Reference ICE plug AC-P2

Enlarge

Key-Features

  • High End ICE plug
  • Solid screw connections
  • Solid contacts
  • Includes installation material
  • Suitable for AC-1502F
  • Conforms to VDE and CE



Price per unit   (Order No in-007625991) - not available 3 x 1.5 mm²; 14 mm, Black
