Active modules

Active subwoofer module, 120 WMAX, 65 WRMS, SAM-1

Enlarge Enlarge Impressive Components for a Perfect Bass Speaker Due to the high-quality transistor technology, the approved design of these subwoofer active modules allows for an impressively warm sound of the self-built subwoofer system. The features and workmanship of the modules perfectly meet all requirements. SAM-1 and SAM-2 feature great dynamic reserves.

Active subwoofer module, 120 WMAX, 65 WRMS

  • Powerful active module of highest operating reliability
  • Suitable for subwoofers (12 dB slope) and full range speaker systems (jumper configuration)
  • Continuously adjustable phase control
  • Ground lift switch of the professional technology against hum interference
  • 24 dB subsonic filter
  • Automatic switch-on
  • Extensive protective circuits against short circuit, overheating and DC voltage overload

With the usual modern music material and a crossover frequency below 100Hz, the power of the SAM-1 for the bass range corresponds to a total amplifier power for the full frequency range of several hundred watts.

Specifications:

  • Output power rms 4 Ω: 90 WRMS
  • Output power rms 8 Ω: 65 WRMS
  • Music output power 4 Ω: 120 WMAX
  • Music output power 8 Ω: 90 WMAX
  • THD at rms power:<0.1 %
  • Frequency range, full range: 20-20,000 Hz
  • Frequency range, satellite: -
  • Frequency range, subwoofer: 20 Hz - (var. 50-150 Hz)
  • Output impedance: 4-8 Ω
  • Input impedance: line: 24 kΩ/high: 17 kΩ
  • Max. input voltage:
  • Line in: 4.7 V mono/ 2.3 V stereo
  • High power in: 33 V stereo
  • Max. power of high level input 4Ω: 2 x 270 WMAX
  • Max. power of high-level input 8 Ω: 2 x 135 WMAX
  • S/N ratio:>70 dB
  • Power consumption, no load: 2.5 VA
  • Power consumption, stand-by: 0.6 VA
  • Stand-by activation time: approx. 7 min.
  • Power supply: 230 V /50 Hz/120 VA
  • Required mounting cutout: 140x250 mm
  • Mounting depth w/o front panel: 90 mm
  • Dimensions: 170x280x95 mm
  • Weight: 3.3 kg
  • Automatic switch-on: X

Price per unit   (Order No mo-320640) - not available



Active subwoofer module, SAM-2

Enlarge The High-Power Subwoofer Module SAM-2 with the perfect equipment and workmanship for active subwoofer systems of the highest quality. The filters operate perfectly, for the subwoofer as well as the high-pass filter and a combination of systems of the highest quality is possible without any difficulties.

High-power active module with extensive equipment:

  • 24dB subsonic filter,
  • var. low-pass filter: 50-150Hz (18dB),
  • semiparametric bass boost (var. 30-50Hz midrange with boost up to 6dB, continuously adjustable),
  • continuously adjustable phase control 0-180° for uncompromising room adjustment and set-up adjustment,
  • var. high-pass filter: 50-150Hz (12dB) for equalizing the bass frequencies of the satellite amplifier and the satellite speakers,
  • ground lift switch of the studio technology against hum interference and various protective circuits (short circuit, overheating and DC voltage overload).

The great power can also perfectly drive enormous bass speakers with a diameter of up to 46cm, the sound and the workmanship are absolutely convincing. The high-quality active high-pass filter of the SAM-2 with versatile adjustments can conveniently be used as a bass relief of the main speakers and for optimising the sound. However, a regulated preamplifier output (Pre Out) is required for this. This kind of output is partly present at high-quality separable full amplifiers (Pre Out/Main In) or automatically provided by preamplifier/power amplifier combination or when using mixers.

Technical Facts:

  • Output power rms 4 Ohm: 200WRMS
  • Output power rms 8 Ohm: 125WRMS
  • Music output power 4 Ohm: 250WMAX
  • Music output power 8 Ohm: 180WMAX
  • THD at rms power: <0.1%
  • Frequency range, full range
  • Frequency range, satellite: (var. 50-150Hz) - 20,000Hz
  • Frequency range, subwoofer: 20Hz - (var. 50-150Hz)
  • Output for loudspeaker 4-8 Ohm
  • Input impedance: line: 20kOhm
  • Max. input voltage: Line in: 8.4V mono/4.2V stereo
  • High power in: 44V stereo
  • Max. power of high level input 4 Ohm: 2 x 480WMAX
  • Max. power of high-level input 8 Ohm: 2 x 240WMAX
  • S/N ratio: >70dB
  • Power consumption, no load: 19VA
  • Power consumption, stand-by: 6VA
  • Stand-by activation time: approx. 7 minutes
  • Power supply: 230V /50Hz/300VA
  • Required mounting cutout: 155x340mm
  • Mounting depth w/o front panel: 85mm
  • Dimensions: 185x370x90mm
  • Weight: 4.9kg

Price per unit   (Order No mo-320670) EUR 297,00 excl. VAT: € 249.58 / $ 294.50

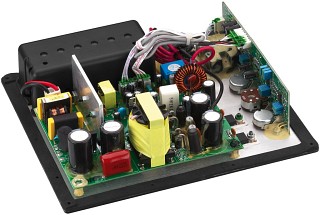

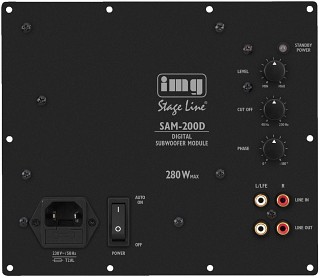

Active Subwoofer Modules for the Digital Age SAM-200D

Enlarge Enlarge Active Subwoofer Modules for the Digital Age Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG Stage Line provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system. Class D active subwoofer module, 280 WMAX, 200 WRMS at 4 Ω
  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Hz (18 dB)
  • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 dB at 40 Hz
  • High power reserves

Specifications:

  • Output power rms 4 Ω: 200 WRMS
  • Output power rms 8 Ω: 100 WRMS
  • Music output power 4 Ω: 280 WMAX
  • Music output power 8 Ω: 150 WMAX
  • THD at rms power:<0.1 %
  • Frequency range, full range: -
  • Frequency range, satellite: -
  • Frequency range, subwoofer: 20 Hz - (var. 40-200 Hz)
  • Sub-boost: +3 dB at 40 Hz
  • Output impedance: 4-8 Ω
  • Input impedance: 20 kΩ
  • Max. input voltage:
  • Line in: 7 V max.
  • High power in: -
  • Max. power of high level input 4Ω: -
  • Max. power of high-level input 8 Ω: -
  • S/N ratio:>70 dB
  • Power consumption, no load: 24 VA
  • Power consumption, stand-by:>0.5 W
  • Stand-by activation time: -
  • Power supply: 230 V /50 Hz/330 VA
  • Required mounting cutout: 185x160 mm
  • Mounting depth w/o front panel: 60 mm
  • Dimensions: 178x204x80 mm
  • Weight: 1.4 kg
  • Line in: 1 x RCA
  • High power in: -
  • Line out: 1 x RCA
  • Volume control: X
  • Freq. cutoff control: X
  • Phase control: X
  • Automatic switch-on: X
  • Mains switch: X

Price per unit   (Order No mo-320780) EUR 155,83 excl. VAT: € 130.95 / $ 154.52

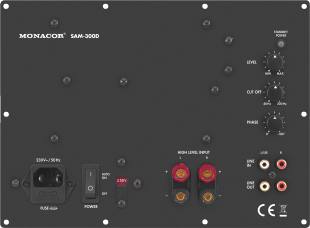

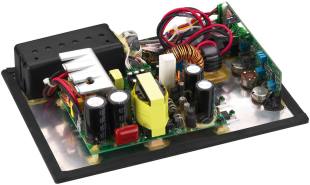

Active Subwoofer Modules for the Digital Age SAM-300D

Enlarge Enlarge Active Subwoofer Modules for the Digital Age Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG Stage Line provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system. Class D active subwoofer module, 420 WMAX, 300 WRMS at 4 Ω
  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Hz (18 dB)
  • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 dB at 40 Hz
  • High power reserves

Specifications:

  • Output power rms 4 Ω: 300 WRMS
  • Output power rms 8 Ω: 150 WRMS
  • Music output power 4 Ω: 210 WMAX
  • Music output power 8 Ω: 150 WMAX
  • THD at rms power:<0.1 %
  • Frequency range, full range: -
  • Frequency range, satellite: -
  • Frequency range, subwoofer: 20 Hz - (var. 40-200 Hz)
  • Sub-boost: +3 dB at 40 Hz
  • Output impedance: 4-8 Ω
  • Input impedance: 20 kΩ
  • Max. input voltage:
  • Line in: 7 V max.
  • High power in: -
  • Max. power of high level input 4Ω: -
  • Max. power of high-level input 8 Ω: -
  • S/N ratio:>70 dB
  • Power consumption, no load:
  • Power consumption, stand-by:>0.5 W
  • Stand-by activation time: -
  • Power supply: 230 V /50 Hz/440 VA
  • Required mounting cutout: 168 x 235 mm
  • Mounting depth w/o front panel: 90 mm
  • Dimensions: 188x255x90 mm
  • Weight: 1.6 kg
  • Line in: 1 x RCA
  • High power in: -
  • Line out: 1 x RCA
  • Volume control: X
  • Freq. cutoff control: X
  • Phase control: X
  • Automatic switch-on: X
  • Mains switch: X

Price per unit   (Order No mo-320790) EUR 179,79 excl. VAT: € 151.08 / $ 178.28

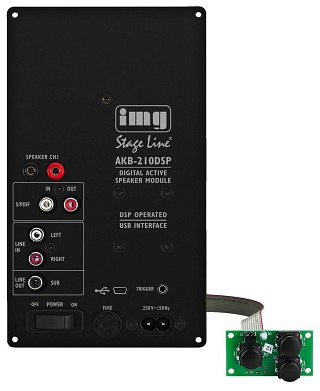

Active speaker module with DSP technology, 200 WMAX, 120 WRMS AKB-210DSP

Enlarge Active speaker module with DSP technology, 200 WMAX, 120 WRMS, for versatile applications.
  • 2-channel active module (class D)
  • 2 x 60 WRMS/4 Ω
  • 3-channel DSP
  • S/PDIF input and output
  • Audio in possible via USB interface
  • Line output for subwoofer amplifier (third DSP channel)
  • Link input and output for synchronising two AKB-210DSP modules
  • External mini keypad with buttons for on/off and volume, connection via 50 cm flat cable
  • Touch panel AKB-210TP as an alternative to the keypad is available at option
  • Integrated infrared receiver for optional infrared remote control AKB-210RC
  • Supplied with software (Windows* XP, Vista/7/8)
  • Parameters to be controlled via software: Biquad filter functions (bell, notch, all-pass, low-shelf, high-shelf, band-pass, high-pass, low-pass), delay, limiter, gain of the inputs, master volume, low cut
  • Short-circuit proof
  • Overtemperature protection
  • Bridged mode adjustable via software
  • Supplied with mains cable, USB cable, link cable (3.5 mm jack), mini keypad

Examples of application:

  • with one AKB-210DSPStereo system with passive filters
  • 2-way active system for controlling the bass speaker and tweeter of a speaker system
  • Bridged mode for operating a subwoofer or individual speaker with a higher power capability
  • with two AKB-210DSP2-way stereo system with active filters
  • 2-channel system with active subwoofer
  • 2-channel system with bridged power amplifiers for a higher power capability
  • additional third DSP channel

With the third line output to be programmed by DSP, the range of applications can considerably be extended. Actively controlled 3-way speakers, fully active subwoofer/satellite systems and a variety of most versatile speaker concepts can be configured and realised by controlling additional power amplifiers.

Specifications:

  • RMS output power: 2 x 60 WRMS/4 Ω
  • : 2 x 45 WRMS/8 Ω
  • Music output power: 200 WMAX /4 Ω
  • : 140 WMAX/8 Ω
  • THD:<0.05 %
  • Output impedance: 4-8 Ω
  • Frequency range: 20-20,000 Hz
  • Input impedance: 10 kΩ
  • Input voltage: 2.2 V
  • S/N ratio:>100 dB
  • Standby current: -
  • Power supply: 230 V /50 Hz/230 VA
  • Req. panel cutout: 310x120 mm
  • Dimensions: 115x60x200 mm
  • Weight: 1.5 kg
  • Inputs: 2 x line input (L/R, unbal.), 1 x S/PDIF, 1 x mini USB interface for programming by DSP and audio in, 1 x trigger, 3.5 mm jack (input/output), 1 x mains input jack
  • Outputs: 1 x sub output (line, unbal.), 1 x S/PDIF, 4 x clamp terminals for 4 Ω to 8 Ω speaker (rear panel), 1 x speaker output via 2 banana jacks (front panel)
  • Integrated limiter: via DSP
  • Level control: via DSP
  • 2-way tone control: via DSP
  • Mains switch: X

Price per unit   (Order No mo-320220) EUR 244,00 excl. VAT: € 205.04 / $ 241.95

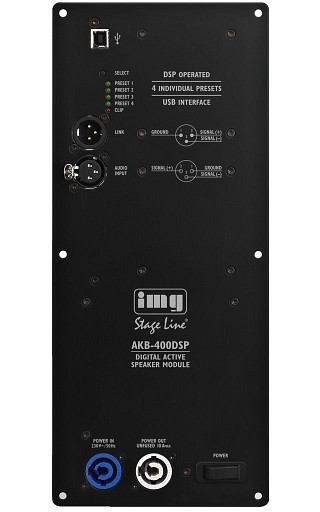

Active speaker module with DSP technology, 400 WRMS, AKB-400DSP

Enlarge DSP-controlled digital amplifier technology, for speaker building concepts. Speaker systems with digital signal processors (DSP) allow completely new possibilities. With the active speaker module AKB-400DSP, this technology is now applied in speaker building concepts. It is both suitable for 2-way speakers and for the application in an active subwoofer. The programming is carried out via a user-friendly software. For this purpose, the computer is connected to the module via a USB cable. A total of 400 WRMS at 4 Ω can be provided as desired, e.g. 400 WRMS for subwoofer operation, 2 x 200 WRMS for 2-way speakers or 350 WRMS for a bass speaker and 50 WRMS for a tweeter.
  • Active speaker module with DSP technology, 400 WRMS2-channel active module (class D)
  • 400 WRMS/4 Ω
  • 2-channel DSP
  • 4 presets can be programmed and stored
  • Supplied with software (Windows* XP, Vista/7/8)
  • Parameters to be controlled via software: Biquad filter functions (bell, notch, all-pass, low-shelf, high-shelf, band-pass, high-pass, low-pass), delay, limiter, gain of the inputs, master volume, low cut
  • Short-circuit proof
  • Overtemperature protection
  • Supplied without mains cable, matching mains cable AAC-115P is available at option

Specifications:

  • RMS output power: 400 WRMS/4 Ω ; 180 WRMS/8 Ω
  • Music output power: 600 WMAX /4 Ω; 250 WMAX/8 Ω
  • THD:<0.004 %
  • Output impedance: 4-8 Ω
  • Frequency range: 10-30,000 Hz
  • Input impedance: 25 kΩ bal.
  • Input voltage: 2.5 V
  • S/N ratio:>100 dB
  • Standby current: -
  • Power supply: 230 V /50 Hz/600 VA
  • Req. panel cutout: 310x120 mm
  • Dimensions: 142x55x330 mm
  • Weight: 1.1 kg
  • Inputs: 1 x line input (XLR, bal.), 1 x POWERCON, USB interface for DSP programming
  • Outputs: 1 x line output (XLR, bal.), 2 x 4-8 Ω speaker, 1 x POWERCON
  • Integrated limiter: via DSP
  • Level control: via DSP
  • 2-way tone control: via DSP
  • Mains switch: X

Price per unit   (Order No mo-320010) EUR 309,00 excl. VAT: € 259.66 / $ 306.40

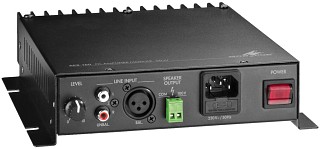

PA amplifier module AKB-160

Enlarge PA amplifier module, with 100 V output.
  • 1 x 40 WRMS
  • Silent operation due to fanless cooling concept
  • Balanced line input (XLR) and unbalanced line input (RCA)
  • Speaker output via spring-loaded speaker terminals
  • Volume control
  • Metal housing with mounting brackets

Specifications:

  • Output power: 40 WRMS, 60 WMAX
  • Mic input: -
  • Aux input: 390 mV/26 kΩ, bal. 420 mV/11 kΩ, unbal.
  • Phono input: -
  • Speaker output: 100 V
  • Frequency range: 17-20,000 Hz, -3 dB
  • Equalizer bass: -
  • Equalizer midrange: -
  • Equalizer treble: -
  • S/N ratio:>80 dB
  • THD:<1 %
  • Power supply: 230 V /50 Hz/75 VA
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 213x55x238 mm
  • Weight: 3.2 kg
  • Special feature: -
  • Microphone: -
  • Aux, phono: 1 x XLR (line) 1 x RCA L/R (line)

Price per unit   (Order No mo-174260) EUR 171,00 excl. VAT: € 143.70 / $ 169.56



Voice messaging system ARM-911

Enlarge Voice messaging system
  • For SD/MMC cards up to 2 GB
  • Internal audio memory (capacity: 20 minutes)
  • Supports MP3, WAV and WMA files
  • 10 selection buttons on the front panel for starting messages and displaying the status
  • Time-controlled reproduction of announcements
  • Time-controlled chimes
  • Configuration possible via network
  • Up to 4 desktop microphones RM-911D can be connected
  • Mains operation or 24 V emergency power operation
  • 482 mm (19") rack installation, 1 RS
  • Power supply: 230 V/50 Hz/20 VA, 24 V DC current /700 mA
  • Dimensions: 482x44x280 mm
  • Weight: 3.5 kg



Price per unit   (Order No mo-174540) EUR 1683,00 excl. VAT: € 1414.29 / $ 1668.86



8-channel audio streaming controller DAC-288

Enlarge 8-channel audio streaming controller, for transmitting audio signals over a standard IP network via Dante™.Transmission of uncompressed high-quality audio formats (48 kHz, 24 bits) in real time (latency: 1 ms max.) 8 audio input channels and 8 audio output channels can be transmitted in the same network. DAC-288 supports the complete bidirectional transmission Supplied with Dante™ management software Mains operation or 24 V emergency power operation Power supply: 230 V /50 Hz/30 VA, 24 V DC current /500 mA Dimensions: 482x44x280 mm Weight: 3 kg


Price per unit   (Order No mo-174550) EUR 1870,00 excl. VAT: € 1571.43 / $ 1854.29



Digital message and timer insertion PA-1120DMT

Enlarge Digital message and timer insertion, for the PA mixing amplifiers with insertion compartment.
  • Backlit DOT matrix display with 2 x 8 digits
  • DCF-77 synchronised clock (radio-controlled clock) for timed announcements
  • Internal memory for up to 26 audio files
  • Audio files can be copied to the internal memory via integrated micro SD card reader
  • 6 memory recall buttons, memory presets can also be accessed via zone paging microphone PA-1120RC or PA-6000RC and PA-1120DMT
  • 3.5 mm connection on the front panel for picking up microphone or line signals
  • Up to 20 events per day can be stored



Price per unit   (Order No mo-174580) EUR 498,00 excl. VAT: € 418.49 / $ 493.82
