speaker protection

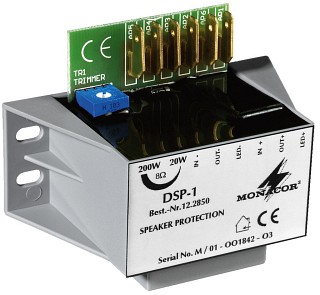

Mono speaker protection module DSP-1

Enlarge Mono speaker protection module
  • To protect midrange speakers and tweeters of all impedances in case of overload by excessive level peaks
  • The max. admissible power can be adjusted between 20 and 200 W
  • Subsequent mounting into existing systems can easily be carried out, too
  • Safe speaker protection for satellites and other small full range speakers in the entire audio range from 20-20,000 Hz
  • Audio quality is not affected below the threshold
  • Module is automatically reset after eliminating the power peaks



Price per unit   (Order No mo-122850) EUR 32,50 excl. VAT: € 27.31 / $ 32.23

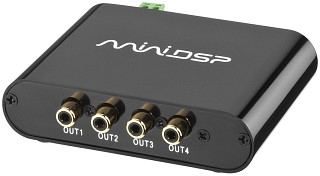

Digital signal processor (DSP) MDSP-24

Enlarge Digital signal processor (DSP), in a compact housing, with 2 analogue inputs and 4 analogue outputs.24 bits, AD/DA converter
  • Sampling rate: 48 kHz
  • 2 RCA inputs (0.9 V/2 V, switchable)
  • 4 RCA outputs (0.9 V)
  • Programming and administration via mini USB interface and controlling software (Windows* XP/Vista/7, Mac OS X Intel)
  • With the control software, the following parameters can be adjusted (supplied with promotional code):Filters: high-shelf, low-shelf, high-pass, low-pass
  • Graphic equalizer
  • Parametric equalizer
  • Matrix mixer
  • Volume, mute, polarity
  • Power supply via USB interface or via optional PSU 4.5-24 V DC current
  • Dimensions: 107x30x96 mm
  • Weight: 155 g




Price per unit   (Order No mo-112310) EUR 138,00 excl. VAT: € 115.97 / $ 136.84

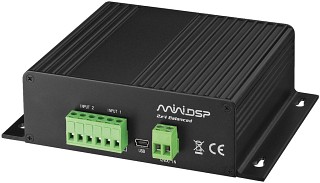

Digital signal processor (DSP) MDSP-24BAL

Enlarge Digital signal processor (DSP), in an aluminium housing, with 2 analogue inputs and 4 analogue outputs (balanced).AD/DA converter, 24 bits
- Sampling rate: 48 kHz
- 2 balanced inputs via screw terminals (0.9 V/2 V, switchable)
- 4 balanced outputs via screw terminals (0.9 V)
- Programming and administration via mini USB interface and control software (Windows* XP/Vista/7, Mac OS X Intel) With the control software,
- the following parameters can be adjusted (supplied with promotional code):
- Filters: high-shelf, low-shelf, high-pass, low-pass
- Graphic equalizer Parametric equalizer Matrix mixer Volume,
- mute,
- polarity
- Power supply via optional 12 V PSU (e.g. PSS-1205DC)
- Dimensions: 147x45x130 mm
- Weight: 362 g


Price per unit   (Order No mo-112350) EUR 242,47 excl. VAT: € 203.76 / $ 240.43

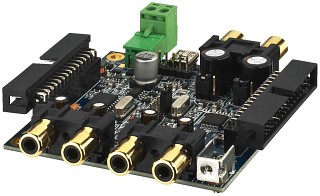

Digital signal processor (DSP) MDSP-24KIT

Enlarge Enlarge Enlarge Digital signal processor (DSP), for DIY speaker building, with 2 analogue inputs and 4 analogue outputs.
  • AD/DA converter, 24 bits
  • Sampling rate: 48 kHz
  • 2 RCA inputs (0.9 V/2 V, switchable)
  • 4 RCA outputs (0.9 V)
  • Potentiometer for volume control Programming and administration via mini USB interface and control software (Windows* XP/Vista/7, Mac OS X Intel)
With the control software, the following parameters can be adjusted (supplied with promotional code):
  • Filters: high-shelf, low-shelf, high-pass, low-pass
  • Graphic equalizer
  • Parametric equalizer
  • Matrix mixer Volume,
  • mute,
  • polarity
  • Power supply via USB interface or optional PSU 4.5-24 V DC current
  • Dimensions: 88x18x96 mm
  • Weight: 64 g



Price per unit   (Order No mo-112360) EUR 148,00 excl. VAT: € 124.37 / $ 146.76



Ultra-compact rack-mount amplifier, 2 x 60 WMAX, with Bluetooth interface SWA-2X60

Enlarge Ultra-compact rack-mount amplifier, 2 x 60 WMAX, with Bluetooth interface
  • For traditional speakers and vibration speakers
  • 2-channel digital amplifier (class D)
  • Integrated Bluetooth module for audio streaming (A2DP)
  • 4-channel signal processor (DSP)
  • Mini USB interface for programming
  • Switchable audio inputs and outputs
  • Scope of delivery: amplifier module, cable, remote control, CD-ROM with configuration software and German, English and French instruction manual

Specifications:

  • Output power: 2 x 60 WMAX 1 x 120 WMAX
  • Frequency range: 20-20,000 Hz
  • Admiss. ambient temp.: -20 °C to +70 °C
  • Power supply: 12-24 V DC current /8.5 A
  • Dimensions: 86x19x90 mm
  • Connections: Operating voltage, plug-in screw terminals Sensor input, plug-in screw terminals Audio out (4-8 Ω), 2 x 2 poles, plug-in screw terminals Audio in, H/L level, 4 poles, plug-in screw terminals Stereo in, 3.5 mm jack 6-pole multi-purpose plug for extensions

Price per unit   (Order No mo-030970) EUR 445,00 excl. VAT: € 373.95 / $ 441.26

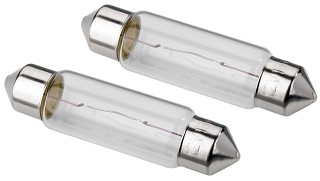

Linolite lamps 18 W PL-1218

Enlarge Linolite lamps 18 W . With increasing capacity, the ohm value is always increasing, too. PL-1218: 12 V; PL-2418: 24 V, supplied in pairs.

Specifications:

  • Power: 12 V/18 W
  • Dimensions: Ø 11 mm x 42 mm

Price per pair   (Order No mo-020530) EUR 4,06 excl. VAT: € 3.41 / $ 4.03
