Rolled cables: Special cables

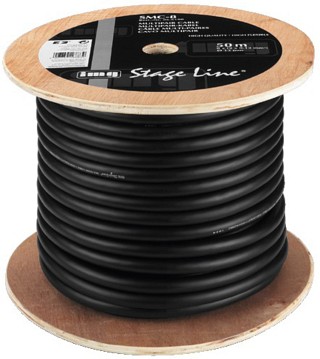

Multipair cable SMC-8

Enlarge Enlarge Multipair cable "HIGH QUALITY, HIGHLY FLEXIBLE"

  • 50 m reel
  • Cores: 8 x (2 x 0.12 mm2)
  • Outside diameter: Ø 13 mm
  • Metre marking
  • Individually shielded pairs of litz wire
  • Each shield individually insulated
  • Pairs of litz wire with numbering
  • Capacitance: 165 pF/m



Price per unit   (Order No mo-066100) EUR 165,00 excl. VAT: € 138.66 / $ 163.61

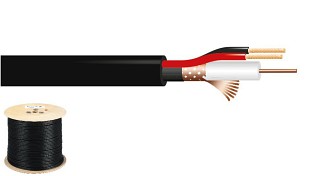

Combined video cable VSC-103/SW

Enlarge Combined video cable

  • 100 m reel
  • 75 Ω coaxial cable with rigid internal conductor: Ø 0.6 mm, attenuation: 5.3 dB/100 m (10 MHz)
  • 2 x 0.75 mm2, litz wire, e.g. for the power supply (48 V max.) of CCTV cameras
  • Outside diameter: Ø 8 mm
  • Suitable for the combination with the video and voltage distributor VSV-9A
  • Matching BNC plug: UG-88/UCR58



Price per unit   (Order No mo-150690) EUR 193,00 excl. VAT: € 162.18 / $ 191.38



Combined video cables VSC-502/SW

Enlarge Enlarge Combined video cables

  • 75 Ω coaxial cable, bunched internal conductor: Ø 0.6 mm, attenuation: 2.5 dB/100 m (5 MHz)
  • 2 x 0.75 mm2, e.g. for the power supply (48 V max.) of CCTV cameras
  • Highly flexible version
  • Matching BNC plug: UG-88/UCR

VSC-152/SW: 150 m reel

VSC-502/SW: 500 m reel

Matching BNC plug: e.g. UG-88/UCR.


Price per unit   (Order No mo-505150) EUR 865,00 excl. VAT: € 726.89 / $ 857.73



Cat. 5e installation cable, 125 MHz UTP CAT-5100UTP

Enlarge Cat. 5e installation cable, 125 MHz UTP, grey, flexible, for network applications.
  • 100 m reel
  • 4 x (2 x 0.14 mm2)
  • Without shielding
  • Outside diameter: Ø 6 mm



Price per unit   (Order No mo-061260) EUR 44,50 excl. VAT: € 37.39 / $ 44.13



Cat. 6 Network Cables, Multiple Shielding, S/FTP CAT-620

Enlarge Cat. 6 Network Cables, Multiple Shielding, S/FTP
  • 1 Gbps
  • Conductor pairs in metal foil (PiMF)
  • Overall braided shield
  • RJ45 plug with moulded cable support sleeve
  • Gold-plated contacts
  • Configuration according to EIA/TIA 568
  • Cable specification: 4x2xAWG 27/7 CU

Specifications:

  • Length: 20 m
  • Colour: grey
  • Other features: Cat. 6, 250 MHz

Price per unit   (Order No mo-068280) EUR 19,70 excl. VAT: € 16.55 / $ 19.53
