Wall and ceiling speakers: Low-impedance / 100 V

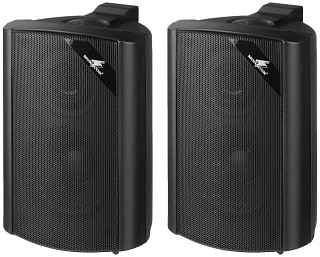

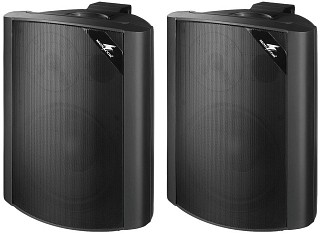

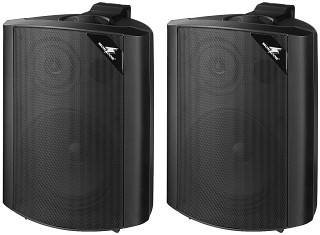

Pair of high-quality PA speakers, 30 WMAX, 16 Ω, PAB-416/SW

This particularly attractive and efficient series of PA speaker systems is clearly designed for effective fixed installations, whether in restaurants and bars, hotels, for background PA applications at sport facilities, PA applications in adjoining rooms at discotheques or at conferences: these PAB speaker systems offer a perfect price-performance ratio and a high quality.

Pair of high-quality PA speakers, 30 WMAX, 16 Ω

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels
Supplied with wall bracket
Due to the availability of the PAB-416/... speaker systems in 16 Ω, too, up to 8 speaker systems can be driven at one 2-channel standard amplifier with 4 Ω stability by basic parallel connection!
Pair of high-quality PA speakers
2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance (PAB-88 and PAB-68 in a bass-reflex cabinet), polypropylene bass speaker (partly with ventilated drive) and dome tweeter with horn front attachment (waveguide).

High-quality crossover networks with a perfect long-term stability, e.g. due to permanently applying film capacitors. With the series, 2 kinds of sound are on offer:

PAB-88/... and PAB-58/... impress by a really fast and brilliant sound of high efficiency and a high dynamic range and are particularly optimised for PA applications of modern music of higher volume levels.

The PAB-68/... and the four PAB-4... speaker systems of this series feature a very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels. Special features of the individual sizes:

The PAB-88 and PAB-68 speaker systems are equipped with an LED at the front for indicating the level
The PAB-4... speaker systems are also available in 16 Ω for a perfect parallel connection of up to 4 speaker systems per channel

All speaker systems of this series are supplied with wall brackets.

Specifications:

Music power: 30 W_MAX
Power rating: 20 W_RMS
Max. frequency range: 80-22,000 Hz
Impedance: 16 Ω
SPL (1 W/1 m): 87 dB
Max. rated SPL: 100 dB
Dimensions: 150x240x140 mm
Weight: 1.8 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

Price per pair (Order No. mo-131870) - not available

Pair of high-quality PA speakers, 30 WMAX, 8 Ω, PAB-48/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of high-quality PA speakers, 30 WMAX, 8 , PAB-48/SW — Enlarge

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels
Supplied with wall bracket

Specifications:

Music power: 30 W_MAX
Power rating: 20 W_RMS
Max. frequency range: 80-22,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 87 dB
Max. rated SPL: 100 dB
Dimensions: 150x240x140 mm
Weight: 1.8 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

Price per pair (Order No. mo-131890) - not available

Pair of high-quality PA speakers, 50 WMAX, 8 Ω, PAB-58/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of high-quality PA speakers, 50 WMAX, 8 , PAB-58/SW — Enlarge

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Impress by a really fast and brilliant sound of high efficiency and a high dynamic range and are particularly optimised for PA applications of modern music of higher volume levels
Supplied with wall bracket

Specifications:

Music power: 50 W_MAX
Power rating: 30 W_RMS
Max. frequency range: 75-22,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 92 dB
Max. rated SPL: 107 dB
Dimensions: 160x250x150 mm
Weight: 2.2 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

Price per pair (Order No. mo-131920) - not available

Pair of high-quality PA speakers, 70 WMAX, 8 Ω, PAB-68/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of high-quality PA speakers, 70 WMAX, 8 , PAB-68/SW — Enlarge

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance, bass-reflex
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Very well-balanced and clear sound which also convinces with the genuine reproduction of voices and demanding music and at the same time appears to be very unobtrusive at moderate levels
LED at the front for indicating the level
Supplied with wall bracket

Specifications:

Music power: 70 W_MAX
Power rating: 40 W_RMS
Max. frequency range: 55-22,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 90 dB
Max. rated SPL: 106 dB
Dimensions: 210x350x200 mm
Weight: 3.9 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

Price per pair (Order No. mo-131930) - not available

Pair of high-quality PA speakers, 120 WMAX, 8 Ω, PAB-88/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of high-quality PA speakers, 120 WMAX, 8 , PAB-88/SW — Enlarge

2-way speaker systems in an ABS cabinet which is both functional and at the same time of an attractive appearance, bass-reflex
Polypropylene bass speaker and dome tweeter with horn front attachment (waveguide)
High-quality crossover networks with a perfect long-term stability, e.g. due to consistently applying film capacitors
Impress by a really fast and brilliant sound of high efficiency and a high dynamic range and are particularly optimised for PA applications of modern music of higher volume levels
LED at the front for indicating the level
Supplied with wall bracket

Specifications:

Music power: 120 W_MAX
Power rating: 75 W_RMS
Max. frequency range: 40-20,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 92 dB
Max. rated SPL: 111 dB
Dimensions: 250x420x240 mm
Weight: 7 kg
Connections: speaker screw terminal
Mounting facility: 2 x thread M6
System:

Price per pair (Order No. mo-131950) - not available

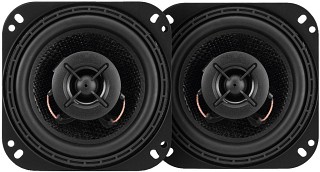

Pair of car chassis speakers, 80 WMAX, 4 Ω, CRB-100CP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 80 WMAX, 4 , CRB-100CP — Enlarge

Series of Chassis Speakers for Car Hi-fi Applications

With high-quality carbon fibre cone in stable standard baskets. These speakers impress by a bass reproduction of amazingly low fundamental resonance which makes them an ideal replacement for original equipment. The sound can be improved considerably without necessarily having to use subwoofers and power amplifiers. An efficient application in more complex car hi-fi systems of high power capability is also possible, of course.

Pair of car chassis speakers, 80 WMAX, 4 Ω

2-way coaxial version
Carbon fibre cone
Voice coil of long excursion
Frequency range: 100-22,000 Hz
Mounting dim.: Ø 94 mm x 46 mm
Outside dimensions: 103x103 mm
Type 100

Specifications:

Frequency range: 100-22,000 Hz
Music power: 80 W
Magnet diameter: Ø 80 mm
Magnet weight: 230 g
Mounting cutout: Ø 94 mm
Mounting depth: 46 mm
Outside dimensions: 103 mm x 103 mm
Type: 100

Price per pair (Order No. mo-130700) - not available

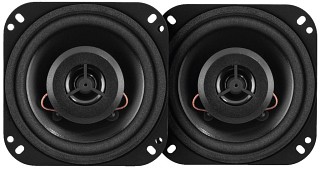

Pair of car chassis speakers, 60 WMAX, 4 Ω, CRB-100PP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 60 WMAX, 4 , CRB-100PP — Enlarge

Extensive series of 2-way coaxial car chassis speakers with polypropylene cone. This series contains various basket designs, which enable an assembly in most existing vehicles without any difficulties. The workmanship and the sound experience are of high quality. An optimum result is achieved by replacing original equipment with these speakers.

Pair of car chassis speakers, 60 WMAX, 4 Ω

2-way coaxial version
Polypropylene cone
Frequency range: 100-22,000 Hz
Mounting dim.: Ø 92 mm x 46 mm
Outside dimensions: 103x103 mm
Type 100

Specifications:

Frequency range: 100-22,000 Hz
Music power: 60 W
Magnet: Ø 80 mm/230 g
Mounting dimensions: Ø 92 mm x 42 mm
Outside dimensions: 103x103 mm
Type: 100

Price per pair (Order No. mo-130550) - not available

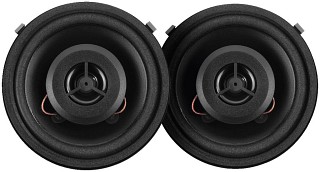

Pair of car chassis speakers, 40 WMAX, 4 Ω, CRB-101PP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 40 WMAX, 4 , CRB-101PP — Enlarge

2-way coaxial version
Polypropylene cone
Frequency range: 100-22,000 Hz
Mounting dim.: Ø 92 mm x 42 mm
Outside dimensions: Ø 100 mm
Type101

Specifications:

Frequency range: 100-22,000 Hz
Music power: 40 W
Magnet diameter: Ø 70 mm
Magnet weight: 150 g
Mounting cutout: Ø 92 mm
Mounting depth: 42 mm
Outside dimensions: Ø 100 mm
Type: 101

Price per pair (Order No. mo-130560) - not available

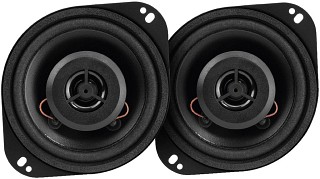

Pair of car chassis speakers, 40 WMAX, 4 Ω, CRB-102PP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 40 WMAX, 4 , CRB-102PP — Enlarge

2-way coaxial version
Polypropylene cone
Frequency range: 100-22,000 Hz
Mounting dim.: Ø 92 mm x 42 mm
Outside dimensions: Ø 100 mm
Type102

Specifications:

Frequency range: 100-22,000 Hz
Music power: 40 W
Magnet diameter: Ø 70 mm
Magnet weight: 150 g
Mounting cutout: Ø 92 mm
Mounting depth: 42 mm
Outside dimensions: Ø 100 mm
Type: 102

Price per pair (Order No. mo-130570) - not available

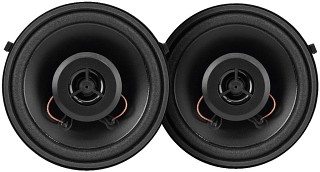

Pair of car chassis speakers, 60 WMAX, 4 Ω, CRB-120PP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 60 WMAX, 4 , CRB-120PP — Enlarge

2-way coaxial version
Polypropylene cone
Frequency range: 90-22,000 Hz
Mounting dim.: Ø 110 mm x 47 mm
Outside dimensions: Ø 120 mm
Type 120

Specifications:

Frequency range: 90-22,000 Hz
Music power: 60 W
Magnet diameter: Ø 80 mm
Magnet weight: 230 g
Mounting cutout: Ø 110 mm
Mounting depth: 47 mm
Outside dimensions: Ø 120 mm
Type: 120

Price per pair (Order No. mo-130580) - not available

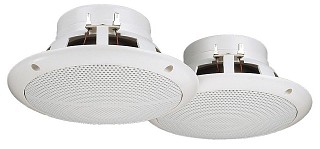

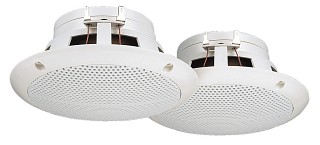

Pair of flush-mount speakers CRB-130/WS

Pair of flush-mount speakers, with dual cone, 4 Ω.

Moisture-proof
White one-piece plastic design and plastic cone
Versatile use for car hi-fi, PA, terrace, boat

Specifications:

Impedance: 4 Ω
Frequency range: 80-10,000 Hz
Music power: 40 W
Power rating: 20 W
Type of speaker: 130
Mounting cutout: Ø 110 mm
Mounting depth: 50 mm
Magnet: Ø 70 mm
Magnet weight: 150 g
Dimensions: Ø 150 mm
Weight: 0.5 kg

Price per pair (Order No. mo-130900) - not available

Pair of car chassis speakers, 80 WMAX, 4 Ω, CRB-130CP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 80 WMAX, 4 , CRB-130CP — Enlarge

Series of Chassis Speakers for Car Hi-fi Applications With high-quality carbon fibre cone in stable standard baskets. These speakers impress by a bass reproduction of amazingly low fundamental resonance which makes them an ideal replacement for original equipment. The sound can be improved considerably without necessarily having to use subwoofers and power amplifiers. An efficient application in more complex car hi-fi systems of high power capability is also possible, of course.

Pair of car chassis speakers, 80 WMAX, 4 Ω

2-way coaxial version
Carbon fibre cone
Voice coil of long excursion
Frequency range: 80-22,000 Hz
Mounting dim.: Ø 119 mm x 49 mm
Outside dimensions: Ø 130 mm
Type 130

Specifications:

Frequency range: 80-22,000 Hz
Music power: 80 W
Magnet diameter: Ø 80 mm
Magnet weight: 230 g
Mounting cutout: Ø 119 mm
Mounting depth: 49 mm
Outside dimensions: Ø 130 mm
Type: 130

Price per pair (Order No. mo-130710) - not available

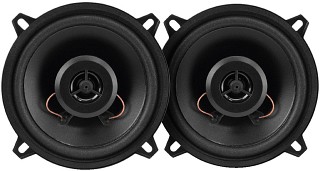

Pair of car chassis speakers, 60 WMAX, 4 Ω, CRB-130PP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 60 WMAX, 4 , CRB-130PP — Enlarge

2-way coaxial version
Polypropylene cone
Frequency range: 80-22,000 Hz
Mounting dim.: Ø 118 mm x 47 mm
Outside dimensions: Ø 130 mm
Type 130

Specifications:

Frequency range: 80-22,000 Hz
Music power: 60 W
Magnet diameter: Ø 80 mm
Magnet weight: 230 g
Mounting cutout: Ø 118 mm
Mounting depth: 47 mm
Outside dimensions: Ø 130 mm
Type: 130

Price per pair (Order No. mo-130590) EUR 46,28 excl. VAT: € 38.89 / $ 45.11

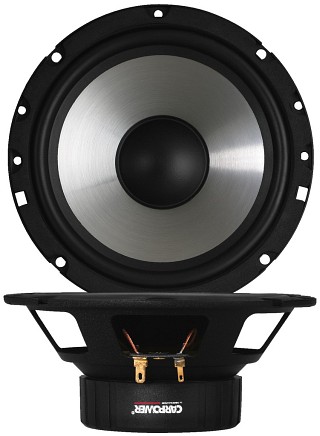

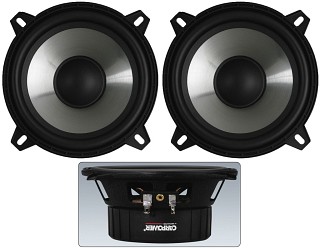

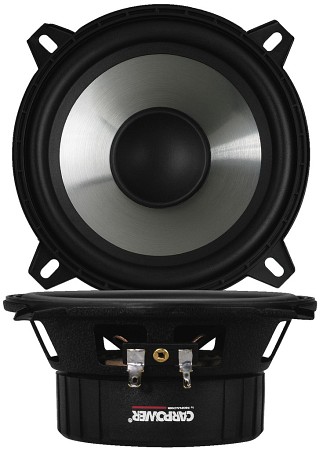

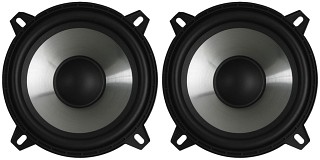

Pair of car hi-fi bass-midrange speakers, 60 WMAX, 30 WRMS, 4 Ω, CRB-130PS

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car hi-fi bass-midrange speakers, 60 WMAX, 30 WRMS, 4 , CRB-130PS — Enlarge

Kick bass speakers which perfectly combine a modern finish with the application of approved and optimised materials. The design of the polypropylene cones are of a special structure, giving the highly dampening, moisture-proof material also a better stability.

Pair of car hi-fi bass-midrange speakers, 60 WMAX, 30 WRMS, 4 Ω

Bass-midrange speaker and compact kick bass driver
Polypropylene cone of special design, especially resistant to pulsed peaks
Basket with textured coating
Gold-plated connections
60-5,000 Hz
Ideally suited for the combination with additional tweeters from CARPOWER
Mounting dimensions: 113x58 mm
Outside dimensions: 130x130 mm
Type 130

Specifications:

Impedance (Z): 4 Ω
Resonant frequency (fs): 75 Hz
Max. frequency range: f3-5,000 Hz
Music power: 60 W_MAX
Power rating (P): 30 W_RMS
SPL (1 W/m): 88 dB
Suspension compl. (Cms): 0.30 mm/N
Moving mass (Mms): 10 g
Mech. Q factor (Qms): 4.26
Electr. Q factor (Qes): 1.28
Total Q factor (Qts): 0.98
Equivalent volume (Vas): 5.5 l
DC resistance (Re): 3.6 Ω
Force factor (BxL): 4.0
Voice coil induct. (Le): 0.6 mH
Voice coil diameter: 25 mm
Voice coil former: aluminium
Linear excursion (X_MAX): ±2.5 mm
Eff. cone area (Sd): 92 cm²
Magnet weight: 230 g
Weight: 750 g

Price per pair (Order No. mo-131210) - not available

Pair of flush-mount speakers CRB-165/WS

Pair of flush-mount speakers, with dual cone, 4 Ω.

Moisture-proof
White one-piece plastic design and plastic cone
Versatile use for car hi-fi, PA, terrace, boat

Specifications:

Impedance: 4 Ω
Frequency range: 80-10,000 Hz
Music power: 50 W
Power rating: 25 W
Type of speaker: 165
Mounting cutout: Ø 135 mm
Mounting depth: 60 mm
Magnet: Ø 80 mm
Magnet weight: 230 g
Dimensions: Ø 180 mm
Weight: 0.8 kg

Price per pair (Order No. mo-130910) - not available

Pair of car chassis speakers, 100 WMAX, 4 Ω, CRB-165CP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 100 WMAX, 4 , CRB-165CP — Enlarge

Series of Chassis Speakers for Car Hi-fi Applications With high-quality carbon fibre cone in stable standard baskets. These speakers impress by a bass reproduction of amazingly low fundamental resonance which makes them an ideal replacement for original equipment. The sound can be improved considerably without necessarily having to use subwoofers and power amplifiers. An efficient application in more complex car hi-fi systems of high power capability is also possible, of course.

Pair of car chassis speakers, 100 WMAX, 4 Ω

2-way coaxial version
Carbon fibre cone
Voice coil of long excursion
Frequency range: 50-22,000 Hz
Mounting dim.: Ø 144 mm x 59 mm
Outside dimensions: Ø 165 mm
Type 165

Specifications:

Frequency range: 50-22,000 Hz
Music power: 100 W
Magnet diameter: Ø 80 mm
Magnet weight: 280 g
Mounting cutout: Ø 144 mm
Mounting depth: 59 mm
Outside dimensions: Ø 144 mm
Type: 165

Price per pair (Order No. mo-130720) EUR 83,98 excl. VAT: € 70.57 / $ 81.86

Pair of car chassis speakers, 80 WMAX, 4 Ω, CRB-165PP

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car chassis speakers, 80 WMAX, 4 , CRB-165PP — Enlarge

2-way coaxial version
Polypropylene cone
Frequency range: 50-22,000 Hz
Mounting dim.: Ø 144 mm x 59 mm
Outside dimensions: Ø 165 mm
Type 165

Specifications:

Frequency range: 50-22,000 Hz
Music power: 80 W
Magnet diameter: Ø 80 mm
Magnet weight: 280 g
Mounting cutout: Ø 144 mm
Mounting depth: 59 mm
Outside dimensions: Ø 165 mm
Type: 165

Price per pair (Order No. mo-130600) - not available

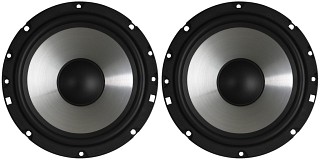

Pair of car hi-fi bass-midrange speakers, 70 WMAX, 35 WRMS, 4 Ω, CRB-165PS

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car hi-fi bass-midrange speakers, 70 WMAX, 35 WRMS, 4 , CRB-165PS — Enlarge

Bass-midrange speaker and powerful kick bass driver
Polypropylene cone of special design, especially resistant to pulsed peaks
Very rigid dust cap
Basket with textured coating
Gold-plated connections
Frequency range: 50-4,500 Hz
Ideally suited for the combination with additional tweeters from CARPOWER
Mounting dimensions: 144x70 mm
Outside dimensions: Ø 165 mm
Type 165

Specifications:

Impedance (Z): 4 Ω
Resonant frequency (fs): 65 Hz
Max. frequency range: f3-4,500 Hz
Music power: 70 W_MAX
Power rating (P): 35 W_RMS
SPL (1 W/m): 89 dB
Suspension compl. (Cms): 0.32 mm/N
Moving mass (Mms): 14.5 g
Mech. Q factor (Qms): 4.54
Electr. Q factor (Qes): 1.25
Total Q factor (Qts): 0.99
Equivalent volume (Vas): 11 l
DC resistance (Re): 3.6 Ω
Force factor (BxL): 4.2
Voice coil induct. (Le): 0.6 mH
Voice coil diameter: 25 mm
Voice coil former: aluminium
Linear excursion (X_MAX): ±3 mm
Eff. cone area (Sd): 137 cm²
Magnet weight: 280 g
Weight: 950 g

Price per pair (Order No. mo-131220) - not available

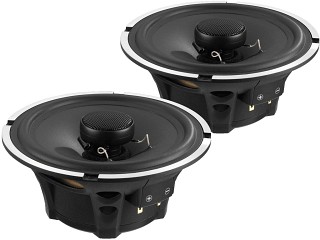

Pair of car hi-fi coaxial systems, 125 WMAX, 60 WRMS, 4 Ω, CRB-165VOX

Wall and ceiling speakers: Low-impedance / 100 V, Pair of car hi-fi coaxial systems, 125 WMAX, 60 WRMS, 4 , CRB-165VOX — Enlarge

This CRB coaxial speaker from CARPOWER is a real highlight. A phenomenal workmanship and the extensive material used, especially at the basket, are not the only features to be mentioned. In addition to the extra high-quality appearance, this system also convinces by the very good radiation, which is achieved by the special cone material as well as the large-sized silk tweeter of extra high quality which is used instead of the mylar mini tweeter usually applied in this price class.

Pair of car hi-fi coaxial systems, 125 WMAX, 60 WRMS, 4 Ω

Solid and high-quality basket design
Carbonised bass cone, silk dome
Impressive speaker system right down to the kick bass range
Diecast basket
Gold-plated connections
Decorative protective grille

Specifications:

Impedance: 4 Ω
Frequency range: f3-21,000 Hz
Crossover frequency: 4,000 Hz
Power rating: 125 W_MAX
SPL (1 W/m): 89 dB
Dimensions: Ø 163 mm
Weight (pair): 2 kg
Further specifications: -

Price per pair (Order No. mo-131840) EUR 99,90 excl. VAT: € 83.95 / $ 97.38

Pair of flush-mount speakers CRB-230/WS

Pair of flush-mount speakers, coaxial system, 4 Ω, tweeter with ferrofluid.

Moisture-proof
White one-piece plastic design and plastic cone
Versatile use for car hi-fi, PA, terrace, boat

Specifications:

Impedance: 4 Ω
Frequency range: 100-20,000 Hz
Music power: 50 W
Power rating: 25 W
Type of speaker: 130
Mounting cutout: Ø 110 mm
Mounting depth: 50 mm
Magnet: Ø 70 mm
Magnet weight: 150 g
Dimensions: Ø 150 mm
Weight: 0.5 kg

Price per pair (Order No. mo-130920) - not available

Pair of flush-mount speakers CRB-265/WS

Pair of flush-mount speakers, coaxial system, 4 Ω, tweeter with ferrofluid.

Moisture-proof
White one-piece plastic design and plastic cone
Versatile use for car hi-fi, PA, terrace, boat

Specifications:

Impedance: 4 Ω
Frequency range: 80-20,000 Hz
Music power: 60 W
Power rating: 30 W
Type of speaker: 165
Mounting cutout: Ø 133 mm
Mounting depth: 60 mm
Magnet: Ø 80 mm
Magnet weight: 230 g
Dimensions: Ø 180 mm
Weight: 0.8 kg

Price per pair (Order No. mo-130930) - not available

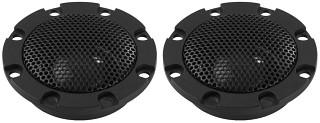

Pair of dome tweeters, 100 WMAX, 60 WRMS, 4 Ω, DT-284

Wall and ceiling speakers: Low-impedance / 100 V, Pair of dome tweeters, 100 WMAX, 60 WRMS, 4 , DT-284 — Enlarge

The Tweeter for Perfect Car Hi-fi Applications: DT-284 "The Dome". This tweeter provides everything expected from a top class tweeter: a sensationally linear frequency response, high level reserves, low crossover frequency, compact size and a distinct and appealing design!

Pair of dome tweeters, 100 WMAX, 60 WRMS, 4 Ω

28 mm silk cone
Aluminium voice coil
Neodymium magnet
High-quality ABS housing with 8-hole screw connection
Perfect sound of extra low distortion
Highest level stability
Exceptionally long excursion

A crossover network is required for operation! Ideal: CDN-2X

Specifications:

Impedance (Z): 4 Ω
Resonant frequency (fs): 1,300 Hz
Max. frequency range: fx-20,000 Hz
Rec. crossover freq. (12 dB): 2,000 Hz
Music power: 100 W_MAX
Power rating: 60 W_RMS
SPL (1 W/m): 91 dB
Voice coil diameter: 28 mm
Magnet diameter: 36 mm
Mounting cutout: 45 mm
Mounting depth: 21 mm
Dimensions: Ø 60 mm
Weight: 170 g

Price per pair (Order No. mo-131410) EUR 102,50 excl. VAT: € 86.13 / $ 99.92

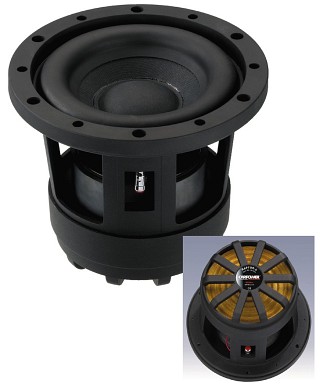

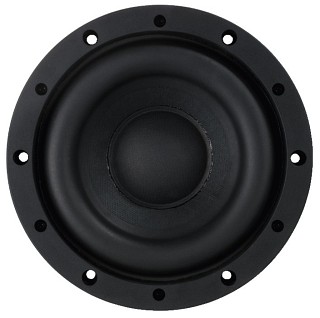

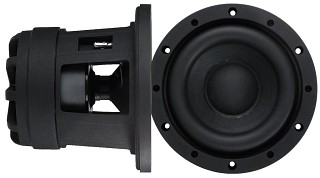

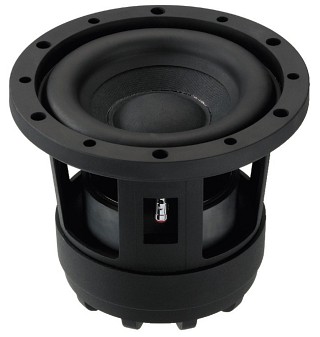

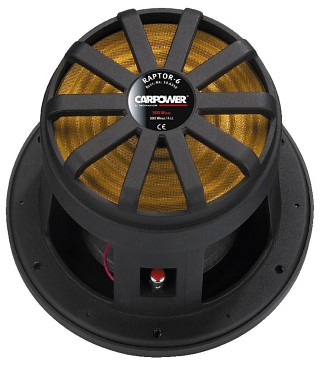

High-tech compact subwoofer, 300 WMAX, 100 WRMS, 4 Ω, RAPTOR-6

Wall and ceiling speakers: Low-impedance / 100 V, High-tech compact subwoofer, 300 WMAX, 100 WRMS, 4 , RAPTOR-6 — Enlarge

Now you have no more excuses! With the RAPTOR-6, the smallest RAPTOR, it is possible to build a subwoofer which also deserves to be called subwoofer into a small car just as well as in an original sports car! Surely, one or two of these 18cm bass speakers do not make a boom car, but it is absolutely amazing what this speaker is capable of!

High-tech compact subwoofer, 300 WMAX, 100 WRMS, 4 Ω

Subwoofer installation possible into the smallest volume
Compact 18 cm (6½") bass speaker
Fast and surpisingly deep bass reproduction with an equally good level stability in small cabinets
First choice as a high-performance kick bass speaker
With an ideal balance between suspension stability and long excursion, a perfect response is achieved in the complete bass range

Specifications:

Impedance (Z): 4 Ω
Resonant frequency (fs): 53 Hz
Max. frequency range: f3-800 Hz
Music power: 300 W_MAX
Power rating (P): 100 W_RMS
SPL (1 W/m): 88 dB
Suspension compl. (Cms): 0.38 mm/N
Moving mass (Mms): 23 g
Mech. Q factor (Qms): 2.2
Electr. Q factor (Qes): 0.43
Total Q factor (Qts): 0.36
Equivalent volume (Vas): 6.9 l
DC resistance (Re): 3.4 Ω
Force factor (BxL): 7.6 Tm
Voice coil induct. (Le): 0.6 mH
Voice coil diameter: 25 mm
Voice coil former: Kapton
Linear excursion (X_MAX): ±9 mm
Eff. cone area (Sd): 113 cm²
Magnet weight: 850 g
Weight: 2.4 kg

Price per unit (Order No. mo-104350) - not available

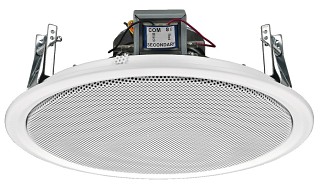

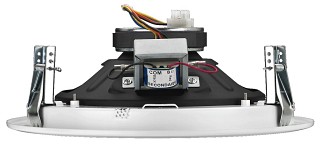

PA ceiling speaker EDL-10TW

PA ceiling speaker, with additional integrated tweeter.

100 V line technique
Metal housing
Quick-mounting facility
For a ceiling thickness from 10 to 40 mm

Specifications:

Frequency range: 50-20,000 Hz
Power capability, 100 V: 10/6/4/2 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 200
Mounting cutout: Ø 235 mm
Mounting depth: 95 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 262 mm x 101 mm
Weight: 1.5 kg
Other features: -

Price per unit (Order No. mo-161200) - not available

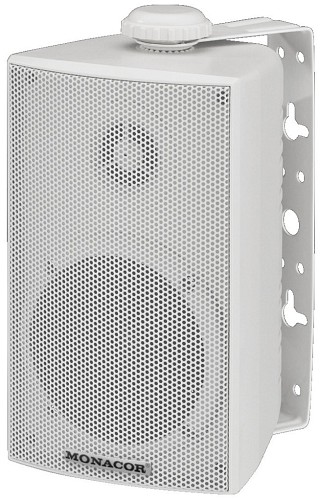

Weatherproof PA wall and ceiling speaker EDL-110/WS

Weatherproof PA wall and ceiling speaker

100 V line technique
1 speaker with polypropylene cone
Splashproof due to plastic cabinet with rubber seals and high-strength cable gland
Connection cable with 3 power taps
Movable mounting bracket and screws made of stainless steel

Specifications:

Frequency range: 120-20,000 Hz
Power capability, 100 V: 10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 94 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 180 mm x 270 mm
Weight: 2kg
Other features: -

Price per unit (Order No. mo-161930) EUR 95,90 excl. VAT: € 80.59 / $ 93.48

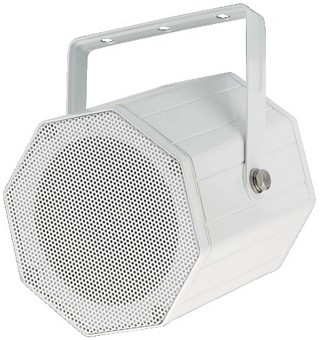

Weatherproof PA wall and ceiling speaker EDL-115/WS

Weatherproof PA wall and ceiling speaker

100 V line technique
Protected against powerful water jets
Weatherproof aluminium cabinet
Connection cable with 3 power taps
Movable mounting bracket and screws made of stainless steel

Specifications:

Frequency range: 130-20,000 Hz
Power capability, 100 V: 15/7.5/3.75 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 90 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 150x150x175 mm
Weight: 2.4 kg
Other features: -

Price per unit (Order No. mo-161730) EUR 131,70 excl. VAT: € 110.67 / $ 128.38

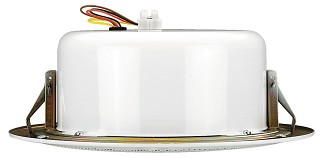

PA ceiling speaker EDL-11TW

PA ceiling speaker

100 V line technique
White, silver or black metal housing
Including fire protection cover for a high safety level
Additional integrated tweeter
Quick-mounting facility
For a ceiling thickness from 3 to 20 mm

Specifications:

Frequency range: 60-20,000 Hz
Power capability, 100 V: 10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 200
Mounting cutout: Ø 225 mm x 110 mm
Mounting depth: 105 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 264 mm x 120 mm
Weight: 1.6 kg
Other features: -

Price per unit (Order No. mo-161210) EUR 88,54 excl. VAT: € 74.40 / $ 86.31

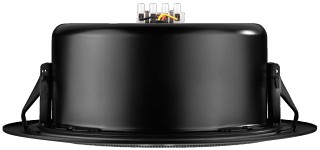

PA ceiling speaker EDL-11TW/SW EDL-11TW/SW

PA ceiling speaker

100 V line technique
White, silver or black metal housing
Including fire protection cover for a high safety level
Additional integrated tweeter
Quick-mounting facility
For a ceiling thickness from 3 to 20 mm

Specifications:

Frequency range: 60-20,000 Hz
Power capability, 100 V: 10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 200
Mounting cutout: Ø 225 mm x 110 mm
Mounting depth: 105 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 264 mm x 120 mm
Weight: 1.6 kg
Other features: -

Price per unit (Order No. mo-162410) EUR 88,54 excl. VAT: € 74.40 / $ 86.31

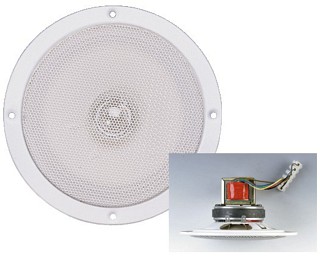

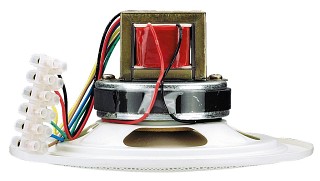

PA ceiling speaker EDL-150/WS

PA ceiling speaker

100 V line technique via audio transformer with 5 power taps
Full range speaker with dual cone
Metal housing with white, fixed protective metal grille

Specifications:

Frequency range: 100-12,000 Hz
Power capability, 100 V: 10/5/2.5/1.25/0.625 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 120 mm
Mounting depth: 75 mm
Admiss. ambient temp.: -20 °C to +55 °C
Dimensions: Ø 150 mm x 75 mm
Weight: 730 g
Other features: -

Price per unit (Order No. mo-161220) - not available

Weatherproof PA ceiling speaker EDL-156

Weatherproof PA ceiling speaker, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

100 V line technique
2-way system with dome tweeter
Excellent sound
White plastic housing
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)
For a ceiling thickness from 2 to 25 mm

Specifications:

Frequency range: 60-20,000 Hz
Power capability, 100 V: 15/10/5/2.5/1.25 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 88 dB
Max. rated SPL: 100 dB
Type of speaker: 180
Mounting cutout: Ø 190 mm
Mounting depth: 75 mm
Admiss. ambient temp.: -20 °C to +100 °C
Dimensions: Ø 226 mm x 100 mm
Weight: 1.1 kg
Other features: -

Price per unit (Order No. mo-161910) - not available

Weatherproof flush-mount PA speaker EDL-204

Weatherproof flush-mount PA speaker

100 V line technique
Full range speaker with dual cone, perfect sound characteristics
Splashproof due to white one-piece plastic design, high-quality polypropylene cone with rubber surround
For indoor and outdoor applications
Supplied with stainless steel mounting screws

Specifications:

Frequency range: 100-18,000 Hz
Power capability, 100 V: 20/15/10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 100
Mounting cutout: Ø 104 mm
Mounting depth: 102 mm
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: Ø 132 mm x 118 mm
Weight: 820 g
Other features: -

Price per unit (Order No. mo-161630) EUR 62,82 excl. VAT: € 52.79 / $ 61.24

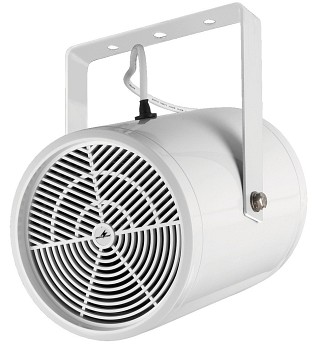

Weatherproof PA wall and ceiling speaker EDL-220/WS

Weatherproof PA wall and ceiling speaker

100 V line technique
2 speakers with polypropylene cone for bilateral radiation
Splashproof due to plastic cabinet with rubber seals
Connection cable with 3 power taps
Movable mounting bracket and screws made of stainless steel

Specifications:

Frequency range: 120-20,000 Hz
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 94 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: Ø 180 mm x 251 mm
Weight: 2.75 kg
Other features: -

Price per unit (Order No. mo-161950) EUR 113,80 excl. VAT: € 95.63 / $ 110.93

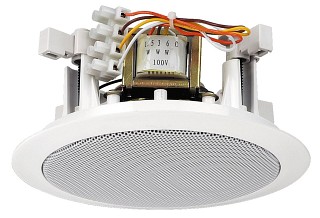

PA ceiling speaker EDL-24

PA ceiling speaker

100 V line technique via audio transformer with power taps
Full range speaker with dual cone
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
For a ceiling thickness from 10 to 40 mm

Specifications:

Frequency range: 100-14,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 87 dB
Max. rated SPL: 94 dB
Type of speaker: 100
Mounting cutout: Ø 142 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 170 mm x 70 mm
Weight: 750 g

Price per unit (Order No. mo-161430) EUR 46,60 excl. VAT: € 39.16 / $ 45.43

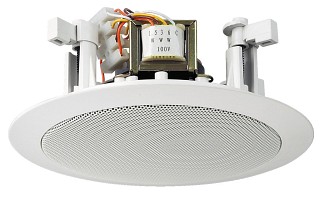

PA ceiling speaker EDL-25

PA ceiling speaker

100 V line technique via audio transformer with power taps
Full range speaker with dual cone
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
For a ceiling thickness from 10 to 40 mm

Specifications:

Frequency range: 100-14,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 87 dB
Max. rated SPL: 94 dB
Type of speaker: 130
Mounting cutout: Ø 165 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 205 mm x 70 mm
Weight: 830 g
Other features: -

Price per unit (Order No. mo-161440) EUR 57,97 excl. VAT: € 48.71 / $ 56.51

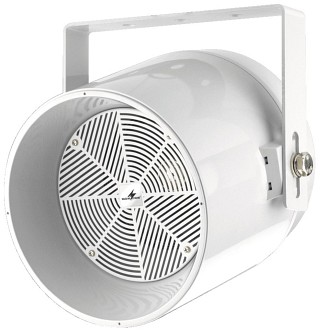

Weatherproof PA wall and ceiling speaker EDL-250/WS

Weatherproof PA wall and ceiling speaker

100 V line technique
Protected against powerful water jets
Weatherproof plastic cabinet
Connection cable with 3 power taps
Movable mounting bracket

Specifications:

Frequency range: 125-15,000 Hz
Power capability, 100 V: 30/15/7.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 101 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 180 mm x 200 mm
Weight: 2.1 kg
Other features: -

Price per unit (Order No. mo-162290) EUR 95,90 excl. VAT: € 80.59 / $ 93.48

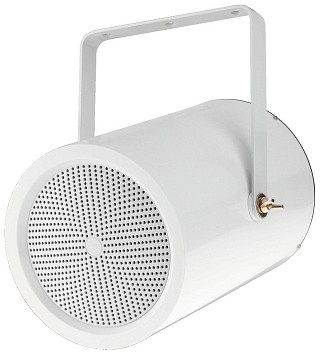

PA wall and ceiling speaker EDL-255/WS

PA wall and ceiling speaker

100 V line technique or 8 Ω operation
6-step power selector switch for 15/8/4/2 WRMS/off or 8 Ω operation
White plastic cabinet with movable mounting bracket

Specifications:

Frequency range: 100-15,000 Hz
Power capability, 100 V: 15/8/4/2 W_RMS
Power capability, 8 Ω: 15 W/8 Ω
SPL (1 W/m): 92 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 180 mm x 280 mm
Weight: 3 kg
Other features: -

Price per unit (Order No. mo-160860) EUR 119,49 excl. VAT: € 100.41 / $ 116.48

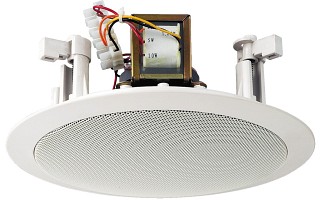

PA ceiling speaker EDL-26

PA ceiling speaker

100 V line technique via audio transformer with power taps
Full range speaker with dual cone
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
For a ceiling thickness from 10 to 40 mm

Specifications:

Frequency range: 80-14,000 Hz
Power capability, 100 V: 10/5/2.5/1.25 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 86 dB
Max. rated SPL: 95 dB
Type of speaker: 165
Mounting cutout: Ø 200 mm
Mounting depth: 75 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 230 mm x 85 mm
Weight: 910 g
Other features: -

Price per unit (Order No. mo-161450) EUR 68,09 excl. VAT: € 57.22 / $ 66.37

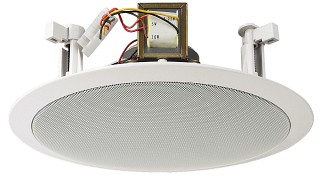

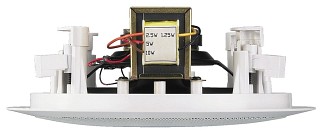

PA ceiling speaker EDL-28

PA ceiling speaker

100 V line technique via audio transformer with power taps
Full range speaker with dual cone
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
For a ceiling thickness from 10 to 40 mm

Specifications:

Frequency range: 60-14,000 Hz
Power capability, 100 V: 10/5/2.5/1.25 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 91 dB
Max. rated SPL: 100 dB
Type of speaker: 200
Mounting cutout: Ø 240 mm
Mounting depth: 75 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 275 mm x 90 mm
Weight: 1.2 kg
Other features: -

Price per unit (Order No. mo-161460) EUR 84,45 excl. VAT: € 70.97 / $ 82.32

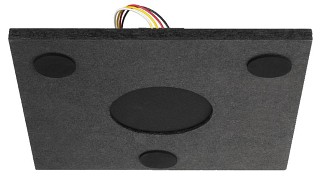

PA ceiling speaker EDL-300L

Special speakers which show completely new ways of invisible PA applications: the super dispersion ceiling speakers effectively utilise an open baffle technology for PA ceiling applications.

Super dispersion PA ceiling speaker

100 V line technique with 3 power taps
For all suspended ceilings and for free suspension
Easiest installation by simply resting the speaker on the ceiling grid or suspending it above the ceiling (to prevent rattling noise with lightweight ceilings)
High-quality full range speaker (13 cm) with an exceptionally good linearity
A very good sound with excellent stereophony with all suspended ceiling grids
With most of the more soundproof ceilings, typical treble dampening can be compensated to a large extend by simply readjusting the treble control at the amplifier and background PA applications can be realised without any cutouts or visible speakers
Dimensions: 300 mm x 300 mm, required clearance above the ceiling when resting the speaker directly on the grid:>10 cm, when suspending it above the ceiling:>25 cm
The sound absorption plate is fitted with 3 foam rubber pads for resting the speaker on the grid and 3 predrilled holes for suspending it

Specifications:

Frequency range: 90-20,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 300x300x75 mm
Weight: 1.4 kg
Other features: -

Price per unit (Order No. mo-162180) EUR 50,93 excl. VAT: € 42.80 / $ 49.65

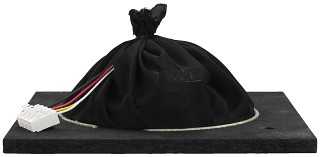

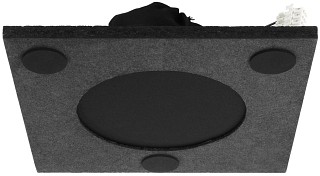

PA ceiling speaker EDL-310L

100 V line technique with 3 power taps up to 10 WRMS
High-quality full range speaker (20 cm) with an exceptionally good linearity, extensive bass reproduction and high efficiency
For all suspended ceilings and for free suspension
Easiest installation by simply resting the speaker on the ceiling grid or suspending it above the ceiling (to prevent rattling noise with lightweight ceilings)
A very good sound with excellent stereophony with all suspended ceiling grids
With most of the more soundproof ceilings, typical treble dampening can be compensated to a large extend by simply readjusting the treble control at the amplifier and background PA applications can be realised without any cutouts or visible speakers
Dimensions: 300 mm x 300 mm, required clearance above the ceiling when resting the speaker directly on the grid:>10 cm, when suspending it above the ceiling:>25 cm
The sound absorption plate is fitted with 3 foam rubber pads for resting the speaker on the grid and 3 predrilled holes for suspending it

Specifications:

Frequency range: 50-18,000 Hz
Power capability, 100 V: 10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 200
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 300x300x95 mm
Weight: 1.9 kg
Other features: -

Price per unit (Order No. mo-162490) EUR 75,14 excl. VAT: € 63.14 / $ 73.25

PA ceiling speaker EDL-35

PA ceiling speaker, for a high safety level in case of a fire.

100 V line technique
Fire protection cover
Metal housing with fitted ceramic terminal
Thermal fuse: 1 A/150 °C, for disconnecting a faulty speaker in case of a short circuit (fire), so that the function of one speaker line is maintained
3-step power selector switch
Earth connection
Glass fibre insulated supply line with high-strength cable gland
Quick-mounting facility
For a ceiling thickness from 2 to 15 mm

Specifications:

Frequency range: 50-18,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 100
Mounting cutout: Ø 110 mm x 110 mm
Mounting depth: 95 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 135 mm x 100 mm
Weight: 760 g
Other features: -

Price per unit (Order No. mo-162060) - not available

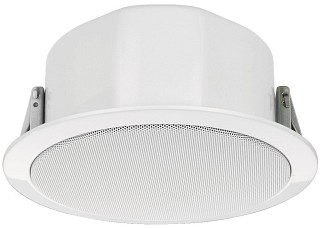

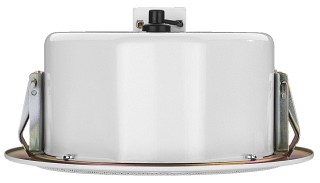

PA ceiling speaker EDL-36TW

PA ceiling speaker, for a high safety level in case of a fire.

100 V line technique
Additional integrated tweeter
Fire protection cover
Metal housing with fitted ceramic terminal
Thermal fuse: 1 A/150 °C, for disconnecting a faulty speaker in case of a short circuit (fire), so that the function of one speaker line is maintained
3-step power selector switch
Earth connection
Glass fibre insulated supply line with high-strength cable gland
Quick-mounting facility
For a ceiling thickness from 2 to 40 mm

Specifications:

Frequency range: 150-20,000 Hz
Power capability, 100 V: 10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 165
Mounting cutout: Ø 190 mm x 110 mm
Mounting depth: 90 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 200 mm x 100 mm
Weight: 1.5 kg
Other features: -

Price per unit (Order No. mo-162070) EUR 70,66 excl. VAT: € 59.38 / $ 68.88

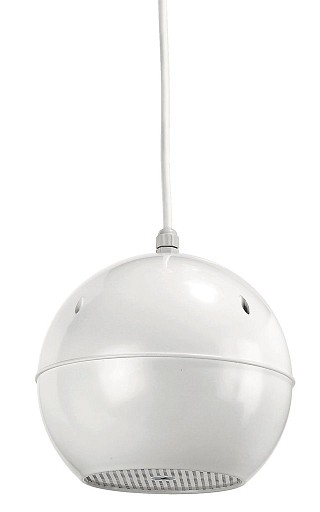

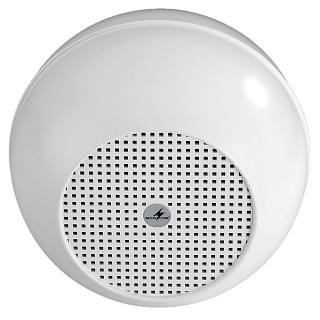

Weatherproof PA ball speaker EDL-412/WS

Weatherproof PA ball speaker

100 V line technique or 8 Ω operation
White ABS cabinet (self-extinguishing, complies with standard UL 94V-0)
Supplied with 480 cm connection cable and canopy

Specifications:

Frequency range: 160-20,000 Hz
Power capability, 100 V: 10/5/2.5 W_RMS
Power capability, 8 Ω: 10 W/8 Ω
SPL (1 W/m): 92 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: Ø 184 mm
Weight: 1.7 kg
Other features: -

Price per unit (Order No. mo-161860) EUR 84,46 excl. VAT: € 70.97 / $ 82.33

Weatherproof PA ball speaker EDL-420/WS

Weatherproof PA ball speaker

100 V line technique or 8 Ω operation
White ABS cabinet (self-extinguishing, complies with standard UL 94V-0)
Supplied with 480 cm connection cable and canopy

Specifications:

Frequency range: 120-20,000 Hz
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: 20 W/8 Ω
SPL (1 W/m): 94 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: Ø 265 mm
Weight: 2.2 kg
Other features: -

Price per unit (Order No. mo-161880) EUR 124,30 excl. VAT: € 104.45 / $ 121.17

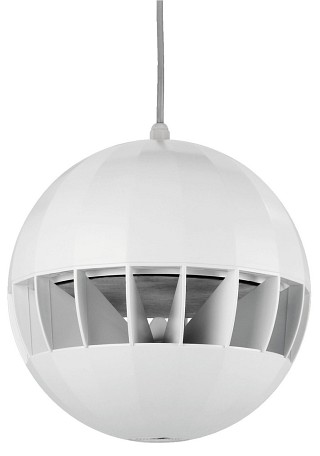

Top-quality PA ball speaker EDL-430/WS

Top-quality PA ball speaker, with a perfect omnidirectional sound radiation.

100 V line technique
Speaker configuration of particularly high-quality
Extensive reflector design
High-quality sound, also suitable for radiating music
White ABS cabinet
150 cm connection cable with canopy

Specifications:

Frequency range: 80-15,000 Hz
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 92 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 250 mm
Weight: 2.2 kg
Other features: -

Price per unit (Order No. mo-162370) EUR 149,35 excl. VAT: € 125.50 / $ 145.58

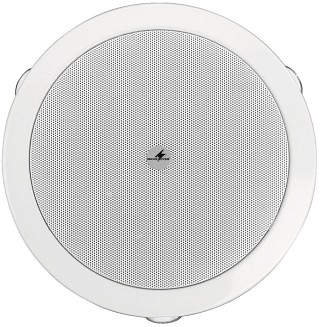

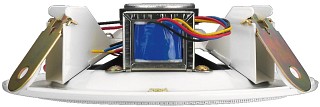

PA ceiling speaker EDL-606

PA ceiling speaker

100 V line technique via audio transformer with power taps
For a ceiling thickness from 5 to 22 mm
Full range speaker, type 180
A more powerful reproduction of the range of fundamental notes
Robust metal version (basket and protective grille)

Specifications:

Frequency range: 100-20,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Type of speaker: 180
Mounting cutout: Ø 180 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 200 mm x 60 mm
Weight: 700 g
Other features: -

Price per unit (Order No. mo-161800) EUR 40,78 excl. VAT: € 34.27 / $ 39.75

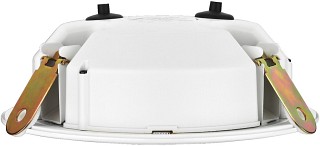

PA ceiling speaker EDL-606EN

PA ceiling speaker, with EN 54-24 certification.

100 V line technique with 3 power taps
Full range speaker with optimised voice reproduction
Plastic cover with low mounting depth
For a ceiling thickness from 5 to 22 mm
Quick installation
Robust metal basket and protective grille

Specifications:

Frequency range: 120-15,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: -
SPL (1 W/m): 93 dB
Max. rated SPL: 101 dB
Type of speaker: 180
Mounting cutout: Ø 180 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 200 mm x 70 mm
Weight: 800 g
Other features: -

Price per unit (Order No. mo-163160) EUR 59,16 excl. VAT: € 49.71 / $ 57.67

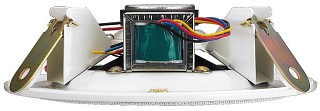

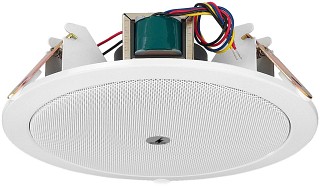

PA ceiling speaker EDL-612

PA ceiling speaker

100 V line technique via audio transformer with power taps
For a ceiling thickness from 5 to 22 mm
Full range speaker, type 180
A more powerful reproduction of the range of fundamental notes
Robust metal version (basket and protective grille)

Specifications:

Frequency range: 100-20,000 Hz
Power capability, 100 V: 12/6/3 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 180
Mounting cutout: Ø 180 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 200 mm x 60 mm
Weight: 750 g
Other features: -

Price per unit (Order No. mo-161810) EUR 43,58 excl. VAT: € 36.62 / $ 42.48

PA ceiling speaker EDL-612EN

PA ceiling speaker, with EN 54-24 certification.

100 V line technique with 3 power taps
Full range speaker with optimised voice reproduction
Plastic cover with low mounting depth
For a ceiling thickness from 5 to 22 mm
Quick installation
Robust metal basket and protective grille

Specifications:

Frequency range: 120-15,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 12/6/3 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: -
SPL (1 W/m): 93 dB
Max. rated SPL: 103 dB
Type of speaker: 180
Mounting cutout: Ø 180 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 200 mm x 70 mm
Weight: 980 g
Other features: -

Price per unit (Order No. mo-163170) EUR 59,65 excl. VAT: € 50.13 / $ 58.15

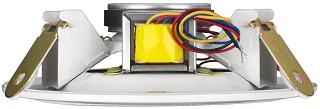

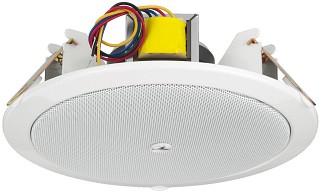

PA ceiling speaker EDL-620

PA ceiling speaker

100 V line technique via audio transformer with power taps
Extra high maximum tapping power
For a ceiling thickness from 5 to 22 mm
Full range speaker, type 180
Robust metal version (basket and protective grille)

Specifications:

Frequency range: 100-20,000 Hz
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 180
Mounting cutout: Ø 180 mm
Mounting depth: 65 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 200 mm x 65 mm
Weight: 900 g
Other features: -

Price per unit (Order No. mo-162590) EUR 44,88 excl. VAT: € 37.71 / $ 43.75

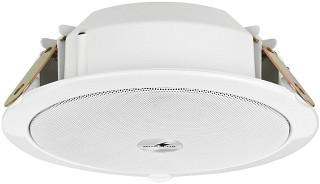

PA ceiling speaker EDL-620EN

PA ceiling speaker, with EN 54-24 certification.

100 V line technique with 3 power taps
Full range speaker with optimised voice reproduction
Plastic cover with low mounting depth
For a ceiling thickness from 5 to 22 mm
Quick installation
Robust metal basket and protective grille

Specifications:

Frequency range: 120-15,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 20/10/5 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: -
SPL (1 W/m): 93 dB
Max. rated SPL: 105 dB
Type of speaker: 180
Mounting cutout: Ø 180 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 200 mm x 70 mm
Weight: 1.1 kg
Other features: -

Price per unit (Order No. mo-163180) EUR 61,76 excl. VAT: € 51.90 / $ 60.20

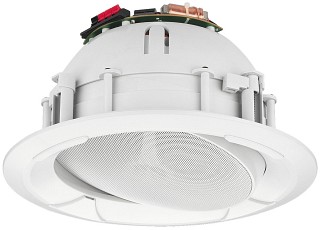

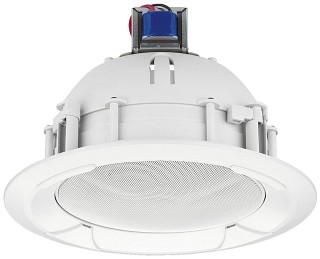

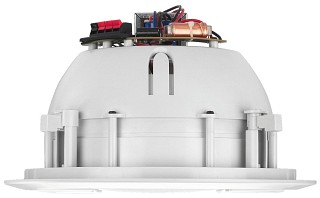

Movable PA ceiling speaker EDL-65TW

Movable PA ceiling speaker

100 V line technique
High power rating with 30 W max.
High-quality 2-way coaxial speaker system with 2-way crossover network
Dome tweeter
The complete speaker part can be moved for optimising the sound radiation pattern indoors
Plastic housing of superior design with metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
For a ceiling thickness from 9 to 35 mm

Specifications:

Frequency range: 50-20,000 Hz
Power capability, 100 V: 30/15/7.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 180
Mounting cutout: Ø 260 mm x 165 mm
Mounting depth: 165 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 280 mm x 175 mm
Weight: 2.4 kg
Other features: -

Price per unit (Order No. mo-162220) EUR 132,40 excl. VAT: € 111.26 / $ 129.06

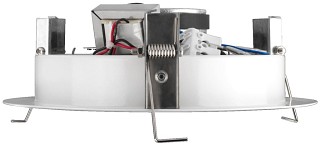

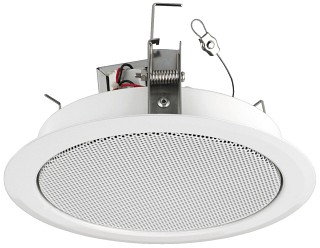

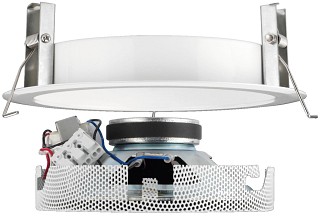

PA ceiling speaker EDL-68/WS

PA ceiling speaker, with special 2-step mounting.

100 V line technique
Snap-in mounting
For a ceiling thickness from 1 to 30 mm
2-way coaxial speaker
Wide frequency range
Robust metal version (basket and protective grille)
Speaker additionally secured by a safety rope

For mounting this PA ceiling speaker, the mounting frame is attached to the ceiling cutout at first via the snap-in system. Then, the speaker is inserted into the frame with a bayonet-type locking. A safety rope provides additional safety.

Specifications:

Frequency range: 100-19,000 Hz
Power capability, 100 V: 6/3 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 97 dB
Max. rated SPL: 104 dB
Type of speaker: 165
Mounting cutout: Ø 200 mm
Mounting depth: 65 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 220 mm x 65 mm
Weight: 1.275 kg
Other features: -

Price per unit (Order No. mo-162340) EUR 70,70 excl. VAT: € 59.41 / $ 68.92

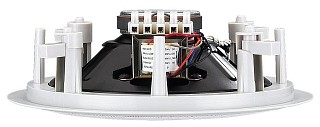

PA ceiling speaker EDL-8

PA ceiling speaker

100 V line technique
20 cm (8") full range speaker
Plastic housing with protective metal grille
For a ceiling thickness from 10 to 43 mm

Professional System 01/2002

"... an easy-to-use ceiling speaker at a very favourable price ..., already suitable for music reproductions of high requirements, too."

Specifications:

Frequency range: 60-14,000 Hz
Power capability, 100 V: 10/6/4/2 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 200
Mounting cutout: Ø 220 mm
Mounting depth: 68 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 252 mm x 80 mm
Weight: 1 kg
Other features: -

Price per unit (Order No. mo-161070) - not available

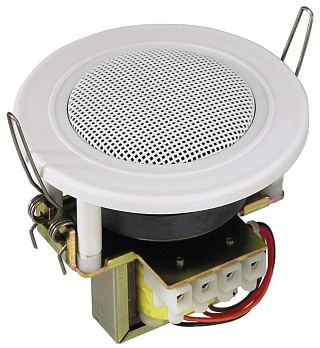

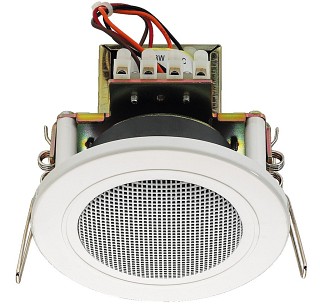

PA ceiling speaker EDL-82/WS

PA ceiling speaker

100 V line technique
White cover
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music, very consistent frequency response
Quick-mounting facility
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
For a ceiling thickness from 2 to 14 mm

Specifications:

Frequency range: 200-20,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 86 dB
Max. rated SPL: 94 dB
Type of speaker: 75
Mounting cutout: Ø 96 mm
Mounting depth: 96 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 100 mm
Weight: 635 g
Other features: -

Price per unit (Order No. mo-161490) EUR 37,13 excl. VAT: € 31.20 / $ 36.19

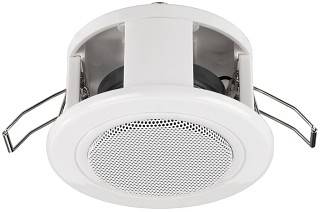

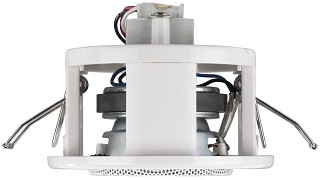

PA ceiling speaker EDL-84/WS

PA ceiling speaker

100 V line technique
White cover
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music
Quick-mounting facility
Plastic housing with protective metal grille
Plastic material of ABS, not self-extinguishing like EDL-82/WS
For a ceiling thickness from 2 to 14 mm

Specifications:

Frequency range: 200-19,000 Hz
Power capability, 100 V: 6/3 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 86 dB
Max. rated SPL: 94 dB
Type of speaker: -
Mounting cutout: Ø 92 mm
Mounting depth: 80 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 103 mm
Weight: 420 g
Other features: -

Price per unit (Order No. mo-162350) - not available

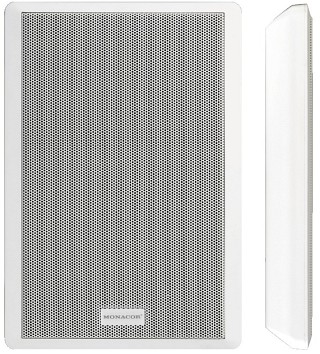

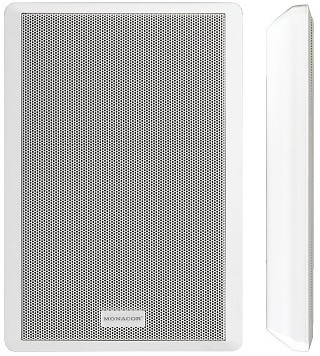

PA wall speaker ESP-130/WS

These wall speakers impress by an extraordinarily flat design which is only achieved by applying the latest NEODYMIUM magnetic systems. The ESP-130... speaker systems already provide a very pleasant and complete sound and yet, with a total depth of only 38 mm, they are of such a flat design, that they are just as unobtrusive on the wall as a flush-mount speaker.

PA wall speaker

100 V line technique via audio transformer with 2.5 W and 5 W power taps
2-way system with neodymium bass-midrange speaker and dome tweeter
White plastic cabinet with protective metal grille
Slimline design for unobtrusive wall mounting

Specifications:

Frequency range: 80-18,000 Hz
Power capability, 100 V: 5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40°C
Dimensions: 185x275x38 mm
Weight: 1.2 kg
Other features: -

Price per unit (Order No. mo-161600) EUR 106,50 excl. VAT: € 89.50 / $ 103.82

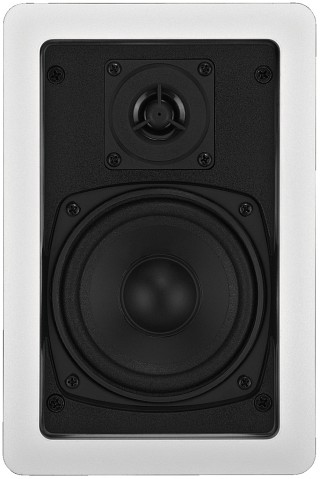

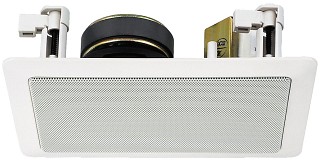

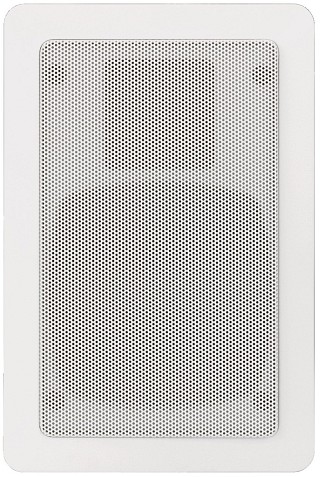

PA hi-fi wall and ceiling speaker ESP-15/WS

PA hi-fi wall and ceiling speaker

100 V line technique, 2-way version with dome tweeter (movable with ESP-17/WS, ESP-22/WS and ESP-32/WS)
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Specifications:

Frequency range: 60-20,000 Hz
Power capability, 100 V: 15/7.5/4/2/1 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 100
Mounting cutout: 115x190 mm
Mounting depth: 61 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 146x220x70 mm
Weight: 1.3 kg
Other features: -

Price per unit (Order No. mo-161550) EUR 67,11 excl. VAT: € 56.39 / $ 65.42

PA wall speaker ESP-152/WS

PA wall speaker

100 V line technique via audio transformer with 3 power taps
High-quality sound and high volume capability due to 2-way coaxial system
Plastic cabinet of a special design (open rear panel) with protective metal grille
Horizontal and vertical mounting possible due to symmetrical shape of cabinet
Supplied with mounting screws and cover plates for the screws

Specifications:

Frequency range: 100-20,000 Hz
Power capability, 100 V: 15/7.5/3.75 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 91 dB
Max. rated SPL: 103 dB
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 240x330x85 mm
Weight: 2 kg
Other features: -

Price per unit (Order No. mo-162150) EUR 93,01 excl. VAT: € 78.16 / $ 90.67

PA wall speaker ESP-157/WS

PA wall speaker

100 V line technique via audio transformer with 2 power taps
Good sound characteristics due to 2-way system
Plastic cabinet of a special design with protective metal grille
Closed rear panel, srewed
Horizontal and vertical mounting possible
Supplied with mounting screws

Specifications:

Frequency range: 100-20,000 Hz
Power capability, 100 V: 15/7.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): 91 dB
Max. rated SPL: 103 dB
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 240x340x105 mm
Weight: 1.8 kg
Other features: 2-way system

Price per unit (Order No. mo-163210) EUR 74,74 excl. VAT: € 62.81 / $ 72.86

PA hi-fi wall and ceiling speaker ESP-17/WS

PA hi-fi wall and ceiling speaker

100 V line technique, 2-way version with dome tweeter (movable with ESP-17/WS, ESP-22/WS and ESP-32/WS)
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Specifications:

Frequency range: 55-20,000 Hz
Power capability, 100 V: 15/7.5/4/2/1 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: 270x185 mm
Mounting depth: 80 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 300x214x90 mm
Weight: 1.9 kg
Other features: -

Price per unit (Order No. mo-161660) EUR 115,97 excl. VAT: € 97.45 / $ 113.05

Weatherproof PA speaker system ESP-215/WS

Weatherproof PA speaker system, in a white plastic cabinet with protective aluminium grille.

100 V line technique
Hose-proof
Switchable to 8 Ω operation
5 power taps, 8 Ω connection and 100 V power selector switch
2-way system
Stainless steel mounting bracket

Specifications:

Frequency range: 100-20,000 Hz
Power capability, 100 V: 15/10/5/2.5/1.5 W_RMS
Power capability, 8 Ω: 30 W_RMS/60 W_MAX
SPL (1 W/m): 87 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 98x195x105 mm
Weight: 0.85 kg
Other features: spring-load. speaker term.

Price per unit (Order No. mo-199990) EUR 115,97 excl. VAT: € 97.45 / $ 113.05

Weatherproof PA speaker system ESP-230/WS

Weatherproof PA speaker system, in a white plastic cabinet with protective aluminium grille.

100 V line technique
Hose-proof
Switchable to 8 Ω operation
5 power taps, 8 Ω connection and 100 V power selector switch
2-way system
Stainless steel mounting bracket

Specifications:

Frequency range: 80-20,000 Hz
Power capability, 100 V: 30/20/10/5/2.5 W_RMS
Power capability, 8 Ω: 50 W_RMS/100 W_MAX
SPL (1 W/m): 92 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 157x260x170 mm
Weight: 1.8 kg
Other features: spring-load. speaker term.

Price per unit (Order No. mo-190010) EUR 198,87 excl. VAT: € 167.12 / $ 193.86

Weatherproof 2-way PA wall-mount speaker system ESP-232/WS

Weatherproof 2-way PA wall-mount speaker system

100 V PA speaker system with an excellent sound
13 cm polypropylene bass-midrange speaker and dome tweeter
4 power taps
Power selector switch with 8 Ω operating position
Excellent efficiency for a speaker of such a compact size
Available in black (SW) or white (WS) plastic with respectively lacquered aluminium grille, modern design
Supplied with matching metal wall brackets

Specifications:

Frequency range: 75-20,000 Hz
Power capability, 100 V: 30/20/10/5 W_RMS
Power capability, 8 Ω: 50 W_MAX/30 W_RMS
SPL (1 W/m): 89 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 160x260x180 mm
Weight: 2.3 kg
Other features: spring-load. speaker term.

Price per unit (Order No. mo-162610) EUR 124,30 excl. VAT: € 104.45 / $ 121.17

2-way PA wall-mount speaker system ESP-315/SW

2-way PA wall-mount speaker system

100 V PA speaker system with an excellent sound
2-way system with 10x15 cm bass-midrange speaker and 13 mm dome tweeter
Power taps: 15/10/5/2.5 W
Power selector switch with 8 Ω operating position
Can be mounted horizontally or vertically
Direction of sound radiation can individually be aligned
Available in black (SW) or white (WS) plastic with respectively lacquered metal grille
Supplied with wall brackets

Specifications:

Frequency range: 75-20,000 Hz
Power capability, 100 V: 15/10/5/2.5 W_RMS
Power capability, 8 Ω: 30 W_MAX/15 W_RMS
SPL (1 W/m): 90 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 133 mm x 280 mm
Weight: 2.1 kg
Other features: spring-load. speaker term.

Price per unit (Order No. mo-162860) EUR 129,27 excl. VAT: € 108.63 / $ 126.01

PA hi-fi wall and ceiling speaker ESP-32/WS

PA hi-fi wall and ceiling speaker

100 V line technique, 2-way version with dome tweeter (movable with ESP-17/WS, ESP-22/WS and ESP-32/WS)
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Specifications:

Frequency range: 40-20,000 Hz
Power capability, 100 V: 30/15/7.5/4/2 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 200
Mounting cutout: 330x225 mm
Mounting depth: 90 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 358x256x100 mm
Weight: 3.1 kg
Other features: -

Price per unit (Order No. mo-161680) EUR 142,20 excl. VAT: € 119.50 / $ 138.62

PA wall speaker ESP-360/WS

PA wall speaker

100 V line technique via audio transformer with 2 power taps
Full range speaker with dual cone
White plastic cabinet
Curved cabinet for a perfect radiation angle

Specifications:

Frequency range: 130-15,000 Hz
Power capability, 100 V: 6/3 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 185x255x123 mm
Weight: 1.1 kg
Other features: -

Price per unit (Order No. mo-161900) EUR 98,04 excl. VAT: € 82.39 / $ 95.57

PA wall and ceiling speaker for flush mounting ESP-5U

PA wall and ceiling speaker for flush mounting

100 V line technique via audio transformer with 3 power taps
Wide bandwidth radiation for a pleasant music reproduction
13 cm speaker of high efficiency (94 dB/1 W/1 m)
Plastic tray for flush mounting in walls or solid ceilings
Required hole in wall: approx. 242x242x100 mm
Metal front grille with plastic frame

Specifications:

Frequency range: 100-19,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 248x248x100 mm
Weight: 1.4 kg
Other features: -

Price per unit (Order No. mo-162160) EUR 70,66 excl. VAT: € 59.38 / $ 68.88

PA wall speaker ESP-60/WS

PA wall speaker

100 V line technique via audio transformer with 4 power taps
White wooden cabinet, without rear panel, foam front cover
Supplied with mounting screws

Specifications:

Frequency range: 60-8,000 Hz
Power capability, 100 V: 6/4/2/1 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 300x200x90 mm
Weight: 1.6 kg
Other features: -

Price per unit (Order No. mo-161110) EUR 79,60 excl. VAT: € 66.89 / $ 77.59

PA wall speaker ESP-62/WS

PA wall speaker, with EN 54-24 certification.

100 V line technique via audio transformer with 3 power taps
Full range speaker with a high-quality sound and a clear voice reproduction
Plastic cabinet of a special design (open rear panel) with protective metal grille
Horizontal and vertical mounting possible due to symmetrical shape of cabinet
Supplied with mounting screws and screw head covers

Specifications:

Frequency range: 100-19,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: -
SPL (1 W/m): 93 dB
Max. rated SPL: 101 dB
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +55 °C
Dimensions: 240x330x85 mm
Weight: 1.6 kg
Other features: -

Price per unit (Order No. mo-163030) EUR 74,74 excl. VAT: € 62.81 / $ 72.86

PA wall speaker ESP-70/WS

PA wall speaker

100 V line technique
5-step rotary switch for 10/6/4/2 WRMS/off
Rotary switch can be replaced with a cover plate to avoid accidental changing of the power selection
Emergency priority relay
White wooden cabinet with protective metal grille
Easy wall mounting via supporting plate

Specifications:

Frequency range: 95-19,000 Hz
Power capability, 100 V: 10/6/4/2 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 300x200x90 mm
Weight: 2.3 kg
Other features: -

Price per unit (Order No. mo-162120) EUR 103,12 excl. VAT: € 86.66 / $ 100.52

PA wall speaker ESP-72/WS

PA wall speaker

100 V line technique
2-way coaxial speaker, providing a high-quality sound
5-step rotary switch for 20/10/5/2.5 WRMS/off
Rotary switch can be replaced with a cover plate to avoid accidental changing of the power selection
Emergency priority relay
White wooden cabinet with protective metal grille
Easy wall mounting via supporting plate

Specifications:

Frequency range: 85-20,000 Hz
Power capability, 100 V: 20/10/5/2.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 300x200x90 mm
Weight: 2.8 kg
Other features: -

Price per unit (Order No. mo-162130) EUR 119,32 excl. VAT: € 100.27 / $ 116.31

PA wall speaker ESP-80/WS

PA wall speaker, vandal-resistant.

100 V line technique via audio transformer with 4 power taps
Full range speaker with a good voice reproduction, suitable for background music
Very robust 2-piece metal cabinet

Specifications:

Frequency range: 250-10,000 Hz
Power capability, 100 V: 6/3/1.5/0.75 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 170x170x63 mm
Weight: 1.3 kg
Other features: -

Price per unit (Order No. mo-162380) EUR 64,01 excl. VAT: € 53.79 / $ 62.40

PA wall and ceiling speaker for flush mounting ESP-8U

PA wall and ceiling speaker for flush mounting

100 V line technique via audio transformer with 3 power taps
Perfect sound presence for a powerful voice reproduction with a very high audibility
20 cm speaker of very high efficiency (99 dB/1 W/1 m)
Plastic tray for flush mounting in walls or solid ceilings
Required hole in wall: approx. 242x242x100 mm
Metal front grille with plastic frame

Specifications:

Frequency range: 200-17,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 200
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 248x248x100 mm
Weight: 1.7 kg
Other features: -

Price per unit (Order No. mo-162170) EUR 88,54 excl. VAT: € 74.40 / $ 86.31

PA wall speaker ESP-90/WS

PA wall speaker

100 V line technique via audio transformer with 3 power taps
White plastic cabinet (surface-mount version with open rear panel) with protective metal grille
Supplied with mounting accessories

Specifications:

Frequency range: 80-19,000 Hz
Power capability, 100 V: 6/3/1.5 W_RMS
Power capability, 8 Ω: -
SPL (1 W/m): -
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 168 mm x 72 mm
Weight: 600 g
Other features: -

Price per unit (Order No. mo-162680) EUR 49,28 excl. VAT: € 41.41 / $ 48.04

Universal PA speaker system EUL-10

Universal PA speaker system

100 V line technique, 2-way version
Excellent sound quality
5-step power selector switch
Diecast metal cabinet with black (EUL-10) or white (EUL-10/WS) textured coating and protective metal grille
Movable mounting bracket

Controls on the left side of the cabinet.

Specifications:

Frequency range: 60-18,000 Hz
Power rating: 10/5/2.5/1.25 W_RMS
Type of speaker:
Dimensions: 118x220x115 mm
Weight: 2.2 kg

Price per unit (Order No. mo-160330) - not available

Universal PA speaker system EUL-10/WS

Universal PA speaker system

100 V line technique, 2-way version
Excellent sound quality
5-step power selector switch
Diecast metal cabinet with black (EUL-10) or white (EUL-10/WS) textured coating and protective metal grille
Movable mounting bracket

Controls on the left side of the cabinet.

Specifications:

Frequency range: 60-18,000 Hz
Power rating: 10/5/2.5/1.25 W_RMS
Type of speaker:
Dimensions: 118x220x115 mm
Weight: 2.2 kg

Price per unit (Order No. mo-160850) - not available

PA speaker system in 100 V line technique EUL-2/SW

This series of speaker systems including subwoofer from MONACOR sets standards in the modern PA technology: high-quality lacquered cabinets of a perfect design, lightweight but robust and of high power capability, with an amazing sound and a high efficiency, the EUL-2... with professional 100 V technology. Real PA speaker systems for versatile applications at a very attractive price.

PA speaker system in 100 V line technique

High-quality cabinet with durable PU coating
20 cm (2 x 8") double bass speaker of high power capability and a dyn. 25 mm (1") horn tweeter
Well-balanced and dynamic sound for speech and music applications
SPEAKON connection, rotary switch for power selection, stand sleeve
A subwoofer support is useful for bass reproductions of high requirements (e.g. with EUL-2SUB/SW)
This speaker can be integrated into any existing or new 100 V system by simply connecting it in parallel, as long as the amplifier features the respective power reserves!

Matching adapter piece for speaker system PAST-28/SW is available at option.

Specifications:

Power capabilities:
100 V operation: 50/37.5/25/12.5 W_RMS
8 Ω operation: -
General information:
Frequency range: 70-19,000 Hz
SPL (1 W/1 m): 95 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 320x485x250 mm
Weight: 8.7 kg
Connections: 1 x SPEAKON

Price per unit (Order No. mo-174450) EUR 482,08 excl. VAT: € 405.11 / $ 469.93

Pair of miniature PA speaker systems EUL-26/SW

Pair of miniature PA speaker systems

Speakers for general applications, very small dimensions in 100 V technology
Can also be connected at 8 Ω
6.5 cm (2.5") full range speaker
Good sound characteristics and speech intelligibility
Black (SW) or white (WS) plastic cabinet
Turnable, movable and tiltable due to wall bracket with ball joint
For completing the low-frequency sound reproduction, an additional subwoofer system is recommended (e.g. EUL-2SUB/SW, SOUND-100SUB)

Specifications:

Power capabilities:
100 V operation: 6 W_RMS
8 Ω operation: 20 W_MAX/10 W_RMS
General information:
Frequency range: 150-20,000 Hz
SPL (1 W/1 m): 88 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 90x90x115 mm
Weight: 0.65 kg
Connections: spring-load speaker term.

Price per pair (Order No. mo-163280) EUR 80,39 excl. VAT: € 67.55 / $ 78.36

Pair of miniature PA speaker systems EUL-26/WS

Pair of miniature PA speaker systems

Speakers for general applications, very small dimensions in 100 V technology
Can also be connected at 8 Ω
6.5 cm (2.5") full range speaker
Good sound characteristics and speech intelligibility
Black (SW) or white (WS) plastic cabinet
Turnable, movable and tiltable due to wall bracket with ball joint
For completing the low-frequency sound reproduction, an additional subwoofer system is recommended (e.g. EUL-2SUB/SW, SOUND-100SUB)

Specifications:

Power capabilities:
100 V operation: 6 W_RMS
8 Ω operation: 20 W_MAX/10 W_RMS
General information:
Frequency range: 150-20,000 Hz
SPL (1 W/1 m): 88 dB
Admiss. ambient temp.: 0-40 °C
Dimensions: 90x90x115 mm
Weight: 0.65 kg
Connections: spring-load speaker term.

Price per pair (Order No. mo-163290) EUR 80,39 excl. VAT: € 67.55 / $ 78.36

Pair of universal PA speaker systems EUL-30/SW

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 80-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 87 dB
Max. rated SPL: 98 dB
Dimensions: 130x192x115 mm
Weight (piece): 1.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System:

Price per pair (Order No. mo-161150) EUR 151,84 excl. VAT: € 127.60 / $ 148.01

Pair of universal PA speaker systems EUL-30/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 80-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 87 dB
Max. rated SPL: 98 dB
Dimensions: 130x192x115 mm
Weight (piece): 1.4 kg
Connections: spring-load speaker term.
Mounting facility: movable mounting bracket
System:

Price per pair (Order No. mo-161160) EUR 151,84 excl. VAT: € 127.60 / $ 148.01

Pair of universal PA speaker systems EUL-42/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
White plastic cabinet with metal front grille
Integrated suspension device for wall mounting
Movable mounting bracket

Specifications:

Frequency range: 80-18,000 Hz
Power rating (100 V): 10/5/2.5 W_RMS
SPL (1 W/1 m): 87 dB
Max. rated SPL: 97 dB
Dimensions: 95x150x82 mm
Weight (piece): 960 g
Connections: spring-load. speaker term.
Mounting facility: 2 x 1-hole wall holder 2 x 5 mm thread for mounting bracket
System: 2-way

Price per pair (Order No. mo-161970) EUR 106,40 excl. VAT: € 89.41 / $ 103.72

Pair of universal PA speaker systems EUL-60/SW

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 60-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 100 dB
Dimensions: 215x290x172 mm
Weight (piece): 3.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161170) EUR 292,50 excl. VAT: € 245.80 / $ 285.13

Pair of universal PA speaker systems EUL-60/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 60-20,000 Hz
Power rating (100 V): 15/7.5/4/2/1 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 100 dB
Dimensions: 215x290x172 mm
Weight (piece): 3.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161180) EUR 292,50 excl. VAT: € 245.80 / $ 285.13

Additional PA speakers EUL-75/WS

Additional PA speakers. Speakers of particularly high-quality workmanship, suitable for PA applications of high requirements in adjoining areas, e.g. living area, but also for offices, practices and waiting rooms. The speaker system provides an excellent sound due to the application of an efficient hi-fi full range speaker and sound-optimized filters.

PA speaker system

100 V line technique
6-step power selector switch
Hi-fi full range speaker
Excellent sound quality
White grained wooden cabinet with metal front grille
Standing speaker with wall holder

Specifications:

Frequency range: 70-18,000 Hz
Power rating (100 V): 10/5/2.5/1.25/0.625 W_RMS
SPL (1 W/1 m): 86 dB
Max. rated SPL: 96 dB
Dimensions: 180x290x170 mm
Weight (piece): 3.8 kg
Connections: spring-load. speaker term.
Mounting facility: 1 x wall holder
System: 130

Price per unit (Order No. mo-162500) EUR 113,80 excl. VAT: € 95.63 / $ 110.93

Pair of universal PA speaker systems EUL-80/SW

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 40-20,000 Hz
Power rating (100 V): 30/15/7.5/4/2 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 103 dB
Dimensions: 270x370x220 mm
Weight (piece): 5.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161190) EUR 343,30 excl. VAT: € 288.49 / $ 334.65

Pair of universal PA speaker systems EUL-80/WS

Pair of universal PA speaker systems

100 V line technique, 2-way version
EUL-80... with a 25 mm dome tweeter, EUL-60... and EUL-30... with an 11 mm dome tweeter
Excellent sound quality
6-step power selector switch
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Frequency range: 40-20,000 Hz
Power rating (100 V): 30/15/7.5/4/2 W_RMS
SPL (1 W/1 m): 89 dB
Max. rated SPL: 103 dB
Dimensions: 270x370x220 mm
Weight (piece): 5.4 kg
Connections: spring-load. speaker term.
Mounting facility: movable mounting bracket
System: bass-reflex

Price per pair (Order No. mo-161230) EUR 343,30 excl. VAT: € 288.49 / $ 334.65

Active 2-way stereo speaker system, 2 x 25 W_MAX, 2 x 15 W_RMS MKA-60SET/SW

Wall and ceiling speakers: Low-impedance / 100 V, Active 2-way stereo speaker system, 2 x 25 W<sub>MAX</sub>, 2 x 15 W<sub>RMS</sub> MKA-60SET/SW — Enlarge

Active 2-way stereo speaker system, 2 x 25 WMAX, 2 x 15 WRMS

Set consists of one active and one passive speaker system. Connection of the passive system to the active system via spring-loaded speaker terminals
Active speaker system with integrated 2-channel amplifier, stereo RCA input, volume control and 2-way tone control, built-in PSU with 3-pin IEC jack
16 cm (6½") bass speaker system and dome tweeter
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket

Specifications:

Frequency range: 45-20,000 Hz
Amplifier power: 2 x 25 W_MAX/2 x 15 W_RMS
Inputs: 400 mV/10 kΩ
SPL (1 W/1 m): 89 dB each speaker system
Max. rated SPL: 100 dB each speaker system
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/75 VA
Dimensions (WxHxD): 220x293x170 mm
Weight: 8 kg (pair)
Connections: 1 x RCA L/R (active speaker system only) spring-load. speaker term. (link) (both speaker systems)
Other features:

Price per pair (Order No. mo-131580) - not available

Weatherproof pair of 2-way wall-mount speaker systems, 50 W_MAX, 8 Ω MKS-232/SW

Wall and ceiling speakers: Low-impedance / 100 V, Weatherproof pair of 2-way wall-mount speaker systems, 50 W<sub>MAX</sub>, 8 MKS-232/SW — Enlarge

Weatherproof pair of 2-way wall-mount speaker systems, 50 WMAX, 8 Ω

PA speaker systems with an excellent sound
13 cm polypropylene bass-midrange speaker and dome tweeter
High efficiency
Black (SW) or white (WS) plastic cabinet with lacquered aluminium grille
Supplied with matching metal wall brackets

Specifications:

Music power: 50 W_MAX
Power rating: 30 W_RMS
Max. frequency range: 75-20,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 89 dB
Max. rated SPL: 103 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 160x260x180 mm
Weight: 1.8 kg
Connections: spring-load. speaker term.
Mounting facility: mounting bracket
System:

Price per pair (Order No. mo-132160) - not available

Pair of 2-way wall-mount design speaker systems, 100 W_MAX, 8 Ω MKS-248/WS

Wall and ceiling speakers: Low-impedance / 100 V, Pair of 2-way wall-mount design speaker systems, 100 W<sub>MAX</sub>, 8 MKS-248/WS — Enlarge

Pair of 2-way wall-mount design speaker systems, 100 WMAX, 8 Ω

High-performance PA speaker systems (bass-reflex) with a perfect sound
Each equipped with 2 x 10 cm polypropylene bass-midrange speaker and one high-quality dome tweeter
Good efficiency, high power capability
White plastic with lacquered aluminium grille
Supplied with matching metal wall bracket (movable and tiltable)

Specifications:

Impedance: 8 Ω
Frequency range: 70-20,000 Hz
Crossover frequency: 4,000 Hz
Power rating: 100 W_MAX, 60 W_RMS
SPL (1 W/1 m): 89 dB
Dimensions: 150x300x190 mm
Weight: 3.4 kg
Other features:

Price per pair (Order No. mo-132050) - not available

Pair of 2-way speaker systems, 45 W_MAX, 4 Ω MKS-34/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of 2-way speaker systems, 45 W<sub>MAX</sub>, 4 MKS-34/SW — Enlarge

Pair of 2-way speaker systems, 45 WMAX, 4 Ω

Dome tweeter
Excellent sound quality
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Music power: 45 W_MAX
Power rating: 30 W_RMS
Max. frequency range: 80-20,000 Hz
Impedance: 4 Ω
SPL (1 W/1 m): 87 dB
Max. rated SPL: 101 dB
Dimensions: 130x192x115 mm
Weight: 1.3 kg
Connections: spring-load. speaker term.
Mounting facility: for wall hooks
System:

Price per pair (Order No. mo-131110) - not available

Pair of universal 2-way speaker systems, 40 W_MAX, 4 Ω MKS-42/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of universal 2-way speaker systems, 40 W<sub>MAX</sub>, 4 MKS-42/SW — Enlarge

Pair of universal 2-way speaker systems, 40 WMAX, 4 Ω

Black (SW) or white (WS) plastic cabinet with metal front grille
Integrated holder for wall mounting
Movable mounting bracket

Specifications:

Impedance: 4 Ω
Frequency range: 80-18,000 Hz
Crossover frequency: -
Power rating: 40 W_MAX, 20 W_RMS
SPL (1 W/1 m): 87 dB
Dimensions: 150x95x82 mm
Weight: 1.4 kg
Other features: spring-load. speaker term., 2 x 1-hole wall holder

Price per pair (Order No. mo-131520) - not available

Pair of universal 2-way speaker systems, 40 W_MAX, 4 Ω MKS-42/WS

Wall and ceiling speakers: Low-impedance / 100 V, Pair of universal 2-way speaker systems, 40 W<sub>MAX</sub>, 4 MKS-42/WS — Enlarge

Pair of universal 2-way speaker systems, 40 WMAX, 4 Ω

Black (SW) or white (WS) plastic cabinet with metal front grille
Integrated holder for wall mounting
Movable mounting bracket

Specifications:

Impedance: 4 Ω
Frequency range: 80-18,000 Hz
Crossover frequency: -
Power rating: 40 W_MAX, 20 W_RMS
SPL (1 W/1 m): 87 dB
Dimensions: 150x95x82 mm
Weight: 1.4 kg
Other features: spring-load. speaker term., 2 x 1-hole wall holder

Price per pair (Order No. mo-131530) - not available

Pair of wall/ceiling/corner mount speaker systems, 30 W_MAX, 8 Ω MKS-48/WS

Wall and ceiling speakers: Low-impedance / 100 V, Pair of wall/ceiling/corner mount speaker systems, 30 W<sub>MAX</sub>, 8 MKS-48/WS — Enlarge

Pair of wall/ceiling/corner mount speaker systems, 30 WMAX, 8 Ω. These really universally mountable speakers allow a perfect integration into most versatile indoor mounting positions. Interesting possibilities due to the optional creation of a cluster with 1-4 elements, from ceiling suspension in a corner to a hemisphere of wide radiation in the middle of the wall or ceiling. The sound of the pure white speakers is adjusted in such a precise way that it provides a complete sound of high quality, no matter in which position the speakers are placed.

White ABS cabinet
High-quality 10 cm full range speaker
Variable support and mounting system

Specifications:

Impedance: 8 Ω
Frequency range: 100-20,000 Hz
Crossover frequency: -
Power rating: 30 W_MAX,15 W_RMS
SPL (1 W/1 m): 87 dB
Dimensions: 195x145x140 mm
Weight: 1.5 kg
Other features:

Price per pair (Order No. mo-132130) EUR 122,90 excl. VAT: € 103.28 / $ 119.80

Pairs of 2-way speaker systems, 8 Ω, 60 W_MAX, 30 W_RMS MKS-508/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pairs of 2-way speaker systems, 8 , 60 W<sub>MAX</sub>, 30 W<sub>RMS</sub> MKS-508/SW — Enlarge

Pairs of 2-way speaker systems, 8 Ω, 60 WMAX, 30 WRMS

Speakers for general applications
2-way bass-reflex speaker system
13 cm (5") bass speaker and dome tweeter
Black (SW) or white (WS) plastic cabinet
Movable stand/mounting base for wall mounting or ceiling suspension at any angle due to ball joint

Specifications:

Music power: 60 W_MAX
Power rating: 30 W_RMS
Max. frequency range: 60-20,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 89 dB
Max. rated SPL: 103 dB
Dimensions: 160x260x160 mm
Weight: 1.8 kg
Connections: spring-load. speaker term.
Mounting facility: Mounting base with ball joint
System:

Price per pair (Order No. mo-132320) - not available

Pair of 2-way speaker systems, 90 W_MAX, 4 Ω MKS-64/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of 2-way speaker systems, 90 W<sub>MAX</sub>, 4 MKS-64/SW — Enlarge

Pair of 2-way speaker systems, 90 WMAX, 4 Ω

Dome tweeter
Excellent sound quality
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Music power: 90 W_MAX
Power rating: 60 W_RMS
Max. frequency range: 60-20,000 Hz
Impedance: 4 Ω
SPL (1 W/1 m): 89 dB
Max. rated SPL: 106 dB
Dimensions: 215x290x172 mm
Weight: 3.4 kg
Connections: spring-load. speaker term.
Mounting facility: 2 x M6 thread
System:

Price per pair (Order No. mo-131130) - not available

Pair of 2-way speaker systems, 125 W_MAX, 8 Ω MKS-88/SW

Wall and ceiling speakers: Low-impedance / 100 V, Pair of 2-way speaker systems, 125 W<sub>MAX</sub>, 8 MKS-88/SW — Enlarge

Pair of 2-way speaker systems, 125 WMAX, 8 Ω

Dome tweeter
Excellent sound quality
Black (SW) or white (WS) plastic cabinet
Movable mounting bracket
Mounting in corners possible as well due to bevelled shape of cabinets

Specifications:

Music power: 125 W_MAX
Power rating: 85 W_RMS
Max. frequency range: 40-20,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 89 dB
Max. rated SPL: 107 dB
Dimensions: 270x370x220 mm
Weight: 5.4 kg
Connections: spring-load. speaker term.
Mounting facility: 2 x M6 thread
System:

Price per pair (Order No. mo-131150) - not available

Pair of high-performance PA speakers, 180 WMAX, 100 WRMS each speaker system, MKS-8PRO

State-of-the-art speaker systems of an appealing design with high-quality speaker technology: these new MKS speaker systems are suitable for all stationary PA applications where a powerful sound and outstanding level reserves are required.

Pair of high-performance PA speakers, 180 WMAX, 100 WRMS each speaker system

2-way speaker systems with ABS cabinet (bass-reflex) of modern design, 20 cm bass speaker and dome tweeter. Both the sound with a very extended frequency response and the volume capability are absolutely convincing. These speakers are valuable solutions for PA applications in function rooms or conference rooms, for presentations and on parties. Supplied with mounting brackets for wall mounting.

Specifications:

Music power: 180 W_MAX
Power rating: 100 W_RMS
Max. frequency range: 40-21,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 91 dB
Max. rated SPL: 111 dB
Dimensions: 265x374x285 mm
Weight: 5.7 kg
Connections: speaker screw terminal
Mounting facility: mounting bracket
System:

Price per pair (Order No. mo-131770) - not available

Pair of slimline speaker systems, 40 W_MAX, 4 Ω SMB-130/WS

Wall and ceiling speakers: Low-impedance / 100 V, Pair of slimline speaker systems, 40 W<sub>MAX</sub>, 4 SMB-130/WS — Enlarge

Pair of slimline speaker systems, 40 WMAX, 4 Ω

2-way system with neodymium bass-midrange speaker and dome tweeter
Integrated wall holder
Unobtrusive design with a very pleasant radiation and good level stability
Perfectly suitable for any background PA application, also excellent as a rear speaker in surround systems

Specifications:

Impedance: 4 Ω
Frequency range: 80-18,000 Hz
Crossover frequency: 5,000 Hz
Power rating: 40 W_MAX, 20 W_RMS
SPL (1 W/1 m): 88 dB
Dimensions: 185x275x38 mm
Weight: 1 kg
Other features:

Price per pair (Order No. mo-090490) - not available (_)

Weatherproof flush-mount speaker, 30 W_MAX, 4 Ω, heat-resistant up to 120 °C. SPE-110P/SW

Wall and ceiling speakers: Low-impedance / 100 V, Weatherproof flush-mount speaker, 30 W<sub>MAX</sub>, 4 , heat-resistant up to 120 �C. SPE-110P/SW — Enlarge

Weatherproof flush-mount speaker, 30 WMAX, 4 Ω, heat-resistant up to 120 °C. For saunas and swimming pool areas, as well as other areas where a reliable operation at high temperatures must be ensured.

Black (SW) or white (WS) plastic housing
Plastic material of ABS and self-extinguishing according to UL 94V-0
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)

Specifications:

Frequency range: 180-18,000 Hz
Resonant frequency (fs): 250 Hz
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 30 W_MAX, 15 W_RMS
SPL (1 W/m): 86 dB
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 101 mm
Mounting depth: 40 mm
Admiss. ambient temp.: -20 °C to +120 °C
Dimensions: Ø 132 mm
Weight: 285 g
Other features: -

Price per unit (Order No. mo-162530) EUR 46,91 excl. VAT: € 39.42 / $ 45.73

Pair of flush-mount speakers SPE-130/WS

Pair of flush-mount speakers, with dual cone, 8 Ω.

Moisture-proof
White one-piece plastic design and plastic cone
Versatile use for car hi-fi, PA, terrace, boat

Specifications:

Frequency range: 80-10,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: 40 W_MAX, 20 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 85 dB
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 110 mm
Mounting depth: 50 mm
Dimensions: Ø 150 mm x 66 mm
Weight: 500g
Other features: -

Price per pair (Order No. mo-102680) EUR 50,21 excl. VAT: € 42.19 / $ 48.94

Flush-mount speaker, 20 W_MAX SPE-140/WS

Wall and ceiling speakers: Low-impedance / 100 V, Flush-mount speaker, 20 W<sub>MAX</sub> SPE-140/WS — Enlarge

Flush-mount speaker, 20 WMAX

Dual cone for a full range reproduction
Slimline design
Fixed metal grille
Suitable for indoor announcements and background music

Specifications:

Frequency range: 120-12,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 20 W_MAX, 10 W_RMS
SPL (1 W/m): 87 dB
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 110 mm
Mounting depth: 30 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 140 mm x 40 mm
Weight: 300 g
Other features: -

Price per unit (Order No. mo-104470) - not available

Hi-fi wall and ceiling speaker, 8 Ω SPE-15/WS

Wall and ceiling speakers: Low-impedance / 100 V, Hi-fi wall and ceiling speaker, 8 SPE-15/WS — Enlarge

Hi-fi wall and ceiling speaker, 8 Ω

2-way version with dome tweeter (movable with SPE-17/WS, SPE-22/WS and SPE-32/WS)
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Specifications:

Frequency range: 60-20,000 Hz
Resonant frequency (fs): 90 Hz
Power capability, 100 V: _-
Power capability, 8 Ω: 50 W_MAX, 25 W_RMS
SPL (1 W/m): 87 dB
Max. rated SPL: 102 dB
Type of speaker: 100
Mounting cutout: 115x190 mm
Mounting depth: 61 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 146x220x70 mm
Weight: 0.83 kg
Other features: -

Price per unit (Order No. mo-105600) EUR 43,85 excl. VAT: € 36.85 / $ 42.74

Flush-mount full range speaker, 30 W_MAX SPE-150/WS

Wall and ceiling speakers: Low-impedance / 100 V, Flush-mount full range speaker, 30 W<sub>MAX</sub> SPE-150/WS — Enlarge

Flush-mount full range speaker, 30 WMAX

Dual cone
Slimline design with fixed metal grille
Suitable for mounting into ceilings, walls and car doors

Specifications:

Frequency range: 100-12,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 4 Ω: 30 W_MAX, 15 W_RMS
SPL (1 W/m): 89 dB
Type of speaker: 130
Mounting cutout: Ø 120 mm
Mounting depth: 34 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 153 mm x 45 mm
Weight: 500 g
Other features: -

Price per unit (Order No. mo-101620) EUR 24,85 excl. VAT: € 20.88 / $ 24.22

Flush-mount full range speaker, 30 W_MAX SPE-158/WS

Wall and ceiling speakers: Low-impedance / 100 V, Flush-mount full range speaker, 30 W<sub>MAX</sub> SPE-158/WS — Enlarge

Flush-mount full range speaker, 30 WMAX

Dual cone
Slimline design with fixed metal grille
Suitable for mounting into ceilings, walls and car doors

Specifications:

Frequency range: 100-12,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: 30 W_MAX, 15 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 88 dB
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 120 mm
Mounting depth: 34 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 153 mm x 45 mm
Weight: 500 g
Other features: -

Price per unit (Order No. mo-103150) EUR 24,85 excl. VAT: € 20.88 / $ 24.22

Pair of flush-mount speakers SPE-165/WS

Pair of flush-mount speakers, with dual cone, 8 Ω.

Moisture-proof
White one-piece plastic design and plastic cone
Versatile use for car hi-fi, PA, terrace, boat

Specifications:

Frequency range: 80-10,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: 50 W_MAX, 25 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 87 dB
Max. rated SPL: -
Type of speaker: 165
Mounting cutout: Ø 133 mm
Mounting depth: 60 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 180 mm x 80 mm
Weight: 800 g
Other features: -

Price per pair (Order No. mo-102670) - not available (_)

Hi-fi wall and ceiling speaker, 8 Ω SPE-17/WS

Wall and ceiling speakers: Low-impedance / 100 V, Hi-fi wall and ceiling speaker, 8 SPE-17/WS — Enlarge

Hi-fi wall and ceiling speaker, 8 Ω

2-way version with dome tweeter (movable with SPE-17/WS, SPE-22/WS and SPE-32/WS)
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Specifications:

Frequency range: 55-20,000 Hz
Resonant frequency (fs): 59 Hz
Power capability, 100 V: _-
Power capability, 8 Ω: 60 W_MAX, 30 W_RMS
SPL (1 W/m): 87 dB
Max. rated SPL: 103 dB
Type of speaker: 130
Mounting cutout: 270x185 mm
Mounting depth: 65 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 300x214x75 mm
Weight: 1.4 kg
Other features: -

Price per unit (Order No. mo-105610) EUR 88,54 excl. VAT: € 74.40 / $ 86.31

Hi-fi wall and ceiling speaker, 8 Ω SPE-22/WS

Wall and ceiling speakers: Low-impedance / 100 V, Hi-fi wall and ceiling speaker, 8 SPE-22/WS — Enlarge

Hi-fi wall and ceiling speaker, 8 Ω

2-way version with dome tweeter (movable with SPE-17/WS, SPE-22/WS and SPE-32/WS)
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Specifications:

Frequency range: 50-20,000 Hz
Resonant frequency (fs): 51 Hz
Power capability, 100 V: _-
Power capability, 8 Ω: 80 W_MAX, 40 W_RMS
SPL (1 W/m): 88 dB
Max. rated SPL: 104 dB
Type of speaker: 165
Mounting cutout: 275x190 mm
Mounting depth: 77 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 306x220x87 mm
Weight: 2 kg
Other features: -

Price per unit (Order No. mo-105620) EUR 116,92 excl. VAT: € 98.25 / $ 113.97

Pair of flush-mount speakers SPE-230/WS

Pair of flush-mount speakers, coaxial system, 8 Ω, tweeter with ferrofluid.

Moisture-proof
White one-piece plastic design and plastic cone
Versatile use for car hi-fi, PA, terrace, boat

Specifications:

Frequency range: 100-20,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: 50 W_MAX, 25 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 85 dB
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 110 mm
Mounting depth: 50 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 150 mm
Weight: 0.5 kg
Other features: -

Price per pair (Order No. mo-102700) EUR 64,01 excl. VAT: € 53.79 / $ 62.40

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-264/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

2-way system with dome tweeter
Excellent sound
White plastic housing
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)
For a ceiling thickness from 2 to 25 mm
Spring-loaded speaker terminals

Specifications:

Frequency range: 60-20,000 Hz
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 90 W_MAX, 45 W_RMS
SPL (1 W/m): 88 dB
Max. rated SPL: 103 dB
Type of speaker: 165
Mounting cutout: Ø 190 mm
Mounting depth: 71 mm
Admiss. ambient temp.: -20 °C to +100 °C
Dimensions: Ø 226 mm x 100 mm
Weight: 0.9 kg
Other features: -

Price per pair (Order No. mo-104900) EUR 169,84 excl. VAT: € 142.72 / $ 165.56

Hi-fi wall and ceiling speaker, 8 Ω SPE-32/WS

Wall and ceiling speakers: Low-impedance / 100 V, Hi-fi wall and ceiling speaker, 8 SPE-32/WS — Enlarge

Hi-fi wall and ceiling speaker, 8 Ω

2-way version with dome tweeter (movable with SPE-17/WS, SPE-22/WS and SPE-32/WS)
Plastic housing with protective metal grille
Plastic material of ABS and self-extinguishing according to UL 94V-0
Excellent sound characteristics
For a wall thickness/ceiling thickness from 8 to 35 mm

Specifications:

Frequency range: 40-20,000 Hz
Resonant frequency (fs): 37 Hz
Power capability, 100 V: _-
Power capability, 8 Ω: 100 W_MAX, 50 W_RMS
SPL (1 W/m): 89 dB
Max. rated SPL: 106 dB
Type of speaker: 200
Mounting cutout: 330x225 mm
Mounting depth: 87 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 358x256x97 mm
Weight: 2.2 kg
Other features: -

Price per unit (Order No. mo-105630) EUR 134,97 excl. VAT: € 113.42 / $ 131.57

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 W_MAX, 8 Ω SPE-70/WS

Wall and ceiling speakers: Low-impedance / 100 V, Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 W<sub>MAX</sub>, 8 SPE-70/WS — Enlarge

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 WMAX, 8 Ω

Weatherproof speaker of compact size and high power capability with a wide bandwidth reproduction
High-quality white plastic basket with magnetic sleeve in one piece
Polypropylene cone, rubber surround, supplied with matching plastic grille (to be glued in)
Suitable for PA applications also in a damp environment and outdoors
As a bass-midrange speaker also suitable in small hi-fi systems

Specifications:

Frequency range: 100-20,000 Hz
Resonant frequency (fs): 100 Hz
Power capability, 100 V: -
Power capability, 8 Ω: 40 W_MAX, 20 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 86 dB
Max. rated SPL: -
Type of speaker: 75
Mounting cutout: Ø 73 mm
Mounting depth: 37 mm
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 90 mm x 50 mm
Weight: 230 g
Other features: -

Price per unit (Order No. mo-162300) EUR 29,36 excl. VAT: € 24.67 / $ 28.62

Small flush-mount speaker, 12 W_MAX, 4 Ω SPE-82/CR

Wall and ceiling speakers: Low-impedance / 100 V, Small flush-mount speaker, 12 W<sub>MAX</sub>, 4 SPE-82/CR — Enlarge

Small flush-mount speaker, 12 WMAX, 4 Ω

Chrome (CR) or white (WS) covers
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music, very consistent frequency response
Quick-mounting facility

Specifications:

Frequency range: f3-20,000 Hz
Resonant frequency (fs): 200 Hz
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 12 W_MAX, 6 W_RMS
SPL (1 W/m): 87 dB
Max. rated SPL: -
Type of speaker: 75
Mounting cutout: Ø 92 mm
Mounting depth: 57 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 100 mm x 67 mm
Weight: 340 g
Other features: -

Price per unit (Order No. mo-161520) - not available

Small flush-mount speaker, 12 W_MAX, 4 Ω SPE-82/WS

Wall and ceiling speakers: Low-impedance / 100 V, Small flush-mount speaker, 12 W<sub>MAX</sub>, 4 SPE-82/WS — Enlarge

Small flush-mount speaker, 12 WMAX, 4 Ω

Chrome (CR) or white (WS) covers
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music, very consistent frequency response
Quick-mounting facility

Specifications:

Frequency range: f3-20,000 Hz
Resonant frequency (fs): 200 Hz
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 12 W_MAX, 6 W_RMS
SPL (1 W/m): 87 dB
Max. rated SPL: -
Type of speaker: 75
Mounting cutout: Ø 92 mm
Mounting depth: 57 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 100 mm x 67 mm
Weight: 340 g
Other features: -

Price per unit (Order No. mo-161540) EUR 32,87 excl. VAT: € 27.62 / $ 32.04

Surface-mount speaker, 10 W_MAX SPE-85/WS

Wall and ceiling speakers: Low-impedance / 100 V, Surface-mount speaker, 10 W<sub>MAX</sub> SPE-85/WS — Enlarge

Surface-mount speaker, 10 WMAX

Moisture-proof due to water-repellent segments and speaker with plastic cone
Especially suitable for the reproduction of alarm signals

Specifications:

Frequency range: 350-8,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: 10 W_MAX, 5 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 95 dB
Max. rated SPL: -
Type of speaker: -
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: 0-40 °C
Dimensions: 110x110x57 mm
Weight: 400 g
Other features: -

Price per unit (Order No. mo-161030) - not available

Hi-fi wall and ceiling speaker for flush mounting, 8 Ω SPE-8U

Wall and ceiling speakers: Low-impedance / 100 V, Hi-fi wall and ceiling speaker for flush mounting, 8 SPE-8U — Enlarge

Hi-fi wall and ceiling speaker for flush mounting, 8 Ω

High-quality 2-way coaxial speaker system with very good sound characteristics
20 cm (8") bass speaker with glass fibre cone, 24 mm (1") dome tweeter with titanium cone
Plastic tray for flush mounting in walls or solid ceilings
Required hole in wall: approx. 242x242x100 mm
Metal front grille with plastic frame

Specifications:

Frequency range: 70-20,000 Hz
Resonant frequency (fs): 60 Hz
Power capability, 100 V: _-
Power capability, 8 Ω: 60 W_MAX, 30 W_RMS
SPL (1 W/m): 89 dB
Max. rated SPL: 104 dB
Type of speaker: 200
Mounting cutout: 242x242 mm
Mounting depth: 100 mm
Admiss. ambient temp.: 0-40 °C
Dimensions: 248x248x100 mm
Weight: 1.6 kg
Other features: -

Price per unit (Order No. mo-105640) EUR 95,90 excl. VAT: € 80.59 / $ 93.48
