Evacuation systems

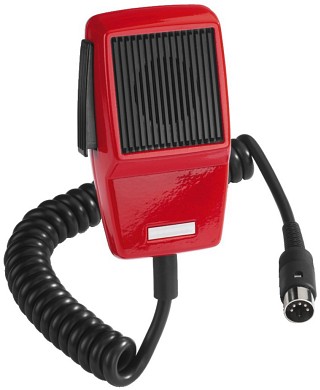

Hand-held PA microphone MEVAC-1FH

Hand-held PA microphone, for emergency announcements according to EN 60849.

For connecting to evacuation controller MEVAC-4
Monitored microphone cartridge and request line
Push-to-talk button
Red plastic housing (fireman's microphone) with dynamic microphone cartridge and steel clip
1 m helix connection cable with 5-pole DIN plug

Price per unit (Order No. mo-235580) - not available

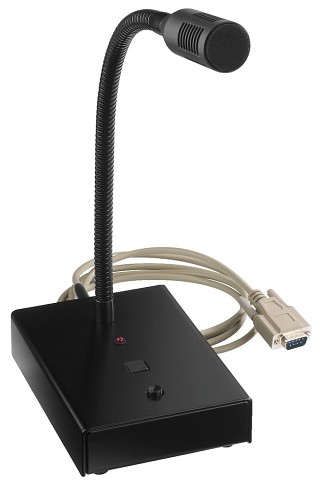

PA desktop microphone (push-to-talk) MEVAC-1PTT

PA desktop microphone (push-to-talk), for connecting to evacuation controller MEVAC-4.

Programmable push-button for all-call function or individual zone
Ready to call indication via LED
Gooseneck with dynamic microphone cartridge
1.8 m connection cable with 9-pole D-sub plug

Price per unit (Order No. mo-235570) - not available

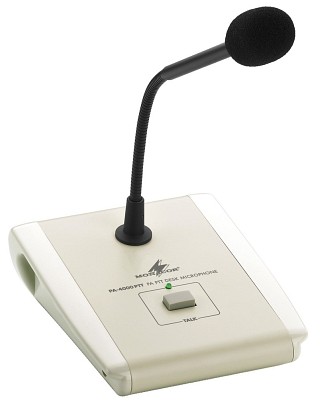

PA desktop microphone (push-to-talk) PA-4000PTT

PA desktop microphone (push-to-talk), for connecting to PA-40120 or PA-1120, PA-1240, PA-1412MX and the PA-6000 series.

Automatic chime via microphone announcement button (talk)
Chime can additionally be switched on or off
Power supply via connected amplifiers
RJ45 jack for the connection to suitable amplifiers
Supplied with 3 m connection cable (Cat. 5e)
7-pole DIN jack for the connection to suitable amplifiers

Only one PA-4000PTT can be connected to each amplifier

Price per unit (Order No. mo-236000) EUR 244,00 excl. VAT: € 205.04 / $ 237.85

Evacuation controller MEVAC-4

Evacuation controller, with EN 54-16 certification for voice alarm systems (VAS) according to DIN EN 60849 (VDE 0828) and DIN VDE 0833-4. As a central controller, the MEVAC-4 can carry out numerous functions:

Monitoring of the speaker lines
Monitoring of the amplifiers with emergency switching (for 4 amplifiers and 1 spare amplifier)
Digital voice storage for alarm announcements
Monitoring of the fireman's microphones
Distributor for audio input signals like microphone and background music
4 independently addressable announcement circuits in A/B wiring
Fault signalling via relay contacts

Additional features:

Connection for any number of emergency announcement microphones (1-channel or 4-channel)
Extensive inputs and outputs for monitoring and signalling
Modern DSP technology, updatable
Easy programming via push-buttons and built-in display
Input for background music
Aux input to be activated via external contact
Tone control and volume control for each amplifier channel
Background music is turned off automatically during 24 V operation
Bass attenuation in case of an alarm
RS-232 connection for programming and updating
Power supply: 230 V /50 Hz/20 VA or 24 V DC current /500 mA
Dimensions: 482x44x315 mm (1 RS)
Weight: 5 kg
Mains operation and 24 V emergency power operation

Price per unit (Order No. mo-172670) - not available

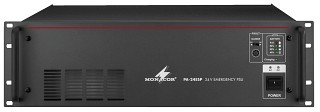

24 V emergency PSU PA-24ESP

24 V emergency PSU, for our PA components with 24 V connection.

Possible to install 2 x rechargeable lead battery NPA-12/24
Screw connection for external 24 V rechargeable batteries
Maximum charging current: 2.5 A
Electronic charging control with overload protection, protection against total discharge and trickle charge
1 x output 24 V DC current /1 A (unswitched)
2 x output 24 V DC current /32 A
3 x output 24 V DC current /16 A
Power supply: 230V /50Hz/110 VA
Dimensions: 482x135x405 mm
Weight: 11.7 kg

Price per unit (Order No. mo-243120) EUR 730,80 excl. VAT: € 614.12 / $ 712.38

4-channel mono mixing amplifier PA-40120

4-channel mono mixing amplifier, with 4 active 120 W outputs, for setting up a multi-zone PA system. A switch allows each of the 5 inputs to be assigned to one of the 4 outputs. Thus, it is possible to reproduce varying programmes in different areas. Another advantage is that an announcement in one area will not interrupt the programme in another area. With the optional zone-paging microphone PA-4000RC, the amplifier can be extended to a 4-channel PA system. In combination with the fireman's microphone PA-4000FMP with integrated voice memory, e.g.an alarm system can be set up in schools.4 x 120 WRMS 4 zones, can be controlled individually 3 mic/line inputs and 2 line inputs Built-in adjustable monitor speaker Chime and siren can also be activated via external momentary push-button Bass, treble and master controls, level display via LEDs, regulated fan Phantom power for electret microphones Connection for microphone PA-4000PTT Connections for 4 x PA fireman's microphone PA-4000FMP Mains operation and 24 V emergency power operation

Specifications:

Output power: 4 x 120 W_RMS, 4 x 170 W_MAX
Mic/line 1-3: 2.5 mV/5 kΩ, 0.3 V/15 kΩ
Line 4-5: 0.3 V/15 kΩ
Speakers: 4 x 4 Ω, 4 x 70 V/100 V
Preamplifier: 0.775 V/200 Ω
Record: 0.775 V/3 kΩ
Frequency range: 45-20,000 Hz
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
Mic:>70 dB, A-weighted
Line:>90 dB, A-weighted
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/1,500 VA, 24 V DC current /40 A
Dimensions: 482x90x377 mm, 2 RS
Weight: 22.1 kg
Mic/line: 3 x 6.3 mm/XLR (combo)
Line: 2 x RCA L/R
Push-to-talk microphone: 1 x RJ45
Emergency: 4 x RJ45
Mom. push-button for chime: screw terminals
Preamplifier: 4 x screw terminal
Speakers: 4 x screw terminal
Monitor: 1 x 6.3 mm jack
Record: 1 x RCA L/R
230 V : mains cable
24 V DC current: screw terminals

Price per unit (Order No. mo-173220) EUR 1520,82 excl. VAT: € 1278.00 / $ 1482.48

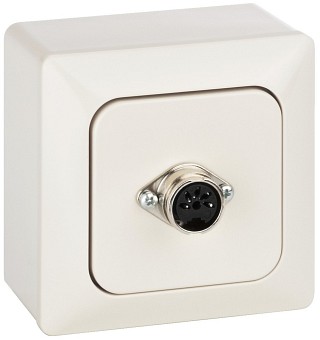

Connection box MEVAC-1CON

Connection box, for hand-held PA microphone MEVAC-1FH or PA desktop microphone MEVAC-1FT.

5-pole DIN jack
Flush mounting into standard 60 mm wall sockets
Surface mounting with supplied surface-mounted housing
Dimensions: 80x80x37 mm

Price per unit (Order No. mo-172750) EUR 104,61 excl. VAT: € 87.91 / $ 101.97
