Active PA speakers: 12"

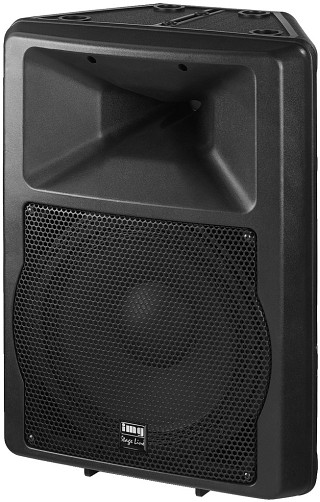

Active DJ and power speaker system, 270 WMAX, 150 WRMS, PAK-112MK2

The 100 series provides PA speaker systems of high power capability with a nice sound for PA and DJ applications, suitable for medium-sized to large function rooms. The timeless plastic cabinets are also very robust and have extensively been tested in practical operation. The active PAK version features a warm sound due to well-approved transistor technology and keeps dynamic reserves and power reserves.

Active DJ and power speaker system, 270 WMAX, 150 WRMS

Full range system of high efficiency
Robust plastic cabinet
30 cm (12") bass speaker with diecast aluminium basket
25 mm (1", 34 mm voice coil) horn tweeter
Bass-reflex system
High-performance active module
Multi-purpose positioning and installation options
M8 threaded inserts (2 x top, 1 x bottom)

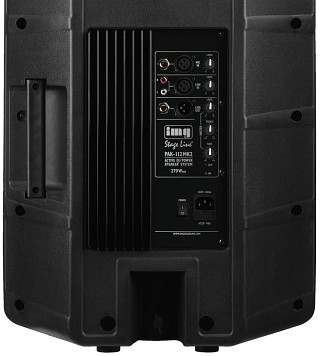

XLR and RCA L/R (line), XLR (mic)
Stand sleeve and carrying handle

Specifications:

Frequency range: 49-20,000 Hz
Amplifier power: 150 W_RMS, 270 W_MAX
Inputs: 1 x line (bal., 150 mV, stereo unbal., 620 mV) 1 x mic (bal., 6.5 mV)
SPL (1 W/1 m): 96 dB
Max. rated SPL: 118 dB
Admiss. ambient temp.: 0-40 °C
Power supply: 230V /50Hz/340VA
Dimensions (WxHxD): 430x580x310 mm
Weight: 20 kg
Connections: XLR and RCA L/R (line) XLR (mic) 6.3 mm jack (mic)
Other features: par. line out (XLR and 6.3 mm jack) 2-band EQ ±12 dB integr. limiter

Price per unit (Order No. mo-252280) - not available

Replacement voice coil PAB-128/VC

Replacement voice coil, for the tweeters of the speaker systems PAB-108MK2, PAB-110MK2, PAB-112MK2 and PAK-108MK2, PAK-110MK2, PAK-112MK2.

Price per unit (Order No. mo-111320) - not available
