Play and record: Turntables

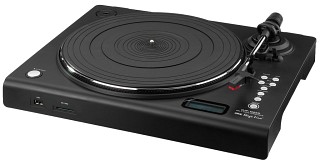

Stereo hi-fi turntable with USB port, SD card slot and integrated phono preamplifier DJP-106SD

Stereo hi-fi turntable with USB port, SD card slot and integrated phono preamplifier

Simply insert the USB storage device or SD card and save the track of an album as an MP3 file, no PC required!

USB A port for a convenient digitalisation of analogue vinyl records
Recording and reproduction in MP3 format via optional USB storage medium (e.g. USB hard disk, USB flash drive) or SD card
Automatic level adjustment during recording onto a USB medium
Supports SD/SDHC cards up to 16 GB, available at option
Stereo line output via RCA jacks
Manual track split function
Belt drive
Magnet system
2 speeds
Metal pick-up arm and plastic turntable platter with rubber mat
LCD
Smoked acrylic glass cover, removable

Recording software is available as freeware on the Internet.

OKEY 9/10/2010

"The DJP-106SD is an ideal partner for anyone wishing to digitalise large record collections. A solid and convenient working tool. The recording procedure is just as easy as playing a record."

Specifications:

General information:
Turntable platter: Ø 298 mm, plastic
Speeds: 33 1/3 /45 rpm
Pitch control: -
Starting torque: 0.3 kg/cm
Starting time: -
Braking: -
Wow and flutter:<0.25 %
Rumble: -
Connection for gooseneck light: -
Power supply: 230 V /50 Hz/10 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 420x115x355 mm
Weight: 3.3 kg
Inputs:
Fader start: -
Forward/reverse: -
Outputs: 1 x RCA L/R USB type A jack

Price per unit (Order No. mo-212520) EUR 144,90 excl. VAT: € 121.76 / $ 141.25

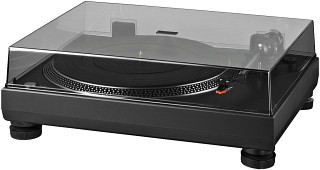

Stereo hi-fi turntable with USB port and integrated phono preamplifier DJP-200USB

Stereo hi-fi turntable with USB port and integrated phono preamplifier

USB port (type B) for a high-quality and convenient digitalisation of analogue vinyl records via PC
Stereo line output via RCA jacks
Belt drive
Magnet system
Diecast aluminium turntable platter and metal pick-up arm
2 speeds
Auto stop function, switchable
Smoked acrylic glass cover, removable

Recording software is available as freeware on the Internet.

Specifications:

General information:
Turntable platter: Ø 332 mm, diecast aluminium
Speeds: 33 1/3 /45 rpm
Pitch control: -
Starting torque: 0.3 kg/cm
Starting time: -
Braking: -
Wow and flutter:<0.3 %
Rumble: -
Connection for gooseneck light: -
Power supply: 230 V /50 Hz/20 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 450x152x352 mm
Weight: 3.2 kg
Inputs:
Fader start: -
Forward/reverse: -
Outputs: 1 x RCA L/R USB type B jack

Price per unit (Order No. mo-211460) - not available

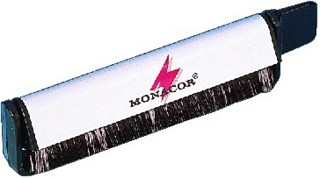

Antistatic carbon fibre LP brush DC-100

Antistatic carbon fibre LP brush, over 1 million conducting fibres discharge static charges and remove dust. An important accessory for your valuable record collection.

Price per unit (Order No. mo-210030) EUR 12,84 excl. VAT: € 10.79 / $ 12.52

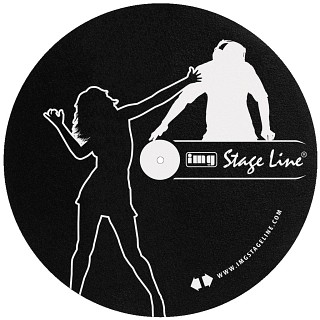

Felt slipmat DJP-2M

Felt slipmat, for turntable platters.

Price per unit (Order No. mo-212740) EUR 6,97 excl. VAT: € 5.86 / $ 6.79

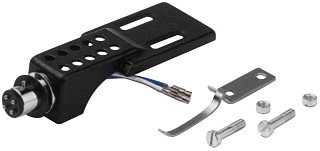

Head shell EN-120

Head shell, for accepting a phono cartridge system, e.g. EN-24 from MONACOR.

Standardised 4-pole bayonet version with 4-colour plug-in connection leads
Matching all turntables of our programme (DJP-..., except DJP-106SD)

Price per unit (Order No. mo-210220) EUR 18,51 excl. VAT: € 15.55 / $ 18.04

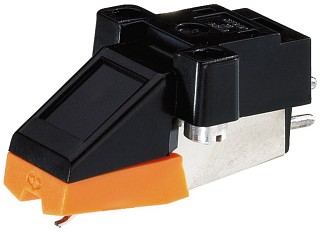

Stereo magnetic phono cartridge system EN-24

Stereo magnetic phono cartridge system, (moving magnet) with diamond stylus and 1.3 cm (½") fixing.

Matching turntables of our programme (DJP-...) and as a replacement for other hi-fi turntables
Stylus pressure: approx. 1.5 g

Specifications:

Frequency range: 20-20,000 Hz
Output voltage: 5 mV/1 kHz, 5 cm/s
Terminal impedance: 47 kΩ/200 pF
Impedance: 1.2 kΩ
DC resistance: 300 Ω
Channel balance:<2.5 dB/1 kHz
Channel separation:>24 dB/1 kHz
Dyn. compliance: 5 µm/mN
Recom. stylus pressure: 3 g (2.5-3.5 g)
Stylus tip: conical 0.6 µm
Weight: 4.5 g

Price per unit (Order No. mo-210200) EUR 40,71 excl. VAT: € 34.21 / $ 39.68

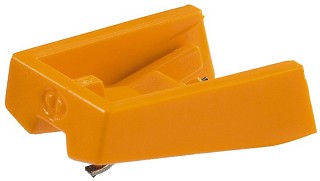

Diamond stylus EN-24SP

Diamond stylus, for phono cartridge system EN-24.

Price per unit (Order No. mo-210210) - not available

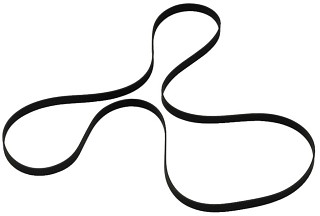

Replacement drive belt P-124DJP

Replacement drive belt

Suitable for turntables DJP-104P, DJP-106SD and DJP-104USB as well as many other turntables with respective belt drive
Drive belt diameter: approx. 17 cm, length: approx. 53 cm

Price per unit (Order No. mo-212110) EUR 5,54 excl. VAT: € 4.66 / $ 5.40

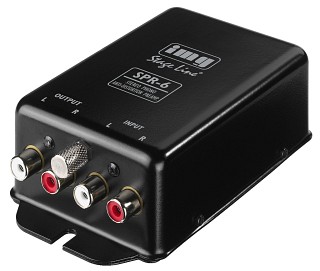

Stereo phono anti-distortion preamplifier acc. to RIAA SPR-6

Stereo phono anti-distortion preamplifier acc. to RIAA, for connecting a turntable to the aux input or line input of a hi-fi system, a mixer or an amplifier, etc. Low hum effect due to metal case and supplied plug-in PSU.

Specifications:

General Information:
Input: 5mV/47kΩ
Output: 450mV/100kΩ
Frequency range: 20-20,000Hz
S/N ratio:>50dB
Power supply: via suppl. plug-in PSU
Dimensions: 67x37x121mm
Weight: 200g
Inputs: 1 x RCA L/R
Outputs: 1 x RCA L/R

Price per unit (Order No. mo-210640) EUR 60,19 excl. VAT: € 50.58 / $ 58.67
