Headband microphones

Electret earband microphone CM-801F

Electret earband microphone

Unobtrusive design with a striking sound! This ultra-light earband microphone is a powerful partner on stage and podiums. Due to its design, it can unobtrusively be worn and ensures maximum mobility. On the other hand, it provides a striking sound. A perfectly clear voice reproduction and a powerful sound ensure an attentive audience. Some performances are really hard work and can thus result in quite a sweaty situation. In order to ensure a reliable operation of the cartridge at such events, too, it is additionally protected by a movable drip ring. The cable is screwed on and can easily be replaced. The suppied clip ensures strain relief and thus makes the microphone more comfortable to wear and enhances stable positioning. Further connection cables with 3.5 mm stereo plug (801CS) or 3-pole mini XLR plug (801C3) are available at option. Supplied with bag and windshield.

Specifications:

System: electret/omnidirectional
Frequency range: 60-15,000Hz
Impedance: 1.8kΩ
Sensitivity: 6.3mV/Pa/1kHz
Max. SPL: 130dB
Power supply: pocket transmitter IN/PT/UF series or PS-500
Connections: cable with 4-pole mini XLR (optional: 3.5mm stereo plug or 3-pole mini XLR)
Weight: 16g

Price per unit (Order No. mo-235900) EUR 73,03 excl. VAT: € 61.37 / $ 71.19

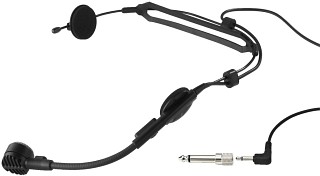

Dynamic headband microphone HM-30

Dynamic headband microphone

For vocal and speech applications which require free movement
Microphone windshield

Specifications:

System: dyn./cardioid
Frequency range: 300-16,000 Hz
Impedance: 500 Ω
Sensitivity: 1 mV/Pa/1 kHz
Max. SPL: -
S/N ratio: -
Power supply: -
Body: -
Dimensions: -
Weight: 80 g
Connection, microphone: -
Connection, cable: 3.5 mm plug, adapter 6.3 mm
Cable: approx. 3.5 m

Price per unit (Order No. mo-232680) EUR 39,90 excl. VAT: € 33.53 / $ 38.89

Headband microphone HSE-100

Headband microphone, with high-quality back electret cartridge. Very linear frequency response, especially resistant to external sound due to its supercardioid characteristic with high back suppression. The power supply adapter EMA-1 or a respective power supply is required for operation.

HSE-100: with stripped cable ends

HSE-110: with 3-pole mini XLR inline jack, matching EMA-1 or pocket transmitters TXS-...HSE

HSE-120: with 3.5 mm plug

Specifications:

System: back electret/supercardioid
Frequency range: 20-20,000 Hz
Impedance: 3 kΩ
Sensitivity: 7 mV/Pa/1 kHz
Max. SPL: 120 dB
Power supply: 1.3-20 V DC current
Admiss. ambient temp.: 0-40 °C
Dimensions:
Weight: 75 g
Connection: bare cable ends

Price per unit (Order No. mo-232160) EUR 108,80 excl. VAT: € 91.43 / $ 106.06

Headband microphone HSE-120

Specifications:

System: back electret/supercardioid
Frequency range: 20-20,000 Hz
Impedance: 3 kΩ
Sensitivity: 7 mV/Pa/1 kHz
Max. SPL: 120 dB
Power supply: 1.3-20 V DC current
Admiss. ambient temp.: 0-40 °C
Dimensions:
Weight: 75 g
Connection: 3.5 mm plug

Price per unit (Order No. mo-232180) EUR 129,23 excl. VAT: € 108.60 / $ 125.97

Ultra-light headband microphone HSE-132/SK

Ultra-light headband microphone

Back electret microphone cartridge
Cardioid characteristic
3-pole mini XLR inline jack
Cartridge arm of adjustable length
Compatible with the pocket transmitters TXS-...HSE with 3-pole mini XLR connection
External power supply, e.g. via the phantom power supply adapter EMA-1 or EMA-300P
Microphone windshield

Specifications:

System: back electret/cardioid
Frequency range: 50-16,000 Hz
Impedance: 2 kΩ
Sensitivity: 5.6 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 1.5-9 V DC current
Admiss. ambient temp.: 0-40 °C
Dimensions: -
Weight: 18 g
Connection: 3-pole mini XLR

Price per unit (Order No. mo-236420) EUR 44,64 excl. VAT: € 37.51 / $ 43.51

Ultra-light headband microphone HSE-140/SK

Ultra-light headband microphone, for young artists. Due to the small design of the headband and the adjustable headband diameter, this microphone is ideally suited for children of different ages. It is suitable for reproducing vocals and speech for all kinds of audio transmissions. A high-quality back electret cartridge of omnidirectional characteristic provides a good sound of a high quality even if the cartridge is not perfectly aligned. An ergonomic design is the reason for both an unobtrusive and secure fit even during extreme head movements.

Wide transmission range
Very comfortable to wear
Stable positioning
Turning cartridge arm of adjustable length
Drip ring (protects the cartridge against moisture)
Compatible with all TXS-...HSE pocket transmitters with 3-pole mini XLR connection
External power supply e.g. via phantom power supply adapter EMA-1 or EMA-300P
Microphone windshield
Small headband design, adjustable
Omnidirectional characteristic
High-quality back electret cartridge
3-pole mini XLR connection
Turning cartridge arm of adjustable length
Drip ring (protects the cartridge against moisture)
Compatible with all TXS-...HSE pocket transmitters with 3-pole mini XLR connection
External power supply e.g. via phantom power supply adapter EMA-1 or EMA-300P
Microphone windshield

Specifications:

System: back electret/omnidirectional
Frequency range: 20-20,000 Hz
Impedance: 1 kΩ
Sensitivity: 8 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 1.5-9 V DC current
Admiss. ambient temp.: 0-40 °C
Dimensions:
Weight: 8 g
Connection: 3-pole mini XLR

Price per unit (Order No. mo-235530) EUR 69,66 excl. VAT: € 58.54 / $ 67.90

Ultra-light headband microphone, omnidirectional characteristic., HSE-150A/SK

A series of headband microphones and earband microphones for universal applications, beige version for adapter systems. With the supplied adapters, suitable for pocket transmitters from IMG Stage Line and JTS. Further connecting adapters for units from other manufacturers are available at option.

Ultra-light headband microphone, omnidirectional characteristic.

This microphone is comfortable to wear, provides perfectly stable positioning and the high-quality back electret cartridge ensures a high-quality audio reproduction of vocals and presentations. A cartridge which is not perfectly aligned is not a problem thanks to the omnidirectional characteristic. The flexible connection cable features a plug with latching device which ensures a secure connection to the corresponding adapter. This microphone can be operated with wireless transmission systems of various manufacturers due to the additional adapters which are available at option.

Wide transmission range
Very comfortable to wear
Stable positioning
Turning cartridge arm of adjustable length
Drip ring (protects the cartridge against moisture)
Removable sweat-proof connection cable with 2.5 mm stereo plug (replacement connection cable: HSE-70C)
With the supplied adapters, compatible with all TXS-...HSE pocket transmitters (3-pole mini XLR) and pocket transmitters from JTS (4-pole mini XLR)
Optional adapters allow the application with units from other manufacturers
External power supply e.g. via phantom power supply adapter EMA-1 or EMA-300P
Windshield

Specifications:

System: back electret/omnidir.
Frequency range: 20-20,000 Hz
Impedance: 1 kΩ
Sensitivity: 8 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 1.5-9 V DC current
Admiss. ambient temp.: 0-40 °C
Dimensions:
Weight: 7 g
Connection: 2.5 mm stereo plug 2 connecting adapters

Price per unit (Order No. mo-235160) EUR 100,60 excl. VAT: € 84.54 / $ 98.06

Ultra-light headband microphone, cardioid characteristic, HSE-152A/SK

Ultra-light headband microphone, cardioid characteristic.

This microphone with a back electret cartridge of cardioid characteristic is suitable for any application requiring a directional sound pick-up. A solid tool with a great sound for presenters and vocalists, even suitable for severe acoustic conditions thanks to the low acoustic feedback. The lightweight and almost invisible headband is very comfortable to wear and keeps the cartridge securely in place. Connected to a cable with latching device and by using optional adapters, the HSE-152A/SK can be operated with wireless transmission systems of various manufacturers.

Wide transmission range
Very comfortable to wear
Stable positioning
Turning cartridge arm of adjustable length
Drip ring (protects the cartridge against moisture)
Removable sweat-proof connection cable with 2.5 mm stereo plug (replacement connection cable: HSE-70C)
With the supplied adapters, compatible with all TXS-...HSE pocket transmitters (3-pole mini XLR) and pocket transmitters from JTS (4-pole mini XLR)
External power supply e.g. via the phantom power supply adapters EMA-1, EMA-300P
Windshield

Specifications:

System: back electret/cardioid
Frequency range: 20-20,000 Hz
Impedance: 1.5 kΩ
Sensitivity: 1.8 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 1.5-9 V DC current
Admiss. ambient temp.: 0-40 °C
Dimensions:
Weight: 7 g
Connection: 2.5 mm stereo plug 2 connecting adapters

Price per unit (Order No. mo-235170) EUR 104,70 excl. VAT: € 87.98 / $ 102.06

Professional headband microphone HSE-300/SK

Professional headband microphone, of cardioid characteristic with a high-quality sound which is suitable for any vocal or speech application. Innovative design features ensure a maximum suppression of both the impact sound and structure-borne noise as well as an extra low acoustic feedback, very comfortable to wear. Beige version.

Corrosion-resistant neckband, easy to clean
Drip ring (protects the cartridge against moisture)
Unobtrusive and secure fit due to cable routing in the neck area incl. strain relief and cable bending protection
Stable positioning
Compatible with all TXS-...HSE pocket transmitters (for type of connection, see table)
External power supply, e.g. via phantom power supply adapter EMA-1 or EMA-300P
Microphone windshield

With regard to acoustic feedback, this microphone allows a particularly convenient operation due to the cardioid characteristic.

Specifications:

System: electret/cardioid
Frequency range: 50-18,000 Hz
Impedance: 2 kΩ
Sensitivity: 2.3 mV/Pa/1 kHz
Max. SPL: 120 dB
Power supply: 1.5-9 V
Admiss. ambient temp.: 0-40 °C
Dimensions: -
Weight: 18 g (w/o cable and plug)
Connection: bare cable ends

Price per unit (Order No. mo-234080) EUR 217,90 excl. VAT: € 183.11 / $ 212.41

Professional headband microphone HSE-330/SK

Corrosion-resistant neckband, easy to clean
Drip ring (protects the cartridge against moisture)
Unobtrusive and secure fit due to cable routing in the neck area incl. strain relief and cable bending protection
Stable positioning
Compatible with pocket transmitters from different manufacturers with a 3.5 mm stereo jack connection and 5.9 mm outside thread
Microphone windshield

Specifications:

System: electret/cardioid
Frequency range: 50-18,000 Hz
Impedance: 2 kΩ
Sensitivity: 2.3 mV/Pa/1 kHz
Max. SPL: 120 dB
Power supply: 1.5-9 V
Admiss. ambient temp.: 0-40 °C
Dimensions: -
Weight: 18 g (w/o cable and plug)
Connection: 3.5 mm stereo plug with locking device for screwing on for 5.9 mm outside thread

Price per unit (Order No. mo-230140) EUR 235,80 excl. VAT: € 198.15 / $ 229.86

Ultra-light miniature earband microphone HSE-50/SK

Ultra-light miniature earband microphone

This microphone is suitable for unobtrusive applications, can be bent as desired and features a high-quality back electret cartridge of omnidirectional characteristic. Far more unobtrusive than headband-based systems and very popular particularly in theatres and with costumes, because extensive hairstyles will not be affected. With speech applications requiring a simultaneous use of headphones, the earband system is reported to be clearly more comfortable to wear and more flexible to use.

Wide transmission range
Drip ring (protects the cartridge against moisture)
Compatible with all TXS-...HSE pocket transmitters with 3-pole mini XLR connection
External power supply e.g. via phantom power supply adapter EMA-1 or EMA-300P
Windshield

Specifications:

System: back electret/omnidir.
Frequency range: 20-20,000 Hz
Impedance: 1.5 kΩ
Sensitivity: 5 mV/Pa/1 kHz
Max. SPL: 110 dB
Power supply: 1-10 V DC current
Admiss. ambient temp.: 0-40 °C
Dimensions: -
Weight: 5 g (w/o cable and plug)
Connection: 3-pole mini XLR

Price per unit (Order No. mo-235910) - not available

Splashproof electret headband microphone, IPX4 HSE-70WP

Splashproof electret headband microphone, IPX4

Suitable for vocal and speech applications, especially with outdoor activities or with high ambient humidity
Very comfortable to wear
Secure fit also during sports applications
Back electret microphone cartridge of cardioid characteristic
3-pole mini XLR inline jack for connection to an optional phantom power supply adapter (EMA-1, EMA-300P) or pocket transmitter TXS-...HSE
Supplied with nylon bag

Specifications:

System: back electret/cardioid
Frequency range: 100-14,000 Hz
Impedance: 600 Ω
Sensitivity: 7.9 mV/Pa/1 kHz
Max. SPL: 115 dB
S/N ratio: -
Power supply: 1.5-9 V DC current
Body: -
Dimensions: -
Weight: 60 g
Connection, microphone: -
Connection, cable: 3-pole mini XLR
Cable: 1.1 m

Price per unit (Order No. mo-236040) EUR 86,04 excl. VAT: € 72.30 / $ 83.87

Electret headband microphone HSE-80

Electret headband microphone

For vocal and speech applications
Very comfortable to wear
Secure fit also during sports applications
High-quality electret cartridge
3-pole mini XLR inline jack for connection to an optional phantom power supply adapter (EMA-1, EMA-300P) or a pocket transmitter TXS-...HSE

Specifications:

System: electret/cardioid
Frequency range: 100-12,000 Hz
Impedance: 2.2 kΩ
Sensitivity: 4.5 mV/Pa/1 kHz
Max. SPL: 110 dB
S/N ratio: -
Power supply: 2-10 V DC current
Body: -
Dimensions: -
Weight: 40 g
Connection, microphone: -
Connection, cable: 3-pole mini XLR
Cable: 0.8 m

Price per unit (Order No. mo-233880) EUR 73,03 excl. VAT: € 61.37 / $ 71.19

Replacement electret headband microphone HSE-821SX

Replacement electret headband microphone

Suitable for vocal and speech applications
Microphone cartridge of cardioid characteristic
Gooseneck cartridge arm
1.3 m connection cable with 3.5 mm plug, with latching device
Operation via a pocket transmitter of the series TXS-820SX, TXS-822SX, TXS-820LT or TXS-822LT
Microphone windshield

Specifications:

System: electret/cardioid
Frequency range: 80-12,000 Hz
Impedance: 680 Ω
Sensitivity: 5.6 mV/Pa/1 kHz
Max. SPL: 110 dB
S/N ratio: 60 dB
Power supply: 1.5 V-3 V
Body: -
Dimensions: -
Weight: 60 g
Connection, microphone: -
Connection, cable: 3.5 mm plug
Cable: 1.3 m

Price per unit (Order No. mo-220890) EUR 30,00 excl. VAT: € 25.21 / $ 29.24

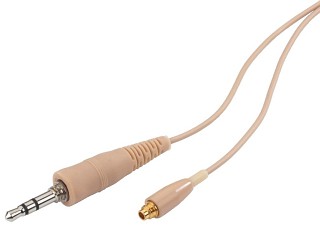

Replacement connection cable HSE-70C

Replacement connection cable, for the earband microphones HSE-70A/SK, HSE-150A/SK, HSE-152A/SK. Length: 1.2 m.

Price per unit (Order No. mo-235200) EUR 22,33 excl. VAT: € 18.76 / $ 21.77

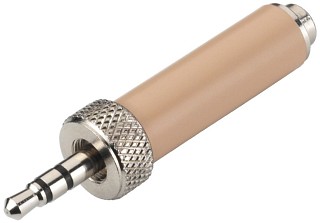

Adapter NTA-2SE

Adapter 3.5 mm stereo plug to 2.5 mm stereo inline jack. For connecting headband and earband microphones HSE-60A/SK, HSE-70A/SK, HSE-150A/SK and HSE-152A/SK to wireless transmission systems of other manufacturers. For the pin assignment, see technical drawing.

Price per unit (Order No. mo-235210) EUR 27,85 excl. VAT: € 23.40 / $ 27.15
