Air Core Coils

Air Core Coils LSIP-10/2

Air Core Coils With 0.85 mm wire for the construction of high-quality hi-fi crossover networks, as parallel coils also of very high quality.

Air core coils,

Specifications:

Inductance: 0.10 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.2 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-126250) EUR 3,65 excl. VAT: € 3.07 / $ 3.56

Air Core Coils LSIP-100

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 1.0 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.4 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-125040) EUR 18,75 excl. VAT: € 15.76 / $ 18.28

Air Core Coils LSIP-100/1

Air Core Coils With medium wire thickness (1 mm), for general applications, for the construction of high-quality crossover networks of high power rating.

Air core coils, from 0.1 to 3.9mH, wound on a plastic carrier, intended for professional crossover networks of high power for development and production. In a wire thickness from 0.85 to 1.2mm Ø CUL.

Specifications:

Inductance: 1.0 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.55 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-124890) EUR 13,18 excl. VAT: € 11.08 / $ 12.85

Air Core Coils LSIP-100/2

Air Core Coils With 0.85 mm wire for the construction of high-quality hi-fi crossover networks, as parallel coils also of very high quality.

Air core coils, from 0.1 to 3.9mH, wound on a plastic carrier, intended for professional crossover networks of high power for development and production. In a wire thickness from 0.85 to 1.2mm Ø CUL.

Specifications:

Inductance: 1.0 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.7 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124780) EUR 9,36 excl. VAT: € 7.87 / $ 9.12

Air Core Coils LSIP-120

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 1.2 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.45 Ω
Dimensions: Ø 70 mm x 30 mm

Price per unit (Order No. mo-125050) EUR 20,22 excl. VAT: € 16.99 / $ 19.71

Air Core Coils LSIP-120/1

Specifications:

Inductance: 1.2 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.6 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-124900) EUR 15,52 excl. VAT: € 13.04 / $ 15.13

Air Core Coils LSIP-15

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 0.15 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.15 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124940) EUR 7,10 excl. VAT: € 5.97 / $ 6.92

Air Core Coils LSIP-15/1

Specifications:

Inductance: 0.15 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.15 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124790) EUR 5,68 excl. VAT: € 4.77 / $ 5.54

Air Core Coils LSIP-15/2

Specifications:

Inductance: 0.15 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.2 Ω
Dimensions: Ø 37 mm x 11 mm

Price per unit (Order No. mo-124680) EUR 4,77 excl. VAT: € 4.01 / $ 4.65

Air Core Coils LSIP-150

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 1.5 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.5 Ω
Dimensions: Ø 70 mm x 30 mm

Price per unit (Order No. mo-125060) EUR 24,42 excl. VAT: € 20.52 / $ 23.80

Air Core Coils LSIP-150/1

Specifications:

Inductance: 1.5 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.65 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-124910) EUR 16,15 excl. VAT: € 13.57 / $ 15.74

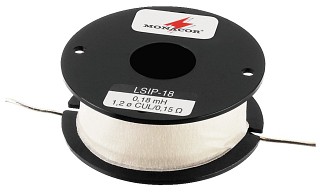

Air Core Coils LSIP-18

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 0.18 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.15 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124950) EUR 8,46 excl. VAT: € 7.11 / $ 8.25

Air Core Coils LSIP-18/1

Specifications:

Inductance: 0.18 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.2 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124800) EUR 5,94 excl. VAT: € 4.99 / $ 5.79

Air Core Coils LSIP-18/2

Specifications:

Inductance: 0.18 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.2 Ω
Dimensions: Ø 37 mm x 11 mm

Price per unit (Order No. mo-124690) EUR 5,35 excl. VAT: € 4.50 / $ 5.22

Air Core Coils LSIP-180

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 1.8 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.55 Ω
Dimensions: Ø 70 mm x 30 mm

Price per unit (Order No. mo-125070) EUR 24,61 excl. VAT: € 20.68 / $ 23.99

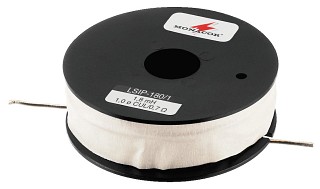

Air Core Coils LSIP-180/1

Specifications:

Inductance: 1.8 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.7 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-124920) EUR 17,85 excl. VAT: € 15.00 / $ 17.40

Air Core Coils LSIP-22

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 0.22 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.15 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124960) EUR 9,44 excl. VAT: € 7.93 / $ 9.20

Air Core Coils LSIP-22/1

Specifications:

Inductance: 0.22 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.15 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124810) EUR 6,76 excl. VAT: € 5.68 / $ 6.59

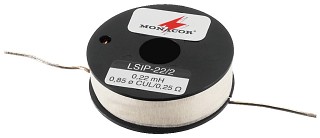

Air Core Coils LSIP-22/2

Specifications:

Inductance: 0.22 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.25 Ω
Dimensions: Ø 38 mm x 11 mm

Price per unit (Order No. mo-124700) EUR 5,68 excl. VAT: € 4.77 / $ 5.54

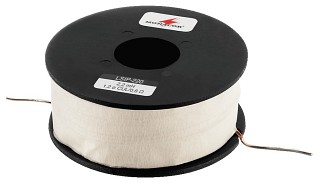

Air Core Coils LSIP-220

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 2.2 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.6 Ω
Dimensions: Ø 70 mm x 30 mm

Price per unit (Order No. mo-125080) EUR 28,69 excl. VAT: € 24.11 / $ 27.97

Air Core Coils LSIP-220/1

Specifications:

Inductance: 2.2 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.8 Ω
Dimensions: Ø 70 mm x 30 mm

Price per unit (Order No. mo-124930) EUR 22,83 excl. VAT: € 19.18 / $ 22.25

Air Core Coils LSIP-27

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 0.27 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.2 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124970) EUR 9,36 excl. VAT: € 7.87 / $ 9.12

Air Core Coils LSIP-27/1

Specifications:

Inductance: 0.27 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.25 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124820) EUR 7,77 excl. VAT: € 6.53 / $ 7.57

Air Core Coils LSIP-27/2

Specifications:

Inductance: 0.27 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.35 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124710) EUR 6,64 excl. VAT: € 5.58 / $ 6.47

Air Core Coils LSIP-270

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 2.7 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.65 Ω
Dimensions: Ø 70 mm x 30 mm

Price per unit (Order No. mo-125090) - not available

Air Core Coils LSIP-33

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 0.33 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.2 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124980) EUR 10,79 excl. VAT: € 9.07 / $ 10.52

Air Core Coils LSIP-33/1

Specifications:

Inductance: 0.33 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.3 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124830) EUR 7,73 excl. VAT: € 6.50 / $ 7.54

Air Core Coils LSIP-33/2

Specifications:

Inductance: 0.33 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.4 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124720) EUR 6,17 excl. VAT: € 5.18 / $ 6.01

Air Core Coils LSIP-330

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 3.3 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.75 Ω
Dimensions: Ø 70 mm x 30 mm

Price per unit (Order No. mo-125100) EUR 37,79 excl. VAT: € 31.76 / $ 36.84

Air Core Coils LSIP-39

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Specifications:

Inductance: 0.39 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.25 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-124990) EUR 11,15 excl. VAT: € 9.37 / $ 10.87

Air Core Coils LSIP-39/1

Specifications:

Inductance: 0.39 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.3 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124840) EUR 8,54 excl. VAT: € 7.18 / $ 8.32

Air Core Coils LSIP-39/2

Specifications:

Inductance: 0.39 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.4 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124730) EUR 6,82 excl. VAT: € 5.73 / $ 6.65

Air Core Coils LSIP-47

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Air core coils,

Specifications:

Inductance: 0.47 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.25 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-125000) EUR 12,78 excl. VAT: € 10.74 / $ 12.46

Air Core Coils LSIP-47/1

Specifications:

Inductance: 0.47 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.35 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124850) EUR 9,64 excl. VAT: € 8.10 / $ 9.40

Air Core Coils LSIP-47/2

Specifications:

Inductance: 0.47 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.45 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124740) EUR 7,57 excl. VAT: € 6.36 / $ 7.38

Air Core Coils LSIP-56

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Air core coils,

Specifications:

Inductance: 0.56 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.3 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-125010) EUR 14,41 excl. VAT: € 12.11 / $ 14.05

Air Core Coils LSIP-56/1

Specifications:

Inductance: 0.56 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.4 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124860) EUR 10,17 excl. VAT: € 8.55 / $ 9.91

Air Core Coils LSIP-56/2

Specifications:

Inductance: 0.56 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.5 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124750) EUR 7,73 excl. VAT: € 6.50 / $ 7.54

Air Core Coils LSIP-68

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Air core coils,

Specifications:

Inductance: 0.68 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.35 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-125020) EUR 16,88 excl. VAT: € 14.18 / $ 16.45

Air Core Coils LSIP-68/1

Specifications:

Inductance: 0.68 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.45 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124870) EUR 11,53 excl. VAT: € 9.69 / $ 11.24

Air Core Coils LSIP-68/2

Specifications:

Inductance: 0.68 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.55 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124760) EUR 7,73 excl. VAT: € 6.50 / $ 7.54

Air Core Coils LSIP-82

Air Core Coils With high power rating and low resistance due to 1.2 mm wire, distortion-free, perfect midrange and 2-way coils for hi-fi applications.

Air core coils,

Specifications:

Inductance: 0.82 mH
Enam. copper wire (CUL): Ø 1.2 mm
Power rating: 300 W_RMS
DC resistance: 0.35 Ω
Dimensions: Ø 59 mm x 19 mm

Price per unit (Order No. mo-125030) EUR 17,44 excl. VAT: € 14.66 / $ 17.00

Air Core Coils LSIP-82/1

Specifications:

Inductance: 0.82 mH
Enam. copper wire (CUL): Ø 1.0 mm
Power rating: 150 W_RMS
DC resistance: 0.5 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124880) EUR 12,71 excl. VAT: € 10.68 / $ 12.39

Air Core Coils LSIP-82/2

Specifications:

Inductance: 0.82 mH
Enam. copper wire (CUL): Ø 0.85 mm
Power rating: 100 W_RMS
DC resistance: 0.6 Ω
Dimensions: Ø 48 mm x 19 mm

Price per unit (Order No. mo-124770) EUR 8,54 excl. VAT: € 7.18 / $ 8.32
