Control units

DMX Connection Cable CDMXN-1000/SW

DMX Connection Cable For transmitting digital DMX512 signals or AES/EBU signals.

Fitted with NEUTRIK XLR plug NC-3MX and NEUTRIK XLR inline jack NC-3FX
2 x 0.22 mm2
Double shielding
Outside diameter: Ø 4.5 mm
Impedance level: 110 Ω
Very low capacitance: 57 pF/m

Specifications:

Length: 10 m

Price per unit (Order No. mo-112100) EUR 22,40 excl. VAT: € 18.82 / $ 21.84

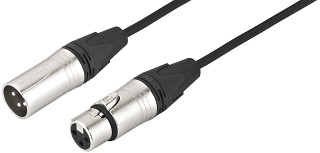

DMX Connection Cable CDMXN-150/SW

DMX Connection Cable For transmitting digital DMX512 signals or AES/EBU signals.

Fitted with NEUTRIK XLR plug NC-3MX and NEUTRIK XLR inline jack NC-3FX
2 x 0.22 mm2
Double shielding
Outside diameter: Ø 4.5 mm
Impedance level: 110 Ω
Very low capacitance: 57 pF/m

Specifications:

Length: 1.5 m

Price per unit (Order No. mo-112110) EUR 13,69 excl. VAT: € 11.50 / $ 0.00

DMX Connection Cable CDMXN-300/SW

DMX Connection Cable For transmitting digital DMX512 signals or AES/EBU signals.

Fitted with NEUTRIK XLR plug NC-3MX and NEUTRIK XLR inline jack NC-3FX
2 x 0.22 mm2
Double shielding
Outside diameter: Ø 4.5 mm
Impedance level: 110 Ω
Very low capacitance: 57 pF/m

Specifications:

Length: 3 m

Price per unit (Order No. mo-112120) - not available

DMX Connection Cable CDMXN-500/SW

DMX Connection Cable For transmitting digital DMX512 signals or AES/EBU signals.

Fitted with NEUTRIK XLR plug NC-3MX and NEUTRIK XLR inline jack NC-3FX
2 x 0.22 mm2
Double shielding
Outside diameter: Ø 4.5 mm
Impedance level: 110 Ω
Very low capacitance: 57 pF/m

Specifications:

Length: 5 m

Price per unit (Order No. mo-112130) EUR 17,43 excl. VAT: € 14.65 / $ 0.00

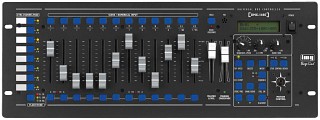

Professional DMX controller, for controlling light effect units with DMX512 interface, DMX-1440

Professional DMX technology made easy: the controller DMX-1440 from IMG Stage Line impresses with a perfect functionality. The operating concept and the hardware were perfectly optimised during extensive developments with regard to effectiveness and easy access.

Professional DMX controller, for controlling light effect units with DMX512 interface, suitable for versatile DMX applications due to universal configuration facilities.

144 DMX channels to 96 control channels, to be assigned as desired and individually invertable
Features like crossfading, dependency on master and reaction with blackout function and flash function can be adjusted separately for each control channel
Each DMX channel can be patched to any fader channel
12 channel faders for adjusting the DMX parameters in 8 groups, multiple selection possible for synchronous adjustment
12 flash buttons, 5 flash groups to be programmed as desired, further functions of the flash buttons: recall current channel values as a DMX value and in percentage
Momentary push-button for full-on
Blackout function
Master fader for dimming a complete scene
Crossfader for manual crossfading
16 channel pairs alternatively adjustable via joystick controller
240 scenes can be stored
Crossfading between scenes from 0.1 to 25.4 s or to be selected manually with display of remaining time during crossfading
60 sequences with 120 steps each can be stored
Crossfading time to be stored separately for each step of a sequence
Manual sequence reproduction, time-controlled or music-controlled, forward or backwards possible
Music-controlled via built-in microphone or stereo input for music signal with line level (0.1-2 V/22 kΩ)
Illuminated alphanumerical LCD with 2 lines of 16 characters each
Connections: 1 x 5-pole XLR, 1 x 3-pole XLR (DMX out), 1 x 6.35 mm stereo jack (audio in)
Power supply: 230 V /50 Hz/10 VA
Dimensions: 482x178x85 mm, 4 RS
Weight: 3 kg

Price per unit (Order No. mo-381980) - not available (_)

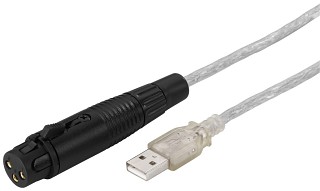

Compact DMX controller DMX-1USB

Compact DMX controller, with SMD microprocessor for standard DMX applications on a PC.

510 DMX channels
Power supply via USB, thus no PSU required
Supplied with CD containing free extensive software package with driver (for features, please refer to DMX-510USB)
Optionally, free software for the DMX control can be downloaded from the Internet
Due to compact design, no galvanic isolation between USB input and DMX output
Connections: 1 x USB type A, 1 x 3-pole XLR inline jack
Dimensions XLR body: Ø 23 mm x 90 mm
Weight: 110 g

Supplied accessories:

Program CD with controller software and USB installation routine (with instructions on the CD)
2.5 m USB cable

System requirements:

IBM-compatible PC (Pentium 1 GHz or higher), 64 MB RAM, 20 MB free hard disk space, CD-ROM, USB port (USB 1.1 or higher), Windows* 2000/XP/Vista/7/8 Professional DMX controllers, e.g. DMX-1440 or DMX-510USB are recommended for more extensive DMX applications with galvanic isolation.

Price per unit (Order No. mo-384030) - not available (_)

Professional DMX controller DMX-3216

Professional DMX controller, with USB port, for controlling light effect units with DMX512 interface. Easy to use with versatile programming facilities.

512 DMX channels
USB interface for storing chases onto a USB flash drive
16 level buttons, each level with up to 32 DMX channels
8 DMX faders, 4 fader pages
32 programmable scenes (4 pages with 8 scenes each)
16 programmable chases, with up to 750 steps max., all the chases can be run simultaneously
1 fader for fade time, 1 fader for program speed (wait time)
2 jog wheels for pan/tilt, can be combined
Channel inverse function
16 pre-programmed movements can be selected
3 chase modes: automatic, music-controlled, manual
Override function
1 tap button for program speed
Blackout button
Supports standard MIDI
Music-controlled via audio input with adjustable sensitivity or built-in microphone
Backlit LCD (2 x 8 characters)
Connections: 1 x 3-pole XLR (DMX out), 3 x 5-pole DIN (MIDI in, MIDI out, MIDI thru), 1 x RCA (audio in), 1 x USB type A jack
Power supply via supplied PSU
Dimensions: 482x134x80 mm, 3 RS
Weight: 2.4 kg

Price per unit (Order No. mo-386750) - not available (_)

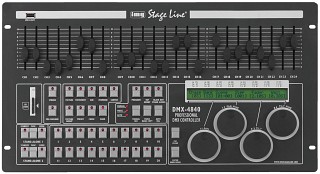

Professional DMX controller DMX-4840

Professional DMX controller, with SD card slot, for controlling light effect units with DMX512 interface. Easy to use with versatile programming facilities.

2 DMX outputs
484 DMX channels (channel 481 for DMX fog machine, channels 483-484 for DMX strobe)
SD card slot for storing program data, supplied with 2 GB SD card
Device library (devices can be edited manually, 50 devices max.)
10 integrated movements, PAN/TILT position, PAN/TILT range, adjustable fading time/waiting time or loop
60 programmable chases, each with 200 scenes max.
1,200 programmable scenes (60 banks x 20 scenes)
400 programmable colours and gobos (20 presets, each with 10 colours and 10 gobos)
20 DMX device levels can be controlled, each with up to 24 channels
20 device groups can be operated simultaneously
24 DMX channel faders
20 cues (combination of several chases, each chase can be controlled individually)
20 adjustable overrides (assignment of one or several devices to perform a special feature, e.g. follow spot during operation)
20 x centre for setting the central moving position of the movements of each individual device
Blackout function
Password protection
Supports standard MIDI
Music-controlled operation via audio input with adjustable sensitivity or built-in microphone
USB port for supplied gooseneck light
2 x 10 m remote control cable for LC-3 functions at DMX units, e.g. SCAN-20LED, TWIST-52LED, PARL-64PDX
Backlit LCD (80 characters)
Connections: 2 x 3-pole XLR (DMX out 1+2), 1 x 6.3 mm jack (strobe), 2 x 5-pole DIN (MIDI in, MIDI thru), 1 x RCA (audio in), 2 x 5-pole XLR
Power supply: 100-240 V /50-60 Hz/10 VA
Dimensions: 482x264x100 mm, 6 RS
Weight: 5.3 kg

SOUNDCHECK 07/2012

+ Excellent price-performance ratio

+ Includes many professional features

+ Fast and effective programming

"This console is suitable for any application using 2 to 20 moving spotlights."

EVENT Rookie 03/2012

"Impressive - a cool console for various applications. Especially with regard to the number of channels per unit and available scenes, there is no real competition for the DMX-4840 which also allows for a particularly convenient operation of lights requiring a large number of channels. The unit is easy to use, the display indicates all relevant information and the moves already implemented allow for an impressive performance straightaway."

Price per unit (Order No. mo-385960) EUR 832,50 excl. VAT: € 699.58 / $ 811.51

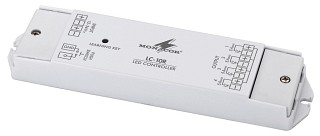

LED controller LC-10R

LED controller, for controlling up to 4 unicoloured LED strips.

Wireless wall dimmer LC-10T is required for operation
Carrier frequency: 868 MHz
Easy assignment of the controllers via learn button
Antenna integrated into the housing
Power supply: 12-36 V DC current , 20.5 A max.
Maximum load: 5 A per channel
Dimensions: 46x178x18 mm
Weight: 107 g

Price per unit (Order No. mo-386540) EUR 51,86 excl. VAT: € 43.58 / $ 50.55

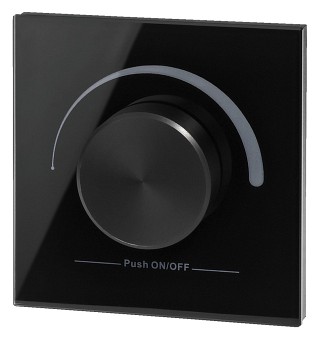

Wireless wall dimmer LC-10T

Wireless wall dimmer, for controlling unicoloured LED strips.

LED controller LC-10R is required for operation
Transmission frequency: 868 MHz
Brightness control
On/off button
Glass front panel
Power supply via 3 V button cell
Suitable for flush-mounted sockets, device screw spacing: 60 mm
Dimensions: 86x86x41 mm
Weight: 123 g

Licence-free in the EU.

Price per unit (Order No. mo-386530) EUR 34,49 excl. VAT: € 28.98 / $ 33.62

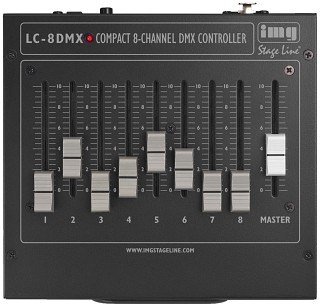

Compact DMX controller LC-8DMX

Compact DMX controller, for controlling light effect units with DMX512 interface.

User-friendly and simple operation
8 DMX channels
8 channel faders
1 master fader
Start address adjustable via BCD coding switch (decimal)
Ideally suited e.g. for controlling 2 LED spotlight sets PARL-4..SET
Can be used as a DMX tester
Metal housing
Connections: 1 x 3-pole XLR, 1 x low-voltage jack
Power supply via supplied plug-in PSU or 9 V battery (not supplied)
Dimensions: 180x68x175 mm
Weight: 975 g

Price per unit (Order No. mo-385800) EUR 139,90 excl. VAT: € 117.56 / $ 136.37

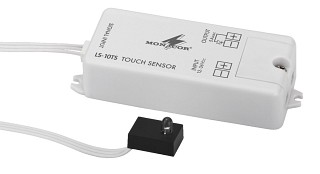

Touch sensor LS-10TS

Touch sensor, for LED strips.

Status LED
Memory function
On/off at the touch of a button
Power supply: 12-36 V DC current , 5 A max.
Maximum load: 5 A per channel
Dimensions: 33x82x20 mm
Weight: 38 g

Price per unit (Order No. mo-386630) - not available (_)

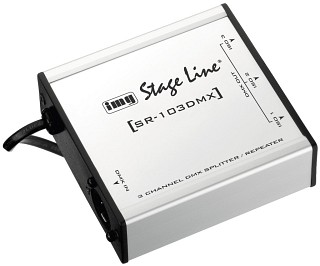

DMX splitter and level matching amplifier SR-103DMX

DMX splitter and level matching amplifier, for splitting one DMX input signal to 3 DMX outputs

Input and outputs galvanically isolated by optocouplers
Connections: 4 x 3-pole XLR
Power supply: 230 V /50 Hz/5 VA
Dimensions: 105x40x115 mm
Weight: 480 g

Price per unit (Order No. mo-381860) - not available

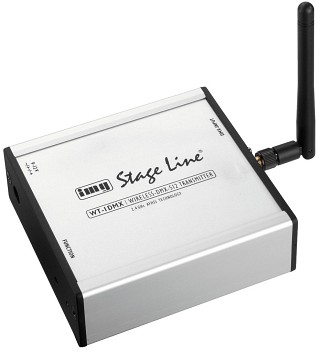

Wireless DMX transmitter, 2.4 GHz WT-1DMX

Wireless DMX transmitter, 2.4 GHz, for the wireless transmission of up to 512 DMX channels.

Due to AFHSS technology (Automatic Frequency Hopping Spread Spectrum), interference-free operation also alongside other WT-1DMX transmitters
Operating range: up to 500 m
Simultaneous operation of up to 16 transmitters, thus control of 8,192 DMX channels possible
1 to 512 receivers WR-2DMX can be controlled by each transmitter
Easy installation
Recessed control button for connecting/disconnecting receivers WR-2DMX
LED indication for operation and function
3-pole XLR DMX input
Power supply via supplied plug-in PSU
Dimensions: 117x37x105 mm (w/o antenna)
Weight: 256 g

Production Partner 06/2010 on the WT-1DMX and WR-2DMX:

"A product with a good price-performance ratio. Easy to use and a high reliability of the wireless connection impressed during the test. No doubt, very interesting for small to large companies hiring out."

tastenwelt 02/2009

"Quick and easy to use, reliable operation."

SOUNDCHECK 11/2008

"With this system, it is possible to easily replace difficult or even impossible DMX cabling."

Price per unit (Order No. mo-383570) EUR 234,30 excl. VAT: € 196.89 / $ 228.39

512-channel DMX tester DMX-1TEST

512-channel DMX tester

For testing signals of DMX control units like DMX mixers (DMX IN MODE)
For testing DMX end units like scanner moving heads and DMX dimmers (DMX OUT MODE)
Integrated XLR cable tester
Key-controlled menu
Backlit LCD in 2 rows
Two momentary push-buttons for addressing individual channels or channel ranges in the DMX OUT MODE
DMX level: 0-100 %, 0-255 or 00 h-FFh, to be adjusted via two momentary push-buttons
Fade function (slider): 0-100 %/100-0 % for individual channels or channel ranges
Automatic power-off function
DMX input: 3-pole XLR plug
DMX output: 3-pole XLR jack
Power supply via supplied plug-in PSU or 4 x 1.2 V NIMH rech. battery AA size (not supplied)
Dimensions: 141x58x105 mm
Weight: 700 g

SOUNDCHECK 02/2007

"This unit easily identifies faults and defects in the signal range and checks functions of the unit. The values indicated are absolutely exact and reliable. This unit is reliable at all times and should be part of the standard equipment of every lighting system."

Price per unit (Order No. mo-382740) EUR 239,40 excl. VAT: € 201.18 / $ 233.36
