Mixers: Line mixers

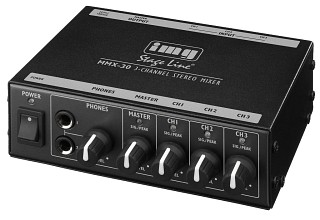

Compact 3-channel stereo line mixer MMX-30

Mixers: Line mixers, Compact 3-channel stereo line mixer MMX-30 — Enlarge

Compact 3-channel stereo line mixer

3 stereo input channels with one level control each
1 stereo master output, adjustable
RCA connections for input channels and output
2 stereo headphone outputs, common control
Signal/peak LEDs for the input channels and peak LED for the output

Specifications:

General Information:
Input sensitivity:
Mic: -
Line: 40 mV
Outputs: 4 V max. (master, stereo) 2 x 10 mW/2 x 32 Ω (headphones)
Frequency range: 5-30,000 Hz
THD:<0.1 %
S/N ratio:>66 dB
Power supply: via suppl. plug-in PSU
Admiss. ambient temp.: 0-40 ^oC
Dimensions: 147x50x119 mm
Weight: 755 g
Inputs: 3 x RCA L/R
Outputs: 1 x RCA L/R 2 x 6.3 mm stereo jack (headphones)
Power supply: 1 x low-voltage jack

Price per unit (Order No. mo-252540) EUR 94,21 excl. VAT: € 79.17 / $ 91.83

Microphone line mixer/line splitter LMS-808

Mixers: Line mixers, Microphone line mixer/line splitter LMS-808 — Enlarge

Mixers: Line mixers, Microphone line mixer/line splitter LMS-808 — Enlarge

Microphone line mixer/line splitter

Multifunctional unit with three selectable operating modes:Mixer operation for mixing up to 8 mono input signals (6 x line/mic and 2 x line) to 1 stereo output
Line splitter operation for splitting 2 mono line inputs to 6 mono outputs
Level matching amplifier operation for amplifying up to 6 input signals
6 mono input channels, each with switchable 12 V phantom power, pan control, signal/clip LED and individual selection of the operating mode
2 mono line input channels, each with level control and signal/clip LED

Specifications:

Line input, mono: 250 mV/30 kΩ
Microphone/line input: 1 mV/6.6 kΩ (mic), 100 mV/40 kΩ (line)
Line output, stereo: 1 V/200 Ω
Line output, mono: 1 V/200 Ω
Frequency range: 10-30,000 Hz
THD: 0.02 %
S/N ratio: 81 dB, weighted
Crosstalk: -63 dB
Power supply: 230 V /50 Hz/10 VA
Admiss. ambient temp.: 0-40 °C
Dimensions (WxHxD): 482x48x200 mm, 1 RS
Weight: 2.9 kg
Line input, mono: 2 x XLR, bal.
Microphone/line input: 6 x XLR, bal.
Line output, stereo: 1 x XLR L/R, bal.
Line output, mono: 6 x XLR, bal.

Price per unit (Order No. mo-202160) EUR 265,30 excl. VAT: € 222.94 / $ 258.61

Microphone line mixer MMX-602/SW

Mixers: Line mixers, Microphone line mixer MMX-602/SW — Enlarge

Mixers: Line mixers, Microphone line mixer MMX-602/SW — Enlarge

Microphone line mixer, 6 channels.

6 stereo line inputs, 6 balanced mono microphone inputs, switchable
Adjustable automatic talkover (-12 dB), switchable for channel 1 or channels 1+2
Balance control for each stereo input channel
3-way equalizer
12 V phantom power can be switched on additionally
LED VU meter, peak LED
Master output and record output
Output can be switched stereo/mono
Adjustable headphone output
482 mm (19") rack installation, 1 RS

Specifications:

Line input, stereo: 100 mV/10 kΩ
Microphone input: 1 mV/6.6 kΩ
Master output, stereo: 1 V/600 Ω
Record output, stereo: 310 mV/600 Ω
Headphones, stereo:>8 Ω
Frequency range: 20-20,000 Hz
THD: 0.1 %
S/N ratio: 62 dB, unweighted
Equalizer, bass: ±12 dB/50 Hz
Equalizer, midrange: ±12 dB/1 kHz
Equalizer, treble: ±12 dB/10 kHz
Power supply: 230 V /50 Hz/12 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x47x208 mm, 1 RS
Weight: 2.8 kg
Line input, stereo: 6 x RCA L/R
Microphone input: 6 x XLR, bal.
Master output, stereo: 1 x RCA L/R, 1 x XLR L/R, bal.
Record output, stereo: 1 x RCA L/R
Headphones: 1 x 6.3 mm jack

Price per unit (Order No. mo-202230) EUR 329,00 excl. VAT: € 276.47 / $ 320.71
