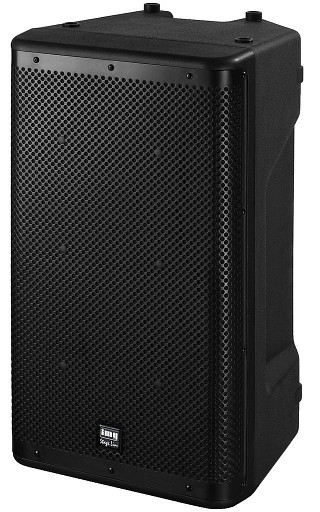

Weatherproof speakers: Low-impedance

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 400 WMAX/200 WRMS, 8 Ω

High-performance 2-way bass-reflex system with cabinet made of ABS plastic
30 cm (12") PA bass speaker with impregnated paper cone
25 mm (1") horn tweeter system
Excellent sound characteristics
Front grille with water-repellent gauze

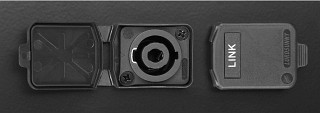

Speaker in and parallel out
Metal parts made of stainless steel
4 x M10 threaded insert each at the top and bottom for suspended installation
Stand sleeve

Production Partner 04/2012

"With the PAB-12WP/SW, the product range of IMG Stage Line now includes a weatherproof (IP45) 12/2 speaker system. It is available at an attractive price yet has plenty to offer. The speaker system provides impressive test results and a great sound experience. Overall, the PAB-12WP/SW and the PAB-120WP/SW can definitely be recommended for purchase, especially if you need a solid 12/2 speaker system which is able to still operate effectively even under difficult boundary conditions." Test author Anselm Goertz

tools4music 02/2012

"... for users and service providers who are often working at outdoor events or have to attend permanent outdoor applications, the PAB-12WP/SW is definitely worth considering ... open-air event in the Rhineland area, Germany ... continuous rain, from light drizzle to downpour ... despite plenty of water, even from every angle, the PAB-12WP/SW provided a smooth performance throughout the 6-hour test. Soaking wet on the outside, bone-dry on the inside."

+ Pleasant sound - with impressive power reserves

+ Truly waterproof

+ Practice-orientated handling

+ Good workmanship

Specifications:

Frequency range: 42-20,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: 400 W_MAX, 200 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 98 dB
Max. rated SPL: 121 dB
Type of speaker: 300
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 370x655x410 mm
Weight: 20 kg
Other features: 2 x SPEAKER par. in/out bass-reflex

Weatherproof speakers: Low-impedance, Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 operation, PAB-52WP/WS — Enlarge

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation

Compact wideband bass-reflex system with cabinet made of ABS plastic
100 V or 4 Ω operation, selectable
13 cm (5") high-quality full range speaker with aluminium cone
Excellent sound characteristics
Front grille with water-repellent gauze
Recessed connection terminal with cover plate and high-strength cable gland
Metal parts and wall bracket made of stainless steel

PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."

Specifications:

Frequency range: 60-18,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 50/25/12.5 W_RMS
Power capability, 8 Ω: -
Power capability, 4 Ω: 100 W_MAX, 50 W_RMS
SPL (1 W/m): 87 dB
Max. rated SPL: 104 dB
Type of speaker: 130
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 200x200x190 mm
Weight: 5.1 kg
Other features: screw terminal mounting bracket, bass-reflex

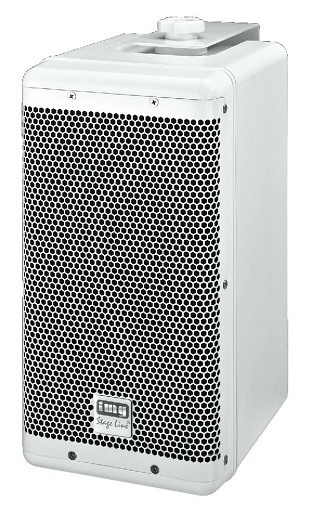

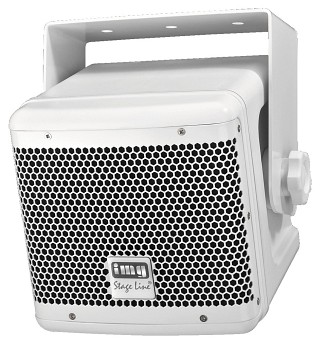

Weatherproof speakers: Low-impedance, Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 operation, PAB-6WP/WS — Enlarge

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation

Compact 2-way bass-reflex system with cabinet made of ABS plastic
100 V or 8 Ω operation, selectable
16 cm bass speaker with coated carbon fibre cone
30 mm dome tweeter with horn front attachment
Excellent sound characteristics
Front grille with water-repellent gauze
Recessed connection terminal with cover plate and high-strength cable gland
Metal parts and wall bracket made of stainless steel

PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."

Specifications:

Frequency range: 42-19,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 100/50/25 W_RMS
Power capability, 8 Ω: 180 W_MAX, 100 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 90 dB
Max. rated SPL: 110 dB
Type of speaker: 165
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 200x370x240 mm
Weight: 7.1 kg
Other features: screw terminal mounting bracket, bass-reflex

Weatherproof speakers: Low-impedance, Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 operation, PAB-8WP/WS — Enlarge

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation

High-performance 2-way bass-reflex system with cabinet made of ABS plastic
100 V or 8 Ω operation, selectable
20 cm (8") PA bass speaker with impregnated paper cone
25 mm (1") horn tweeter system
Excellent sound characteristics
Front grille with water-repellent gauze
Recessed connection terminal with cover plate and high-strength cable gland
Speaker in and parallel out, screw terminal
Metal parts and wall bracket made of stainless steel

PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."

Specifications:

Frequency range: 48-20,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: 120/60/30 W_RMS
Power capability, 8 Ω: 240 W_MAX, 120 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 96 dB
Max. rated SPL: 117 dB
Type of speaker: 200
Mounting cutout: -
Mounting depth: -
Admiss. ambient temp.: -10 °C to +40 °C
Dimensions: 240x430x250 mm
Weight: 13.1 kg
Other features: 2 x SPEAKER par in/out screw terminal mounting bracket, bass-reflex

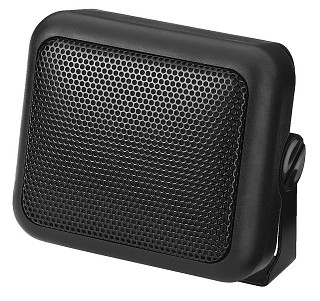

Weatherproof speakers: Low-impedance, Extension speaker, 5 W<sub>MAX</sub>, 3 W<sub>RMS</sub>, 8 AES-6 — Enlarge

Extension speaker, 5 WMAX, 3 WRMS, 8 Ω

Black plastic housing
Moisture-proof due to speaker with solid plastic cone
Mounting bracket
1.70 m connection cable with 3.5 mm plug
Frequency range: 300-15,000 Hz
Dimensions: 80x75x45 mm
Weight: 195 g

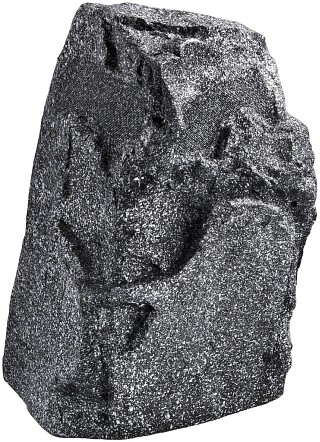

Weatherproof speakers: Low-impedance, Weatherproof PA garden speaker — Enlarge

Weatherproof PA garden speaker "Rock", stone look, for general PA applications, e.g. in gardens, hotels, restaurants and pubs.

Omnidirectional radiation
100 V line technique or 8 Ω operation
Robust, glass fibre reinforced plastic cabinet
2-way coaxial speaker system (200 mm bass speaker and 13 mm tweeter)
Integrated audio transformer with 4 power taps (30/20/10/5 WRMS)
Connection cable with luster terminals

HiFiTest 04/2013

Price-performance: very good

"The speaker with an unobtrusive appearance and a height of about 32 cm provides a pleasant omnidirectional radiation with an extra voluminous sound."

Specifications:

Frequency range: 60-20,000 Hz
Number of speakers: 2
Power rating: 30/20/10/5 W_RMS (100 V) 90W_MAX/45 W_RMS (8 Ω)
SPL (1 W/1 m): 85 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: approx. 310x320x500 mm
Weight: 9.5 kg

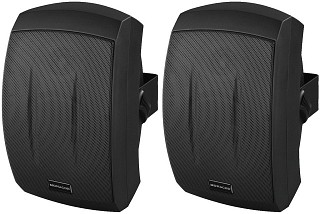

Weatherproof speakers: Low-impedance, Weatherproof pair of 2-way wall-mount speaker systems, 50 W<sub>MAX</sub>, 8 MKS-232/SW — Enlarge

Weatherproof pair of 2-way wall-mount speaker systems, 50 WMAX, 8 Ω

PA speaker systems with an excellent sound
13 cm polypropylene bass-midrange speaker and dome tweeter
High efficiency
Black (SW) or white (WS) plastic cabinet with lacquered aluminium grille
Supplied with matching metal wall brackets

Specifications:

Music power: 50 W_MAX
Power rating: 30 W_RMS
Max. frequency range: 75-20,000 Hz
Impedance: 8 Ω
SPL (1 W/1 m): 89 dB
Max. rated SPL: 103 dB
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: 160x260x180 mm
Weight: 1.8 kg
Connections: spring-load. speaker term.
Mounting facility: mounting bracket
System:

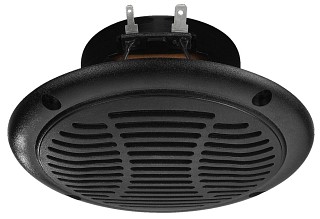

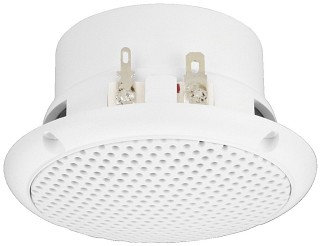

Weatherproof speakers: Low-impedance, Weatherproof flush-mount speaker, 30 W<sub>MAX</sub>, 4 , heat-resistant up to 120 °C. SPE-110P/SW — Enlarge

Weatherproof flush-mount speaker, 30 WMAX, 4 Ω, heat-resistant up to 120 °C. For saunas and swimming pool areas, as well as other areas where a reliable operation at high temperatures must be ensured.

Black (SW) or white (WS) plastic housing
Plastic material of ABS and self-extinguishing according to UL 94V-0
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)

Specifications:

Frequency range: 180-18,000 Hz
Resonant frequency (fs): 250 Hz
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 30 W_MAX, 15 W_RMS
SPL (1 W/m): 86 dB
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 101 mm
Mounting depth: 40 mm
Admiss. ambient temp.: -20 °C to +120 °C
Dimensions: Ø 132 mm
Weight: 285 g
Other features: -

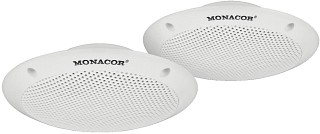

Weatherproof speakers: Low-impedance, Weatherproof pair of flush-mount PA speakers, 30 W<sub>MAX</sub> SPE-15F/WS — Enlarge

Weatherproof pair of flush-mount PA speakers, 30 WMAX, with UV-stabilised plastic housing, slimline design. For general use in car hi-fi or PA applications, on a terrace, a boat or in swimming pool areas.

White plastic housing for mounting positions of low mounting depth
Weatherproof polypropylene speaker cone
Tested according to ASTM B117 (400 h salt spray test)
Low stray magnetic field
Supplied with stainless mounting accessories and connection cable

Specifications:

Frequency range: 80-16,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 30 W_MAX, 15 W_RMS
SPL (1 W/m): 86 dB
Max. rated SPL: -
Type of speaker: 130
Mounting cutout: Ø 111 mm
Mounting depth: 25 mm
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 150 mm x 45 mm
Weight: 270 g
Other features: -

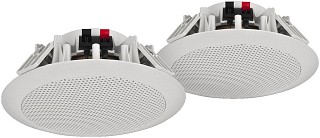

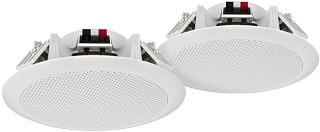

Weatherproof speakers: Low-impedance, Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-254/WS — Enlarge

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

2-way system with dome tweeter
Excellent sound
White plastic housing
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)
For a ceiling thickness from 2 to 25 mm
Spring-loaded speaker terminals

Specifications:

Frequency range: 65-20,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 80 W_MAX, 40 W_RMS
SPL (1 W/m): 87dB
Max. rated SPL: 102 dB
Type of speaker: 130
Mounting cutout: Ø 165 mm
Mounting depth: 68 mm
Admiss. ambient temp.: -20 °C to +100 °C
Dimensions: Ø 206 mm x 82 mm
Weight: 0.86 kg
Other features: -

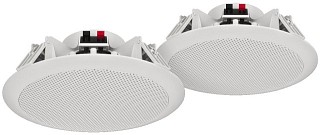

Weatherproof speakers: Low-impedance, Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-264/WS — Enlarge

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

2-way system with dome tweeter
Excellent sound
White plastic housing
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)
For a ceiling thickness from 2 to 25 mm
Spring-loaded speaker terminals

Specifications:

Frequency range: 60-20,000 Hz
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 90 W_MAX, 45 W_RMS
SPL (1 W/m): 88 dB
Max. rated SPL: 103 dB
Type of speaker: 165
Mounting cutout: Ø 190 mm
Mounting depth: 71 mm
Admiss. ambient temp.: -20 °C to +100 °C
Dimensions: Ø 226 mm x 100 mm
Weight: 0.9 kg
Other features: -

Weatherproof speakers: Low-impedance, Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-284/WS — Enlarge

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

2-way system with dome tweeter
Excellent sound
White plastic housing
Weatherproof speaker cone
Tested according to ASTM B117 (400 h salt spray test)
For a ceiling thickness from 2 to 25 mm
Spring-loaded speaker terminals

Specifications:

Frequency range: 45-20,000 Hz
Resonant frequency (fs): -
Power capability, 100 V: -
Power capability, 8 Ω: -
Power capability, 4 Ω: 100 W_MAX, 50 W_RMS
SPL (1 W/m): 89 dB
Max. rated SPL: 104 dB
Type of speaker: 200
Mounting cutout: Ø 210 mm
Mounting depth: 85 mm
Admiss. ambient temp.: -20 °C to +100 °C
Dimensions: Ø 250 mm x 96 mm
Weight: 0.95 kg
Other features: -

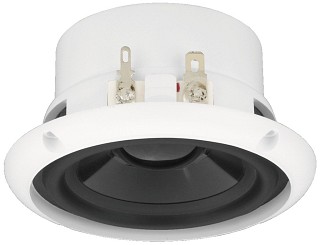

Weatherproof speakers: Low-impedance, Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 W<sub>MAX</sub>, 8 SPE-70/WS — Enlarge

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 WMAX, 8 Ω

Weatherproof speaker of compact size and high power capability with a wide bandwidth reproduction
High-quality white plastic basket with magnetic sleeve in one piece
Polypropylene cone, rubber surround, supplied with matching plastic grille (to be glued in)
Suitable for PA applications also in a damp environment and outdoors
As a bass-midrange speaker also suitable in small hi-fi systems

Specifications:

Frequency range: 100-20,000 Hz
Resonant frequency (fs): 100 Hz
Power capability, 100 V: -
Power capability, 8 Ω: 40 W_MAX, 20 W_RMS
Power capability, 4 Ω: -
SPL (1 W/m): 86 dB
Max. rated SPL: -
Type of speaker: 75
Mounting cutout: Ø 73 mm
Mounting depth: 37 mm
Admiss. ambient temp.: -20 °C to +50 °C
Dimensions: Ø 90 mm x 50 mm
Weight: 230 g
Other features: -

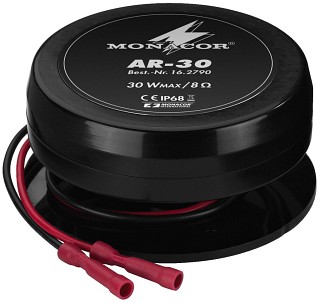

Weatherproof speakers: Low-impedance, Weatherproof audio exciter/resonator, 8 , AR-30 — Enlarge

Weatherproof and robust exciters/resonators for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces already create a partly impressive sound in the entire surrounding area. These resonators are not suitable for use on glass surfaces!

Weatherproof audio exciter/resonator, 8 Ω

Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
High power capability of 30 WMAX (AR-30) or 50 WMAX (AR-50)
Very robust and weatherproof version, thus suitable for outdoor applications and in extra dirty conditions
Suitable for home and outdoor PA applications, e.g. on doors, cupboards, shelves and on boats
Waterproof (IP68)
Supplied with screwable mounting plate

Specifications:

Power rating: 30 W_MAX
Impedance: 8 Ω
Frequency range: depending on the installation
Resonant frequency: 600 Hz
Minimum mounting surface: Ø 80 mm
Dimensions: Ø 80 mm x 40 mm
Weight: 0.65 kg

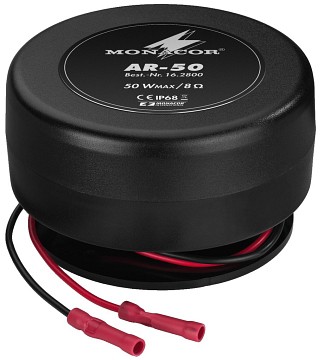

Weatherproof speakers: Low-impedance, Weatherproof audio exciter/resonator, 8 , AR-50 — Enlarge

Weatherproof and robust exciters/resonators for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces already create a partly impressive sound in the entire surrounding area. These resonators are not suitable for use on glass surfaces!

Weatherproof audio exciter/resonator, 8 Ω

Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
High power capability of 30 WMAX (AR-30) or 50 WMAX (AR-50)
Very robust and weatherproof version, thus suitable for outdoor applications and in extra dirty conditions
Suitable for home and outdoor PA applications, e.g. on doors, cupboards, shelves and on boats
Waterproof (IP68)
Supplied with screwable mounting plate

Specifications:

Power rating: 50 W_MAX
Impedance: 8 Ω
Frequency range: depending on the installation
Resonant frequency: 500 Hz
Minimum mounting surface: Ø 80 mm
Dimensions: Ø 90 mm x 55 mm
Weight: 0.95 kg

Weatherproof speakers: Low-impedance

Weatherproof high-performance PA speaker system, 400 WMAX/200 WRMS, 8 Ω, PAB-12WP/SW

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation, PAB-52WP/WS

Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation, PAB-6WP/WS

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation, PAB-8WP/WS

Extension speaker, 5 W_MAX, 3 W_RMS, 8 Ω AES-6

Weatherproof PA garden speaker "Rock" GLS-301/GR

Weatherproof pair of 2-way wall-mount speaker systems, 50 W_MAX, 8 Ω MKS-232/SW

Weatherproof flush-mount speaker, 30 W_MAX, 4 Ω, heat-resistant up to 120 °C. SPE-110P/SW

Weatherproof pair of flush-mount PA speakers, 30 W_MAX SPE-15F/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-254/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-264/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-284/WS

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 W_MAX, 8 Ω SPE-70/WS

Weatherproof audio exciter/resonator, 8 Ω, AR-30

Weatherproof audio exciter/resonator, 8 Ω, AR-50

Weatherproof speakers: Low-impedance

Weatherproof high-performance PA speaker system, 400 WMAX/200 WRMS, 8 Ω, PAB-12WP/SW

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation, PAB-52WP/WS

Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation, PAB-6WP/WS

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation, PAB-8WP/WS

Extension speaker, 5 WMAX, 3 WRMS, 8 Ω AES-6

Weatherproof PA garden speaker "Rock" GLS-301/GR

Weatherproof pair of 2-way wall-mount speaker systems, 50 WMAX, 8 Ω MKS-232/SW

Weatherproof flush-mount speaker, 30 WMAX, 4 Ω, heat-resistant up to 120 °C. SPE-110P/SW

Weatherproof pair of flush-mount PA speakers, 30 WMAX SPE-15F/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-254/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-264/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-284/WS

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 WMAX, 8 Ω SPE-70/WS

Weatherproof audio exciter/resonator, 8 Ω, AR-30

Weatherproof audio exciter/resonator, 8 Ω, AR-50

Extension speaker, 5 W_MAX, 3 W_RMS, 8 Ω AES-6

Weatherproof pair of 2-way wall-mount speaker systems, 50 W_MAX, 8 Ω MKS-232/SW

Weatherproof flush-mount speaker, 30 W_MAX, 4 Ω, heat-resistant up to 120 °C. SPE-110P/SW

Weatherproof pair of flush-mount PA speakers, 30 W_MAX SPE-15F/WS

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 W_MAX, 8 Ω SPE-70/WS
