Amplifiers: Mixing amplifiers

Universal stereo mixing amplifier SA-230/SW

Universal stereo mixing amplifier

Sing along! The clearly arranged user surface of the SA-230/SW makes listening to music and especially making music really enjoyable. One of the three stereo line sources at a time and three mono microphone sources can be mixed together without any problems. When combined with special karaoke CDs or DVDs, features like "one-touch karaoke" or "vocal partner" are available. An adjustable digital echo can be added to the microphone channels as an effect. The fanless cooling concept of the amplifier ensures a silent operation. The latest protective circuits provide protection against overload, overheating and short circuit.

100 WMAX
Silent operation due to fanless cooling concept
3 stereo line inputs
3 mono microphone inputs at the front panel, each with gain control
Adjustable digital echo for the microphone inputs
Karaoke feature
Vocal partner feature
LEDs for level control and active line inputs
Controls for volume, bass, treble, balance and digital echo
Stereo record output
482 mm (19") rack installation, 1 RS, with supplied mounting brackets

Specifications:

Output power:
Max. power: 2 x 50 W_MAX
RMS power:
Stereo 4 Ω: 2 x 25 W_RMS
Stereo 8 Ω: 2 x 20 W_RMS
General information:
Inputs: 175 mV/8 kΩ (line) 2.5 mV/3.5 kΩ (mic)
Frequency range: 20-20,000 Hz
S/N ratio: 62 dB
Digital echo: 200 ms
Equalizer: bass: ±10 dB treble: ±10 dB
Power supply: 230 V /50 Hz/150 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 432x45x275 mm
Weight: 4 kg
Connections: line: RCA L/R mic: 6.3 mm jack rec.: RCA L/R speaker: spring-load. speaker term.

Price per unit (Order No. mo-250740) EUR 161,50 excl. VAT: € 135.71 / $ 158.79

Universal stereo mixing amplifier SA-440/SW

Universal stereo mixing amplifier

Mixing made easy! An easy-to-use operating concept and clearly arranged features. Two stereo line sources and two mono microphone sources can be mixed together without any problems. Each input channel features a tone control. The master output levels can be preadjusted via recessed trimming potentiometers in order to protect them against overload. An optional remote switch can mute the stereo master outputs and the power amplifier

200 WMAX
Silent operation due to fanless cooling concept
2 stereo line inputs
2 balanced microphone inputs
Parallel stereo line input on the front panel
3-way equalizer for each microphone input
Common 2-way tone control for the two line inputs
Muting via optional momentary push-button/switch
2 adjustable stereo master outputs
Master output level can be preadjusted via trimming potentiometers
Adjustable headphone output
Stereo record output
LEDs for indicating overload (clip)
482 mm (19") rack installation, 1 RS, with supplied mounting brackets

Specifications:

Stereo 4 Ω: 2 x 45 W_RMS
Stereo 8 Ω: 2 x 30 W_RMS
Max. power: 2 x 100 W_MAX
Line input, stereo: 125 mV/10 kΩ
Microphone input: 1.3 mV/600 Ω
Master output, stereo: 1-3 V/100 Ω
Record output, stereo: 1 V/100 Ω
Headphones, stereo: 32 Ω, 2 x 24 mW
Frequency range: 20-20,000 Hz
THD: 0.05 %
S/N ratio:>60 dB
Equalizer, bass: ±12 dB/30 Hz
Equalizer, midrange: ±12 dB/1 kHz (voice only)
Equalizer, treble: ±12 dB/12 kHz
Power supply: 230 V /50 Hz/220 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 432x52x275 mm, 1 RS
Weight: 3.5 kg
Line input, stereo: 3 x RCA L/R
Microphone input: 2 x 6.3 mm jack, bal.
Master output, stereo: 2 x RCA L/R
Record output, stereo: 1 x RCA L/R
Headphones: 1 x 6.3 mm jack
Mute: plug-in screw terminal

Price per unit (Order No. mo-253880) EUR 215,90 excl. VAT: € 181.43 / $ 212.27

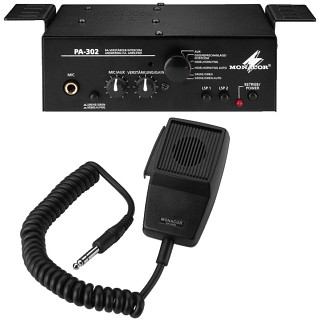

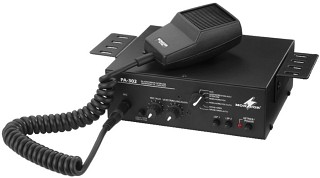

Mono PA mixing amplifier PA-302

Mono PA mixing amplifier, 20 WMAX.

1 microphone input, 1 line input
2 speaker outputs, switchable
Built-in speaker
Can also be operated as an intercom system
Supplied with hand-held push-to-talk microphone
Siren and fog horn, automatic fog horn
Metal housing
Supplied with mounting brackets
12/24 V battery operation, automatic switching

Specifications:

Output power: 14 W_RMS, 20 W_MAX
Mic input: 3 mV
Line input: 50 mV
Output: 4-16 Ω
Frequency range: 20-20,000 Hz
S/N ratio: 65 dB
THD:<0.5 %
Power supply: 12-15 V DC current /2 A, 24 V DC current /1 A
Admiss. ambient temp.: 0-40 °C
Dimensions: 175x60x170 mm
Weight: 1.5 kg
Inputs:
Mic: 1 x 6.3 mm jack
Line: 1 x RCA
Outputs:
Speakers: 2 x 2-pole plug-in screw terminal
Ext. speaker: 1 x 3-pole plug-in screw terminal with jumper
Power supply: 1 x 2-pole plug-in screw terminal

Price per unit (Order No. mo-171270) EUR 256,80 excl. VAT: € 215.80 / $ 252.48

Mono PA mixing amplifier PA-312

Mono PA mixing amplifier

1 x 120 WRMS
Silent operation due to fanless cooling concept
3 microphone inputs, one of which is a balanced input
Mic 1 with priority circuit and adjustable automatic talkover
2 aux inputs
1 telephone input for telephone systems with audio output
Speaker outputs via screw terminals
1 line output
Input and output level controls
2-way tone control for the output
48 V phantom power for channel 1, can be switched on additionally
482 mm (19") rack installation with supplied mounting brackets

Specifications:

Output power: 120 W_RMS, 160 W_MAX
Mic input: 5 mV/600 Ω
Line input: -
Aux input: 350 mV/10 kΩ
Telephone input: 1 V/10 kΩ
Speaker output: 4-16 Ω, 70/100 V
Frequency range: 50-16,000 Hz
Equalizer bass: ±10 dB/100 Hz
Equalizer, treble: ±10 dB/10 kHz
S/N ratio: 66 dB (mic) 80 dB (aux)
THD:<0.5 %
Power supply: 230 V/50 Hz/450 VA
Dimensions: 430x88x335 mm, 2 RS
Weight: 7.8 kg
Inputs: 1 x 6.3 mm/XLR (combo) 1 x 6.3 mm jack (mic 1) 2 x 6.3 mm jack (mic 2-3) 2 x RCA L/R (aux 1-2) screw terminals (telephone)
Outputs: 1 x RCA L/R (line out)

Price per unit (Order No. mo-173640) EUR 502,41 excl. VAT: € 422.19 / $ 493.97

Mono PA mixing amplifier PA-324

Mono PA mixing amplifier

1 x 240 WRMS
3 microphone inputs, one of which is a balanced input
Mic 1 with priority circuit and adjustable automatic talkover
2 aux inputs
1 telephone input for telephone systems with audio output
Speaker outputs via screw terminals
1 line output
Input and output level controls
2-way tone control for the output
48 V phantom power for channel 1, can be switched on additionally
482 mm (19") rack installation with supplied mounting brackets

Specifications:

Output power: 240 W_RMS, 340 W_MAX
Mic input: 5 mV/600 Ω
Line input: -
Aux input: 350 mV/10 kΩ
Telephone input: 1 V/10 kΩ
Speaker output: 4-16 Ω, 70/100 V
Frequency range: 50-16,000 Hz
Equalizer bass: ±10 dB/100 Hz
Equalizer, treble: ±10 dB/10 kHz
S/N ratio: 66 dB (mic) 80 dB (aux)
THD:<0.5 %
Power supply: 230 V/50 Hz/740 VA
Dimensions: 430x88x380 mm, 2 RS
Weight: 16.6 kg
Inputs: 1 x 6.3 mm/XLR (combo) 1 x 6.3 mm jack (mic 1) 2 x 6.3 mm jack (mic 2-3) 2 x RCA L/R (aux 1-2) screw terminals (telephone)
Outputs: 1 x RCA L/R (line out)

Price per unit (Order No. mo-174420) EUR 718,46 excl. VAT: € 603.75 / $ 706.39

Mono PA mixing amplifier PA-702

Mono PA mixing amplifier

1 x 35 WRMS
Silent operation due to fanless cooling concept
2 low-impedance microphone inputs
1 aux input, 1 phono input, switchable
Speaker outputs via spring-loaded terminals
Input and output level controls
3-way equalizer for the output
Connection for a microphone talk button to switch off the other sources during announcements
Mains operation

Specifications:

Output power: 35 W_RMS, 70 W_MAX
Mic input: 2 mV
Aux input: 150 mV
Phono input: 3 mV
Speaker output: 4/8 Ω, 100 V
Frequency range: 65-16,000 Hz, ±3 dB
Equalizer bass: ±10 dB/150 Hz
Equalizer midrange: ±10 dB/1 kHz
Equalizer treble: ±10 dB/6 kHz
S/N ratio:>55 dB
THD:<2 %
Power supply: 230 V /50 Hz/92 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 320x85x230 mm
Weight: 4.5 kg
Special feature:
Inputs:
Microphone: 2 x 6.3 mm jack
Aux, phono: 1 x RCA L/R each

Price per unit (Order No. mo-171330) - not available

Mono PA mixing amplifier PA-8120RCD

Mono PA mixing amplifier, with integrated CD/MP3 player and radio.

1 x 120 WRMS
CD player with drawer mechanism, repeat function and random play, reproduction of audio CD/CD-R/CD-RW, MP3 CD, USB interface, separate on/off switch
AM/FM radio module with 5 programmable station buttons, scan buttons, volume control and separate on/off switch
4 mic/line inputs, to be configured via DIP switches (mic/line, phase, high-pass filter, 48 V phantom power)
2 aux inputs, to be configured via DIP switches (aux1/aux2, 10 dB attenuation, high-pass filter)
Siren function and chime function
Priority circuit
Speaker outputs via screw terminals
Line output
Insert facility for preamplifier
Input and output level controls
2-way tone control for the output
482 mm (19") rack installation

Specifications:

Output power: 120 W_RMS
Mic input: 1.8 mV
Aux input: 300 mV
Phono input: -
Speaker output: 4/8/16 Ω, 70/100 V
Frequency range: 50-16,500 Hz, ±3 dB
Equalizer bass: ±10 dB/100 Hz
Equalizer midrange: -
Equalizer treble: ±10 dB/10 kHz
S/N ratio:>65 dB
THD: 0.5 % (1 W)
Power supply: 230 V /50 Hz/365 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 483x110x450 mm, 2 RS
Weight: 10.5 kg
Special feature: USB
Inputs:
Microphone: mic/line: 4 x XLR/6.3 mm (combo) 4 x plug-in screw terminal
Aux, phono: 2 x RCA L/R (aux 1/2) 2 x plug-in screw terminal

Price per unit (Order No. mo-173040) EUR 939,00 excl. VAT: € 789.08 / $ 923.22

Mono PA mixing amplifier PA-890RCD

Mono PA mixing amplifier, with integrated CD/MP3 player and radio.1 x 80 WRMS CD player with drawer mechanism, repeat function and random play, reproduction of audio CD/CD-R/CD-RW, MP3 CD, USB interface, separate on/off switch AM/FM radio module with 5 programmable station buttons, scan buttons, separate on/off switch 3 mic inputs, 1 of which can be switched mic/line Siren function Speaker outputs via screw terminals Input level control 2-way tone control for the output Mains operation or 24 V emergency power operation

Specifications:

Output power: 80 W_RMS
Mic input: 1.5 mV
Aux input: 300 mV
Phono input: -
Speaker output: 4 Ω, 70/100 V
Frequency range: 50-15,000 Hz, ±3 dB
Equalizer bass: ±10 dB/100 Hz
Equalizer midrange: -
Equalizer treble: ±10 dB/10 kHz
S/N ratio:>52 dB
THD: 1 %
Power supply: 230 V /50 Hz/265 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 400x340x110 mm, 2 RS
Weight: 9.5 kg
Special feature: USB
Inputs:
Microphone: 3 x 6.3 mm jack
Aux, phono: 1 x 6.3 mm jack

Price per unit (Order No. mo-173030) - not available
